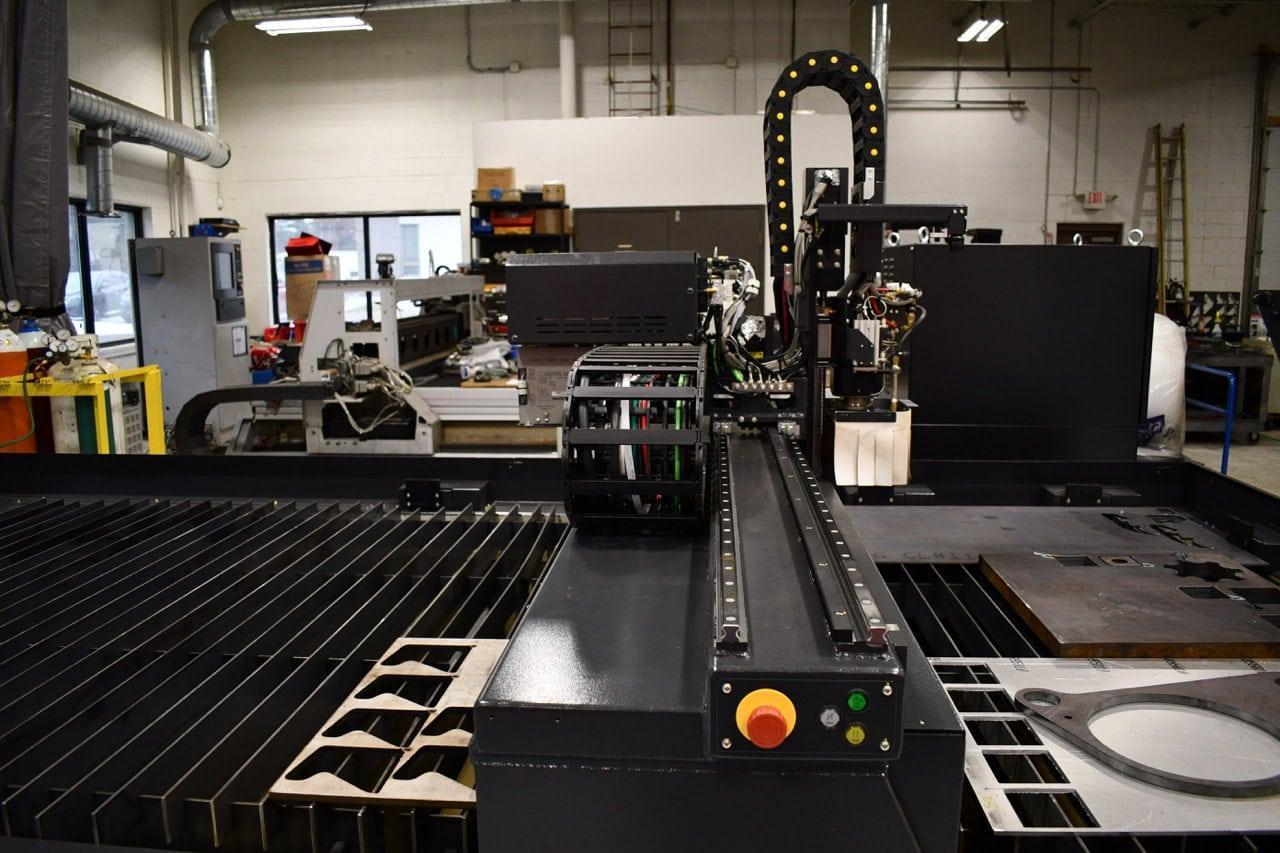

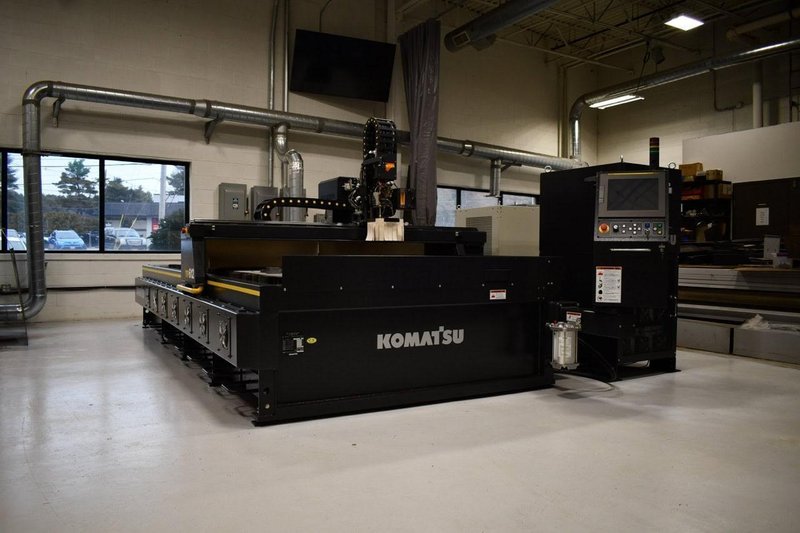

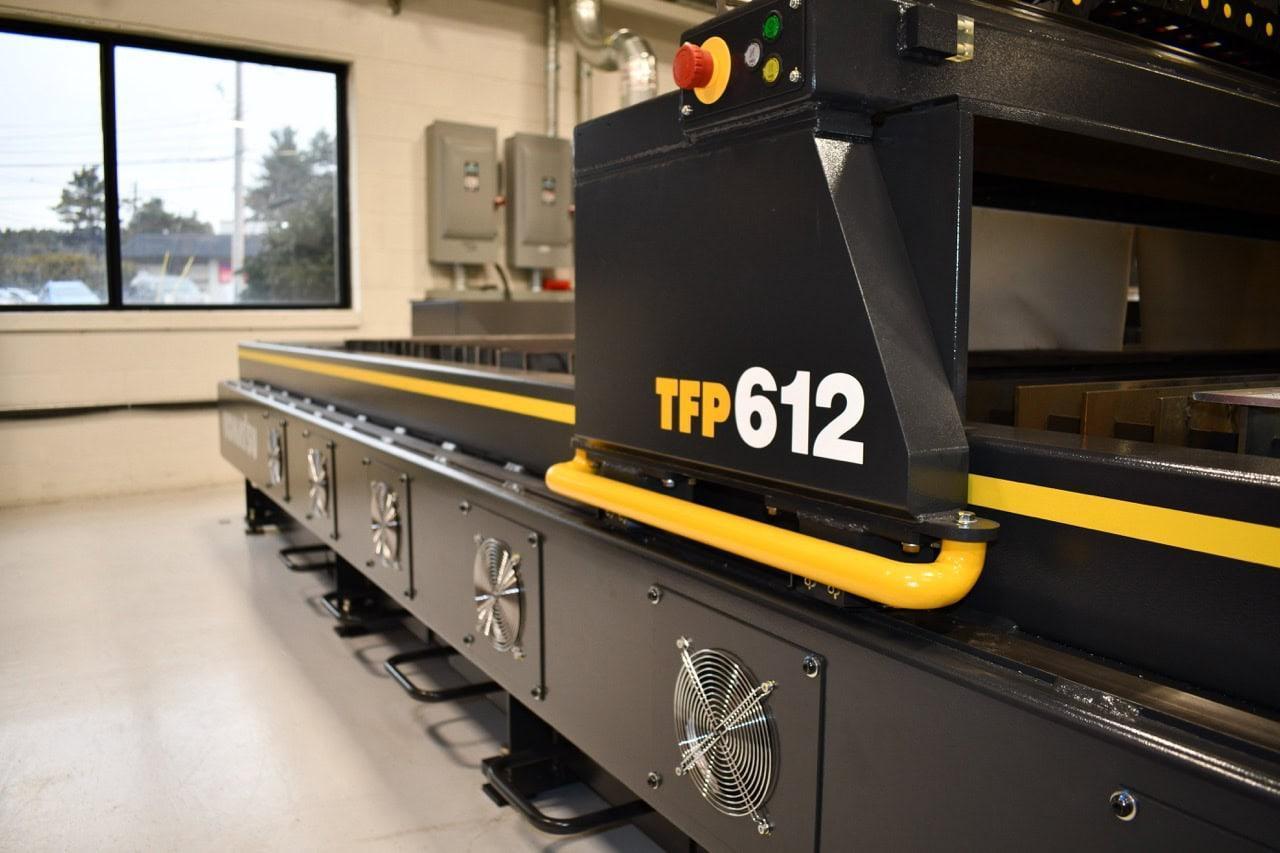

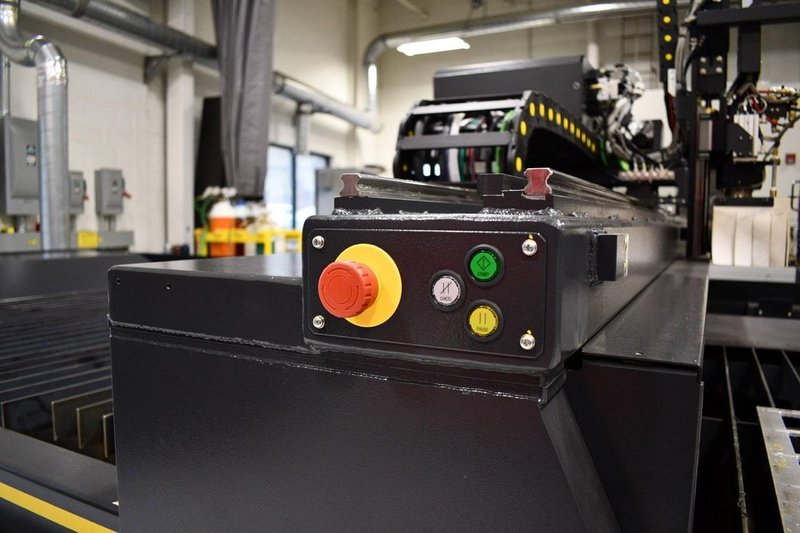

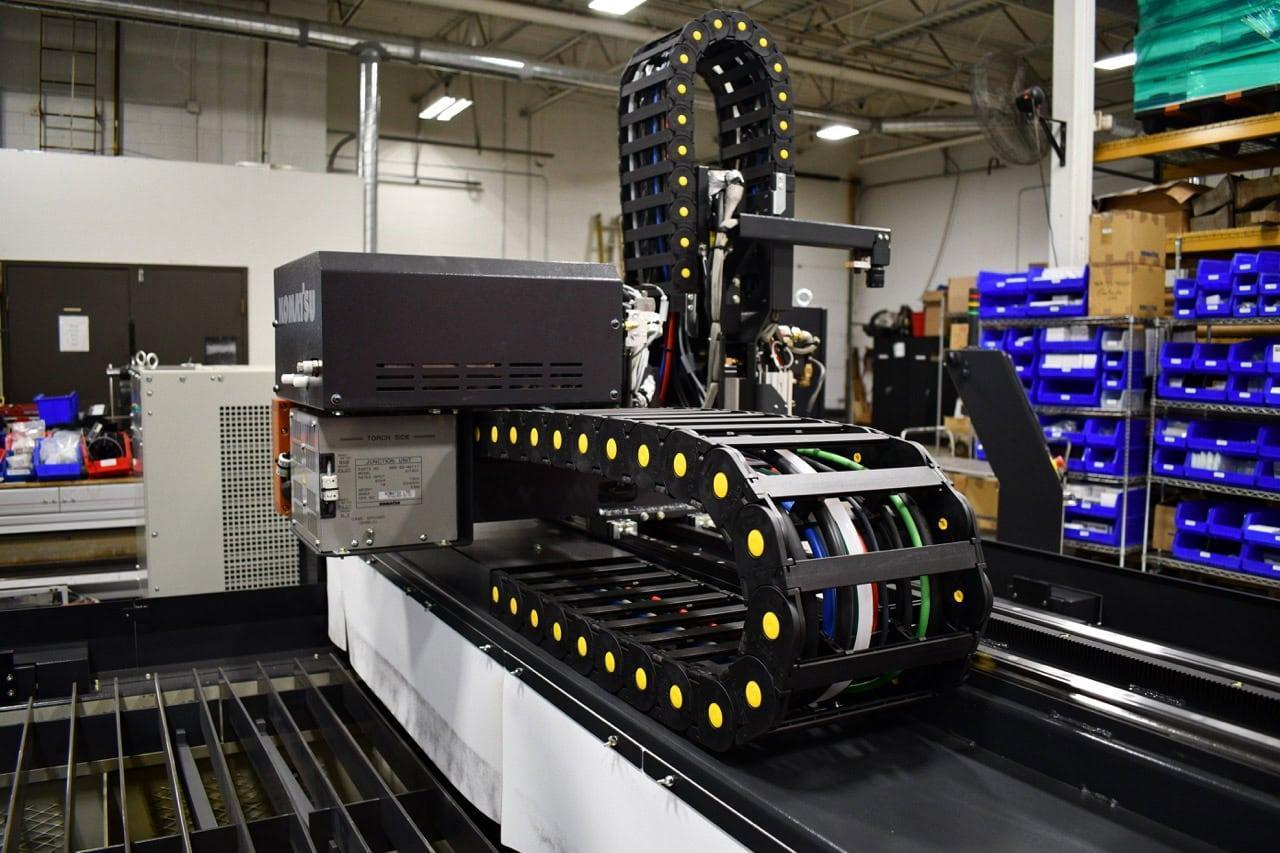

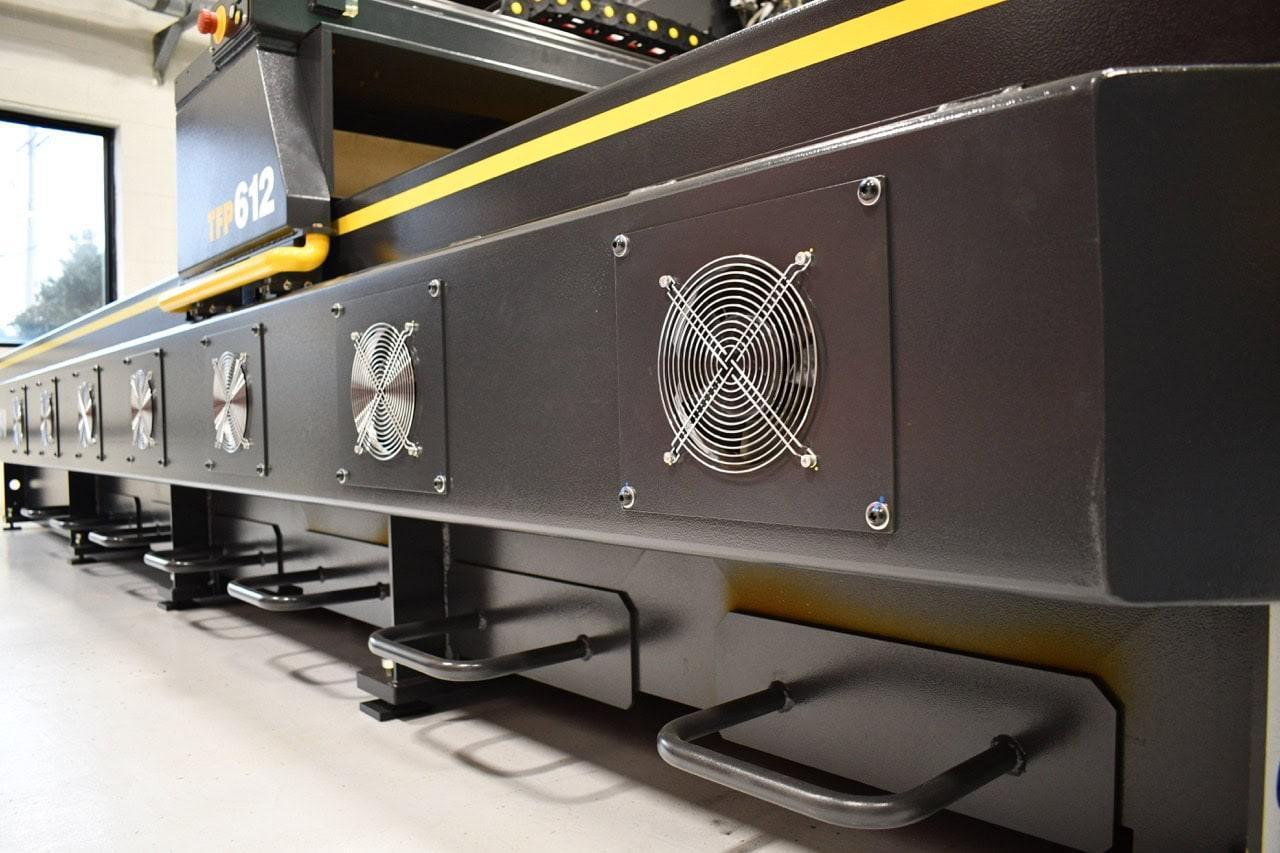

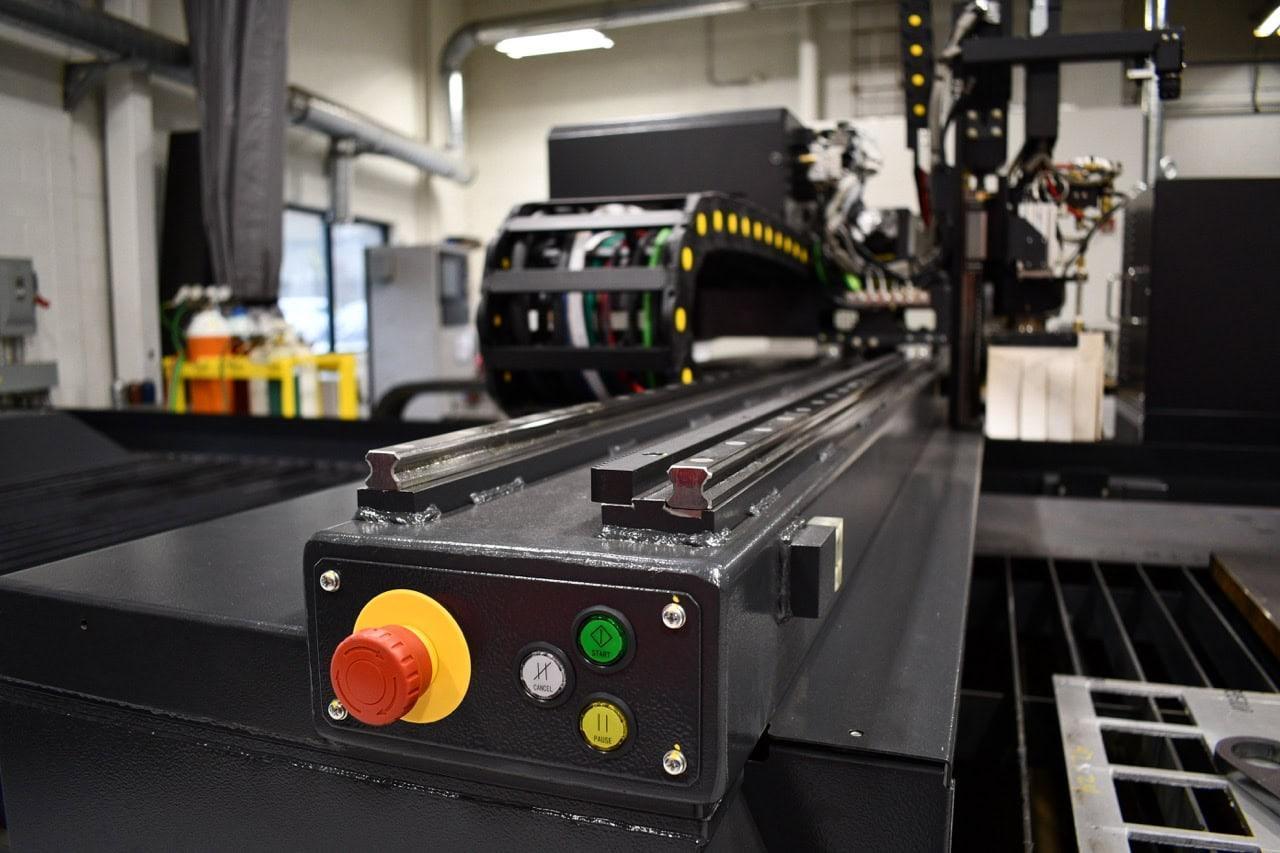

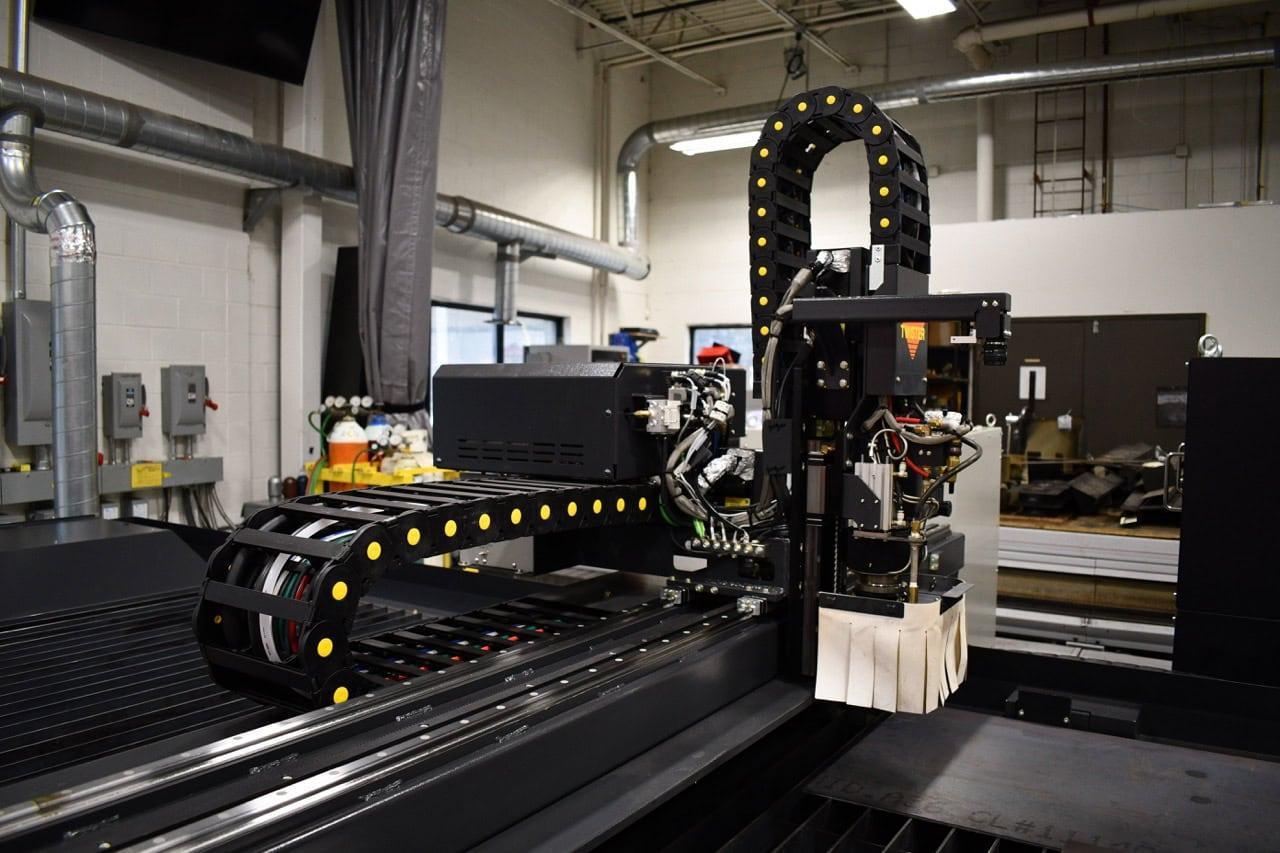

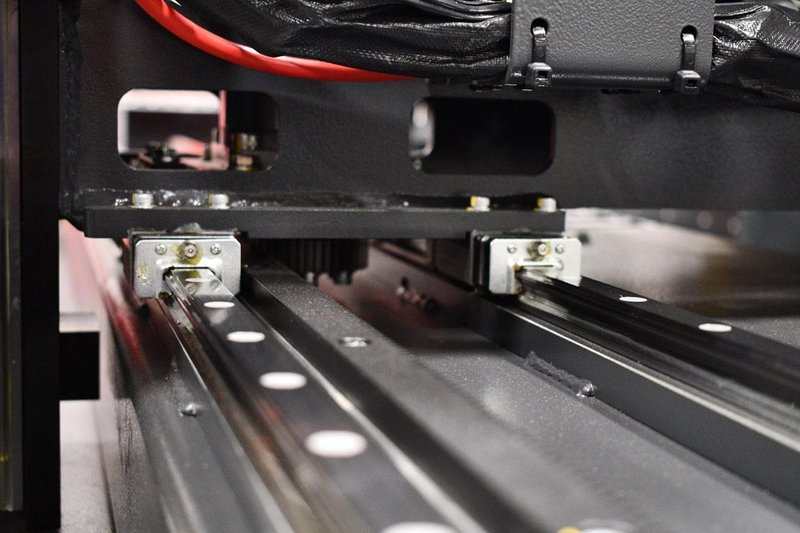

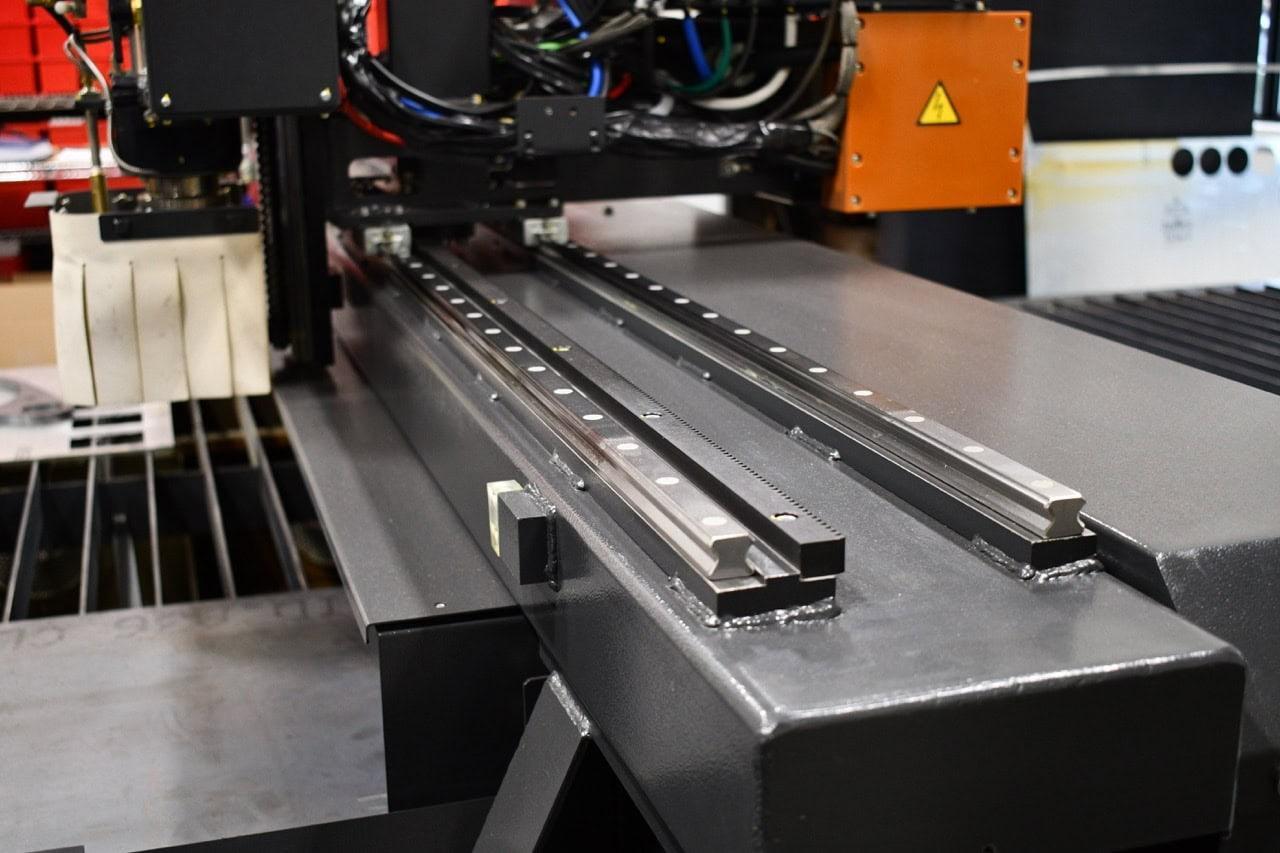

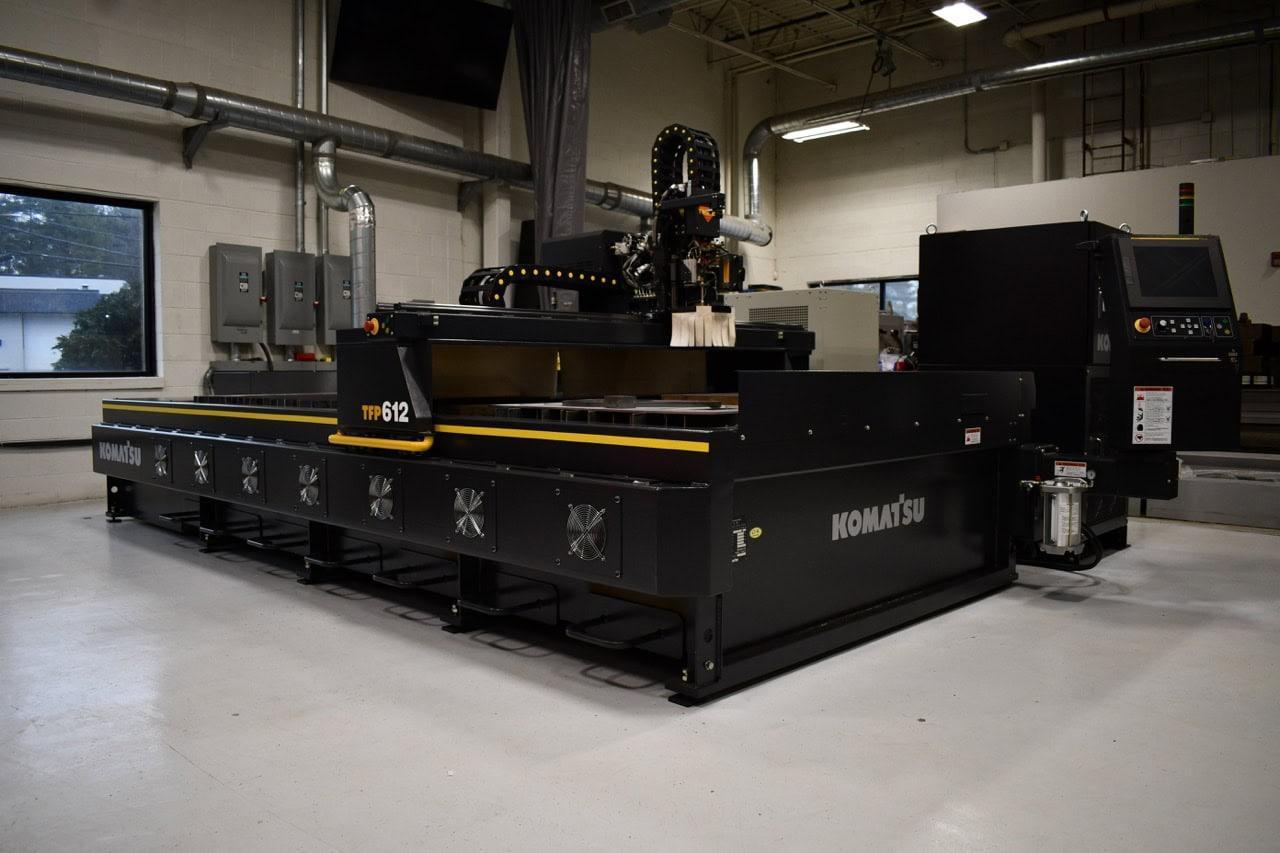

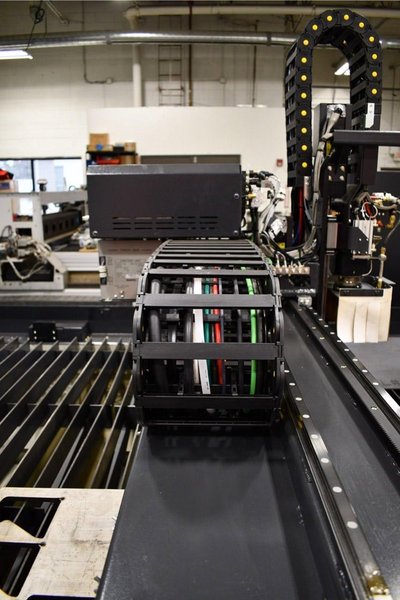

6′ X 12′ Komatsu TFP612-3 3 Series CNC Oxyfuel-Plasma Cutting System, 2023 – Komatsu 300 Amp, Warranty

Max Workpiece Dimensions:72″x144″ Max Material Thickness:0.59″ X Axis Travel:156.3″ Y Axis Travel:79.5″ Z Axis Travel:9.45″ X Axis Rapid Traverse: Max 590.55 in/min Y Axis Rapid Traverse: Max 1574.8 in/min Z Axis Rapid Traverse: Max 787.4 in/min Positioning Accuracy:± 0.0039″ Repeatability:± 0.002″ Machine Weight: 9480 lbs t Current:300 A/200 V/60 kW Output Current Adjustable Range:10-300 A Cooler Unit System Type: Forced Air Tank Capacity: 9 gal Torch Rated Current:300 A Torch Cooling System: Water Cooling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

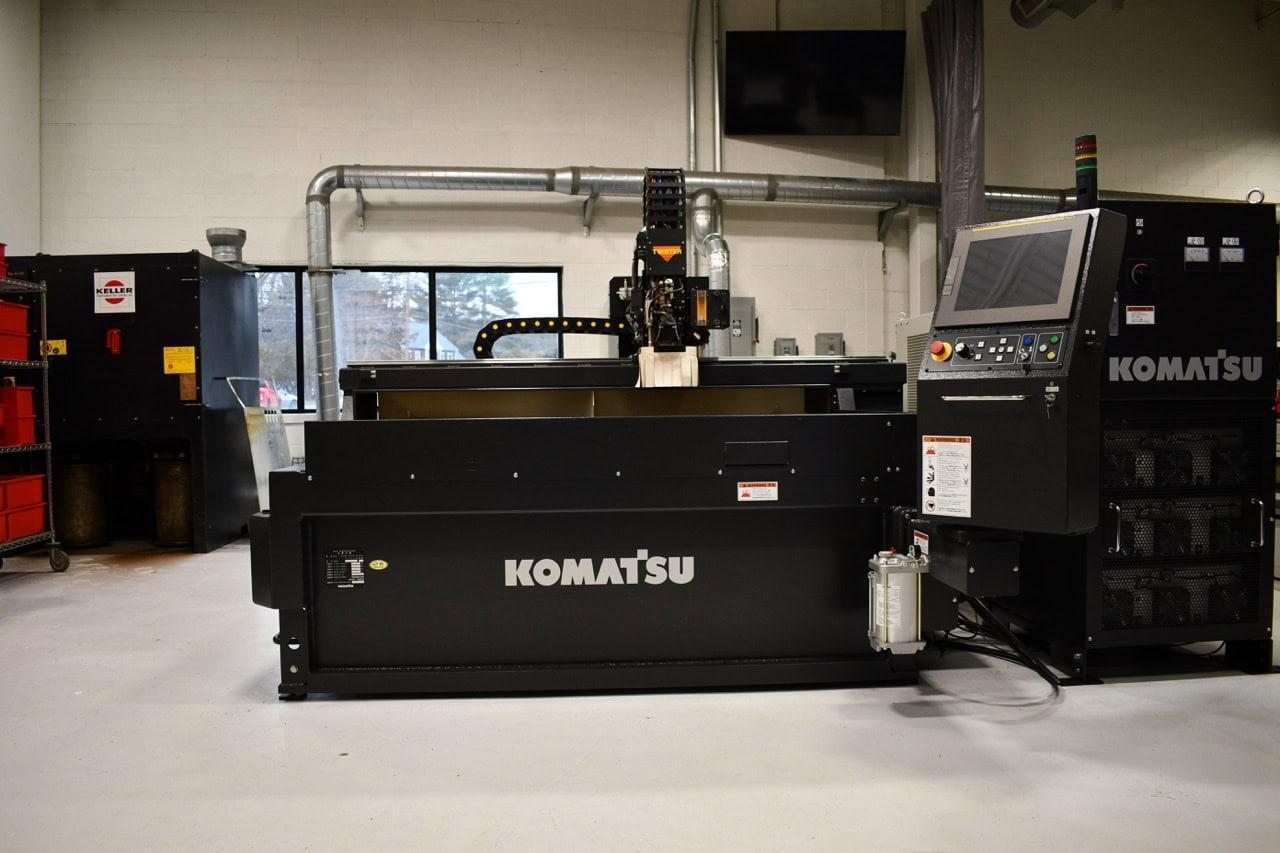

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fanuc 0i-MF CNC Control Windows 10-IOT Panel Computer 2MB NC Editing Memory 400 Program Storage 15″ Color LCD Touch-Panel Display

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
