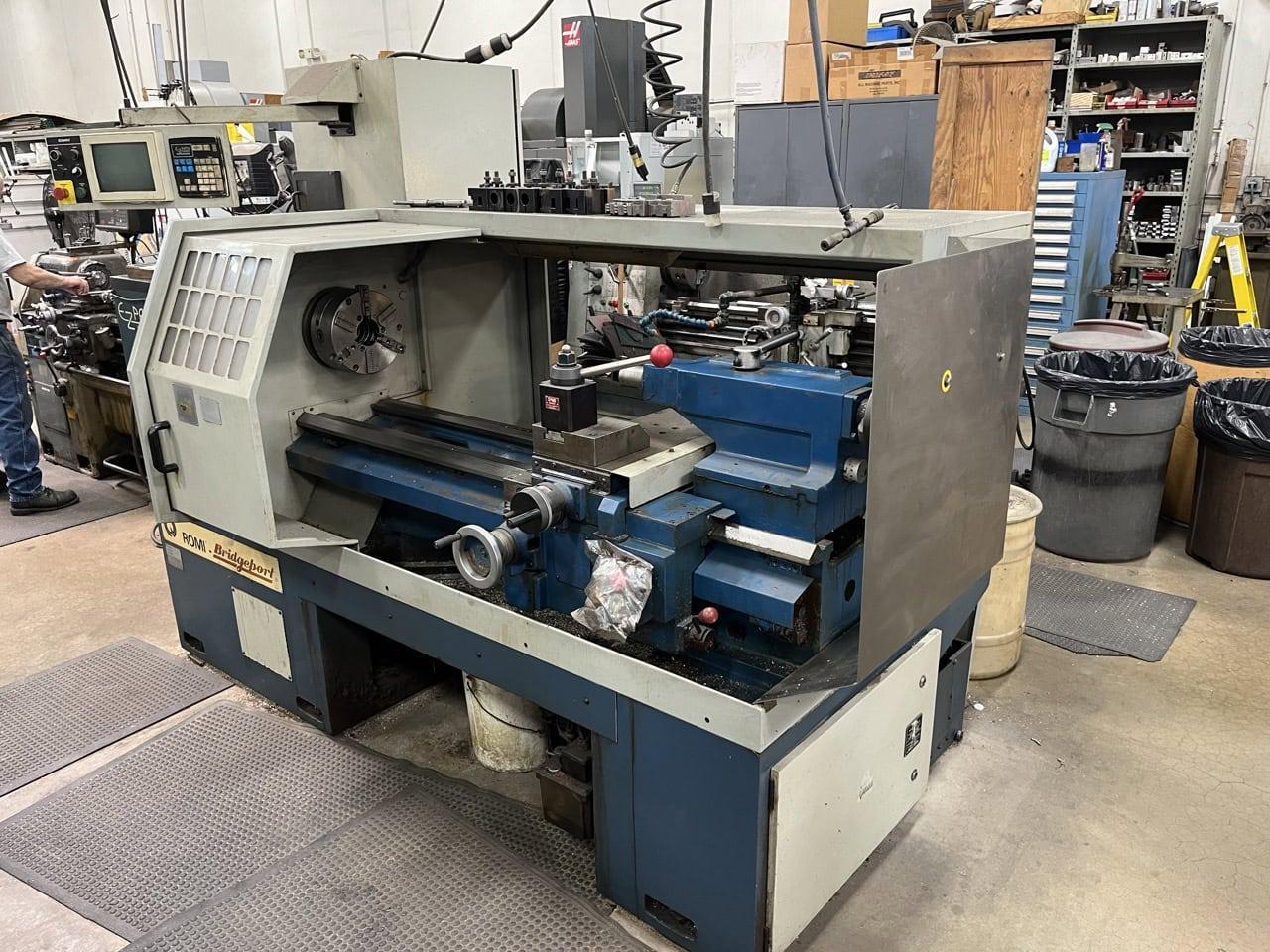

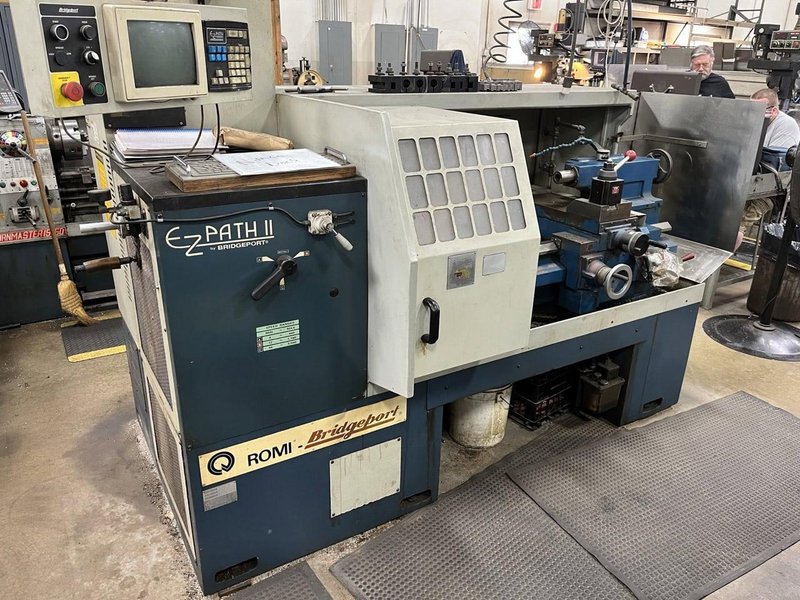

Romi Bridgeport EZ-Path II CNC Teach Lathe, 1996 – 20″ x 40″, Tailstock, Tool Post, Tooling
Brand
Category
Type
Model
EZ-Path II
Stock #
798636
Year
1996
Condition
Not specified
Location
Not specified
|
Swing Over Bed 20”
Swing Over Cross Slide 10”
Distance Between Centers 40”

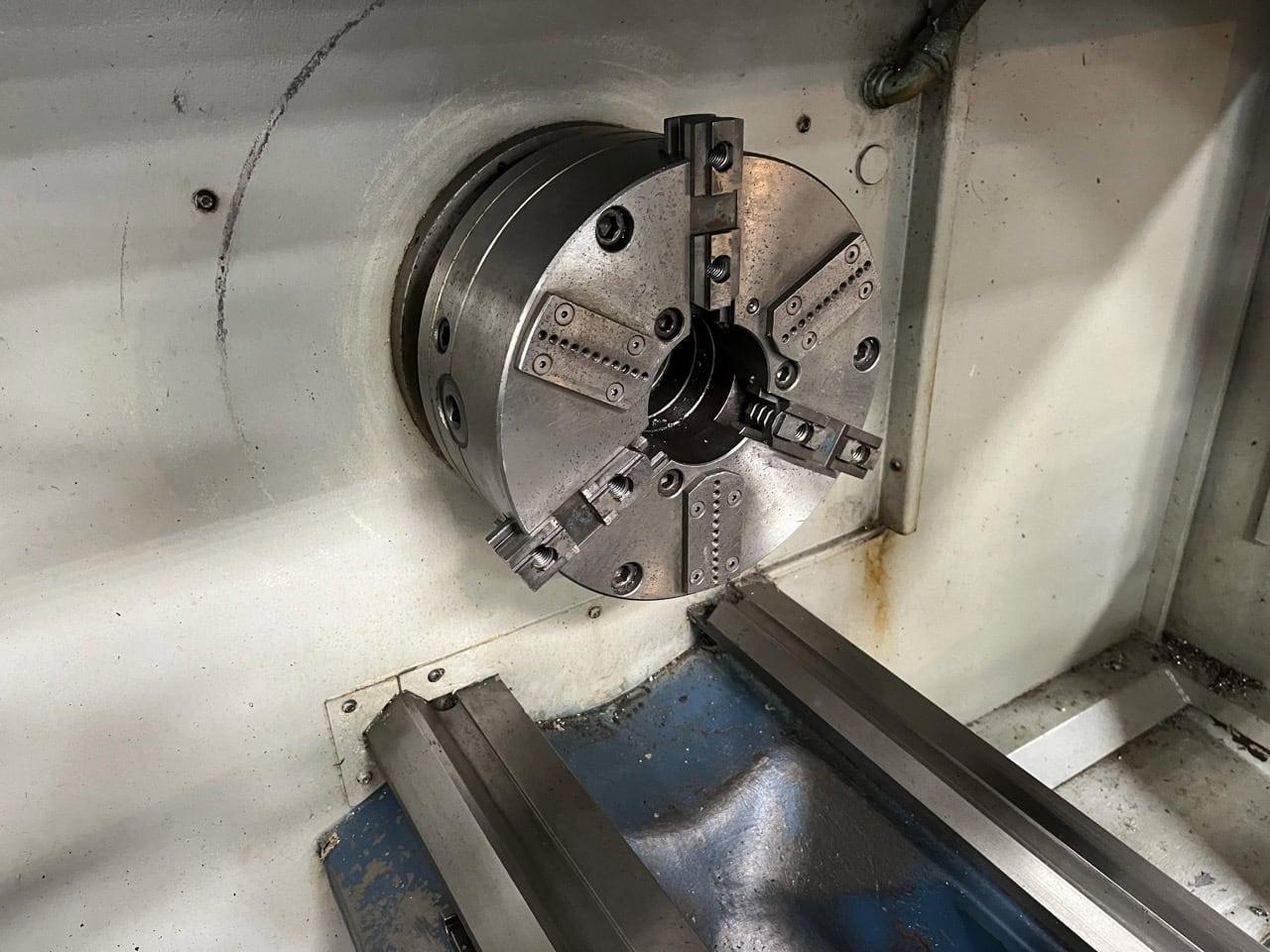

Chuck Size: 10″
Spindle Speed (3 Steps): 4 – 3,500 RPM
Spindle Motor 8 H.P
Spindle Nose A2-5
Spindle Bar Capacity 2”
Quill Taper MT #4
Quill Diameter 2”
Quill Travel 6.3”

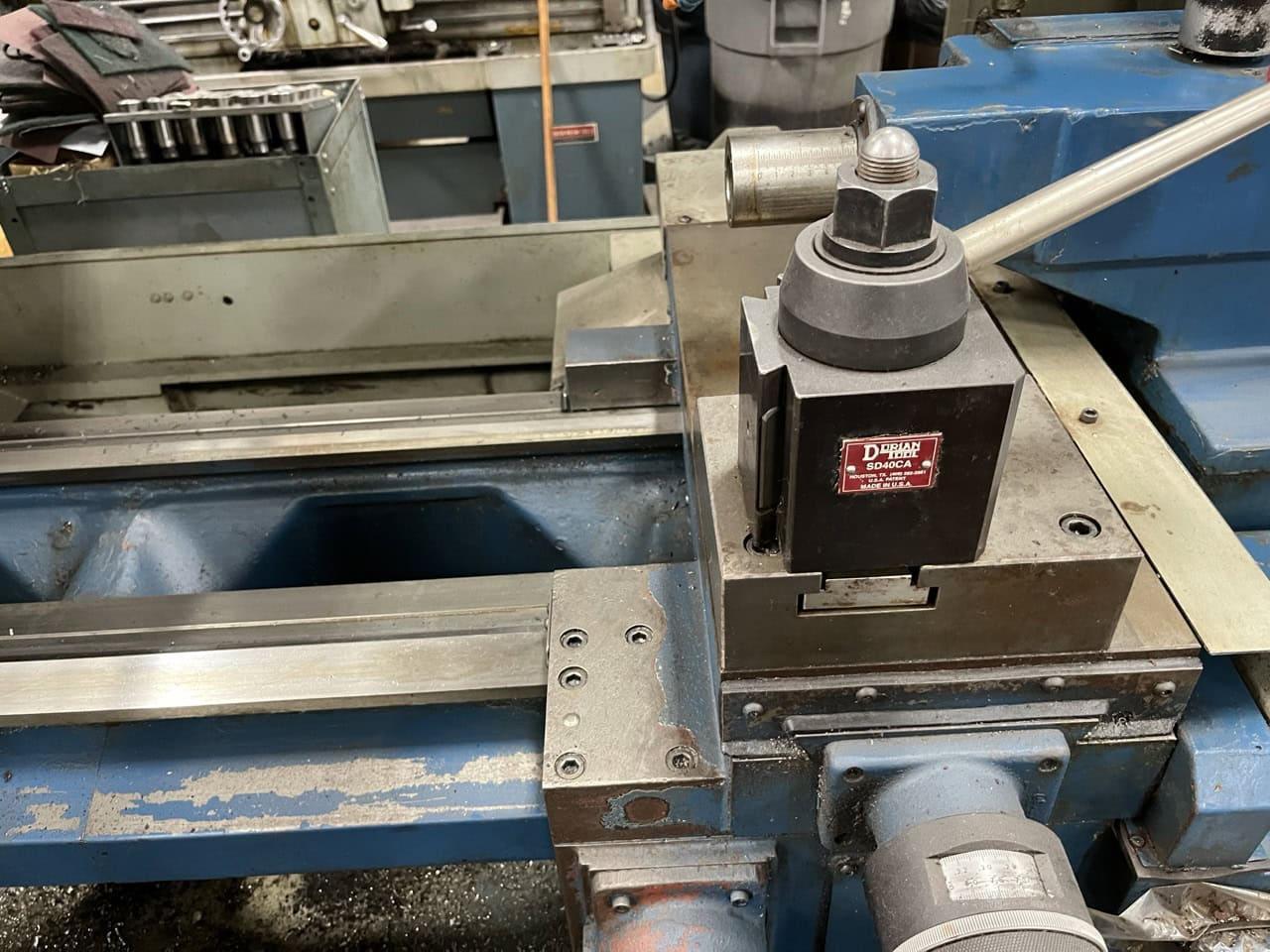

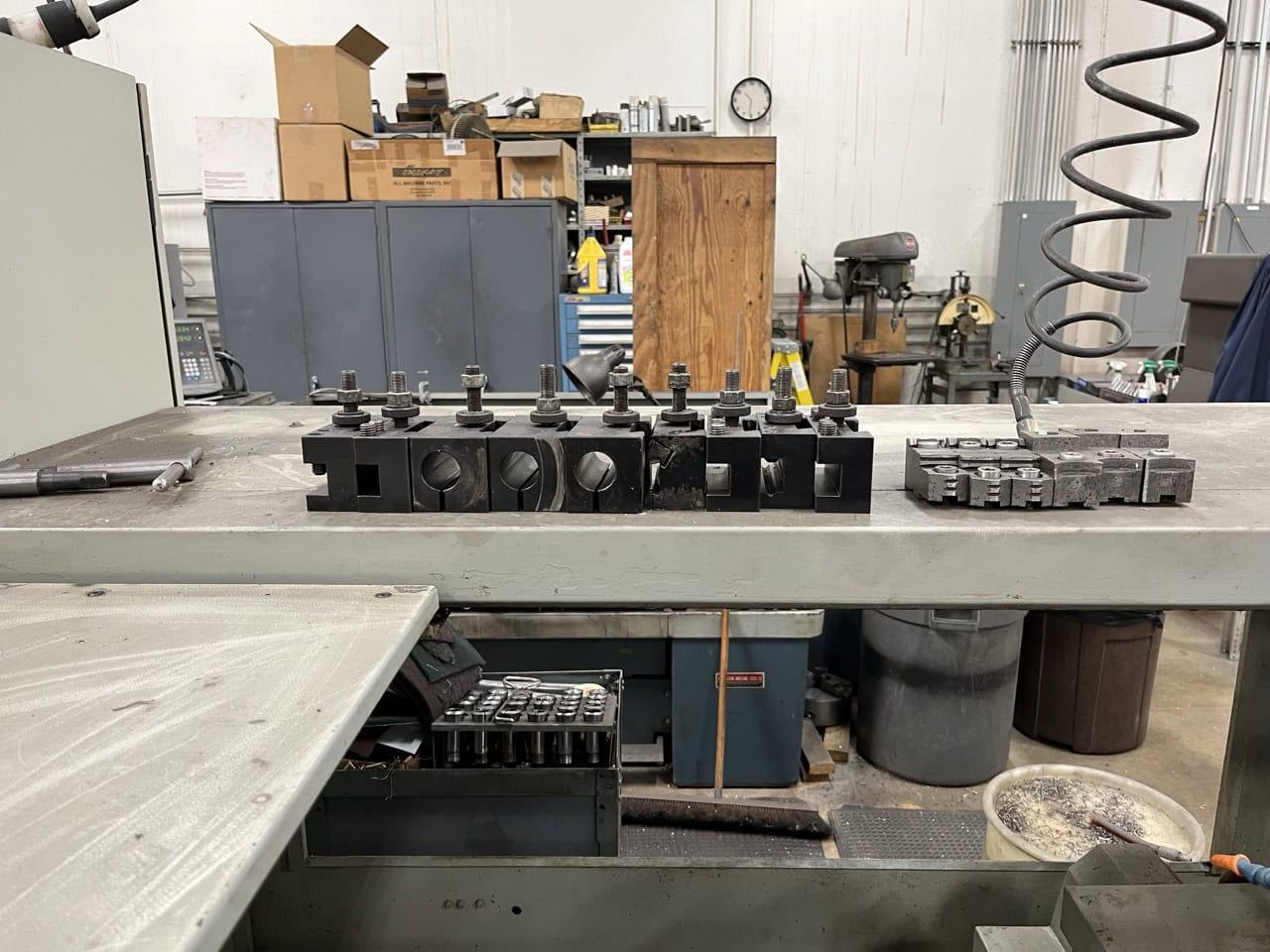

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approx Dimensions: (LxWxH): 72″ x 36″ x 52″ Approx Machine Weight: 5,000 lbs All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: EZ Path Control Tailstock Dorian Tool Post 3-Jaw Chuck Available Tooling/Holders All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
