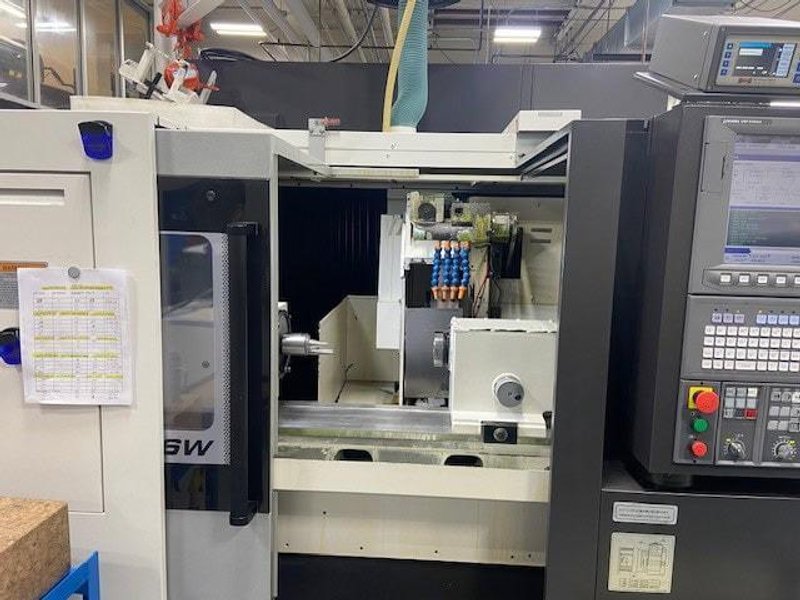

Okuma GP-26W x 65 Compact Cylindrical Grinder, 2019 – Including Plain and Angle Head, Jib Crane, SBS Auto Wheel Balancer

Key Capacities & Sizes:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Distance Between Centers: 25.59” Wheel Diameter: 24.02” Swing Over Table: 12.99” Max Grinding Diameter: 7.87” Max Workpiece Weight (centers): 110 lbs. Max Workpiece Weight (chuck on dead/live work head): 88 lbs. x 7.87”

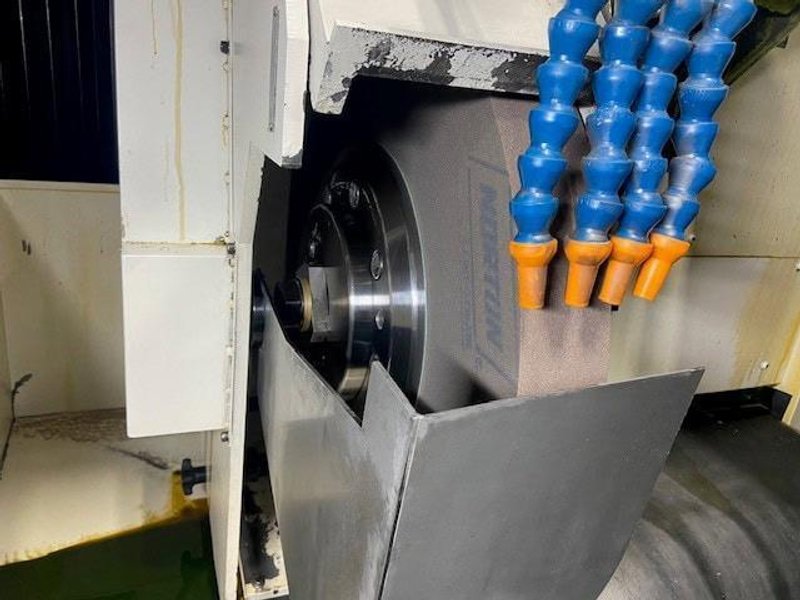

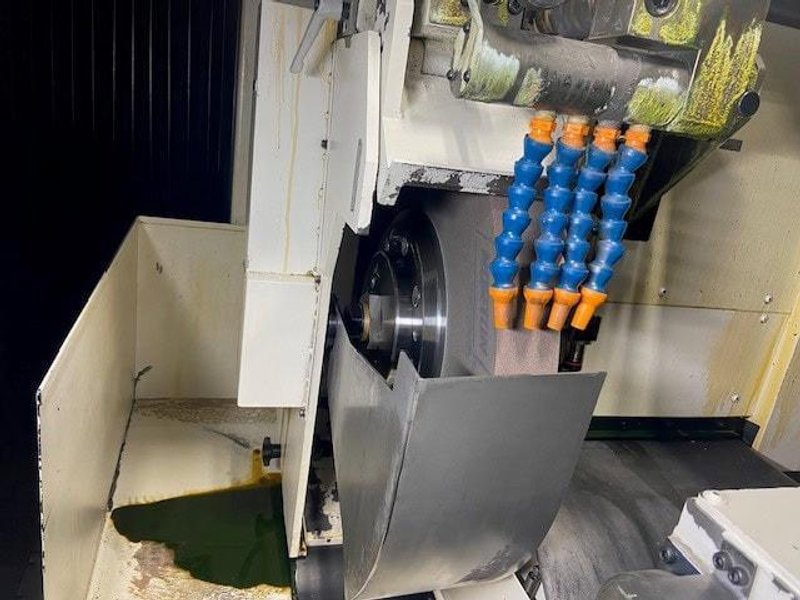

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wheel Spindle: Wheel Size (OD x W x ID): 24.01” x 3.95” x 10” Maximum Peripheral Speed (fpm): 8,858 Max Wheel width for standard wheel Flange: 3.94”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wheel Head: X-Axis Setting Angle: 90 degree Overall Travel: 16.53” Travel per pulse handle revolution(in.): 0.01, 0.1, 0.5” Travel per pulse handle graduation(in.): 0.0001, 0.001, 0.005” Auto-infeed speed: 0.00005 – 236 ipm Positioning Speed: 1,181 ipm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Saddle: Z-Axis Overall Travel: 25.59” Travel per pulse handle revolution (in.): 0.01, 0.1, 0.5 Travel per pulse handle graduation (in.): 0.0001, 0.001, 0.005 Positioning Speed (ipm): 787

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Workhead: Taper on center hole: MT #4 (Dead Workhead – USA Standard) Spindle Speed (rpm): 25 ~ 650

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Footstock: Center Taper: MT #4 Taper Adjustment (manual): +/- 0.0031 Quill Auto Travel (hydraulic): 1.97”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor: Wheel Spindle Motor (hp): 10 HP Wheel Slide (X Axis) motor (hp): 3 HP Wheel Slide (Z Axis) motor (hp): 4 HP Work Spindle Motor: (hp): 3 HP Coolant Pump Motor (hp): 2 HP

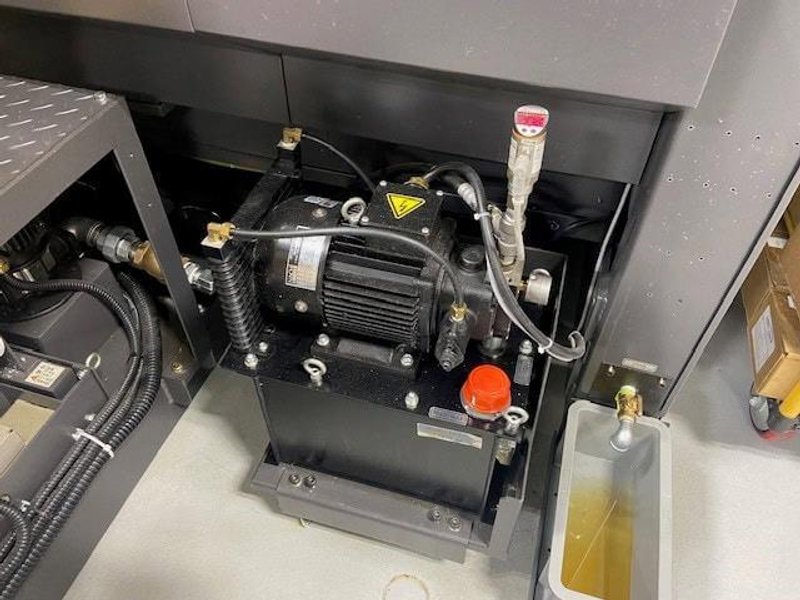

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tank Capacity: Wheel spindle lube tank: 5.3 gallons Hydraulic Oil Tank: 5.3 gallons Slideway Lube Tank: 1.1 gallons

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Floor Space (W x D x H): 114.7” x 98.8” x 87.1” Machine Weight: 12,760 lbs

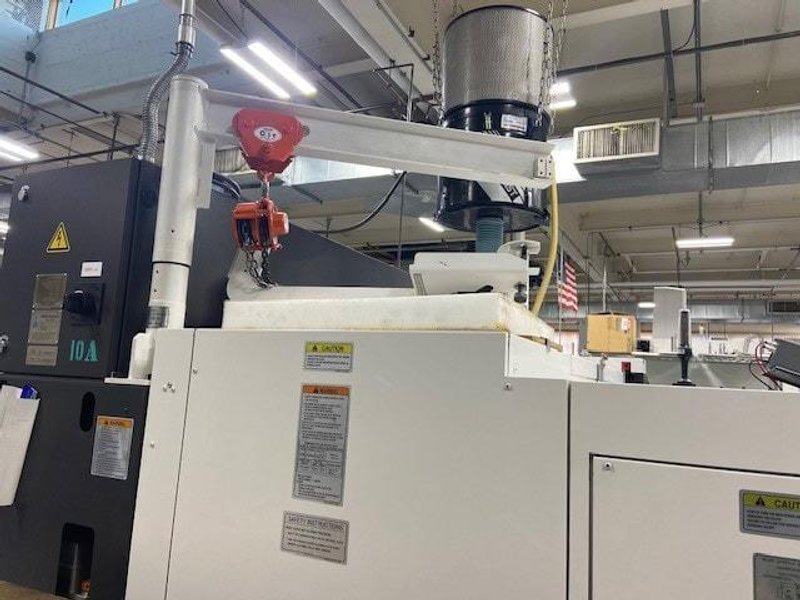

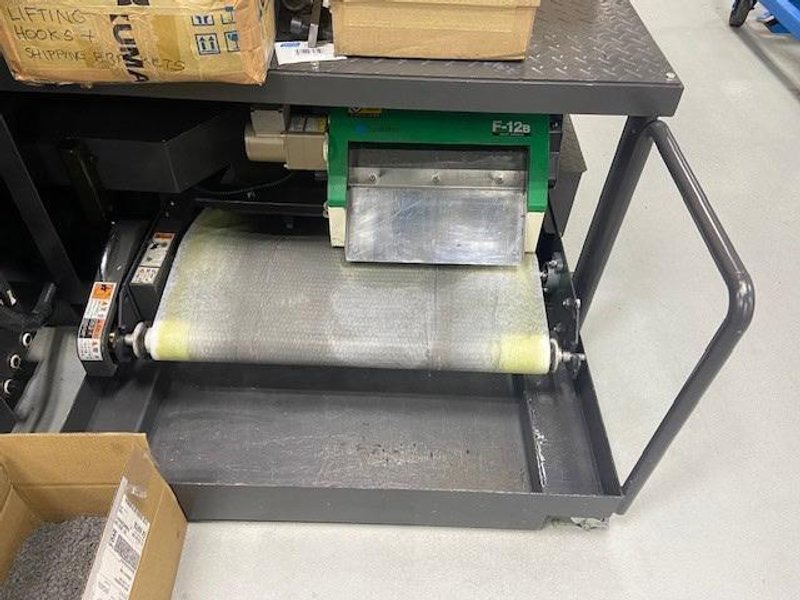

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Included Options: Control – OSP P300GA THiNC Air Regulator and Filter Jib Crane SBS Auto Wheel Balancer, 1-3″ Spindle Motor – 20 HP (15kW) Marposs Wheel head Attachment T25G Dead/Live Switchable Work head Wheel Flange 19-35mm, 610 Diameter Norton Grinding Wheels Spec 64A120-K8 V127 (2) Coolant for Table Wash, W/ Pump. Filter System Mag/Paper SMFP12

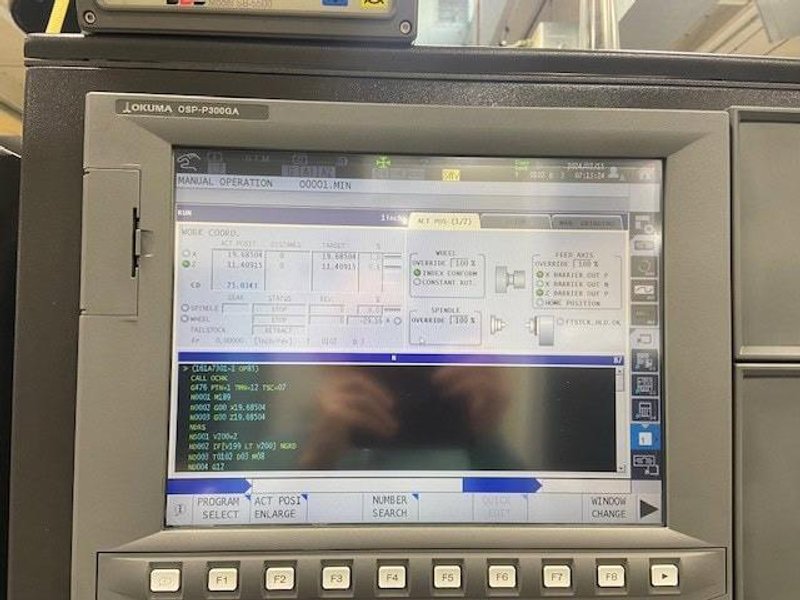

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controller Specifications: Control – OSP P300GA THiNC 15” Color Touch Screen 120 GB Hard Disk 4 GB Memory Storage 2 USB Ports, 1 RS-232 Port API – Application Program Interfaces API Library Arc Radius Programming Circular Interpolation Corner Chamfering Data Setting Function Display Function Display Wheel Change Indication Display Wheel Change Warning Droop Control Ethernet 10 Base/100 Base/ 1000 Base Fixed Grinding Cycles Help Function Hi-G Control Inch/Metric Switchable Linear Interpolation Manual Interrupt MT Connect Capability OSP I-GAP-D Parameter I/O PLC Monitor Program Name Index Display Program Edit Function Rapid Traverse Override RS232C 1CH Sequence Number Search Sequence Restart Spindle Speed (G99 Mode) Taper Angle Programming Tool Offsets (80) User Task II – Macro Functions Variable Lost Motion Compensation Windows Operating System Work Piece Coordinates / Grinding Wheel Coordinates
