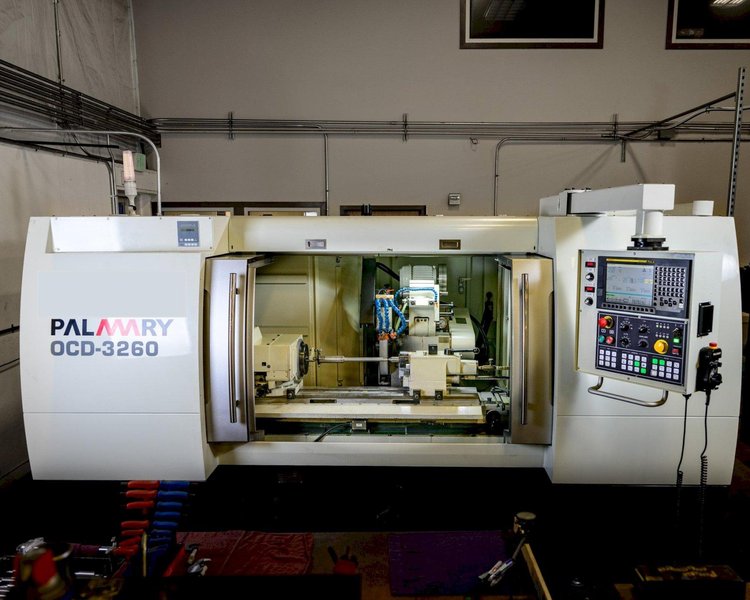

Palmary OCD-3260 CNC OD Grinder, 2020 -Touch Probe, Swing Down ID Attachment, Mag/Paper Filtration

Distance Between Centers: 23.62″ Swing Over Table: 12.60″ Max. External Grinding Diameter: 11.81″ X-Axis Max. Stroke: 10.24″ Z-Axis Max. Stroke: 26.18″ X-Axis Rapid Feed Rate: 32.81 Ft/min Z-Axis Rapid Feed Rate: 32.81 Ft/minMin. Input Increment: 0.00004″ (Or 0.000004″ In Fine Mode) Max. Grinding Wheel Outer Diameter: 16″ Grinding Wheel Width/Thickness: 2″ To 3″ Grinding Wheel Inner Diameter (Bore): 5″ Wheel Speed: 1783 Rpm Max. Load Between Centers: 220.46 Lbs Net Machine Weight: 7936.64 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc 0i-TF Plus CNC Control Touch Probe Swing Down ID Grinding Attachment Magnetic / Paper Coolant Filtration System All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
