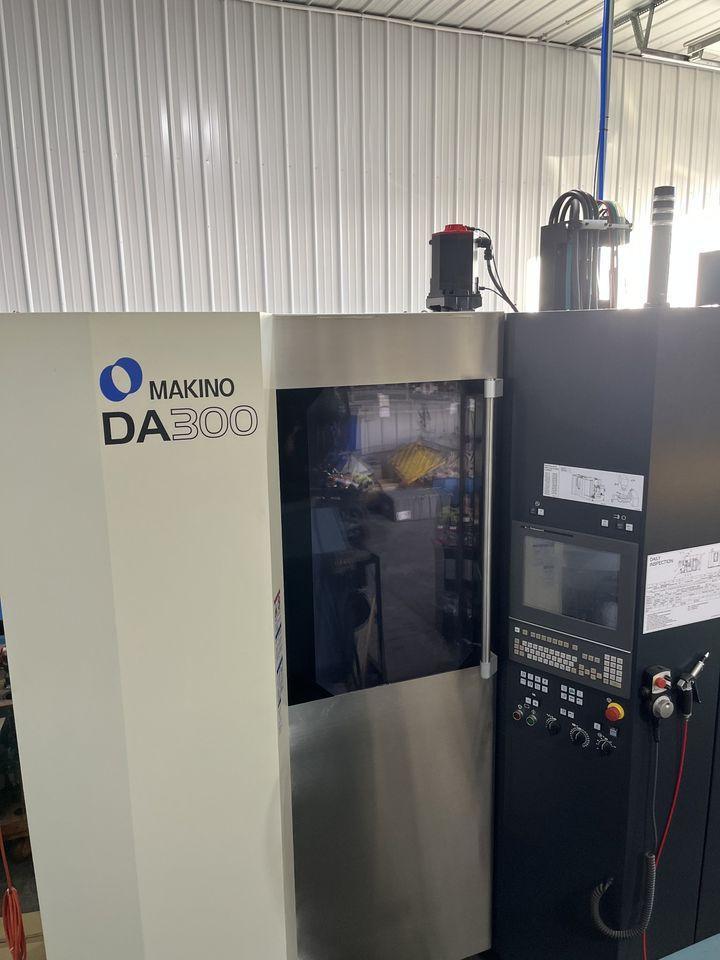

Makino DA300 VMC, 2021 – 5 Axis, 1000 psi CTS, 60 ATC, Low Hours, Loaded With Options, Available For Inspection Under Power

X-axis travel: 17.7″ Y-axis travel: 25.59″ Z-axis travel: 19.68″ A-axis table tilt: 150° (+30° to -120°) C-axis table rotation: 360°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Positioning (full travel) X-Y-Z Standard with Moiré Scales: +/- .000060” A-axis: +/- 3 sec C-axis: +/- 2 sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Repeatability X-Y-Z Standard with Moiré Scales: +/-.000040″ A-axis: 3 sec C-axis: 2 sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X/Y/Z rapid traverse: 2,362 IPM X/Y/Z feedrate: 1,968 IPM A-axis (tilt) rapid traverse/feedrate: 100/100 RPM C-axis (rotate) rapid traverse/feedrate: 150/150 RPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X/Y/Z axes jog feed: 393 IPM A & C axes jog feed: 25 RPM

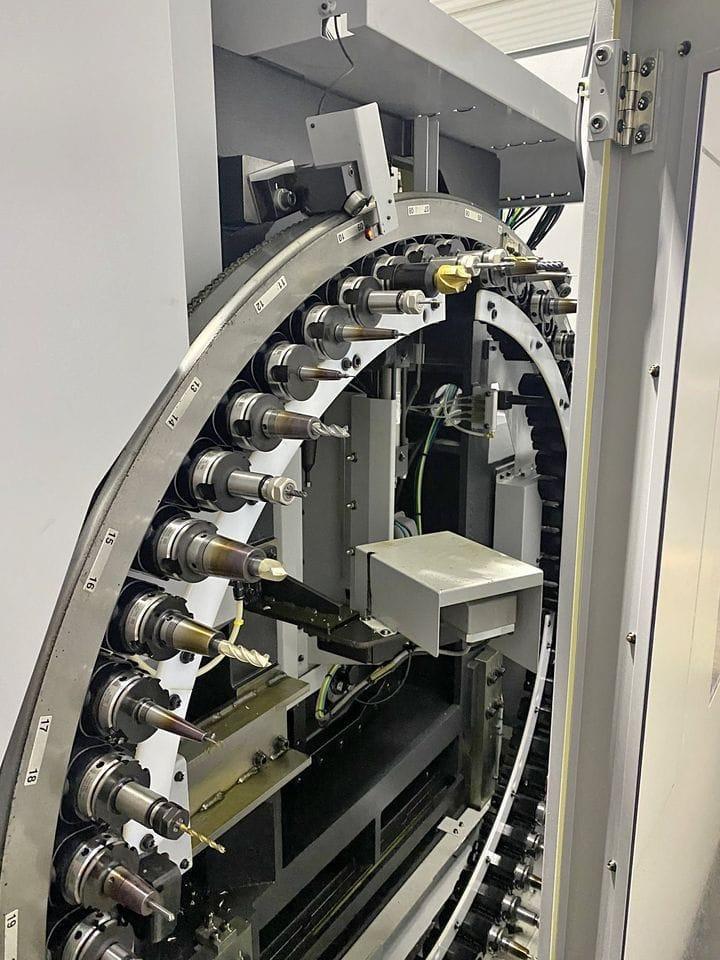

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle: 20,000 RPM Spindle taper: HSK – A63 Spindle motor: 14.75 ATC: 60 Table size: 11.81″ x 13.38″ Maximum payload: 551 LBS

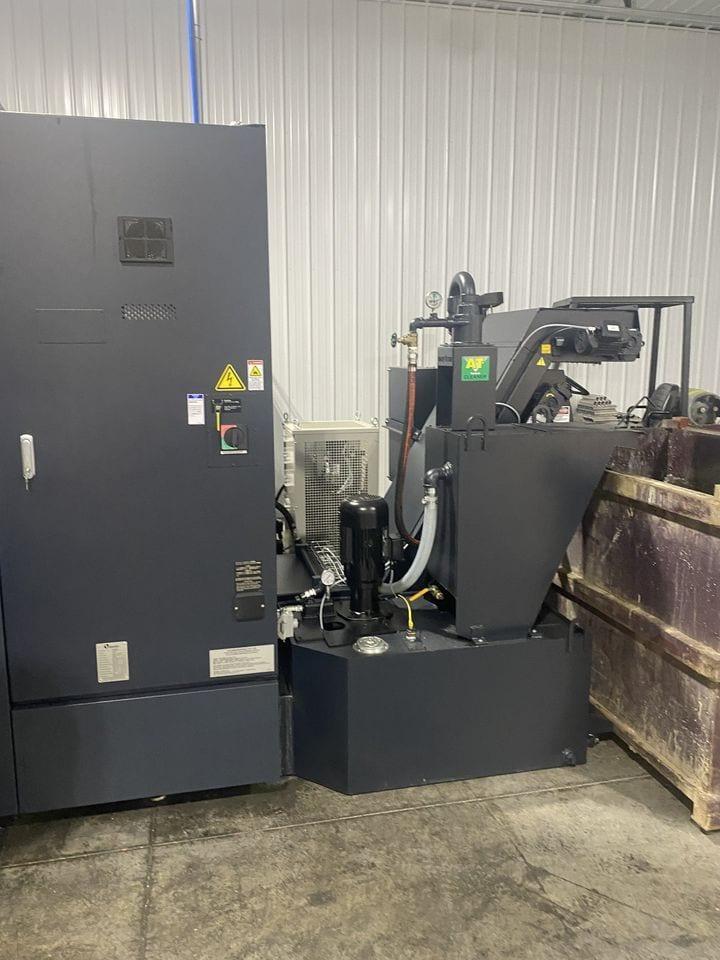

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with Thru Coolant Spindle 1000psi Chip Auger Probing 4th & 5th Axis

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
