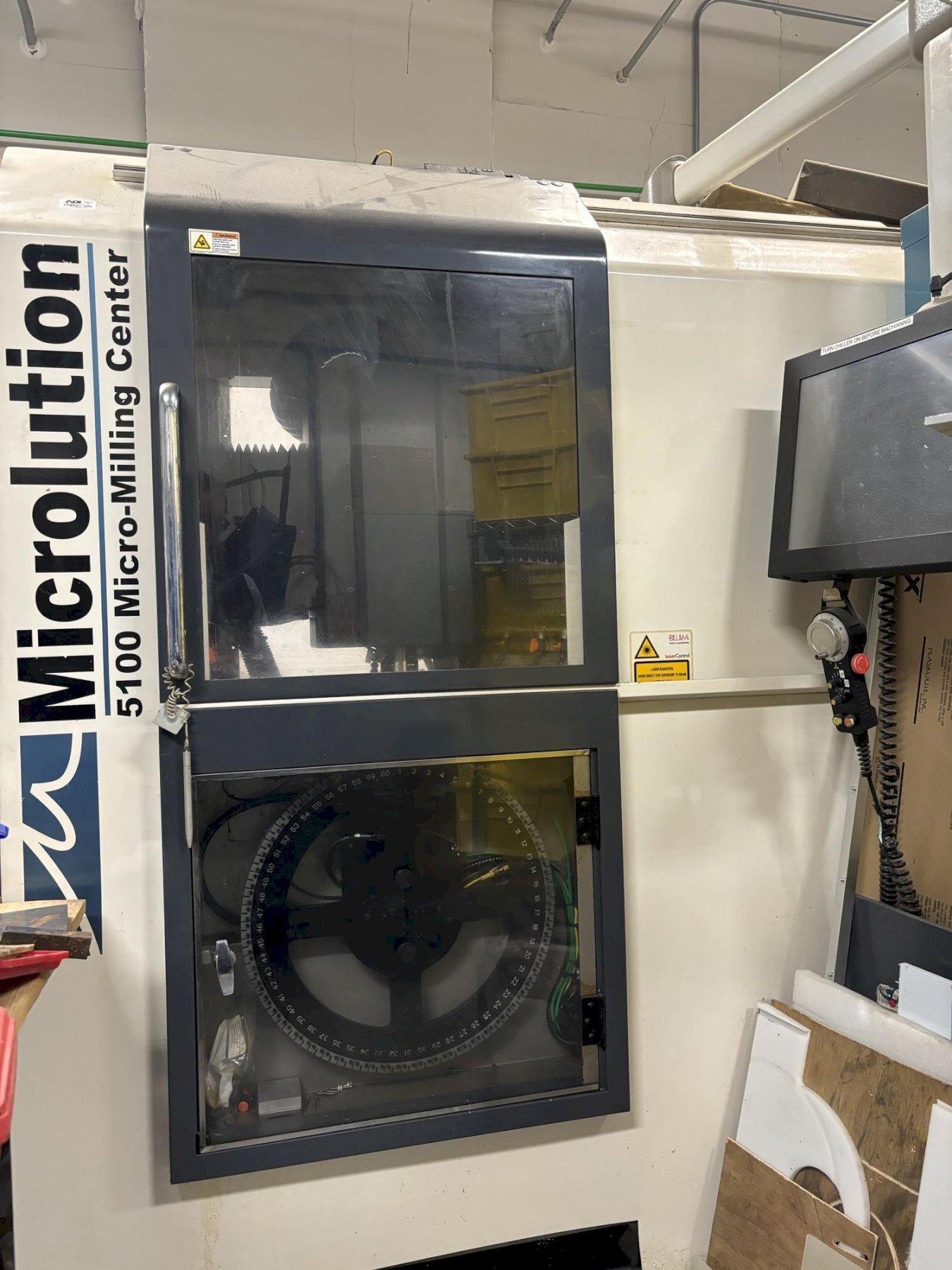

Microlution 5100-S VMC, 2009 – 5-Axis, 50,000 RPM spindle

X-Axis: 3.94″ (100mm) Y-Axis: 3.94″ (100mm) Z-Axis: 3.94″ (100mm) ATC: 60 Alfred-Jager spindle featuring a max speed: 50,000 rpm Footprint (W x D x H) 65″ x 40″ x 84″ Weight: 5,500 lbs (2,500 kg)

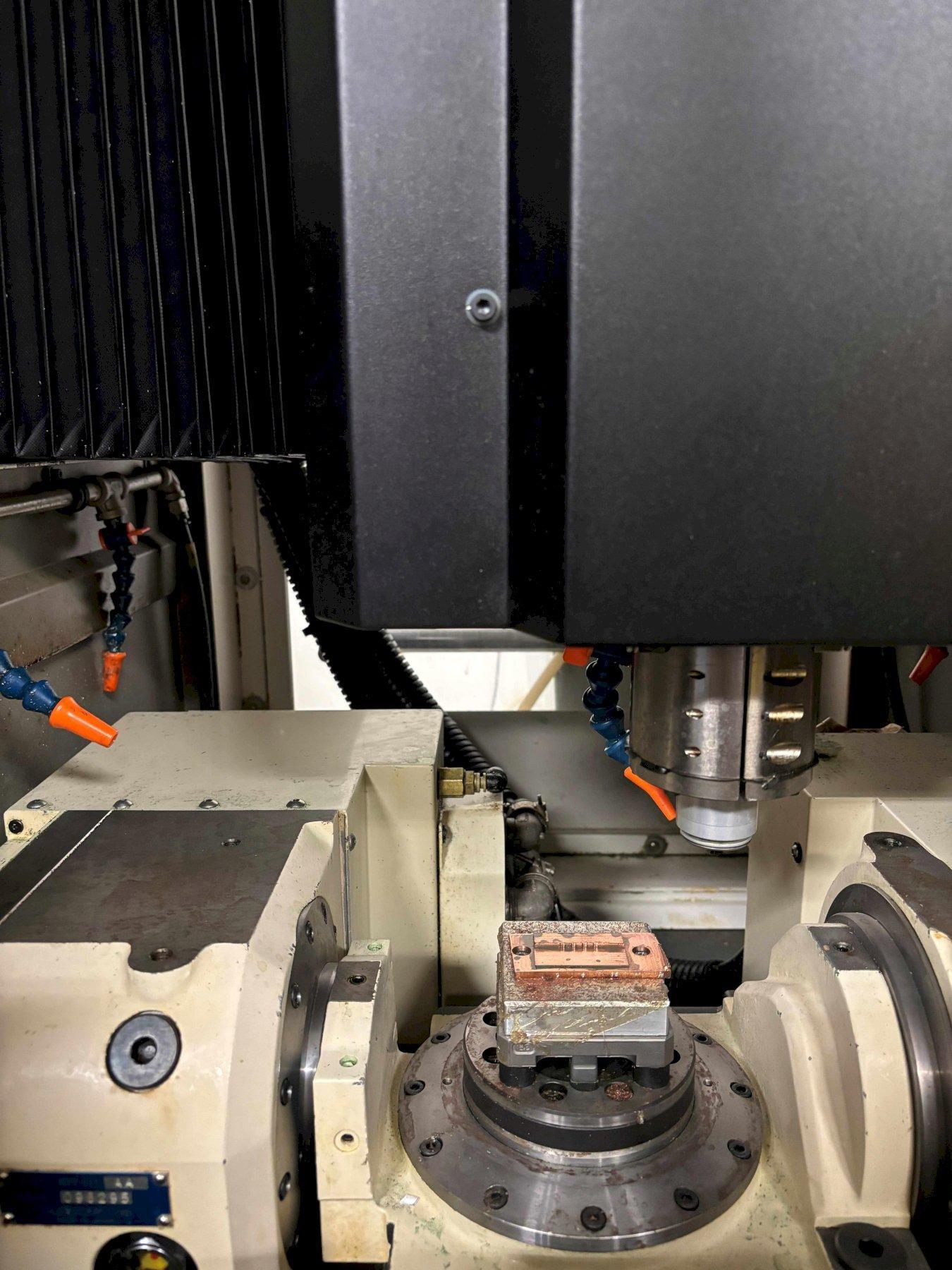

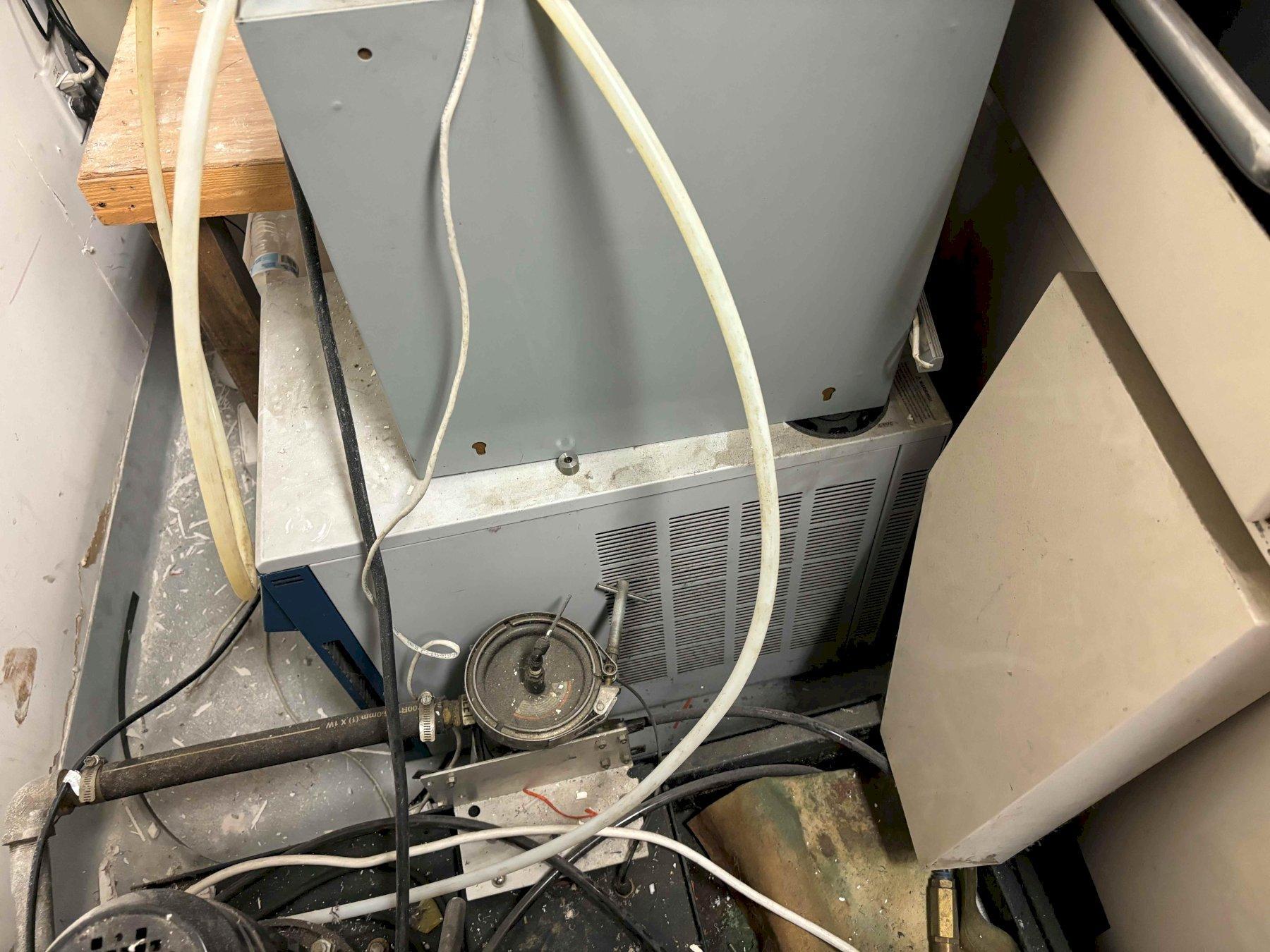

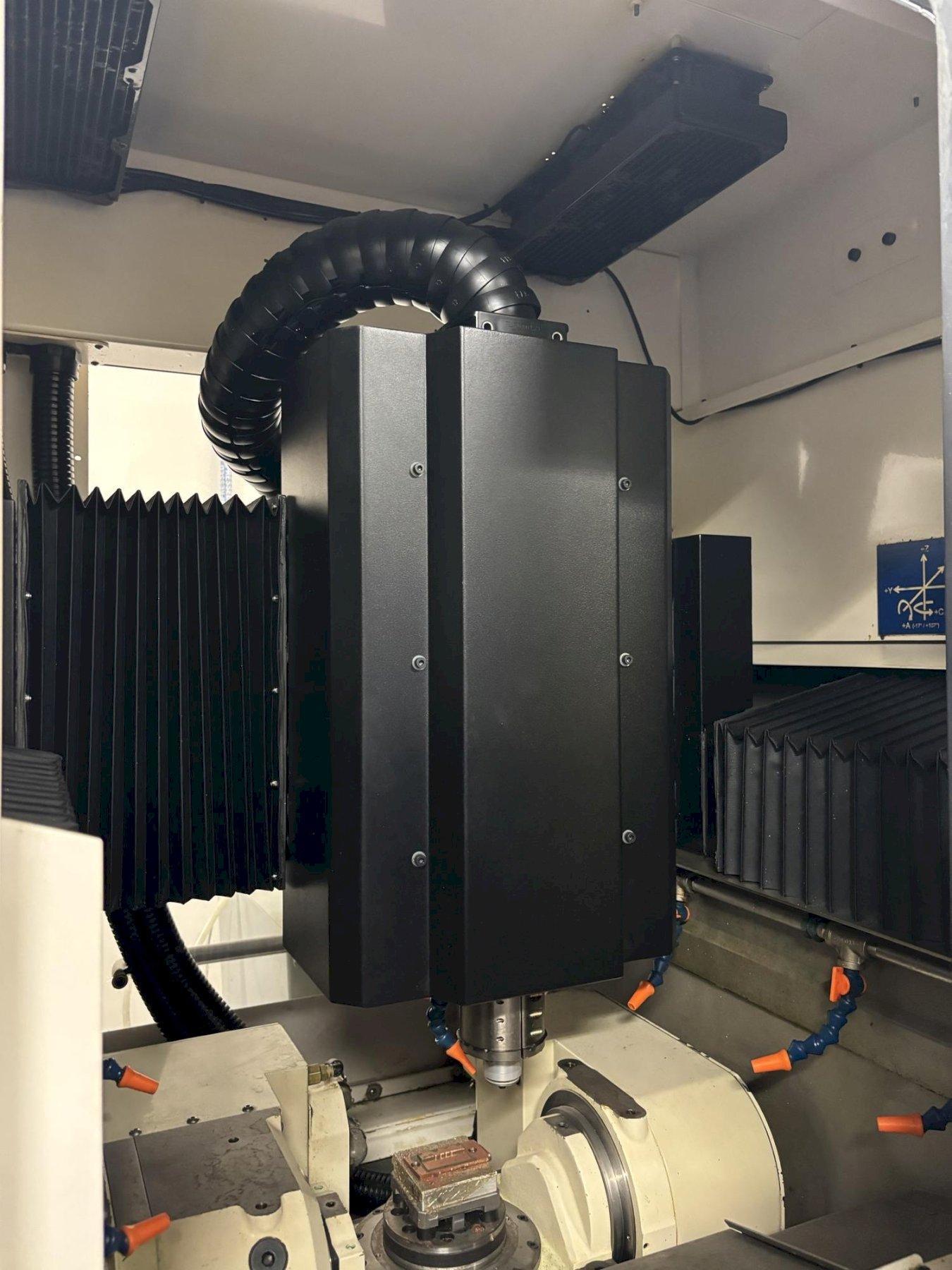

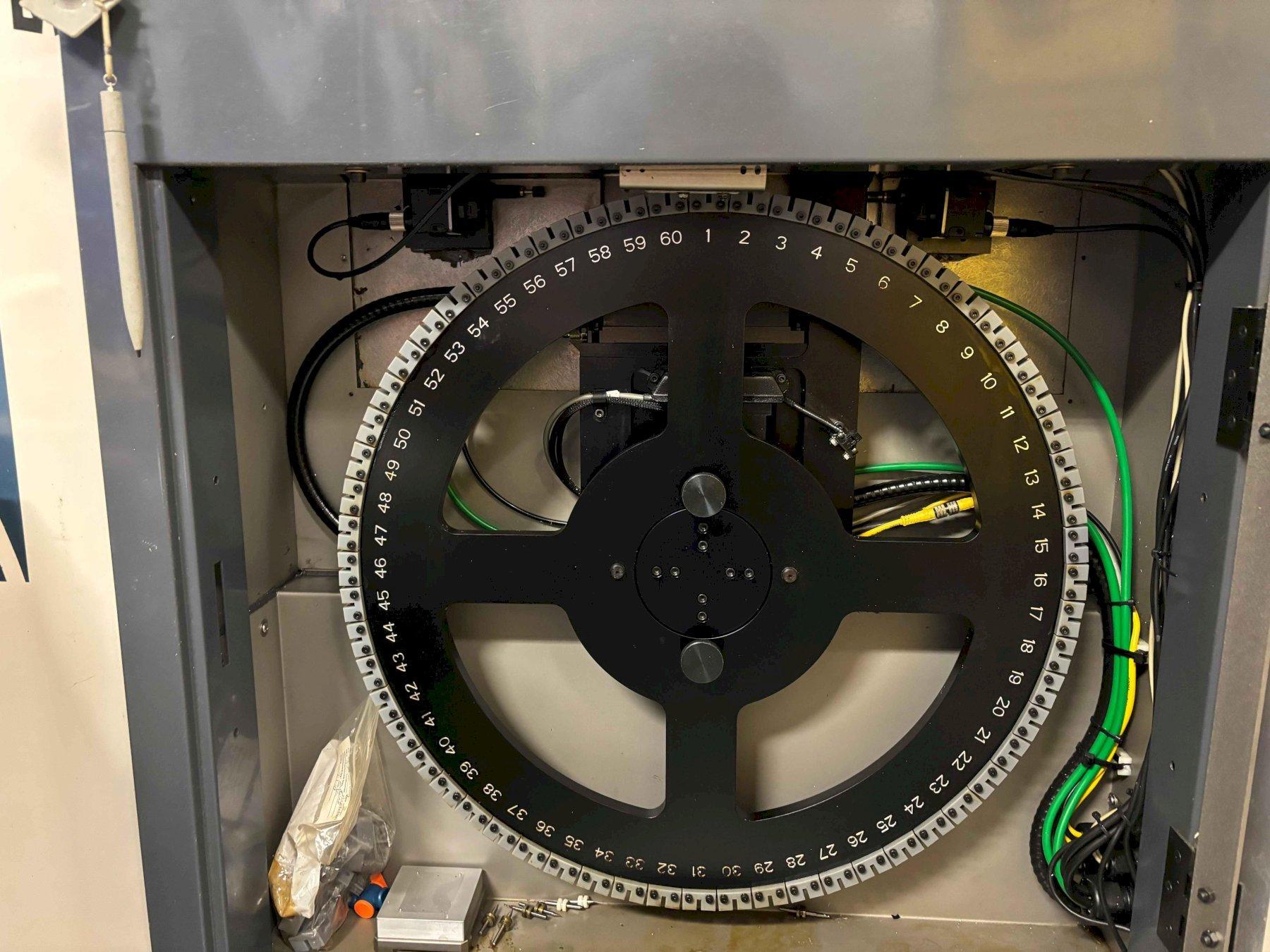

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Linear motor driven X,Y,Z Translational Axes — 2G max acceleration Heidenhain glass scale encoders for position feedback Precision ground granite base Automatic Tool Changing system Automatic tool sensor Delta-Tau open source CNC control Interprets standard Fanuc G-Code Active thermal control system PC-based, touch screen operated software interface Standard machine guarding Pendant with handwheel and E-Stop Compartment for additional electronic accessories Flood and air blast coolant system Electrically driven, hybrid ceramic bearing Alfred-Jager spindle featuring a max speed of 50,000 rpm and automatic-collet based tool holding system Automatic Tool Changing system 60 Pocket system supporting tools from 0.0004″ to 0.125″ in diameter Door for access to tool carousel during program and be-directional tool access Blum Laser Automatic Tool Sensor The laser tool sensor provides both length and diameter measurement capabilities for tools as small as .001″ in diameter Thermal Control system Chilled water active thermal control system Flood and air blast coolant system Rotary Table

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
