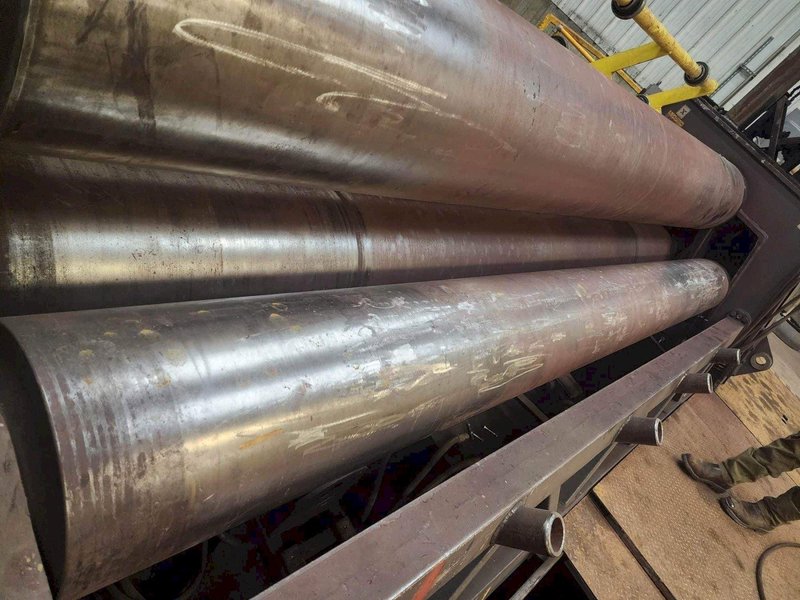

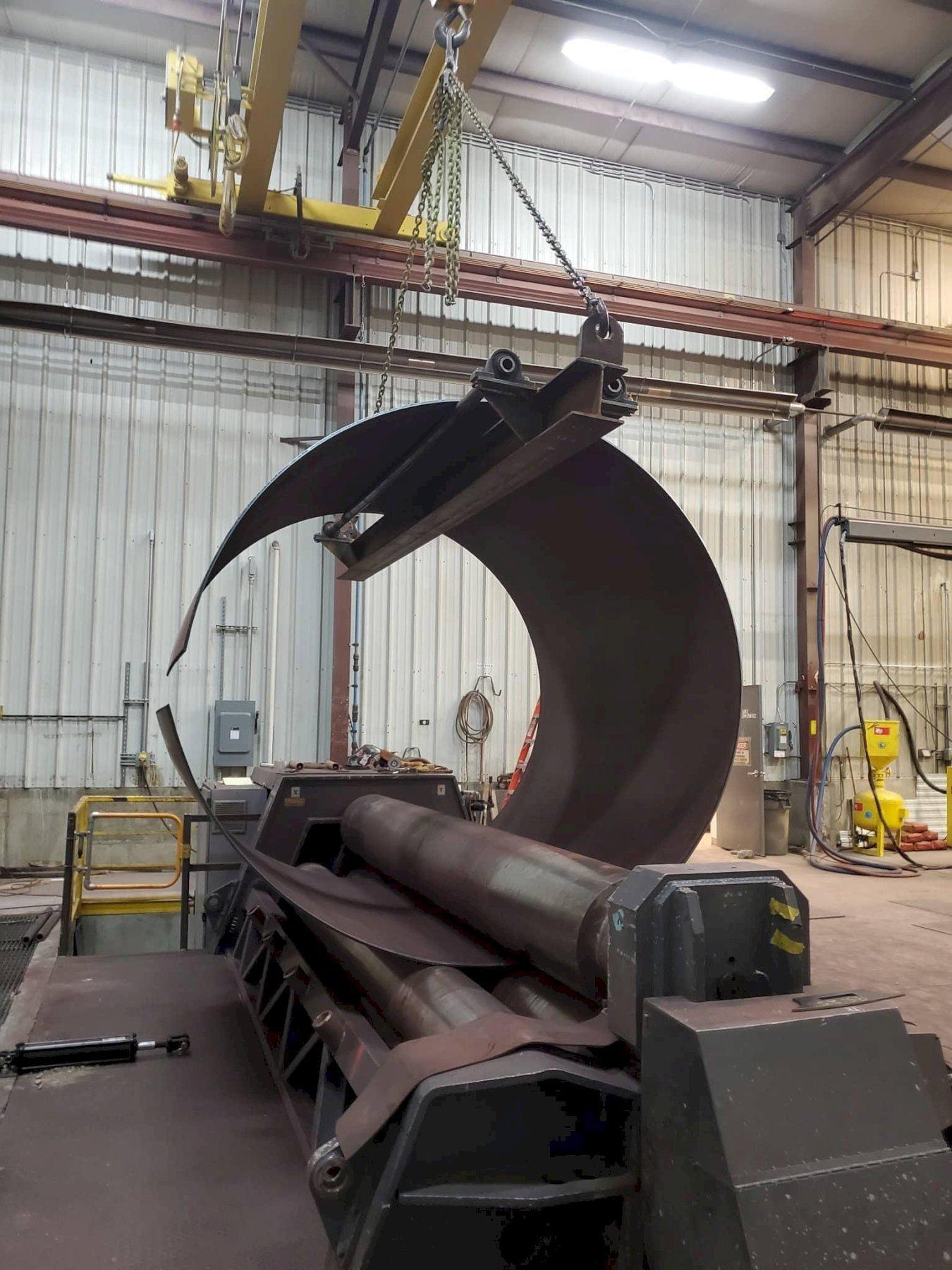

1-3/16″ X 13′ JMT Durma HRB-4 4030 Plate Roller, 2012

Bending Length: 161″ Bending Capacity: (Min. Int. Dia ØDx5) Ødx3 – 1.29 Bending Capacity: Ødx3 – 1.18″ Pre-Bending Capacity: Ødx1,5 – .94″ Top Roll: 18.90″ Bottom Roll: 17.91″ Side Rolls: 14.56″ Max. Pass Through: 3.54″ Length: 263″ Width: 89″ Height: 93″ Working Height: 69″ Weight: 94,798 Lbs. Motor Power: 37KW + 22KW Min. Additional Top Roll Diameter: 16.92″ Hydraulic Tank Capacity: 220 Gal.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Conical Bending (Cone Bending) PLC Control Induction Hardened Rolls 4 Roll Drive System Electronic Synchronized Rolls

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pit Required
