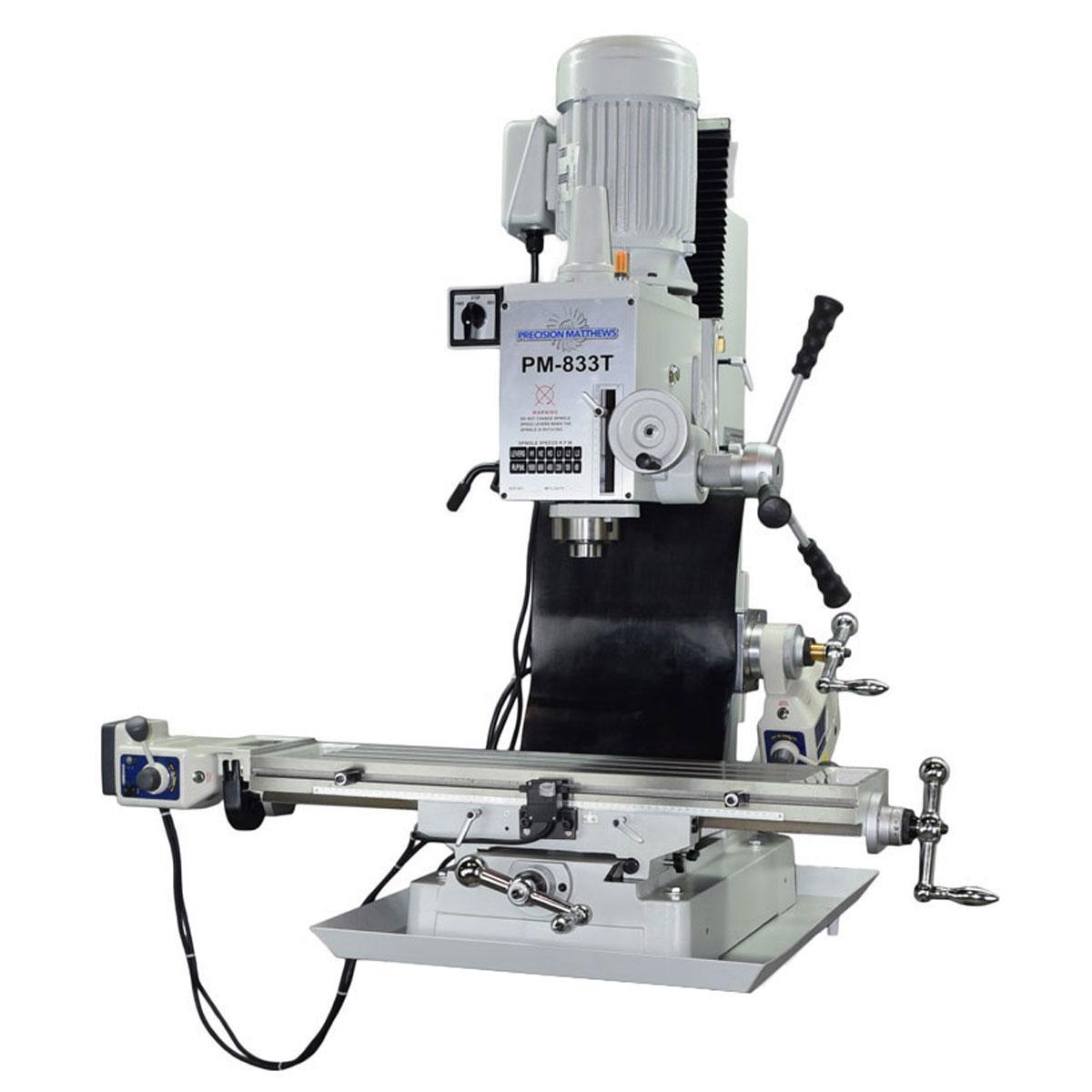

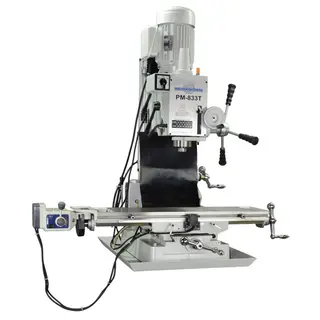

PRECISION MATTHEWS PM-833T ULTRA PRECISION MILLING MACHINE

PRECISION MATTHEWS PM-833T ULTRA PRECISION MILLING MACHINE

Name: New PM-833T For Sale
Brand: Unknown

Brand

Not specified

Location

Pennsylvania

REQUEST FINANCING

Specifications
Files & Videos

Table-W	8.25 inches
Table-L	33 inches

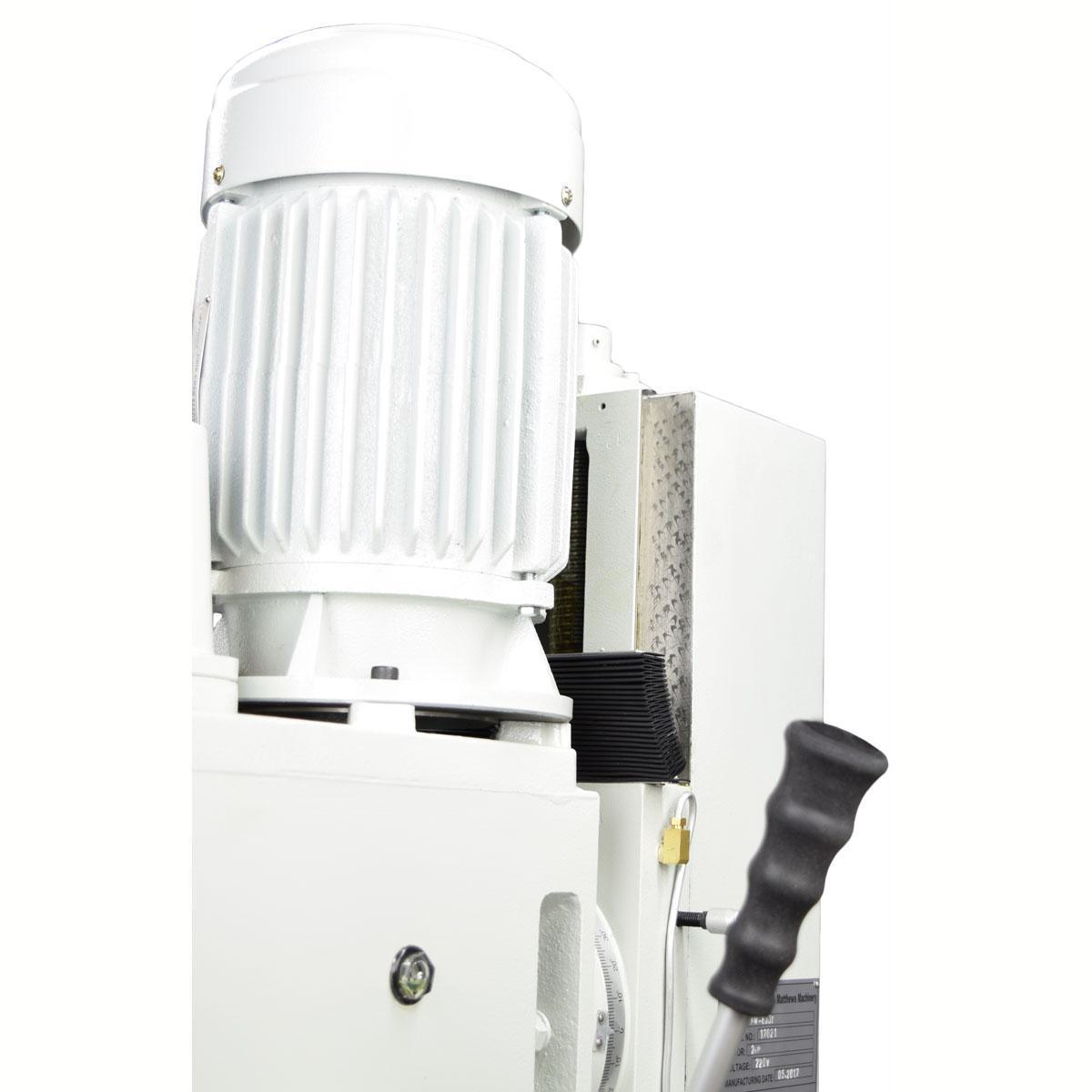

Power	2 horsepower
Range Of Spindle Speeds	60 - 1500, 6 Steps
Weight	900 pounds

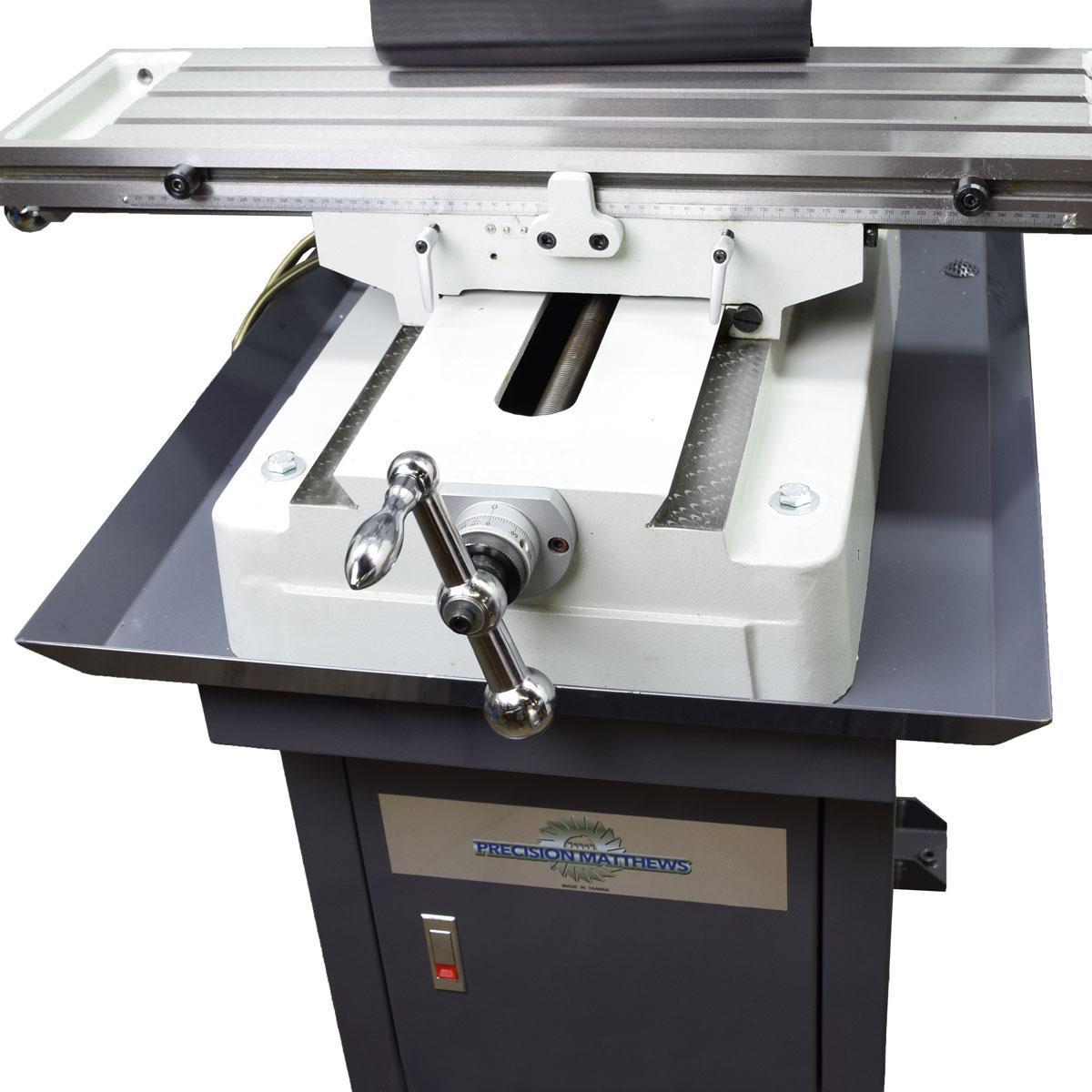

HIGHLIGHTS OF THIS MACHINE: Very High Quality Milling Machine, 100% Made in Taiwan Built For Those Users Who Are Looking For Higher Quality In A Dovetail Type Mill Configuration Very Large Y and Z Travels Compared With Other Models In This Class, over 11″ Of Y axis Travel One Shot Lube System Standard Very High Grade Castings Used Throughout Machine TYPICAL USERS: Industrial users looking for a top quality, bench type milling machine, built for industrial use, with a smaller size compared with a full sized mill, to save space High end gunsmiths looking for a smaller bench type milling machine, who wish to maintain the quality and features of a Taiwan made machine, but also want to save on space Users who appreciate a high end, bench type milling machine with the space saving characteristics this offers Any other users who can appreciate a top quality machine with full features and no shortcuts, in a smaller space-saving size, at a very reasonable price for the level of quality that you are purchasing MAIN HIGH QUALITY FEATURES: High Grade Castings Head Swivels 90 degrees Left and Right for angled milling / drilling operations Hand Scraped way Surfaces for better oil retention and fit, which leads to ultra smooth and very accurate movements One Shot Lubrication system is standard equipment, which also extends machine life, and reduces oiling times High precision Inch Pitch lead screws, for ease of use and greater accuracy (10 TPI Screws) High Precision Spindle with +/- .0002” or less runout for greater tool life and accuracy Precision Honed Quill Bore for tighter tolerance fit, which leads to improved accuracy when drilling and precision boring The Quill is Precision Ground, for higher accuracy No belts to change, simply stop and move levers for speed changes, quick and easy Tolerance Test check, each machine is checked for accuracy through a careful inspection process before shipment, the customer can always be sure they will receive a top quality machine that exceeds their expectations Longest in class 5 YEAR WARRANTY against defective parts, including electrical MAIN SPECIFICATIONS: Model: PM-833T Table Size: 8-1/4×33” Table T Slot Size / Spacing Between: 5/8″ / 2-1/4″ X Axis Travel: 21-3/4” Max Y Axis Travel: 11” Max Z Axis Travel (Head): 17-1/2” Max Max. Distance, Spindle to Table: 20-1/2” Max Quill Travel / Diameter: 4-3/4” / 2.952″ (75mm) Leadscrew Type: Precision Ground ACME Leadscrew W/ Backlash Adjustments on X and Y Axis Leadscrew Pitch: .100” (10 Threads Per Inch) Dial Graduations: .001” Spindle Taper: R8 Spindle Speed Range: 60 -1500 RPM, 6 Steps Speed Change Type: Shift Lever Spindle Bearing Type: High Precision Tapered Roller Bearings, Fully Adjustable Spindle Bearing Class: C5 Main Motor HP: 2 HP Overall Height to reach Maximum top of Z Axis Travel: 88” Height with head at normal working height: 75” Height of Table Working Surface while mounted on optional stand: 39-1/2″ Front to back - Rear of Machine to Front of Y Axis Handle: 34-5/8″ Chip Tray Size (At top of base): 30″ x 24-1/2″ Width X Axis Table Handles, Tip to Tip: 41-3/4” Machine Weight: 900 LBS (Without Stand) 1030 (With Stand) (833TV model is lighter than gear head 833T model due to having a belt drive which is lighter, all the gears, shafts, extra bearings, etc in the headstock are not needed with the belt drive, but same body of machine so same rigidity) Main Motor Power: 2HP Voltage / Phase: 220 Volt Single Phase Power Country of Origin: Taiwan Warranty: 5 Years
