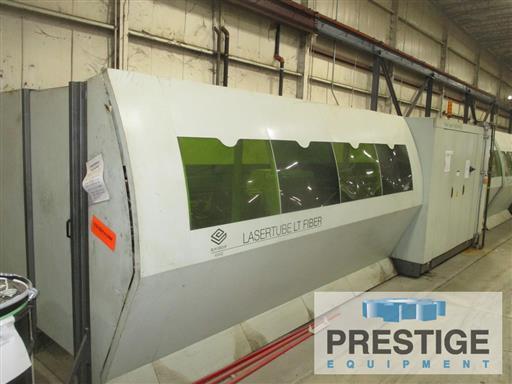

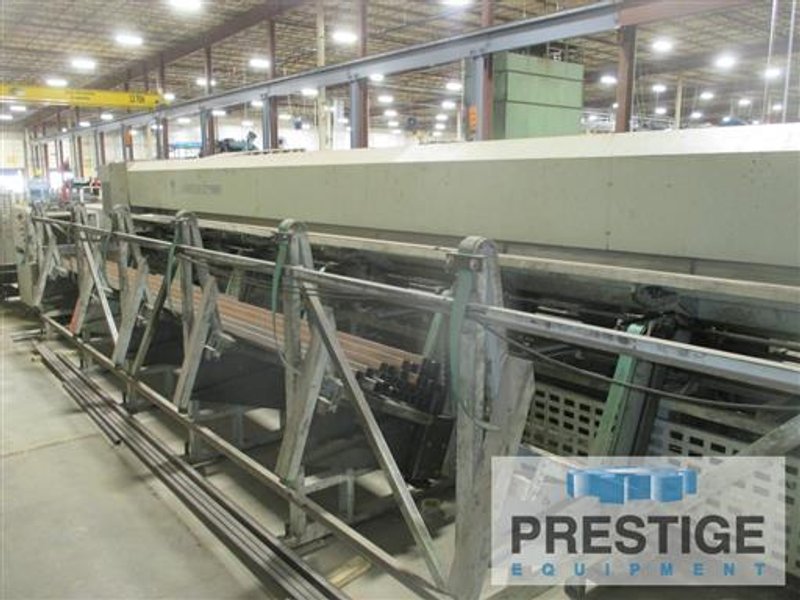

BLM Adige Lasertube LT Fiber Tube Laser

SPECIFICATION:
Rated Laser Output 2000 Watts
Cutting Capacity, Round Tube........... 0.5"-5.5" 0.5"-5.5"
Cutting Capacity, Square Tube 0.5"-4.75"
Cutting Capacity, Rectangular Tube 5.5"
Maximum Bar Length 27'10"



Equipped With:

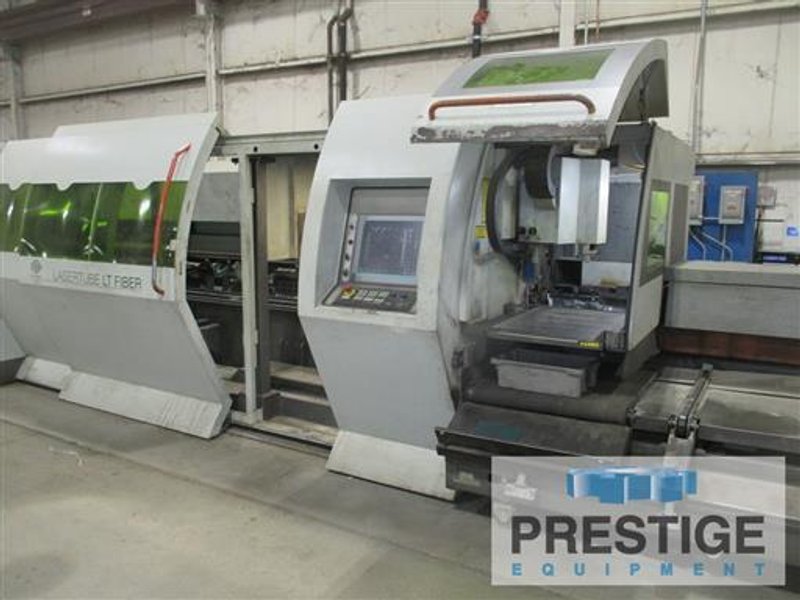

Siemens Touch Screen CNC Control
Focusing Head Precitec AK-HP SSL
IPG YLS-2000 Resonator

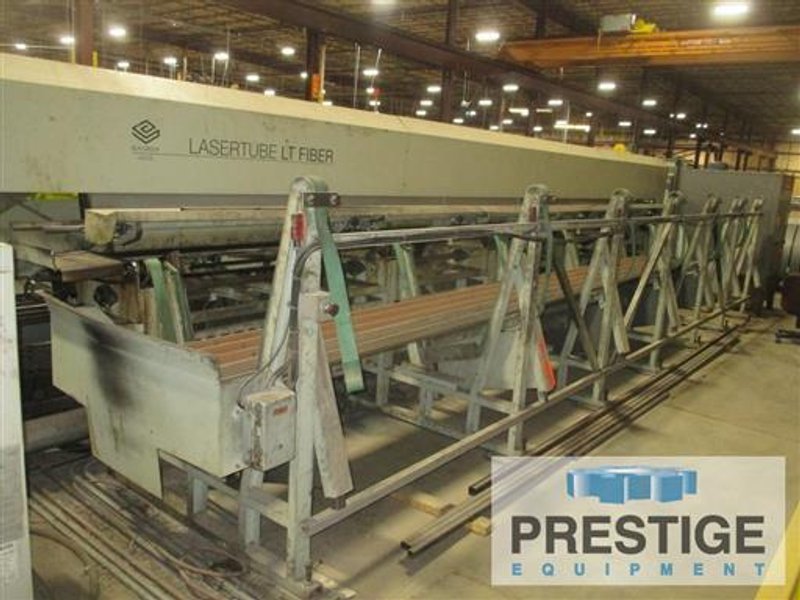

Automatic Bundle Loader for Tubes from 3200mm-6500mm in Length
Delicate Surface Option
DischargeSystem Base Module
Optical Device for Weld Seam Identification and Orientation
Lens Holder for Head AK-HP SSL with 200mm Lens
Riedel Chiller Unit

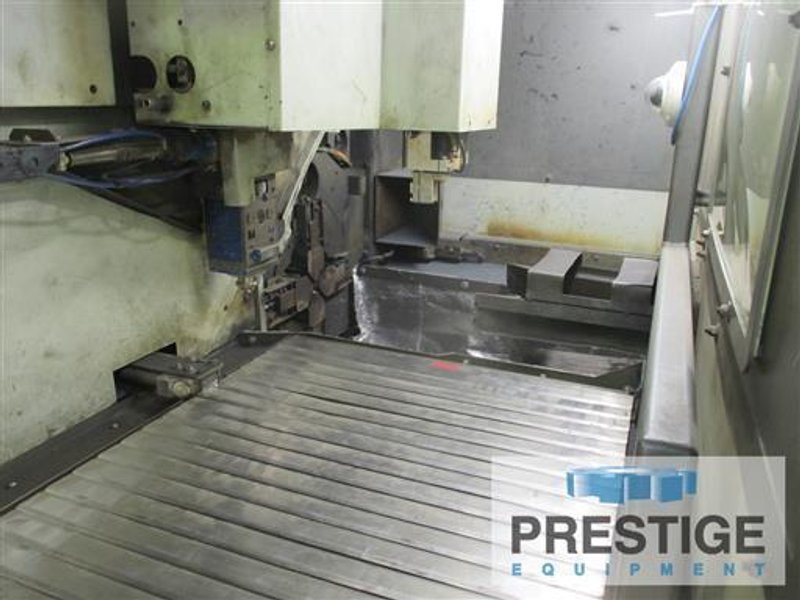

Metal Conveyor Belt for Rear Discharge of Good or Scrap Parts up to 280mm Length

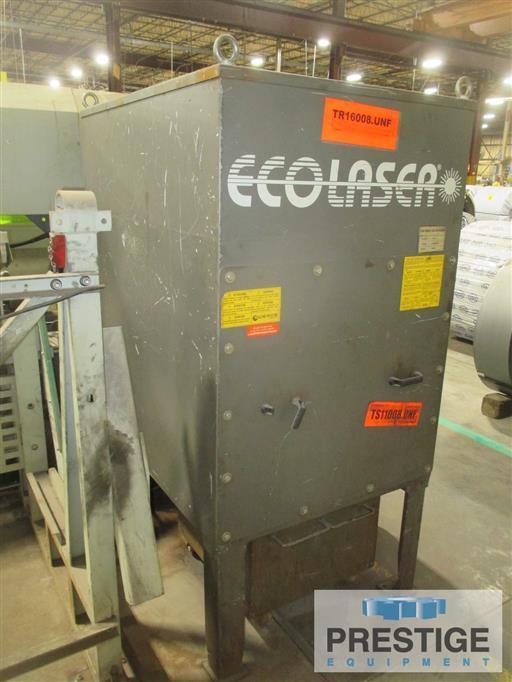

Dust Collector


HOURS: Machine On Hours: 49,020
Laser Beam Hours: 13,069


NOTE: Inspect in Plant Under Power
