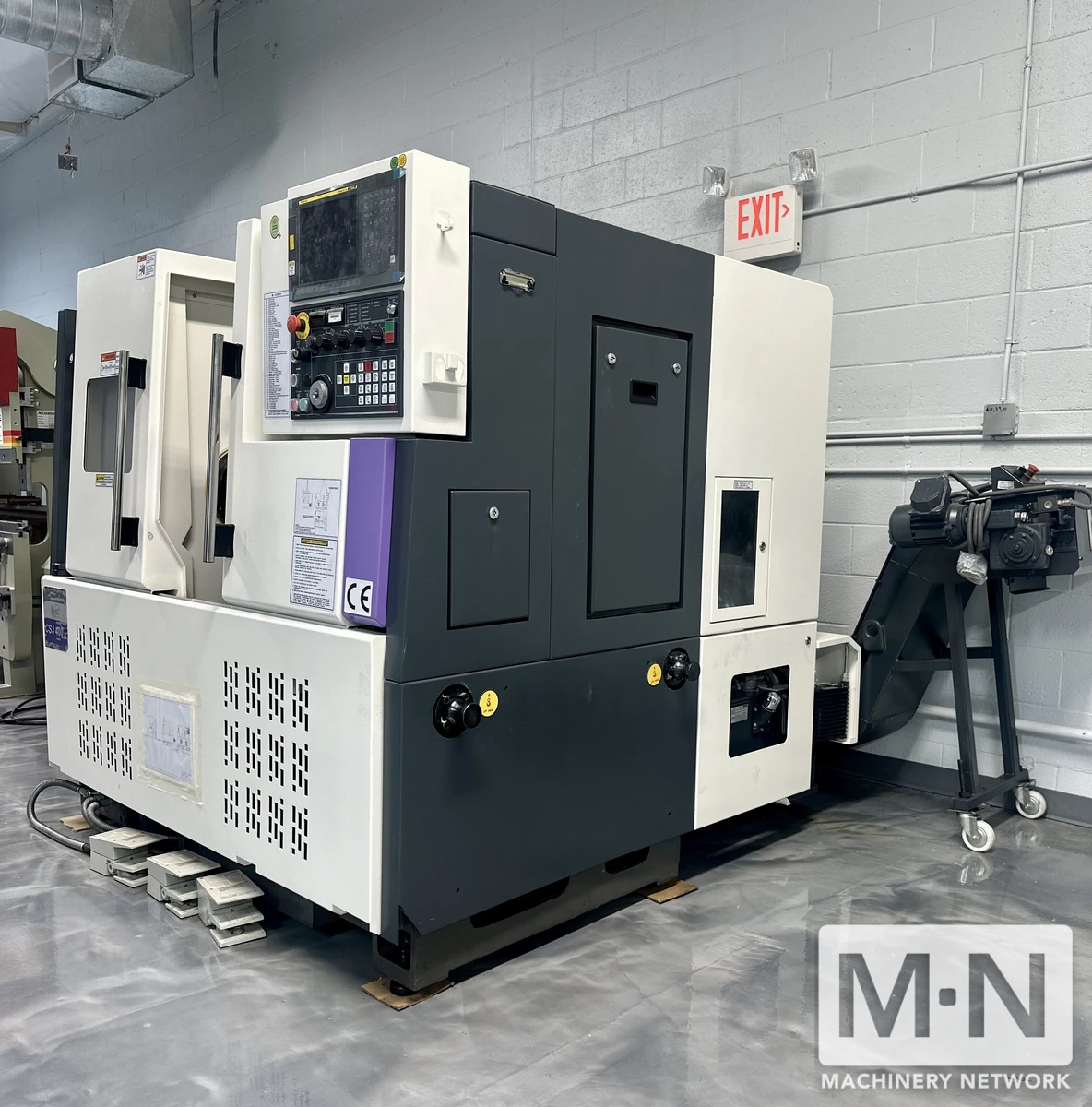

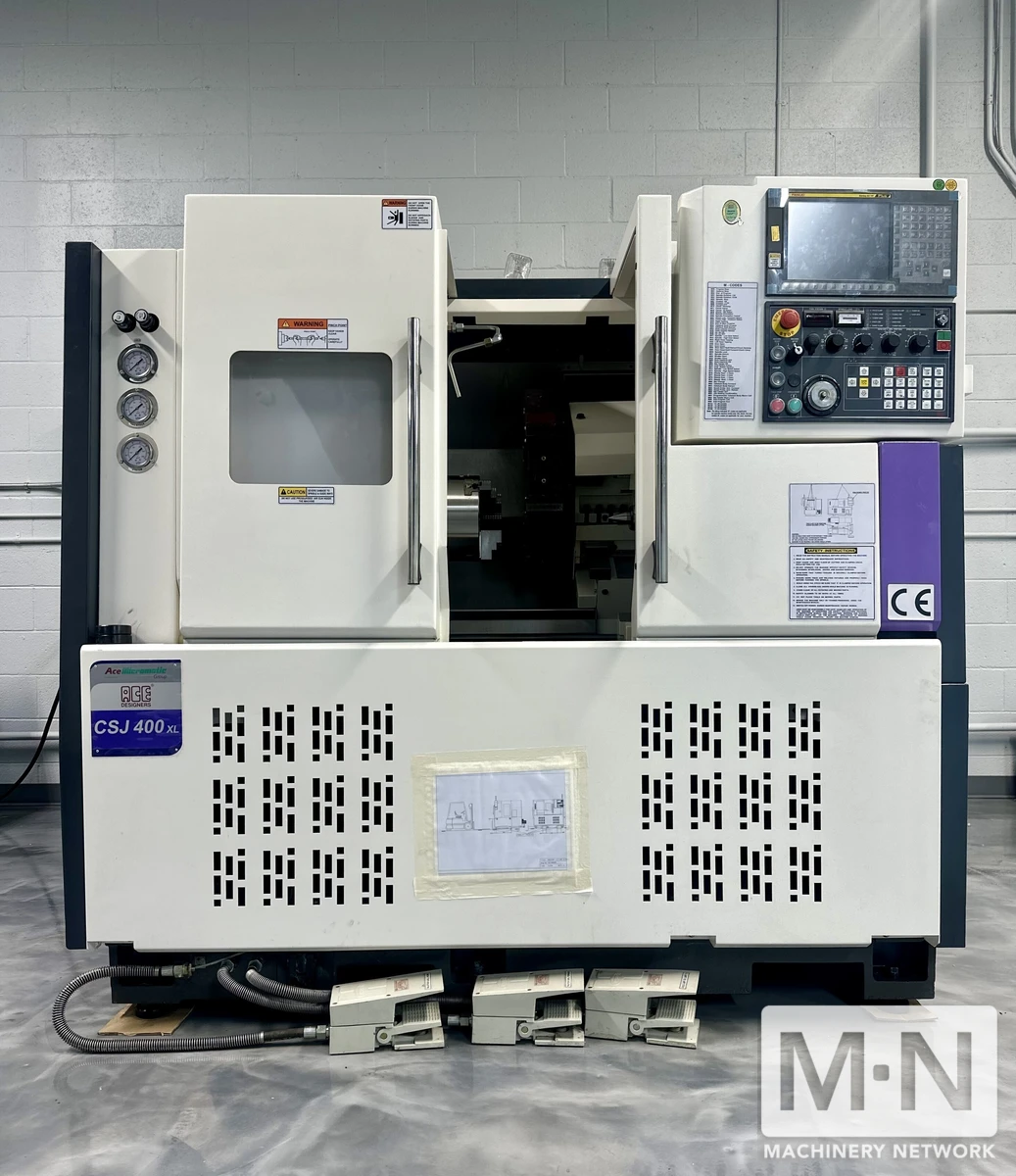

ACE Designers CSJ-400 XL CNC Lathe, 2020 - New In Box!

ACE Designers CSJ-400 XL CNC Lathe, 2020 - New In Box!

Brand

ACE DESIGNERS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

ACE DESIGNERS

Model:

CSJ-400 XL

Year:

2020

Stock #:

51262

Status:

For Sale

Specifications

ImperialMetric

Max. Turning Length	15.31"	388.87 mm
Max. Turning Diameter	13.78"	350.01 mm
X-Axis	7.09"	180.09 mm
Z-Axis	15.31"	388.87 mm
Chuck Size	8"	203.2 mm
Bar Capacity	2"	50.8 mm
Spindle Nose	A2-6	A2-6
Power	20 hp	14.9 kW
Max RPM	4,000 RPM	4,000 RPM
Turret Stations	12	12
Tailstock	Yes	Yes

Equipped With:

Fanuc 0i-TF Control

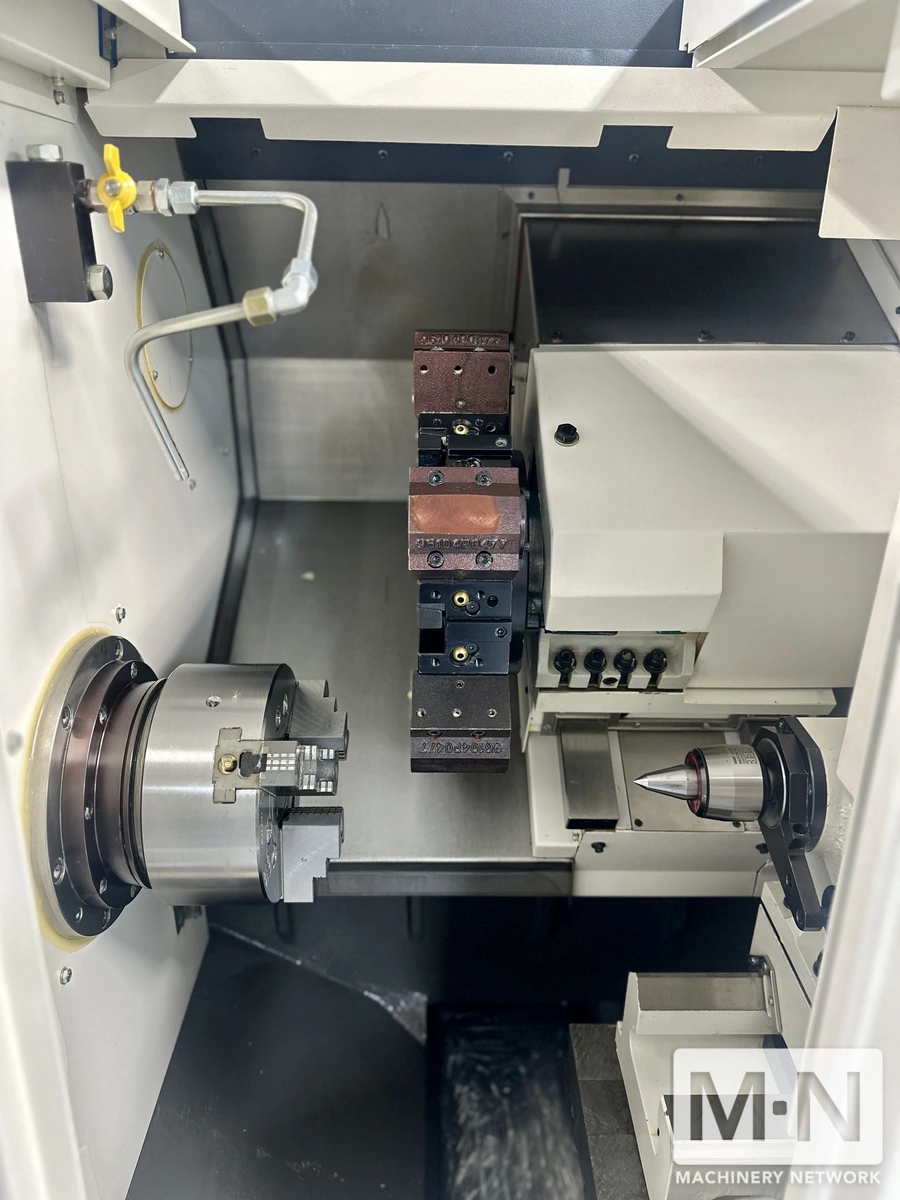

SamChully 8" chuck, 2" Bar Capacity
One Set of Hard Jaws
Manual Tailstock with External Rotating Center and Programmable Quill
Bar Feed Interface
Standard Tooling Package: Two Facing Holders, Three Boring Bar Holders,
Three U-Drill
Holders

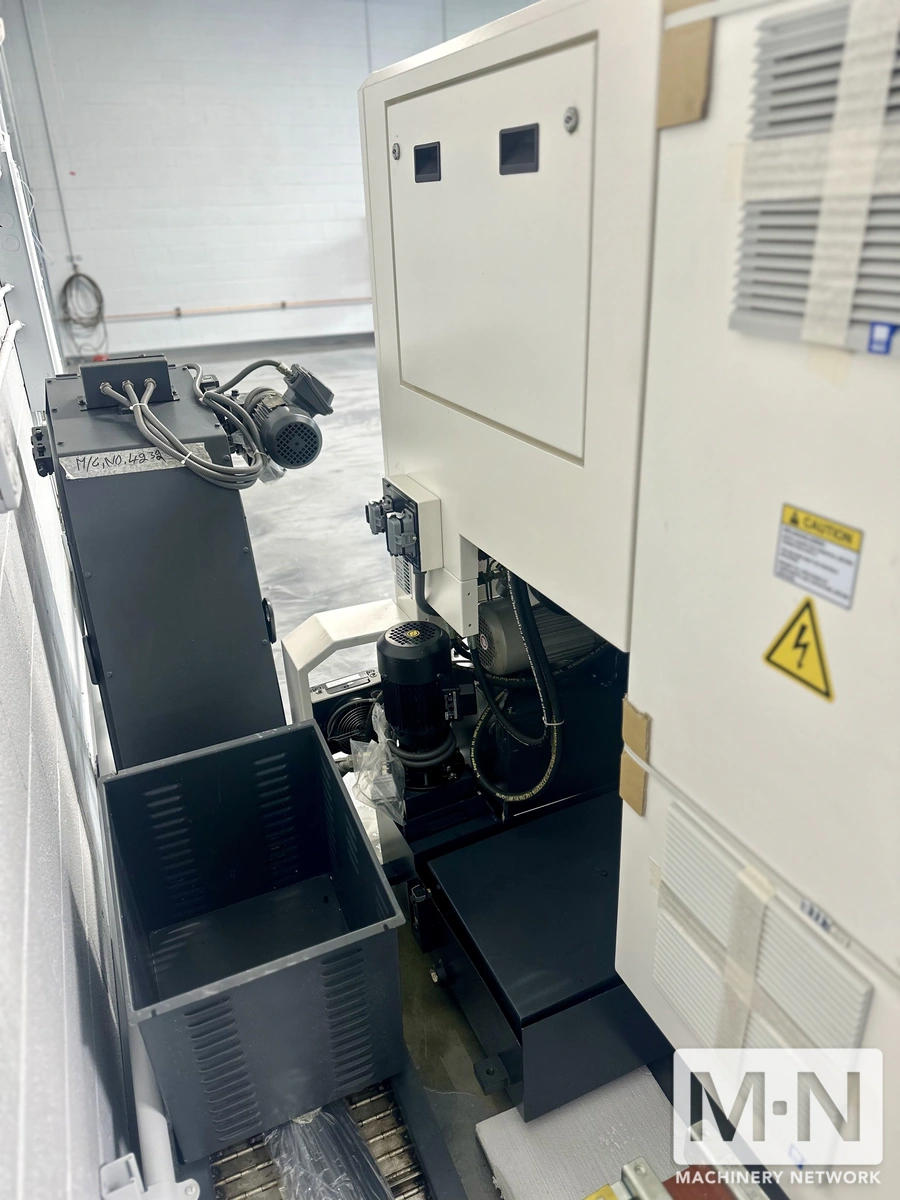

Rear Discharge Chip Conveyor

No files or videos to display
