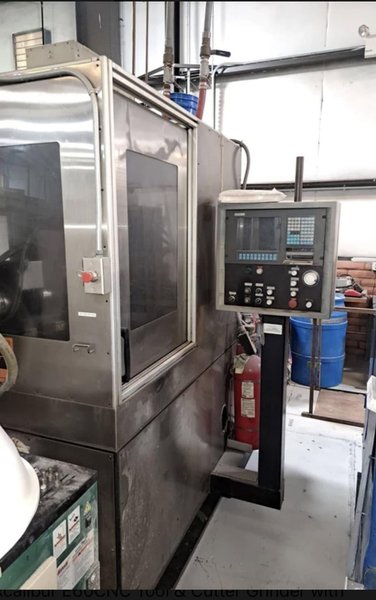

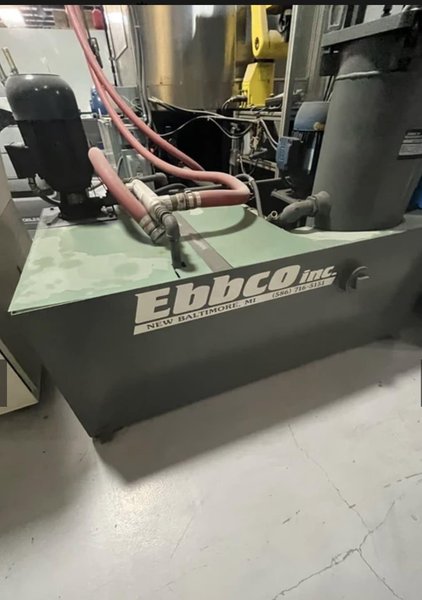

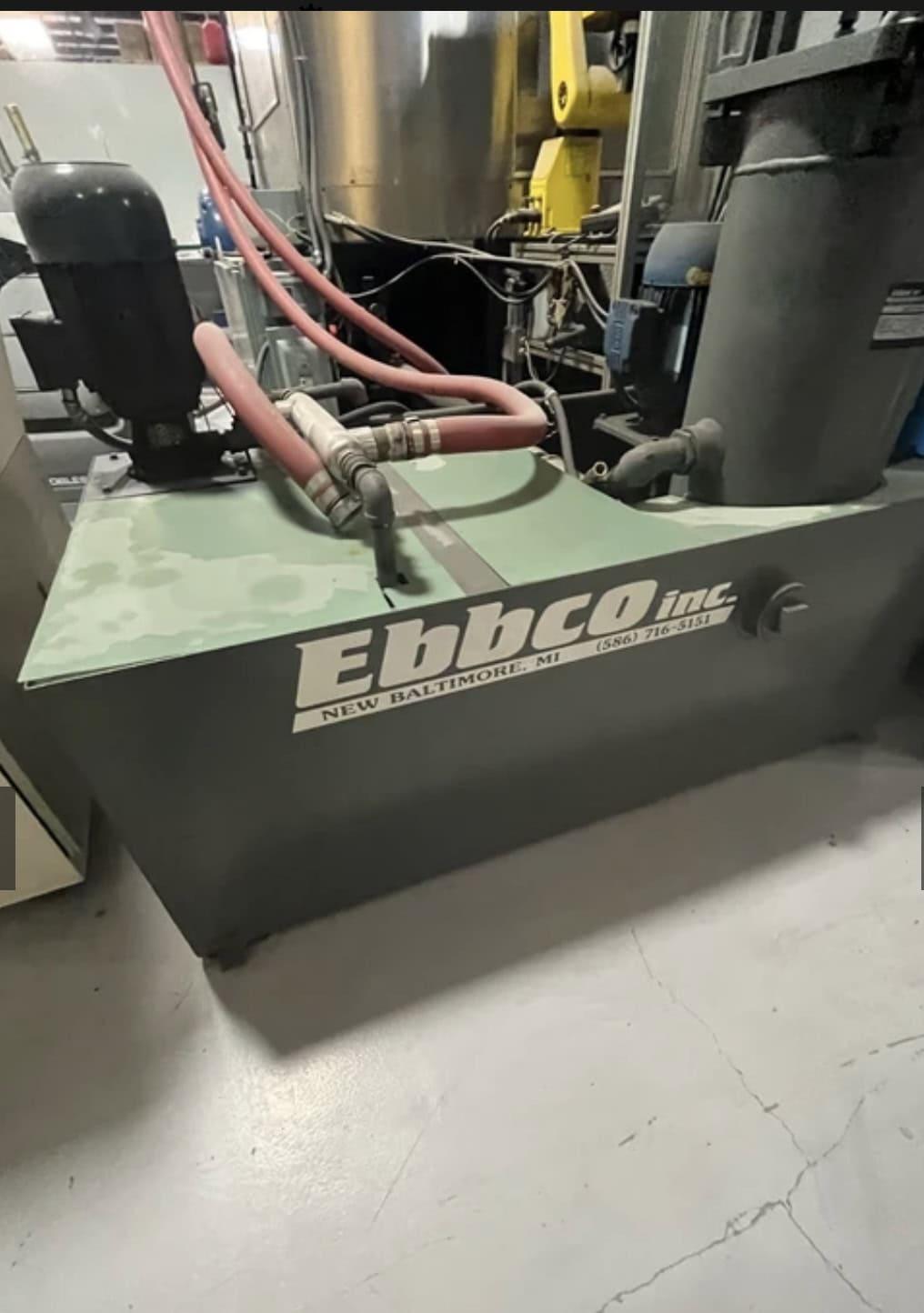

Excalibur E60 CNC Tool & Cutter Grinder, 2002 – Ebbco Filtration, Fanuc 5 Axis Robot

Max Tool Diameter ……….1.00″ Min Tool Diameter………………………………..0.010″ Max Length of Grind………………………………4.0″ Max Overall Length of Tool…………………….12.0″ Wheelhead Axes: X-Slide……7.5″, repeatability 0.0002″ Y-Slide……………………7.5″, repeatability 0.0002″ Z-Slide………………….9.0″, repeatability 0.0002″ Toolhead Axes: U Slide………..5.0″, repeatability 0.0002″ C-Rotary………………………180º, resolution 0.003º A-Rotary………………………………………..(Work Spindle) free rotation, resolution 0.005º Feedrates: All Linear Axes………………………………….0-200 IPM Rotary A-Axis……………………………………500 RPM Rotary C-Axis……………………………………0-7 RPM Wheel Spindle RPM……………………..0-6000 RPM Wheel Diameters………………………………….4″-6″ Spindle HP………………………………………5 HP Electrics……………………………………….440V/3PH/60HZ Floor Area Machine, Controls, and Coolant Tank………99″ x 90″ Machine Weight……………………………..4,400 LBS

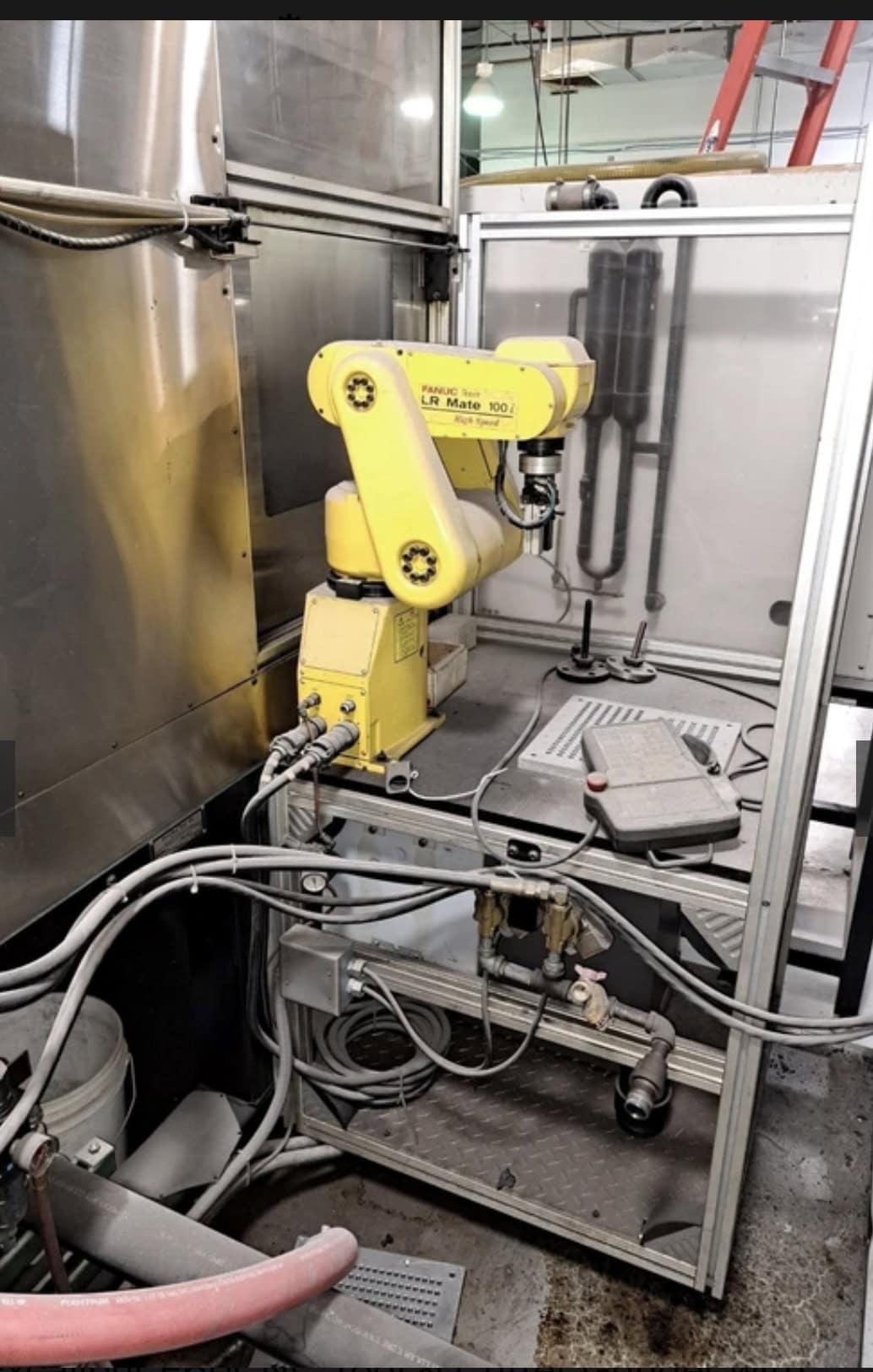

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: -Intel Pentium controlled 6-axis CNC controller. -Digital AC servos drive all linear axes and the “C” axis. -Fanuc Robotics LR Mate 100i high-speed 5-axis robot -Optional Double pneumatic grippers (small series).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
