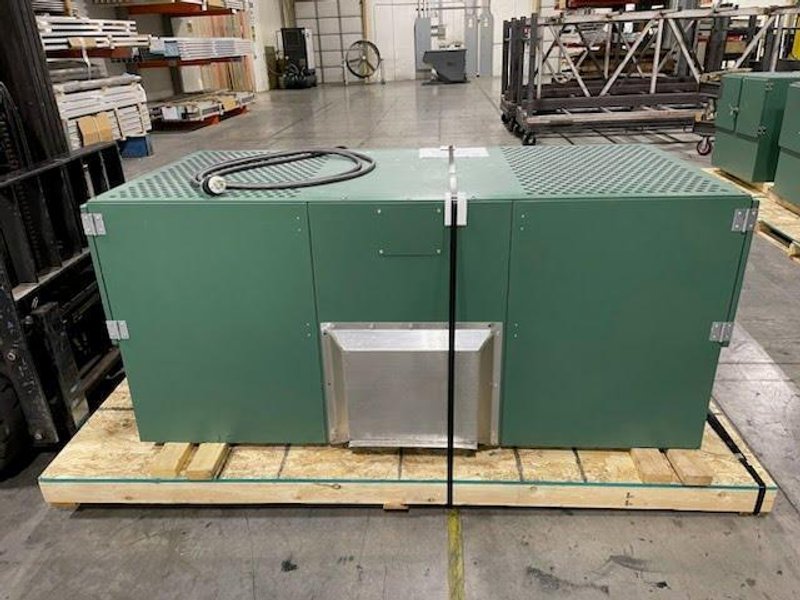

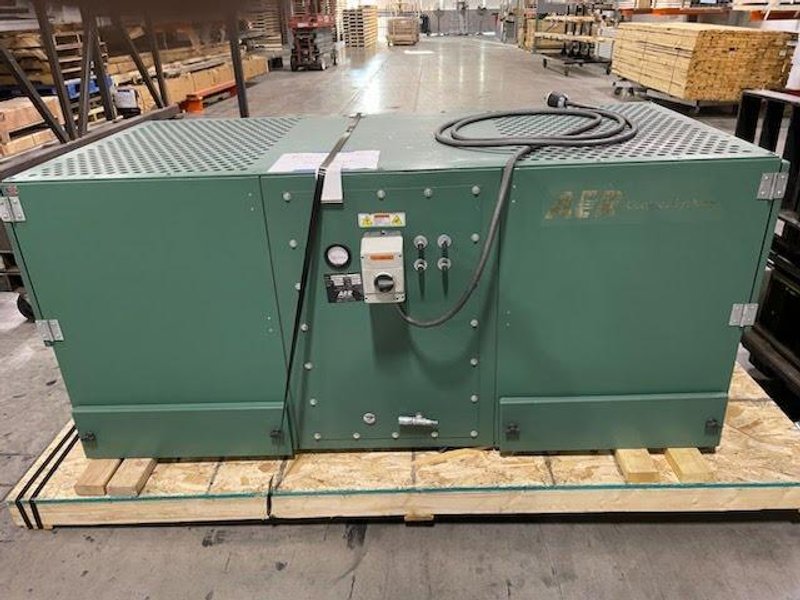

AER APB-4276 7.5HP Downdraft Bench Table (1) – 2020

Nominal CFM: 5050 CFM @ 4″ w.g. 250 FPM Face Velocity

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,480V 3PH 8.4A 60hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table Top Dimensions: 42” x 72”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Total Filter Area: 960 sq ft

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor: 7.5HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Compressed Air Requirements: 90-105 psi, dry

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: 76.75″ x 43″ x 62″ Weight: 410 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Certfications: UL and CSA

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Airflow ranges from 2500 to 5050 CFM depending on table top size and motor horsepower.

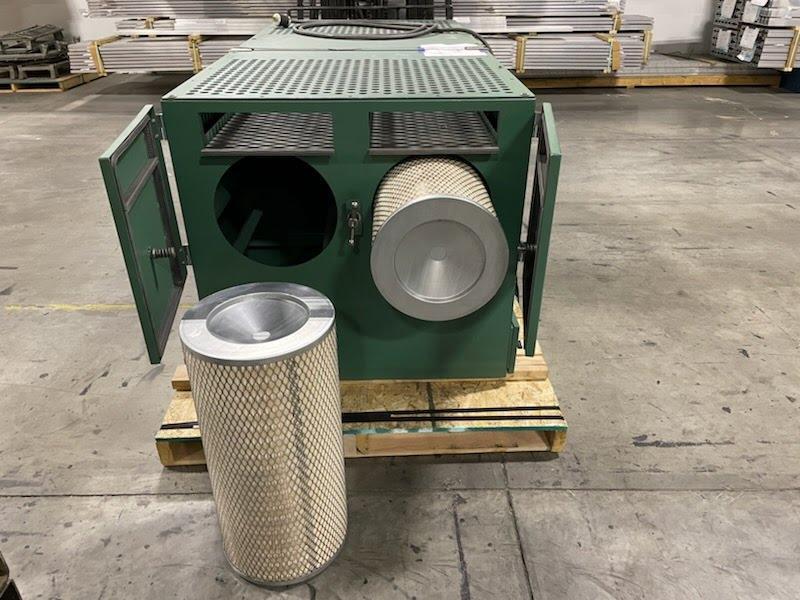

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,99% filter efficiency at 0.5 microns particulate size. Sealed doors with tool-less entry for cartridge change.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heavy duty galvanized grating table top and rear wall hinged sides are standard.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Direct drive backward inclined airfoil non-overloading fan.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manual push button filter cleaning system. Mini-helic filter change-out gauge.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High capacity dust drawers.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,11 and 14 gauge heavy duty metal construction.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Kelly Green industrial textured powder coat finish.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manual motor starter.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
