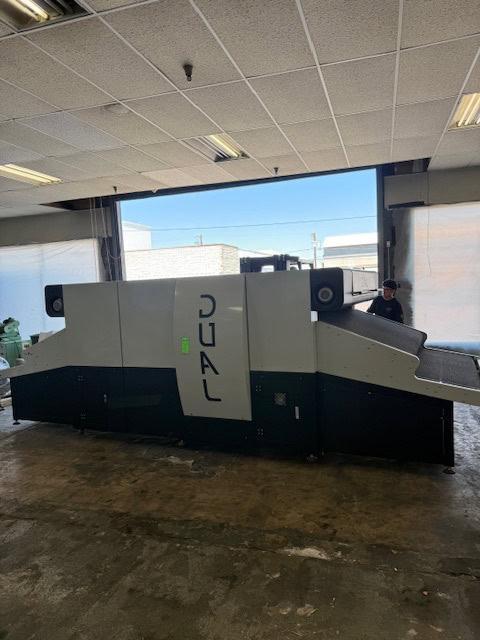

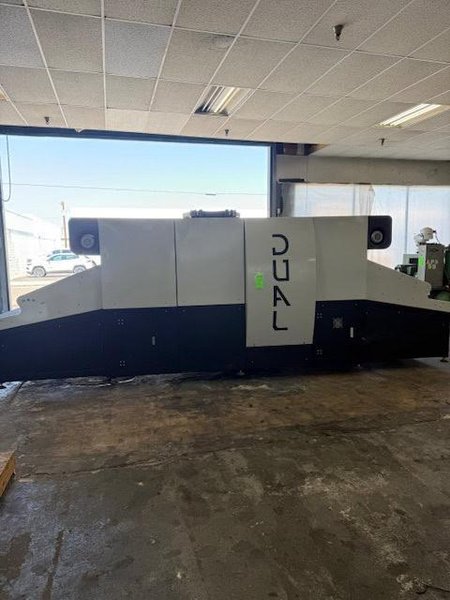

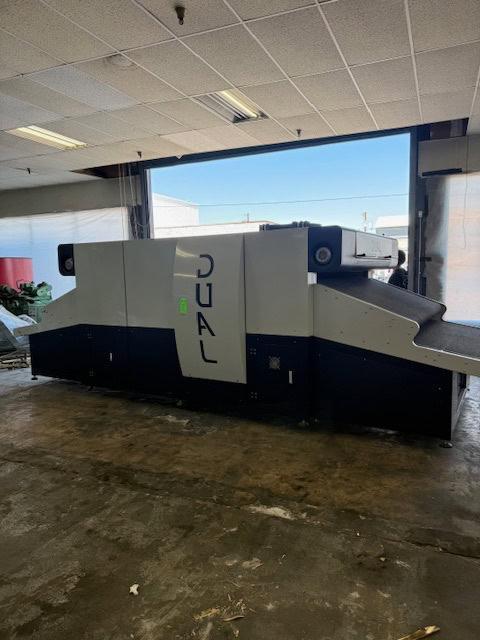

Adelco DL180G-3 Dual Gas-Fired Dryer, 2022

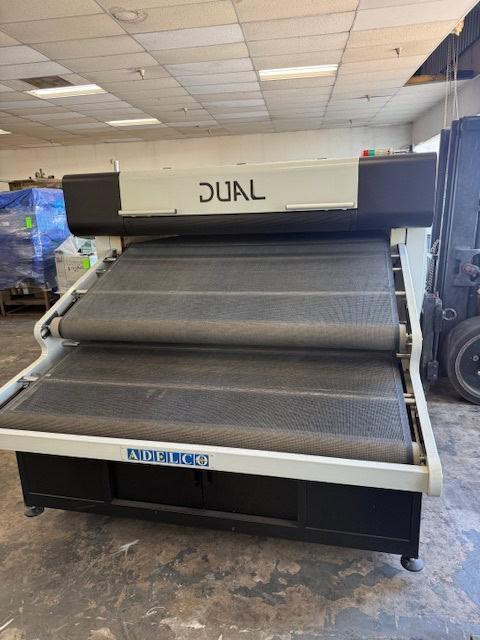

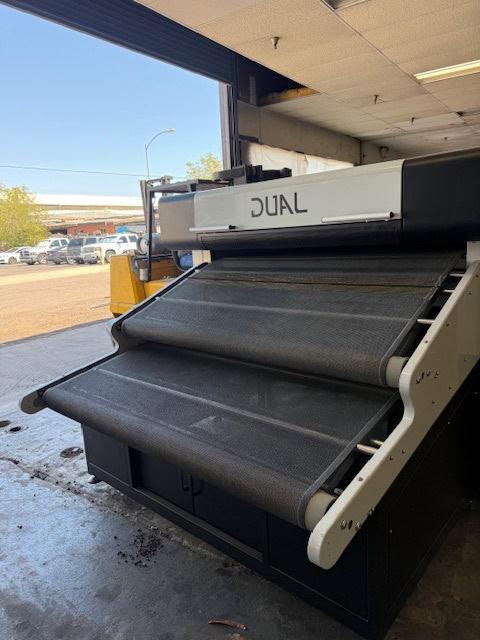

The 2022 Adelco DL180G-3 Dual Gas-Fired Dryer is a high-capacity textile curing system featuring two independently controlled 72″ conveyor belts and two-level oven chambers, providing the capability of curing both digital and screen-printed garments simultaneously. Each level is equipped with its own 225,000 BTU gas burner, temperature and airflow controls, while the dual-deck design delivers high production capacity in a compact footprint

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Type: Dual Gas-Fired Conveyor Dryer Conveyor Configuration: Two Independently Controlled Conveyor Belts Belt Width: 72″ Oven Configuration: Two-Level Ovens Cure Length: 10′ per level Infeed Length: 5′ per level Outfeed Length: 5′ per level Total Dryer Footprint Length: Approximately 20′ Burners: (2) Independent Gas Burners Burner Capacity: 225,000 BTU per level Maximum Gas Consumption: 450,000 BTU/hr Temperature Control: Independent Temperature Control for Each Level Airflow: Independent Airflow Control for Each Level Maximum Airflow: 6,000 CFM Control Panel: 15″ HDMI Touchscreen Belt Speed Display: Digital Electrical Supply: 3 Phase, 220V / 380V / 415V Maximum Electrical Consumption: 7 kW Natural Gas Pressure: 10″ W.G. / 25 mbar per supply Natural Gas Connection: 3/4″ BSP per supply Propane Gas Pressure: Line pressure reduced to 37 mbar per supply Propane Gas Connection: 1/4″ BSP per supply Exhaust: Built-In Infeed and Outfeed Exhaust System Exhaust Diameter: 12″ Warm-Up Time: Approximately 15 minutes from ambient to 320°F Applications: Screen Printing and Digital Textile Printing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
