Kinetic Technologies RT1 With Universal robotics UR10E Robotic Welder, 2022

Centrally loaded allowable load: 2,000lbs Maximum Speed: 10rpm Central Height: 37″ Torque: 350 ft-lb Voltage requirements: 230V 3 phase -Size: 64” long without chassis extension, 76” long with extension 37.5” height 52.25” wide (at base) -Weight: 1100 lbs Payload at full CoG offset and in the entire workspace: 12.5 kg (27.5 lbs)

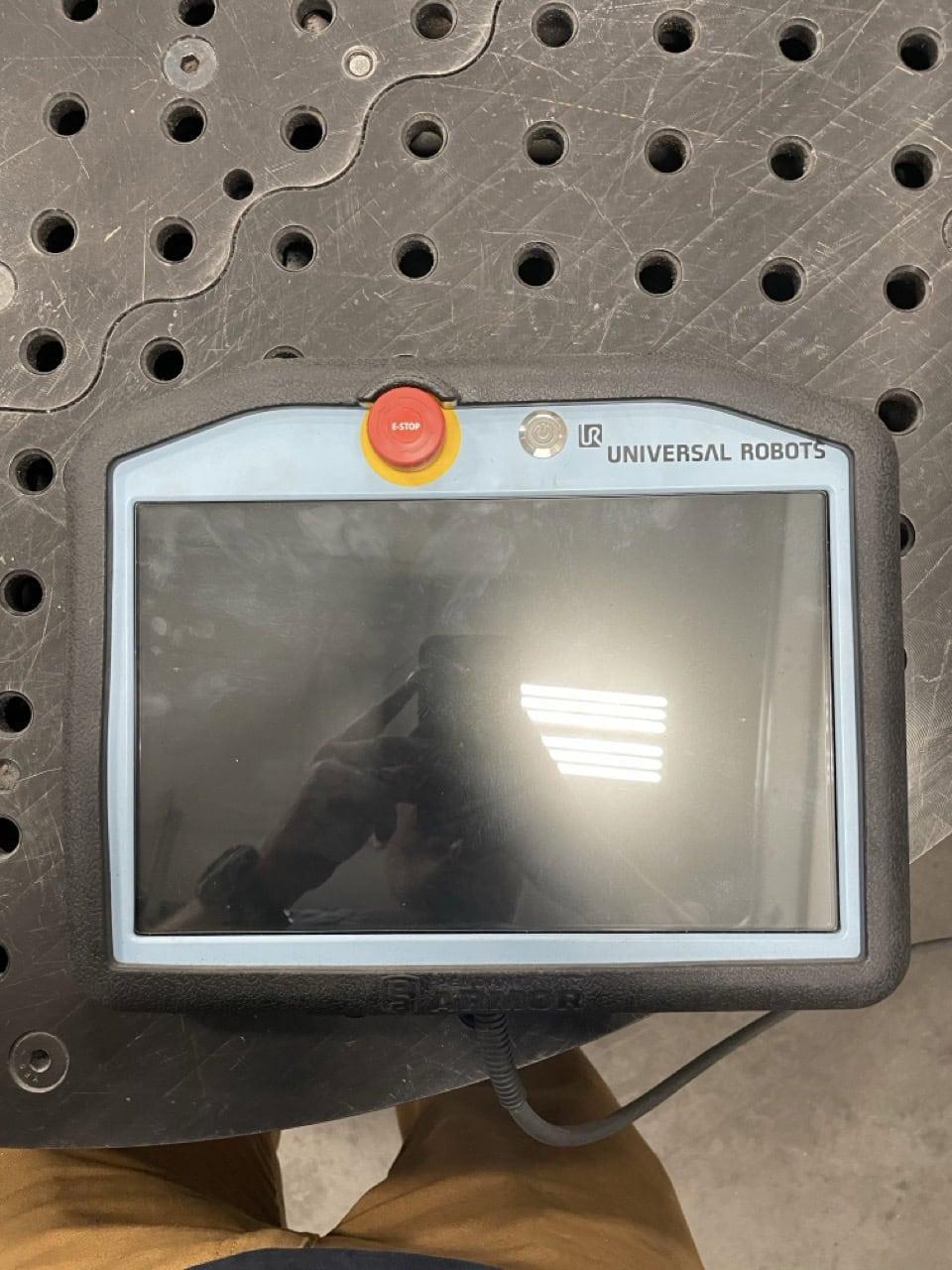

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Reach: 1300 mm (51.2 in) Degrees of freedom: 6 rotating joints Programming: 12 inch touchscreen with PolyScope graphical user interface

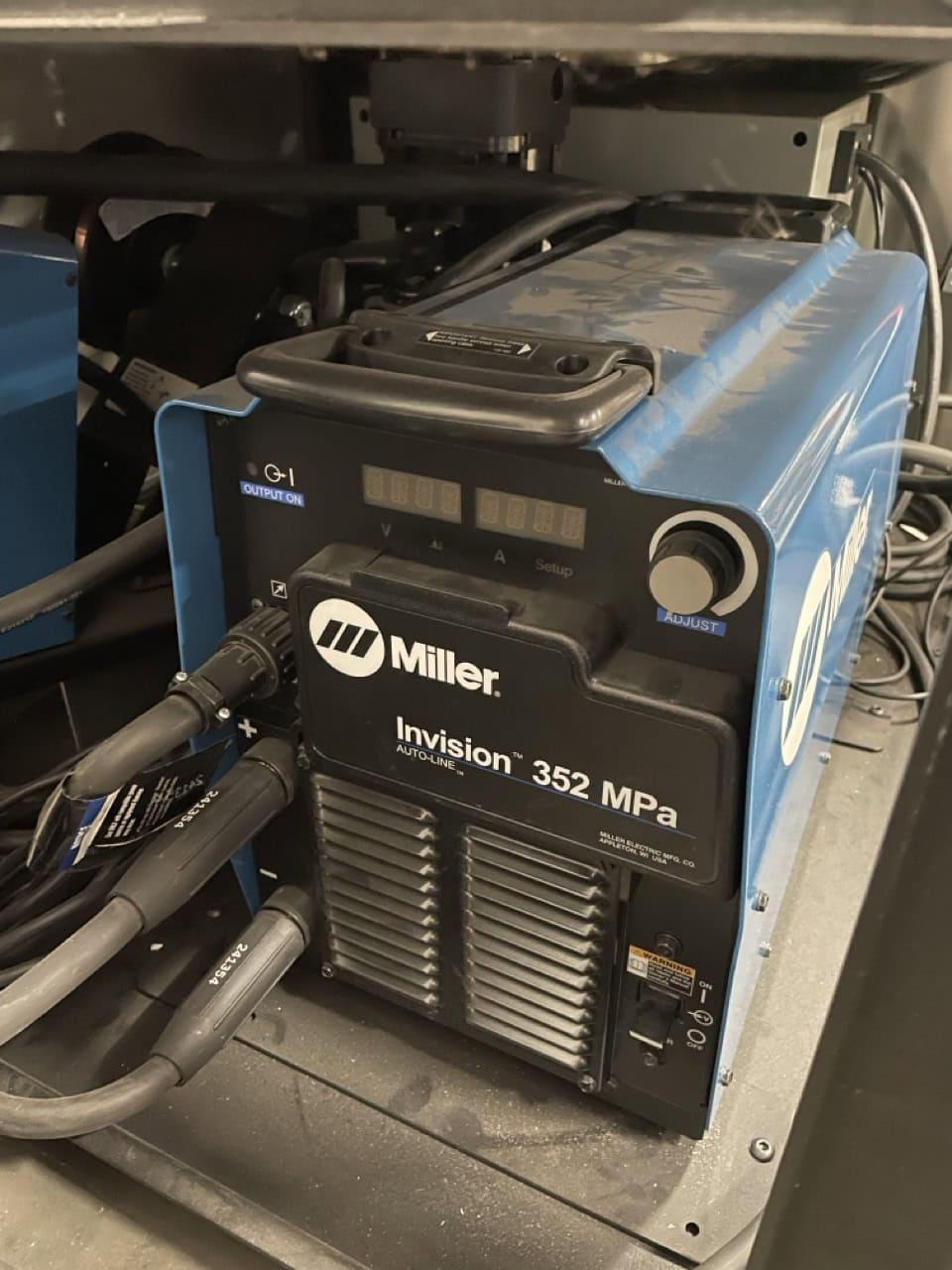

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Miller S-74 MPa Plus – Wire Feed Miller Invision 352 MPa Auto-line Welder Universal Robotics arm – Tough Gun CA3 Robotic Mig gun RT-1 4 rotating weld table Rotates to 4 different 90 degree quadrants (not while welding) 4′ diameter table Keyence SZ-V safety laser scanner Programmable through the Hirebotics Beacon App

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
