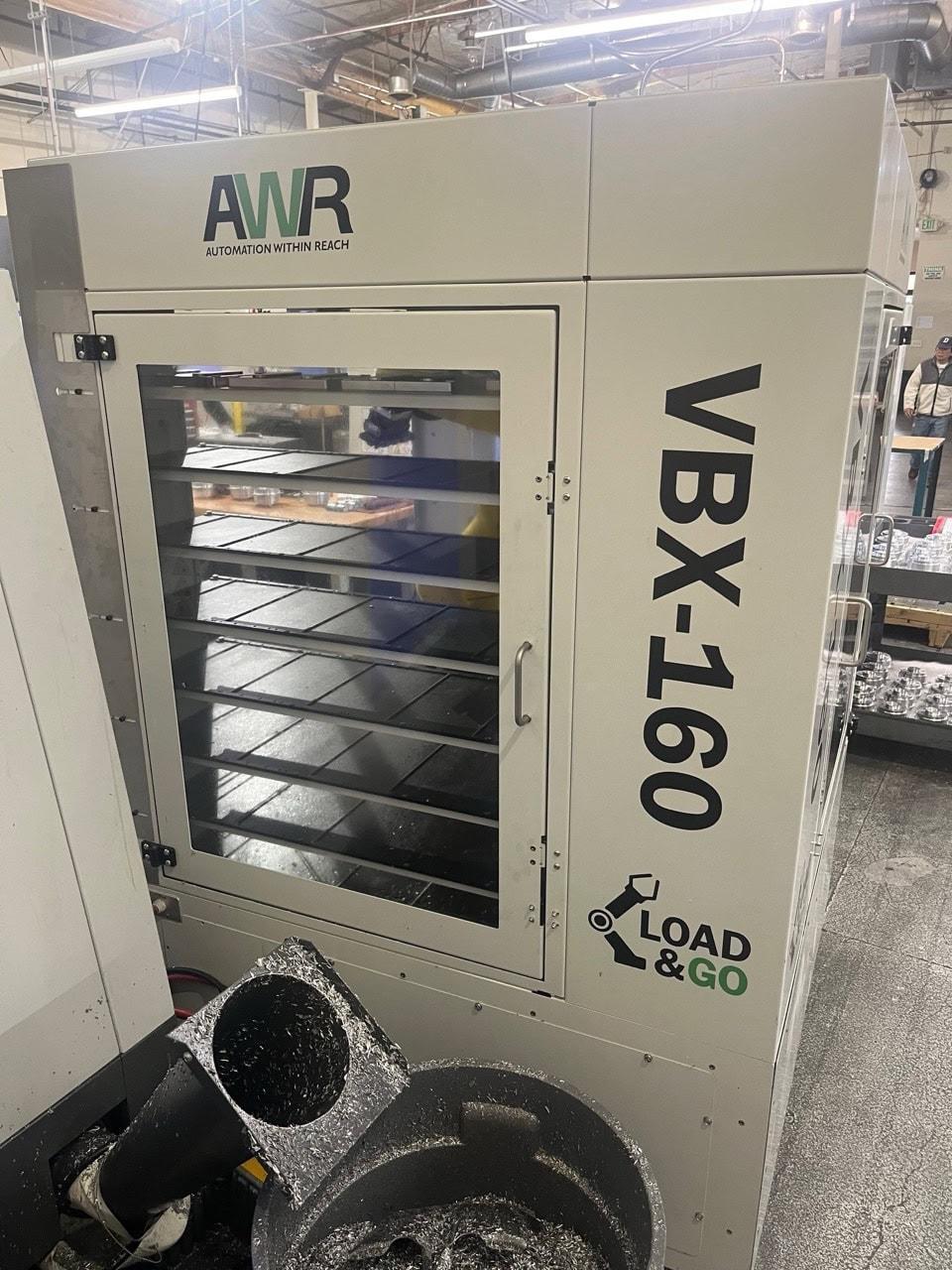

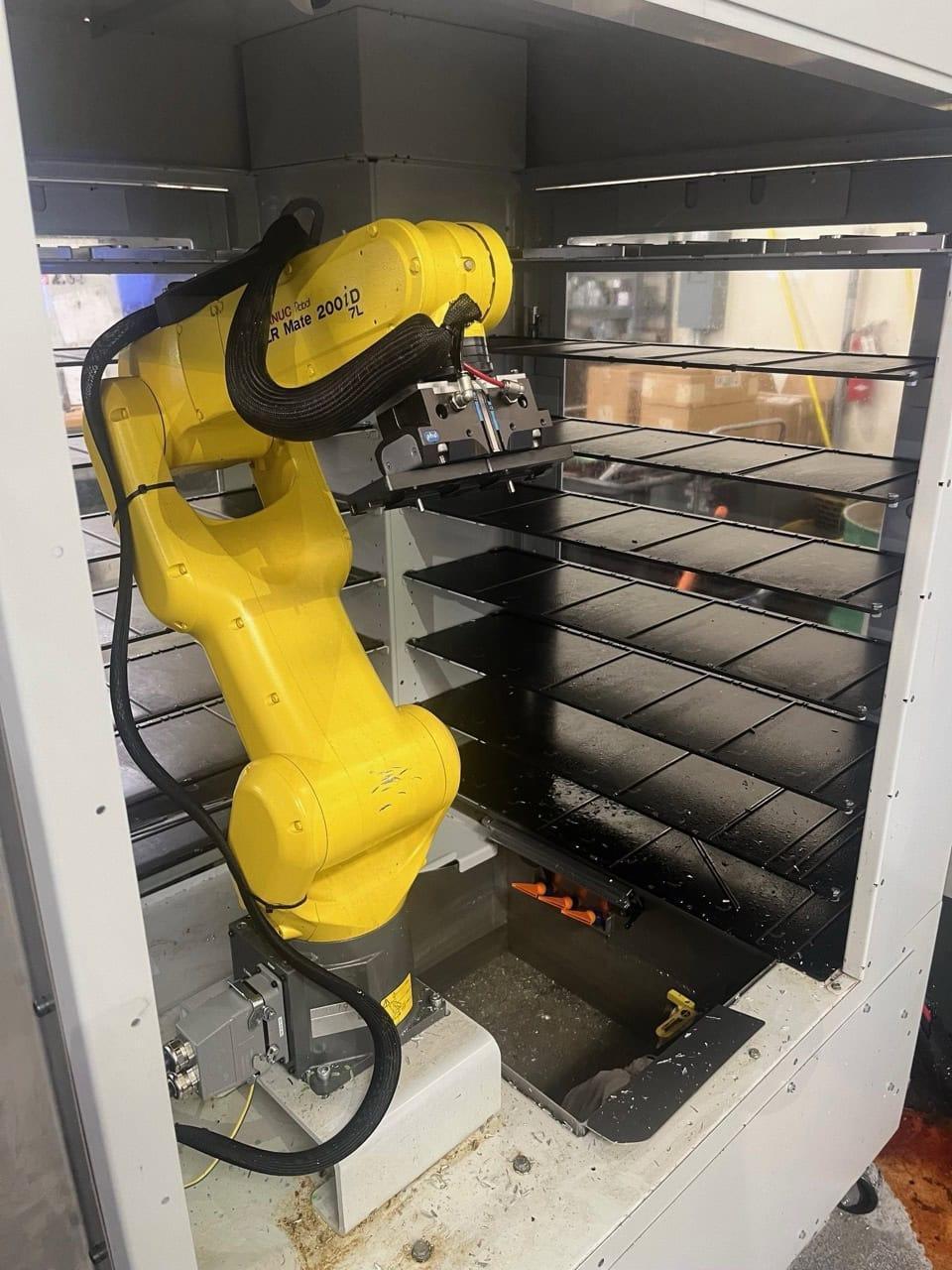

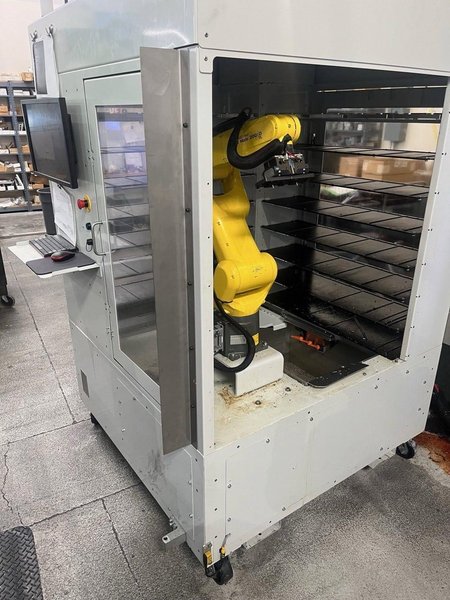

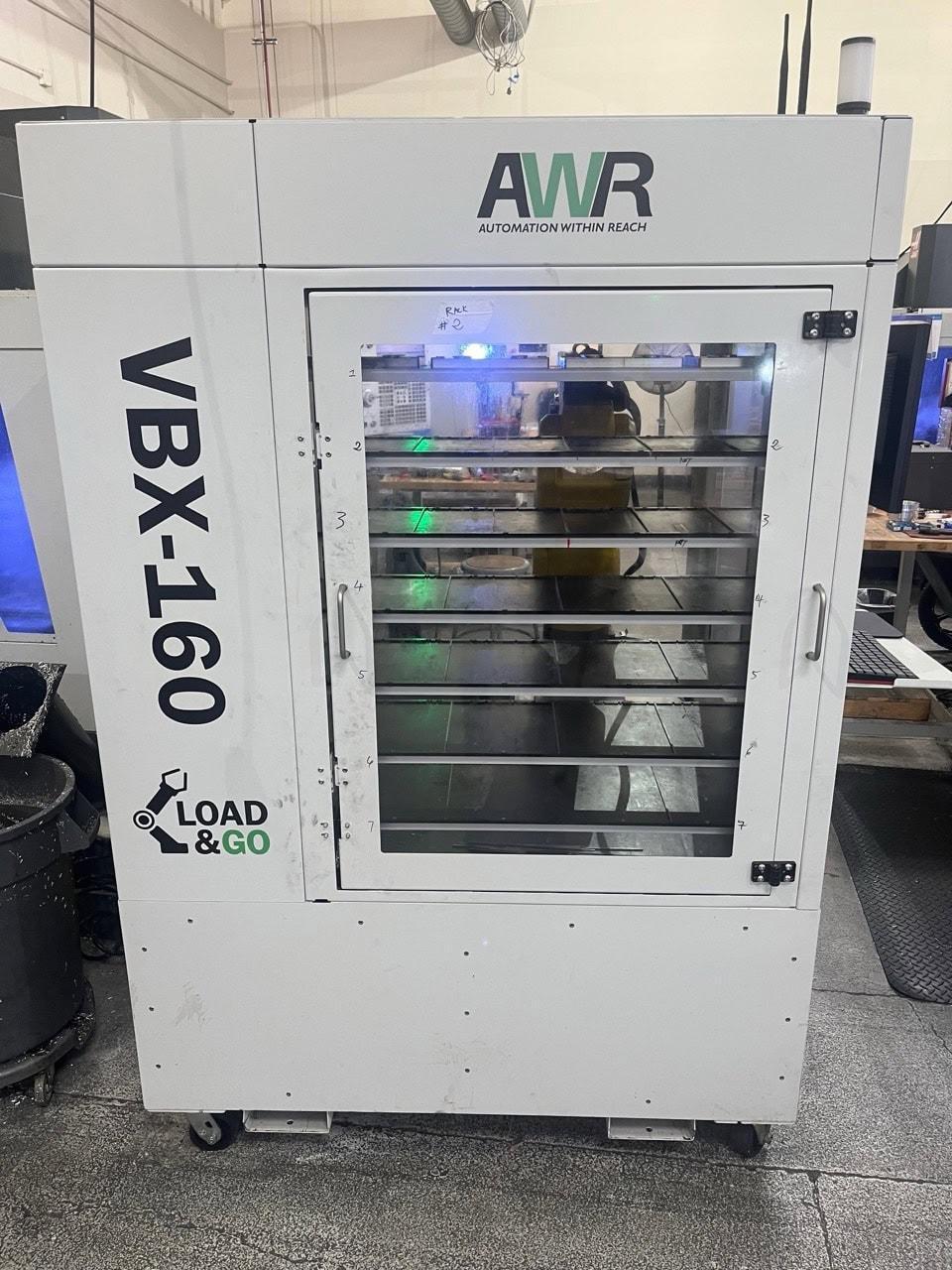

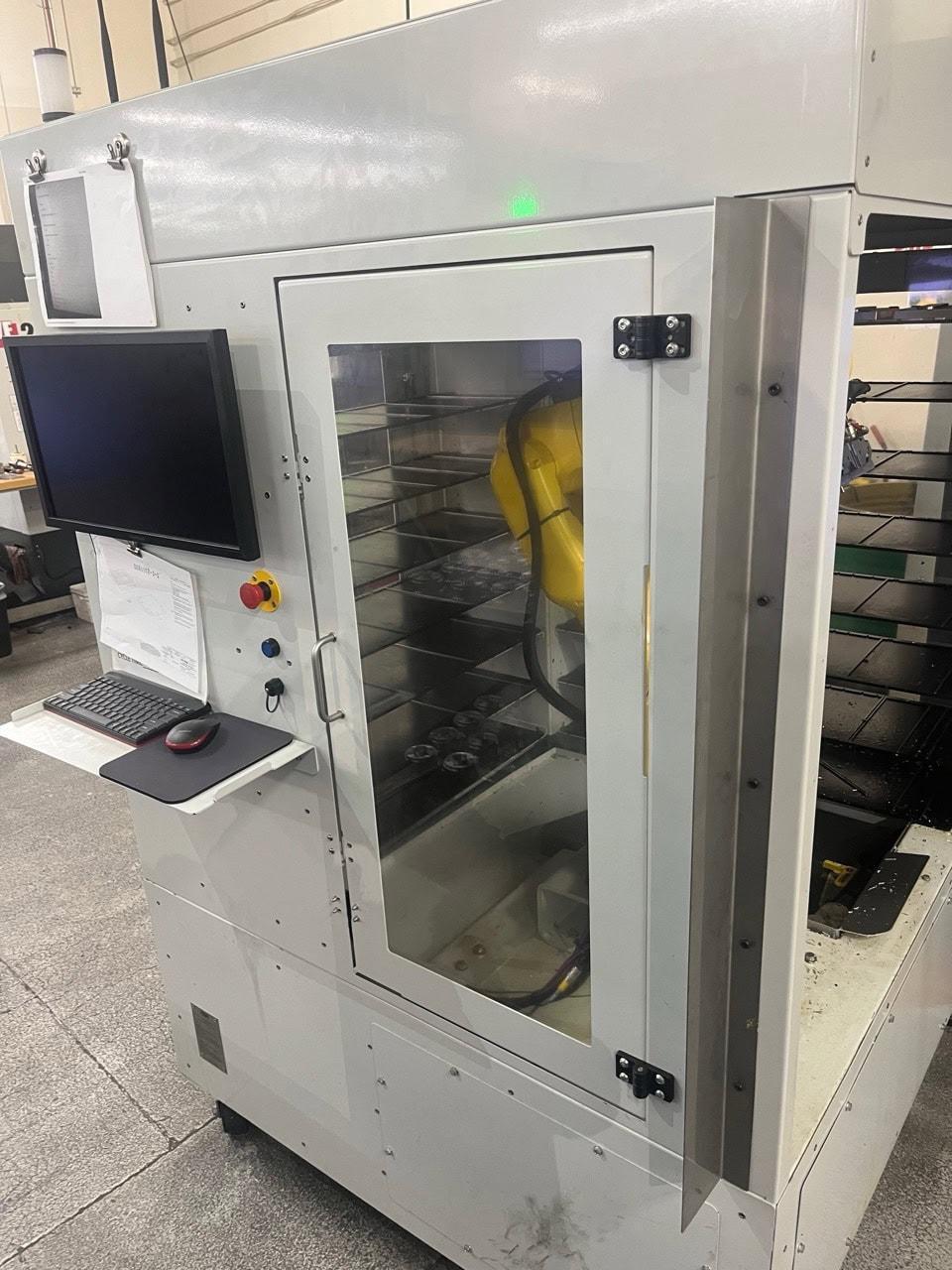

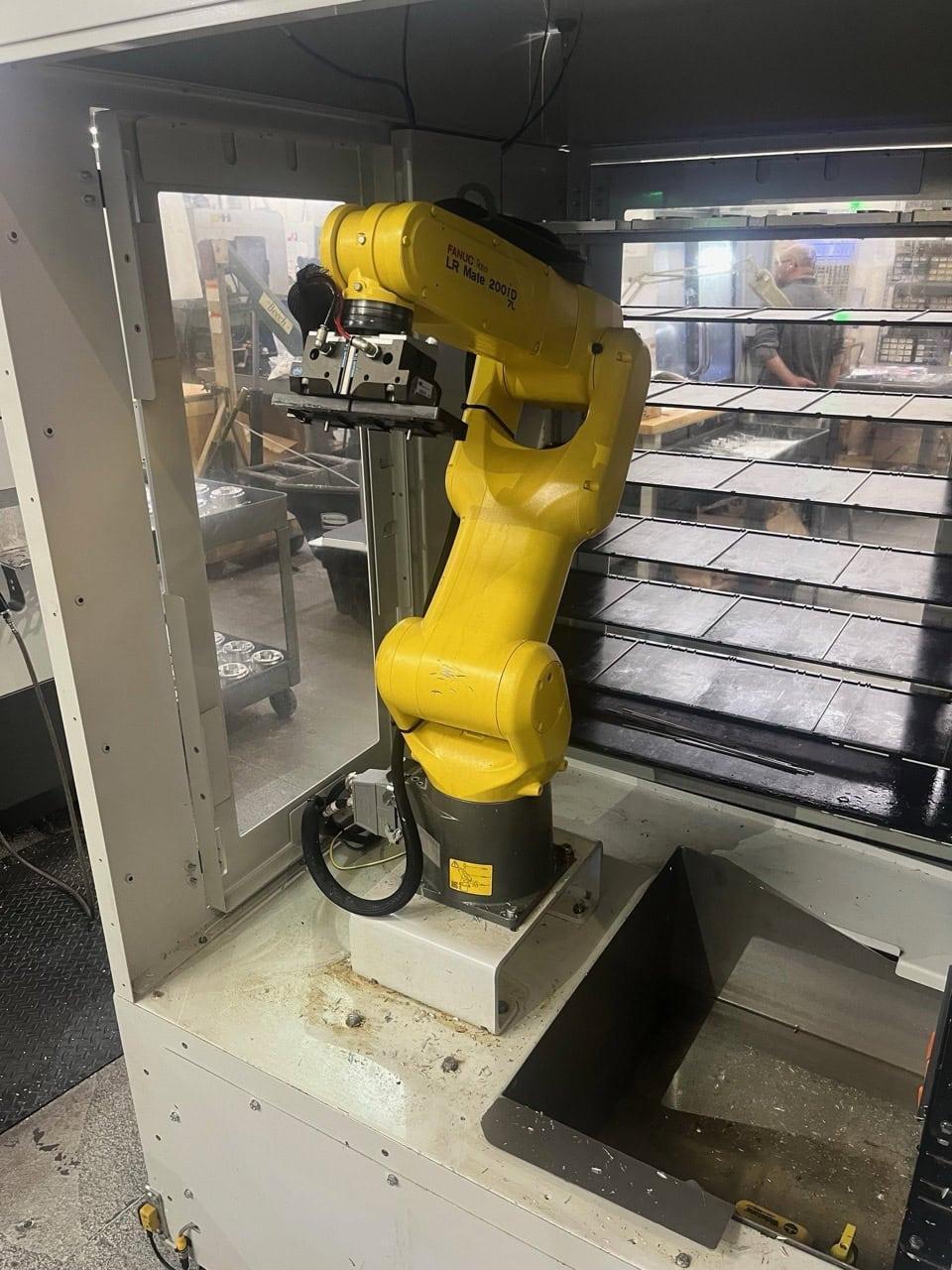

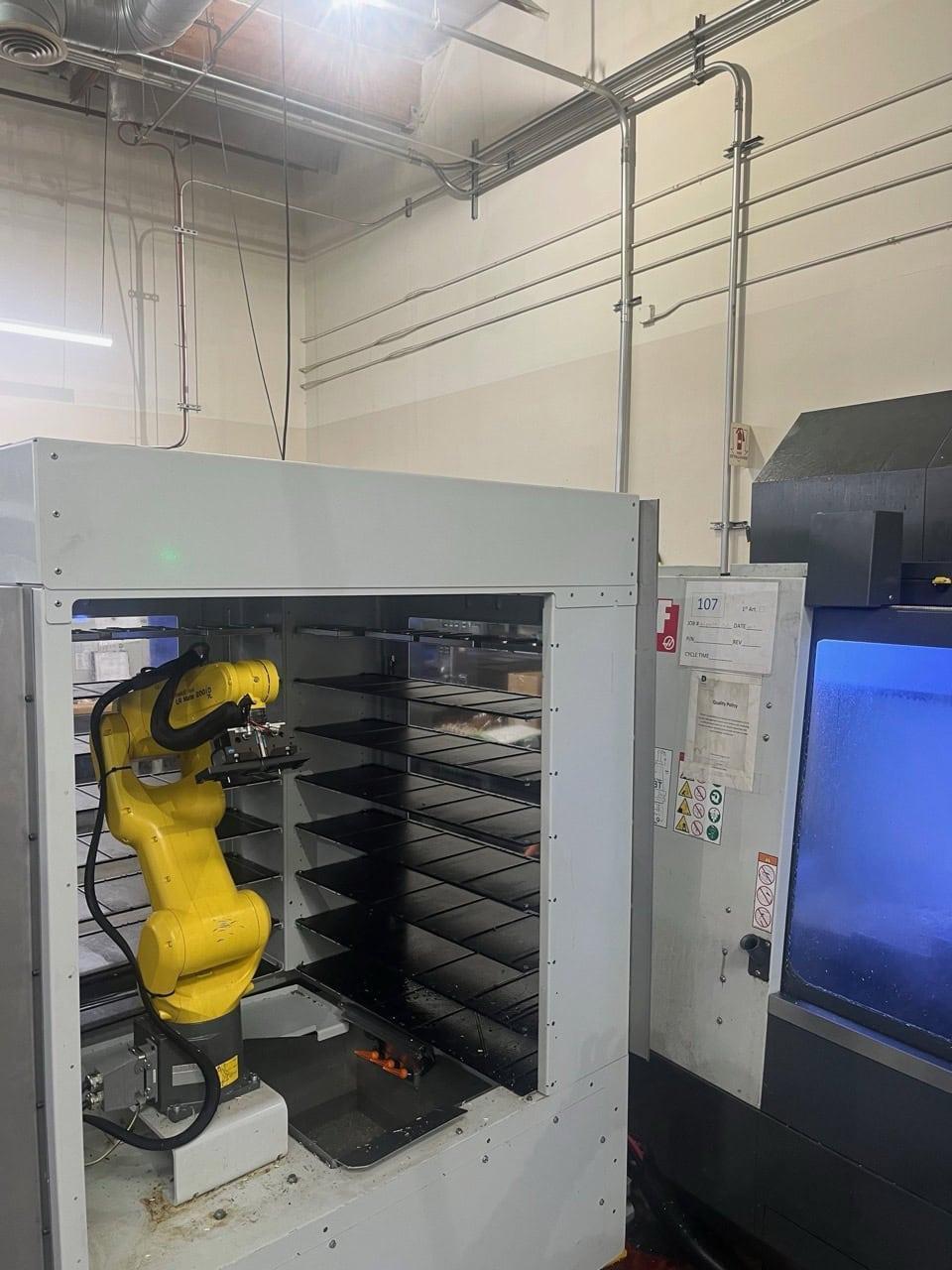

AWR VBX-160 Robot Load & Go System, 2023 – Fanuc LR Mate 200iD/7L Robot

MultiGrip Vise Support: Up to 3 vises per CNC Max Reach (from Inside VBX-160): 44″ VBX Series Footprint: 53″ x 53″ x 78″ Main. Compressed Air: 90-120 PSI Weight: 1,500 Lbs. VBX 160 Payload: 6.6 lb. (Top Jaws + Part) VBX 260 Payload: 21.6 lb. (Top Jaws + Part) Rinse bucket and Drier for Coolant Live camera for Monitoring Corner Pivot to Allow Access to CNC Machine Part Dimensions: Up to 8.5″ x 8.0″ x 8.8″ Part Capacity < 3.8″ H, 8″ max Depth 104 parts 2.5″ Width 81 parts 4″ Width 67 parts 5.5″ Width 53 parts 6.5″ Width 40 parts 8.5″ Width, 7.5″ for Rounded Part Capacity < 8.8″ H, 8″ max Depth 47 Parts 2.5″ Width 35 parts 4″ Width 29 parts 5.5″ Width 23 parts 6.5″ Width 18 parts 8.5″ Width, 7.5″ for Rounded Controls: Fanuc R-30iB Mate Plus Electrical: 200/230V, 1P, 50/60Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
