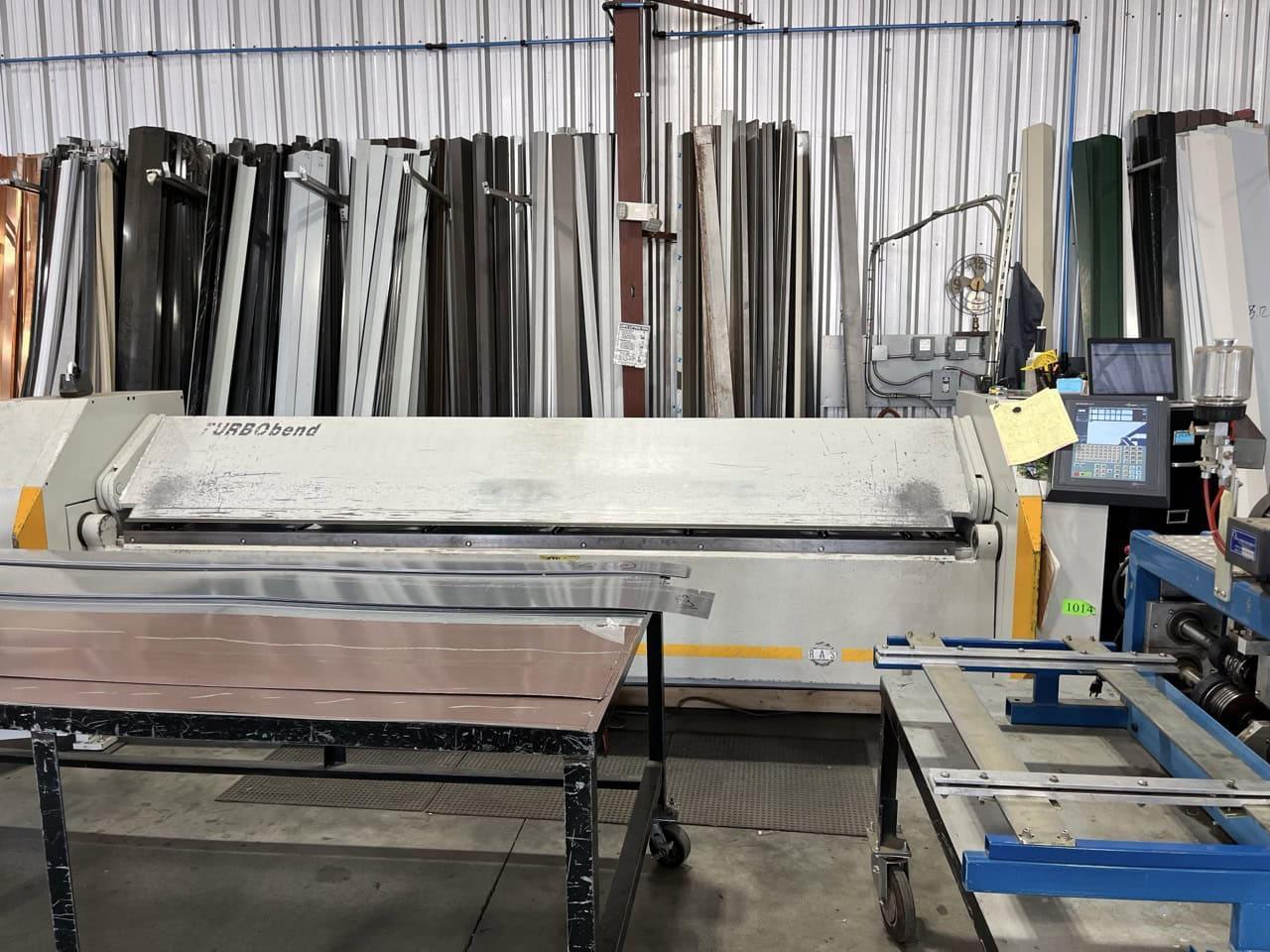

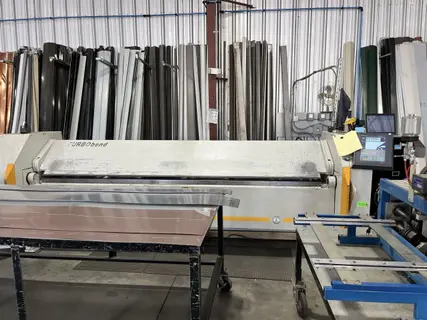

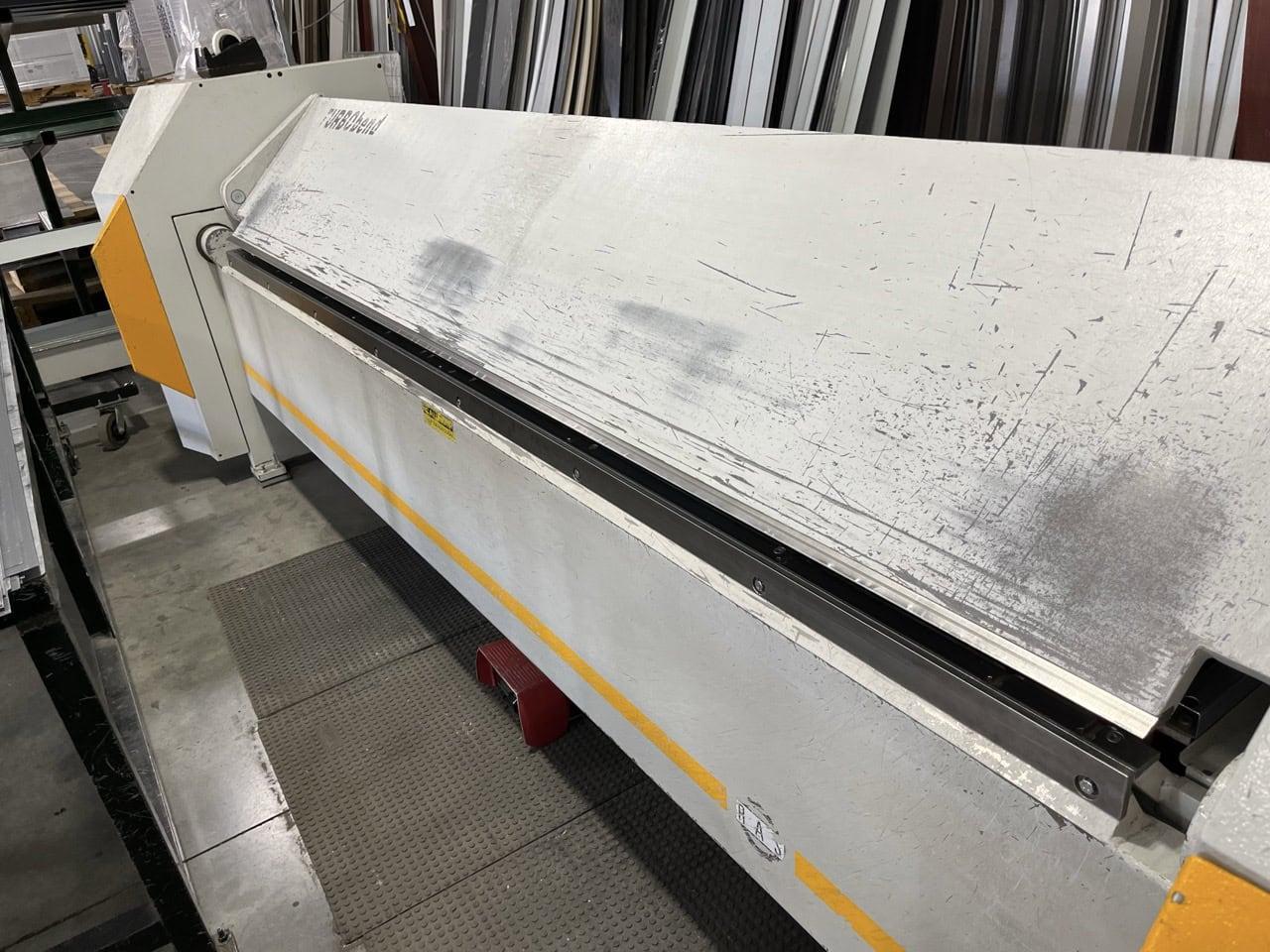

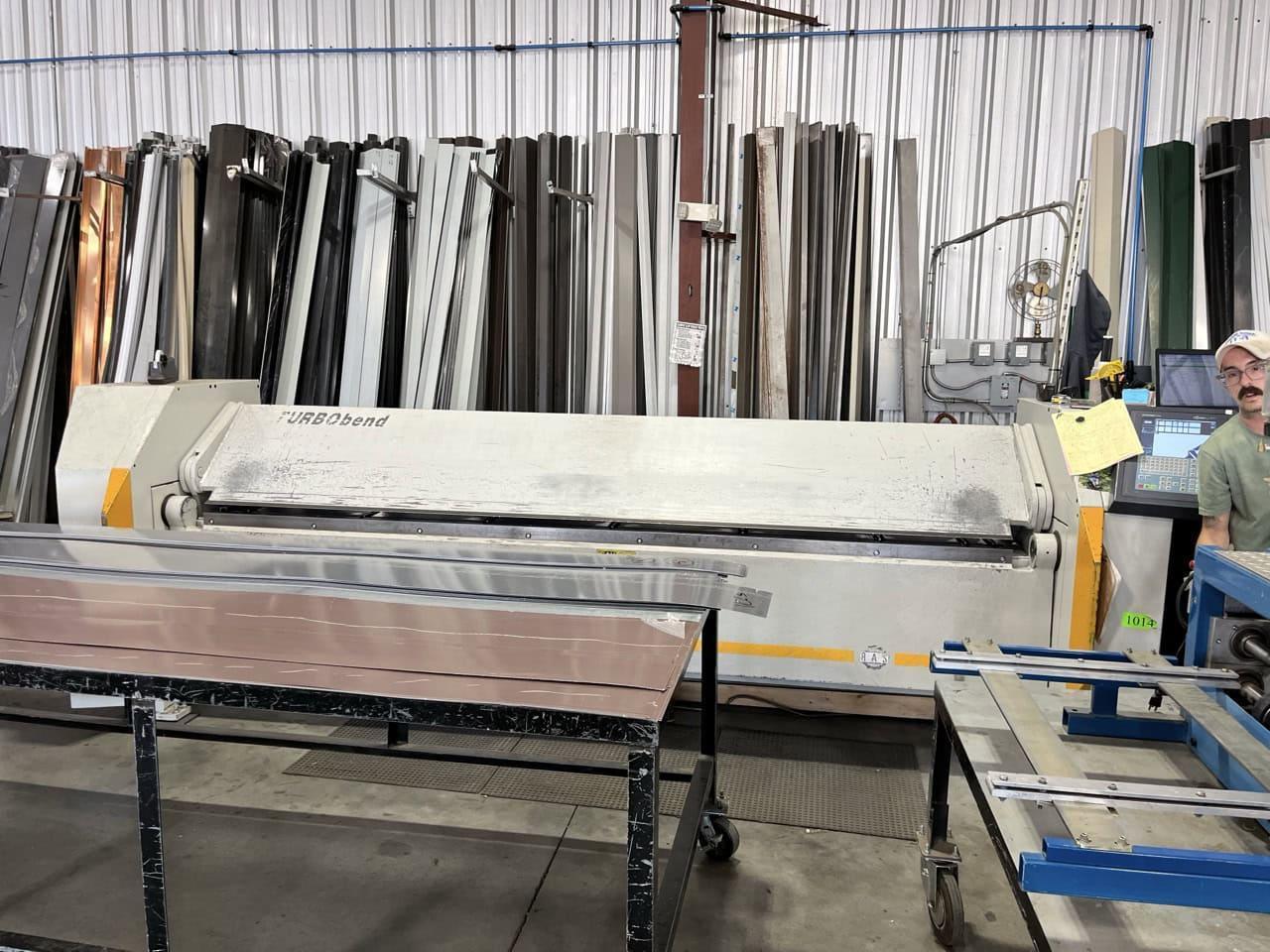

RAS 61.31 CNC Folding Machine, 2015

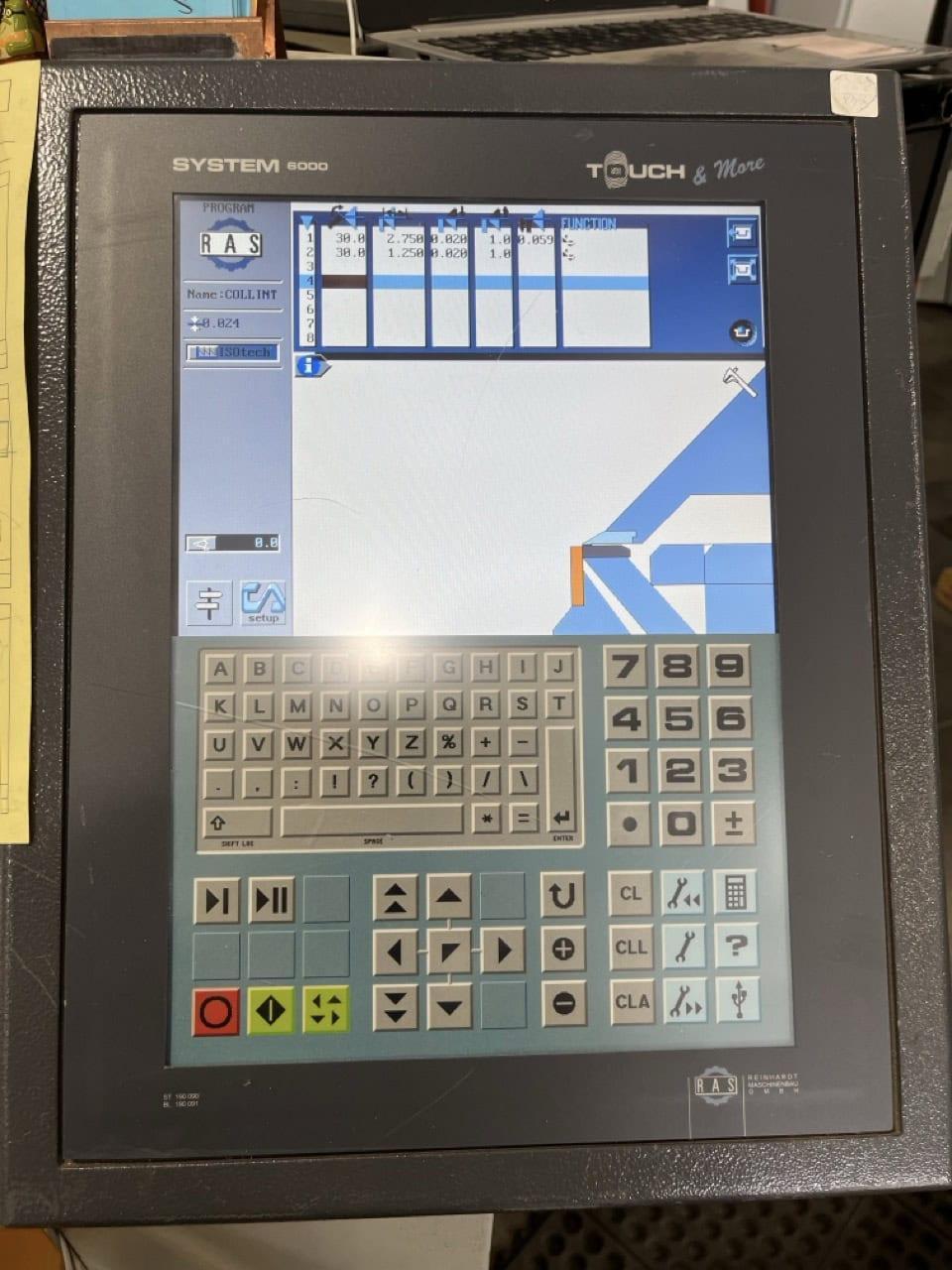

System 6000 Touch Screen control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Thickness 0.0591″ Max Thickness (gauge) 16 gauge Max Bending Length Length 124″ (3150 mm)

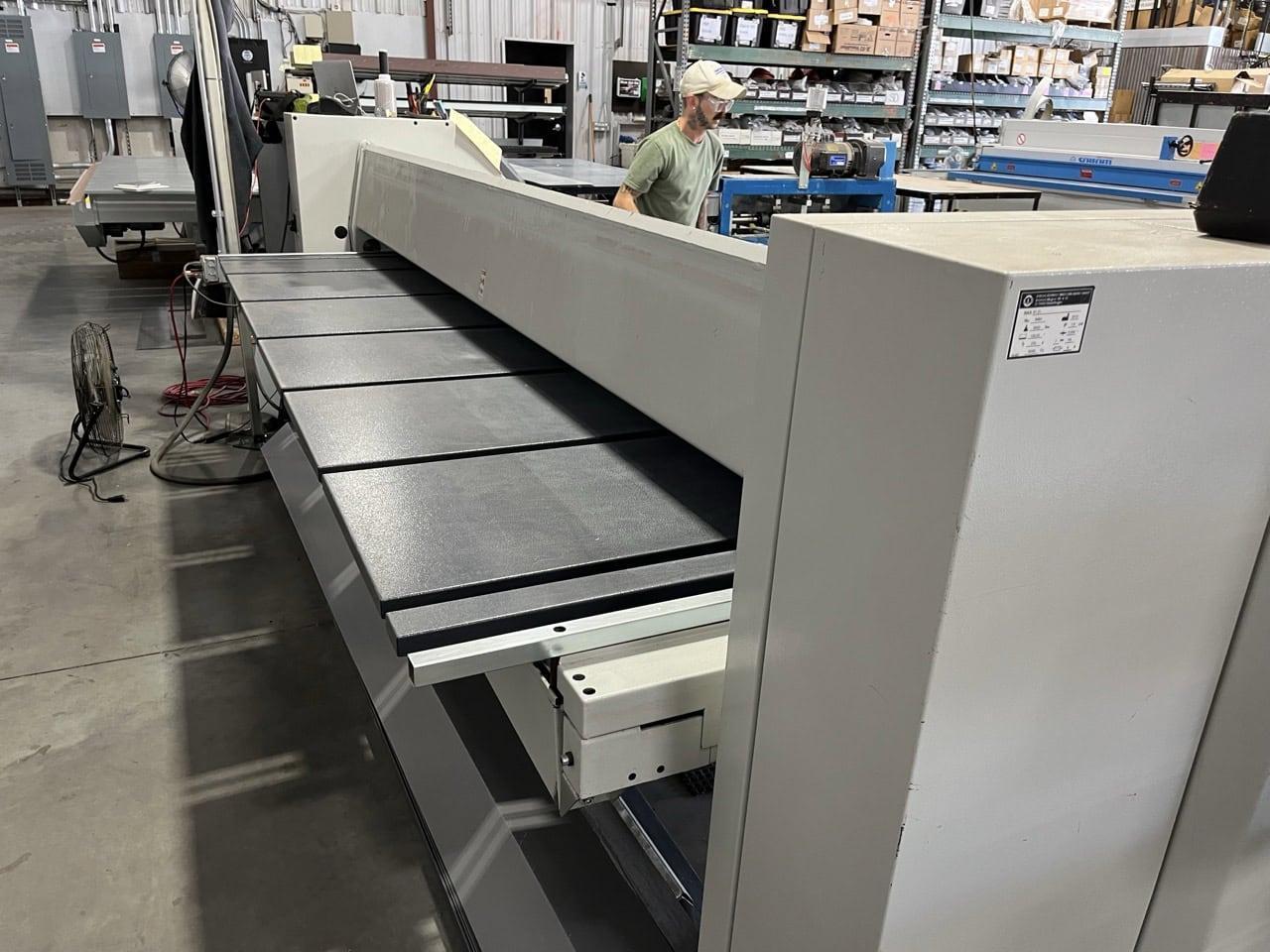

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Sheet Thickness 16 ga/1.5mm CNC Folding Beam Adjustment 0” – 0.217”/ 0 – 5.5mm Maximum Length 124”/3150mm Motor Drive Power Upper Beam 1 hp/.75 kw Back gauge Depth 0.236” – 39.4” / 6-1000mm Motor Drive Power Folding Beam 1.5 hp/1.1 kw Machine Length 170”/4320mm Down stroke Speed 2.5”/sec 6mm/sec Machine Width 55.1”/1400mm Folding Beam Speed 180 degrees/sec Machine Height 54.33”/1380mm Back gauge Speed (0.4” to 39.3”/8mm – 1000mm) 1.9 sec Working Height 33.5”/850mm Back gauge Accuracy  .004”/.15mm Maximum Upper BeamUpstroke 0 – 4.73”/ 0 – 120mm Machine Weight 5,500 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions Approx. Shipping Dimensions: 175″ L x 64″ W x 56″ H Weight: 5,500
