Hisen TM001-M-AK0001 Induction Heat Treat Machine, 2015

Output Power: Max 300KW Power Source: 480V 50Hz Frequency: 300 khz +/-10% Cooling: Forced air cooling Rectifier: Full wave rectifier Voltage adjustment: by S.C.R. HV Transformer: 10-15kV 25A Stroke 400mm (Hydraulic). CT Movable 1200mm (Hydraulic). Rotation speed 25-150 rpm (Hydraulic). Rotary Table with center point jig. Frame for coil adjustment.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CT adjustable by 50mm, left/right, front/back, with two coils. Includes oil for hydraulic unit.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Includes two sets of coils.

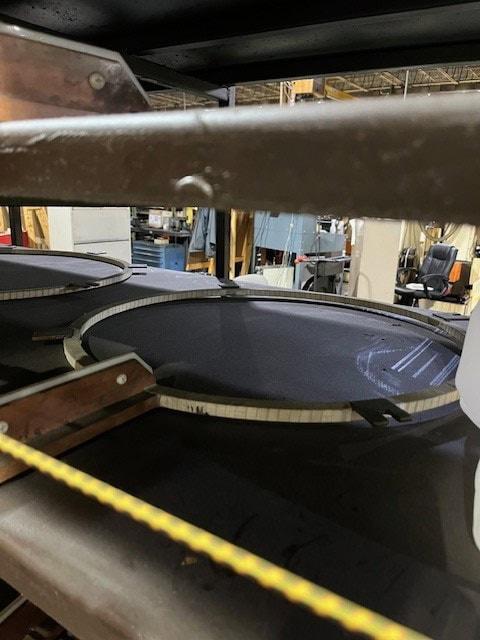

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,1 set includes coils for processing: 4 inches to 24 inches in 1 inch increments = 21 pieces 26 inches to 36 inches in 2 inch increments = 6 pieces

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
