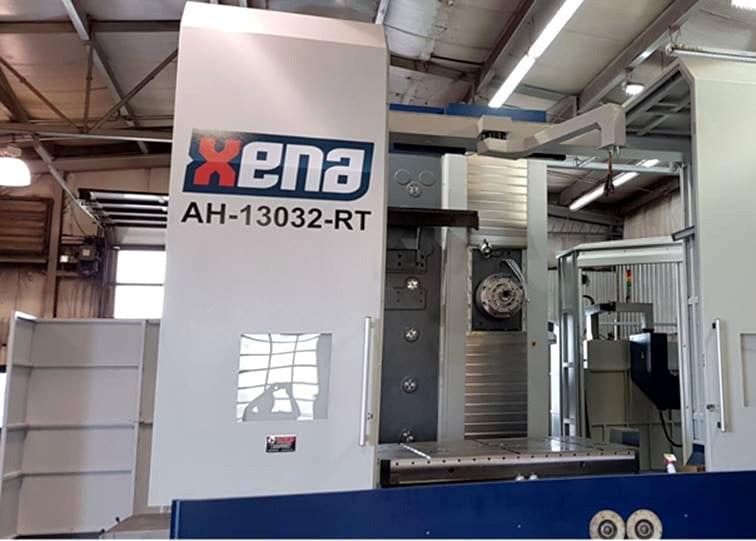

XENA 5A 5-Axis CNC Horizontal Boring Mill 130mm 3.2M, 2017

*Includes 1 Year Warranty **Under 500 hours use

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,XENA TACHYON / FAGOR 3 modes on the same 15” touch screen. – Manual mode – Manual assisted mode TACHYON – FAGOR 8070 “‘CNC’ ‘mode, conversational, or/and G code – Controller: 5 simultaneous axis

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Note that our TACHYON / FAGOR controller has the ” TeamViewer ” interface, by which it is possible to check and diagnose machine, remotely via the internet.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Avoiding costly, and often unnecessary technician traveling when it comes only to parameters and/or programming.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,SPECIFICATIONS Table: 72 ” x 63″ Max weight table 17,000 lbs Height of table : 56 ”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,TRAVEL X-axis 126″ Y-axis 78.7″ Z-axis 78.7″ W-axis 35.4″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,SPINDLE Diameter 130mm (5.1) Nose: BT-50 or CAT-50 Speed (RPM) 10 -2000 Spindle motor: (26HP @ 30 min) Speed ratio 3 (gearbox)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,FEED Fast feed (X-Y-Z) 10M / min (472’’./min) Fast feed (W): 6M / min (400’’/min) Cutting feed: 5M / min (200’’/min) Table ” B ”: 4 RPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,ATC Number of tools: 60 tools (BT or CAT-50) ” ARM TYPE ” (currently on BT) Max tool weight: 55 lbs Max tool length: 15.7 Max tool diameter: 5 (10 in. Without adjacent tools) Change time: 15 sec.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine weight: 118,000 lbs Floor space: 295 x 301 ” (See attached drawing) Height: 213.5 ” Voltage: 440V 60Hz 3ph

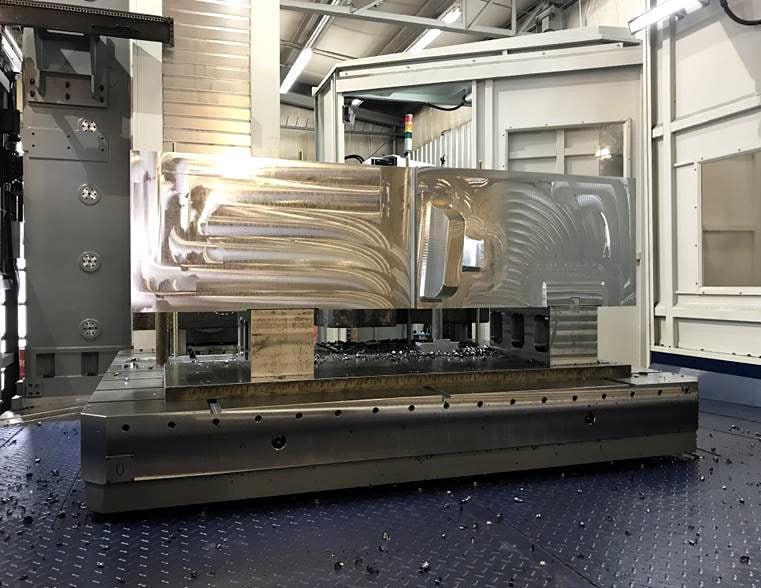

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Included : Axis “B” @ 360,000 position (+/- 10 μ) with possibility of machining in 4 simultaneous axes on the table. Spindle cooler Automatic power off Hydraulic unit Coolant system Automatic lubrication Alarm light tower LED full interior lighting M.P.G. 5 axis Linear positioning glass scale on the X, Y, Z axes Heat exchanger Chip conveyors

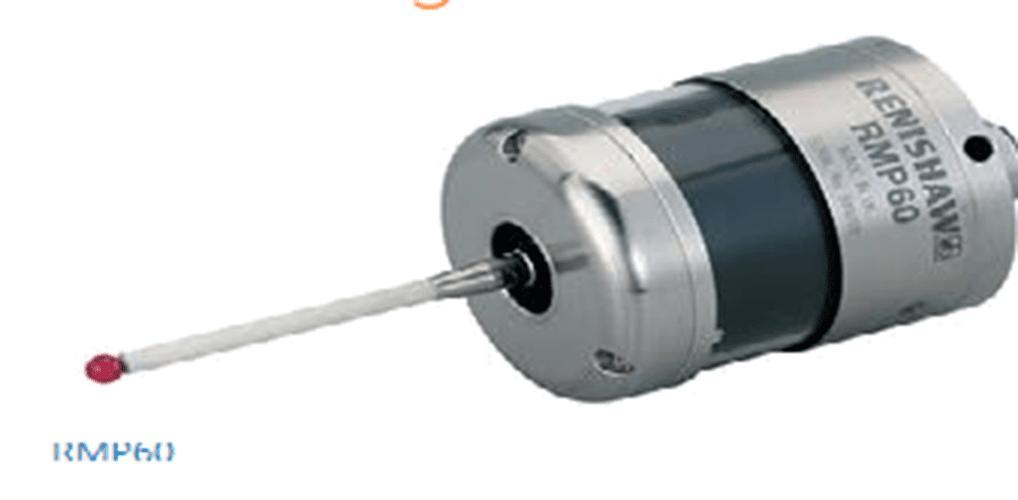

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Other accessories included: (see details at the bottom of the pages) PROBE Renishaw (RTS + RMP60 (Q) + RMI-Q) Automatic tool length & workpiece probing system 5th axis installed on table with base (see photos below)

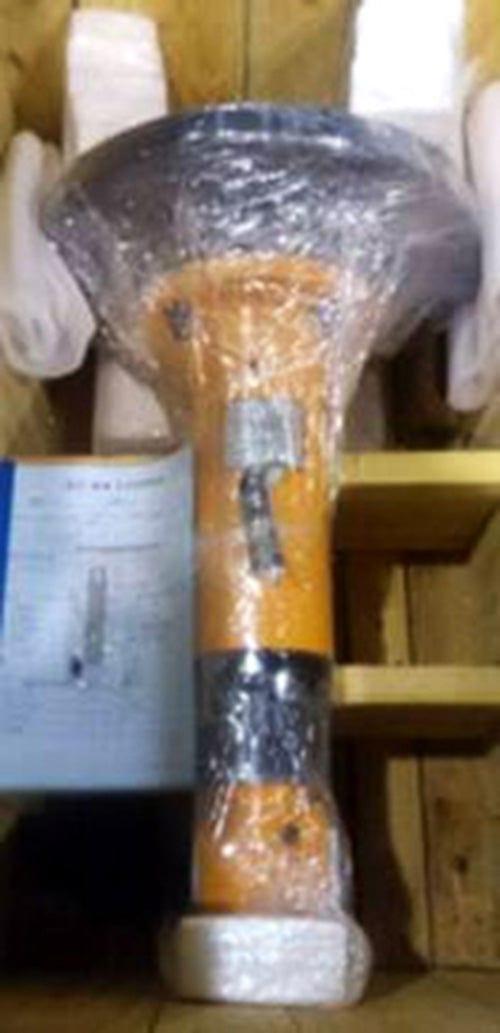

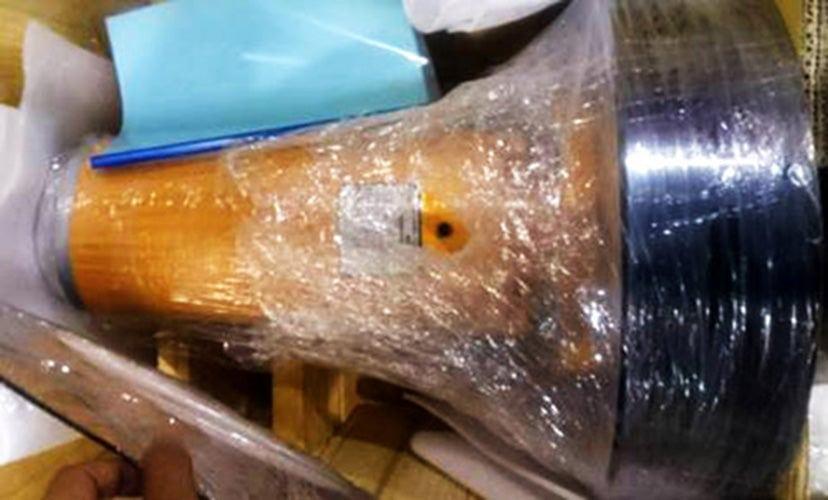

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Includes: Rotary table with a 3-jaw hydraulic chuck (20 ”) with a 6 ” bore HD rolling center with a 3-jaw hydraulic chuck (16 ”) Hydraulic brakes on both ends CTS “Coolant” High pressure through spindle) (15bar = 215 psi) Full enclosure (required with CTS) W 400mm extension support (for vibration-free power machining up to the center of the table) (See photos below) Permanent adapter for: (combined with tool changer) 2 heads at 90 degrees: (1) mini 50/30 + (1) STD 50/50 (see photos below) 1 straight extension 50/50 (see photos below)
