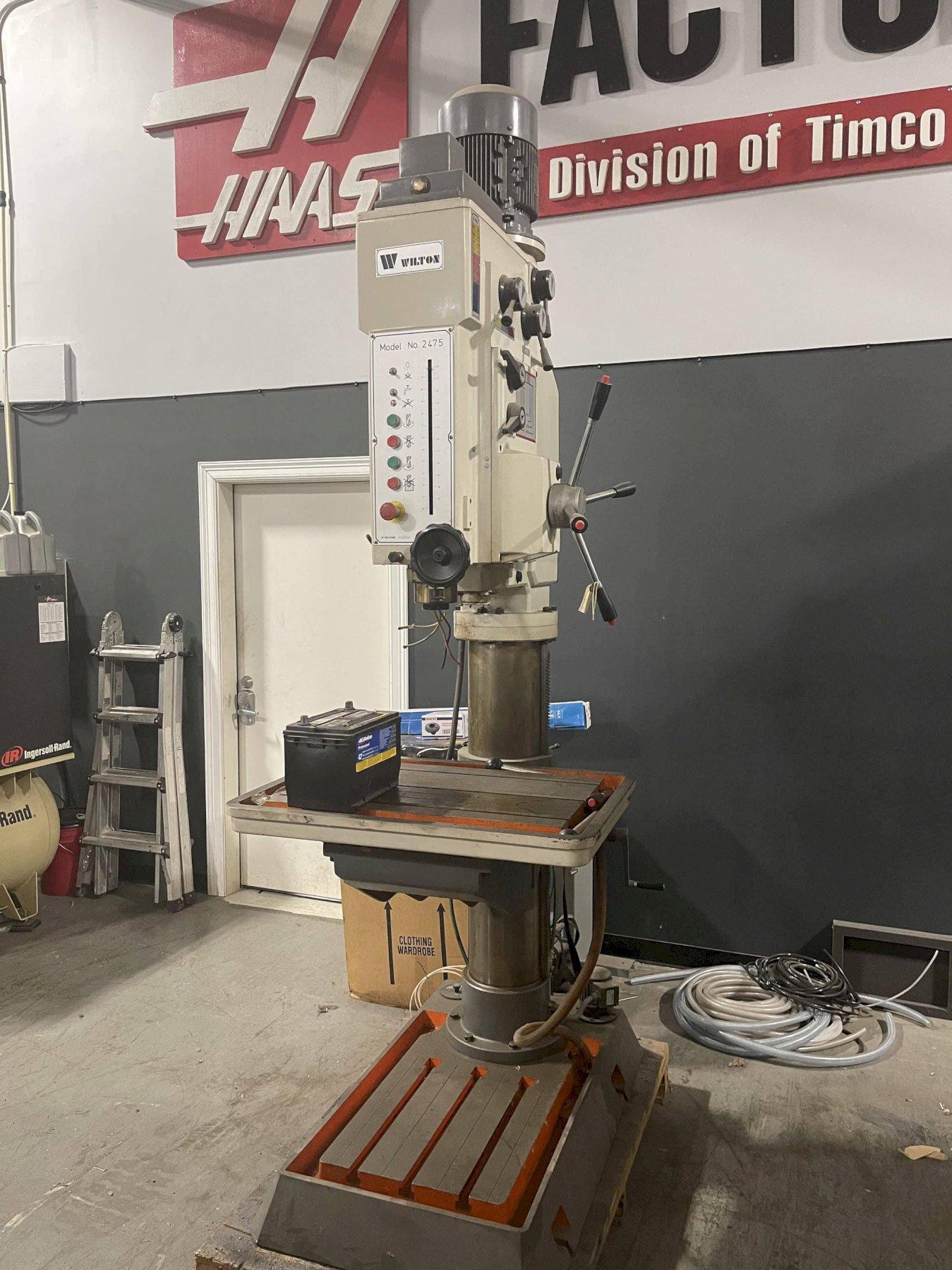

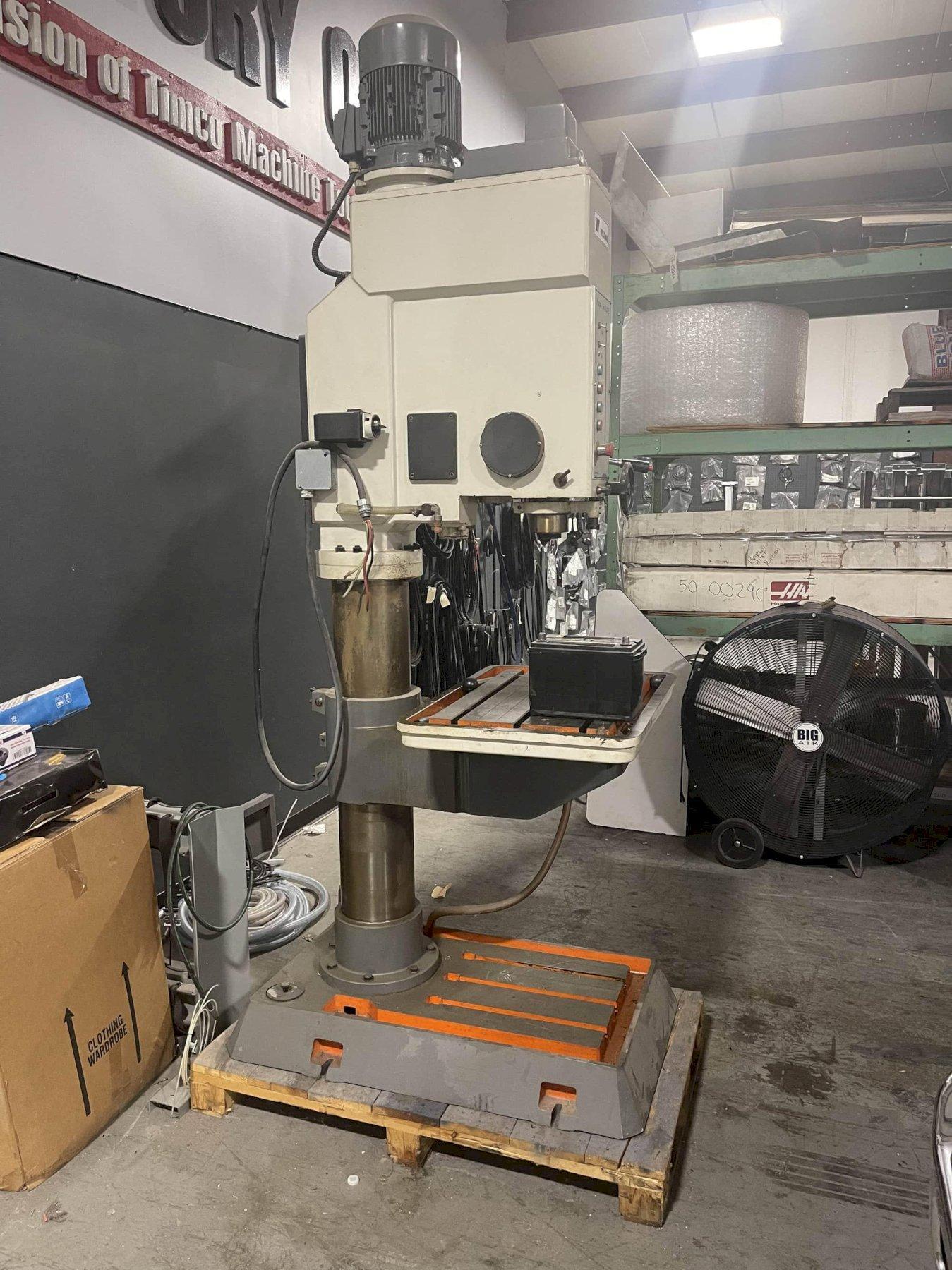

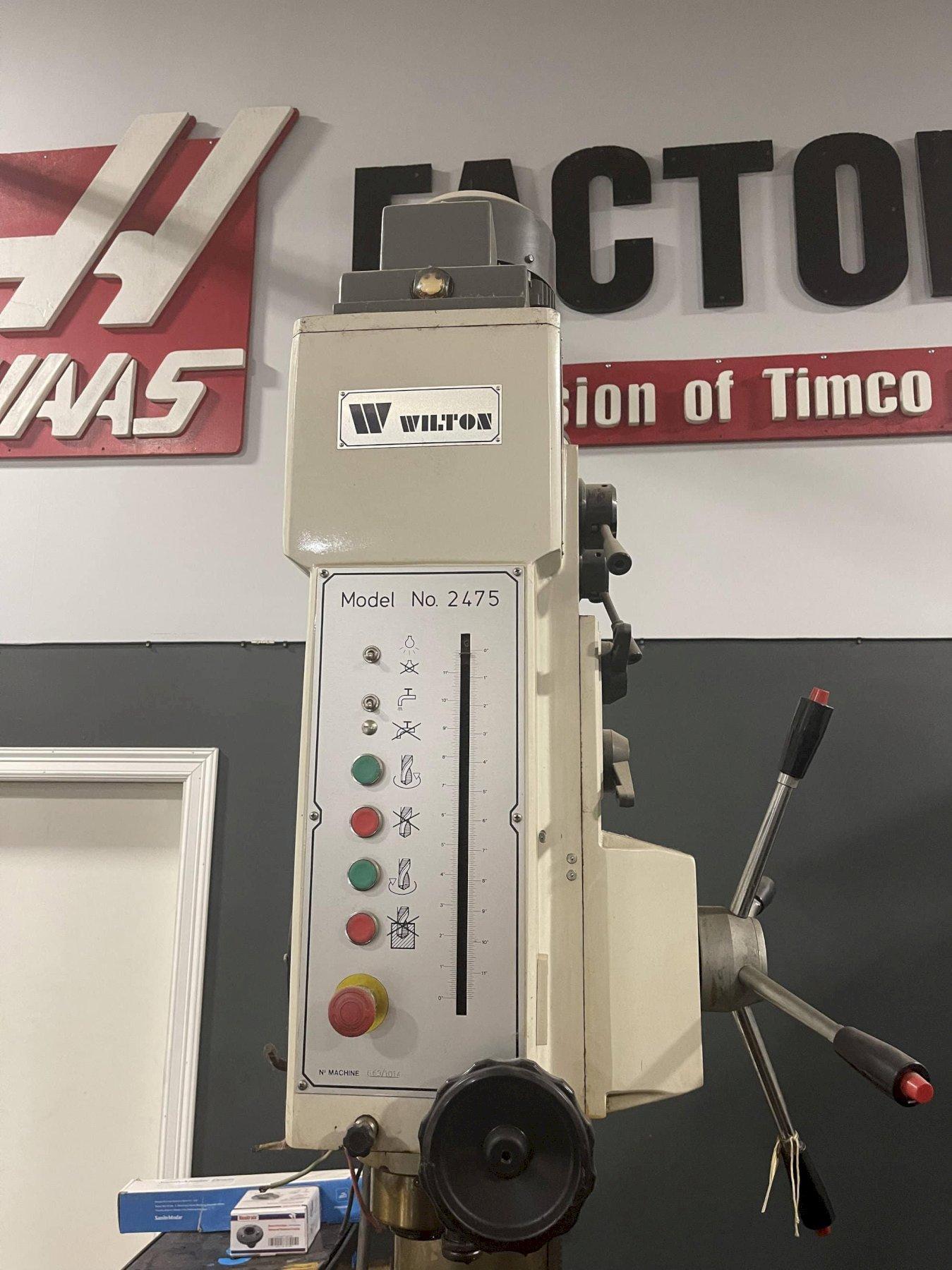

Wilton 2475 Drill Press

Size (in.): 33 Steel Drilling Capacity (in.): 2-3/4 Steel Tapping Capacity (in.): 2-1/8 Quill Diameter (in.): 3.78 Distance Spindle to Column (max./in.): 16-1/2 Number & Range of Spindle Speeds (RPM): 12, (42,58,86,116,154, 249,304,412,554,748, 1098, 1485) Automatic Feeds (in.): .002, .004, .006, .008, .014, .020 Spindle Travel (in.): 11 Spindle Distance to Base (in.): 51 Spindle Distance to Table (min./in.): 2.75 Spindle Distance to Table (max./in.): 30-1/2 Table Size (in.): 33-1/2×23-1/2 T-Slot Size (in.): 5/8 Work Table Capacity (Ibs): 750 Spindle Taper: 5MT Motor: 7-1/2HP, 220/440V, 3Ph** **110V at switch Floor Space Required: (in.): 55 x 33 x 115 Net Weight (lbs): 2536

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturing year not confirmed

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
