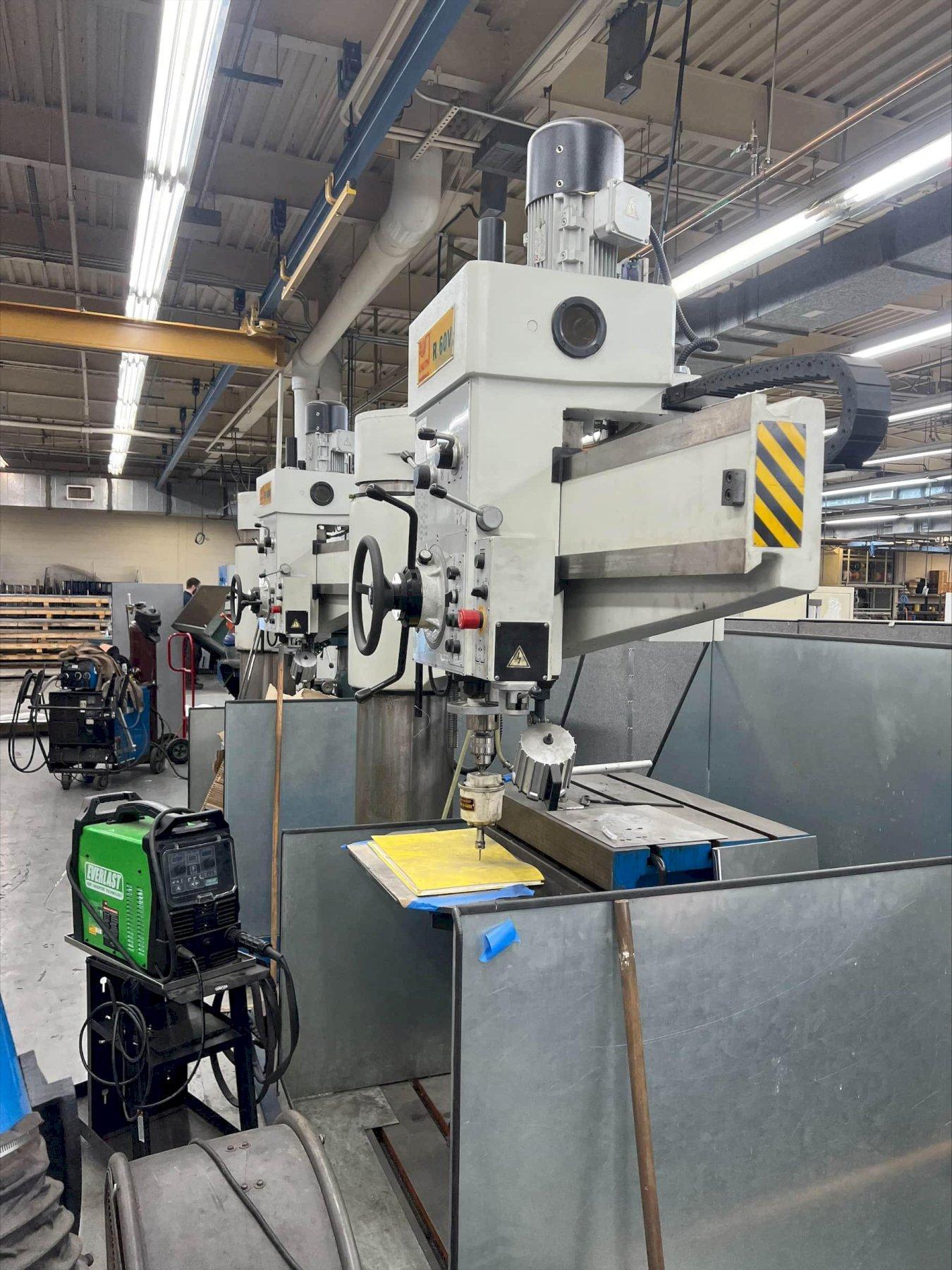

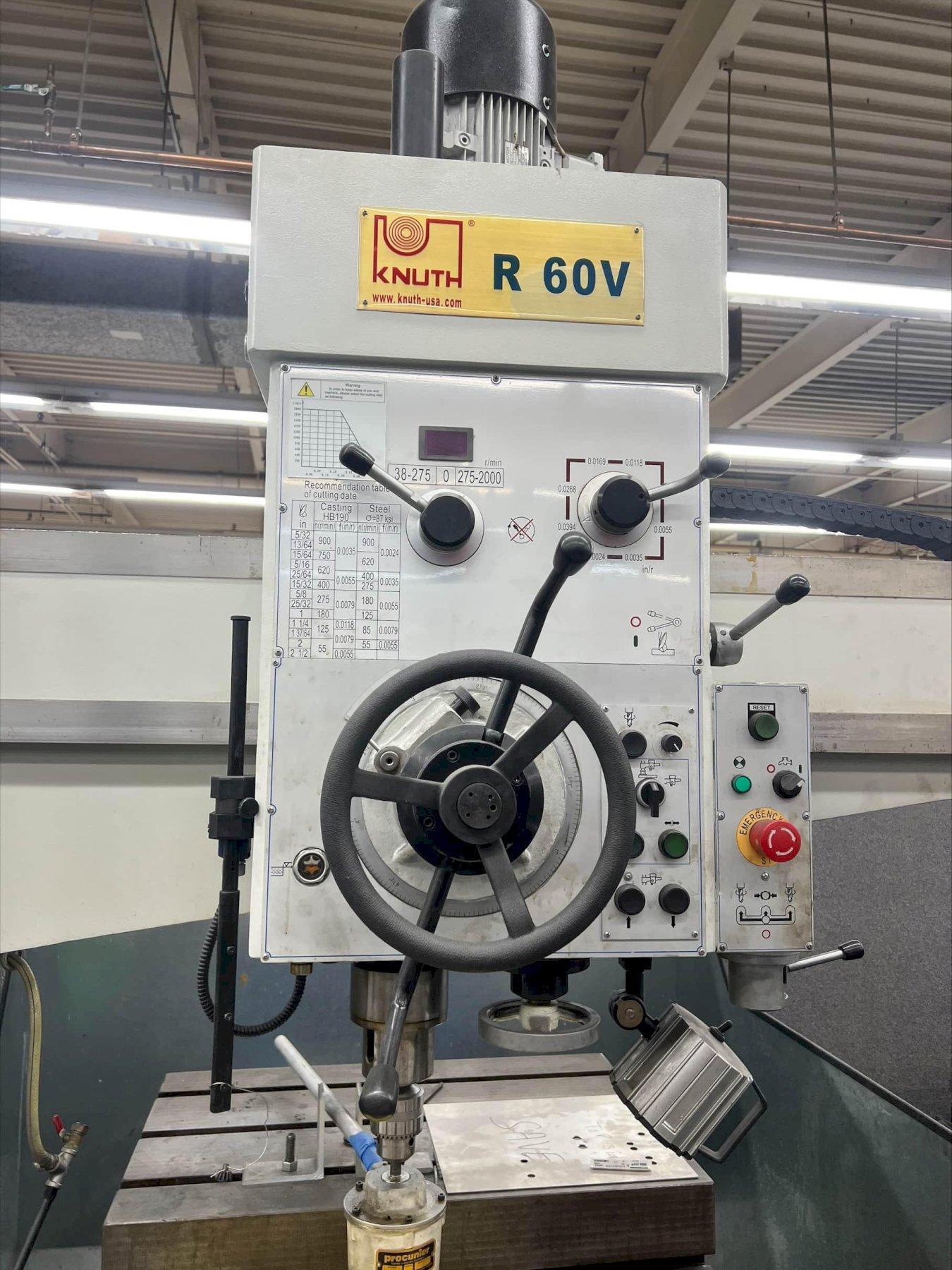

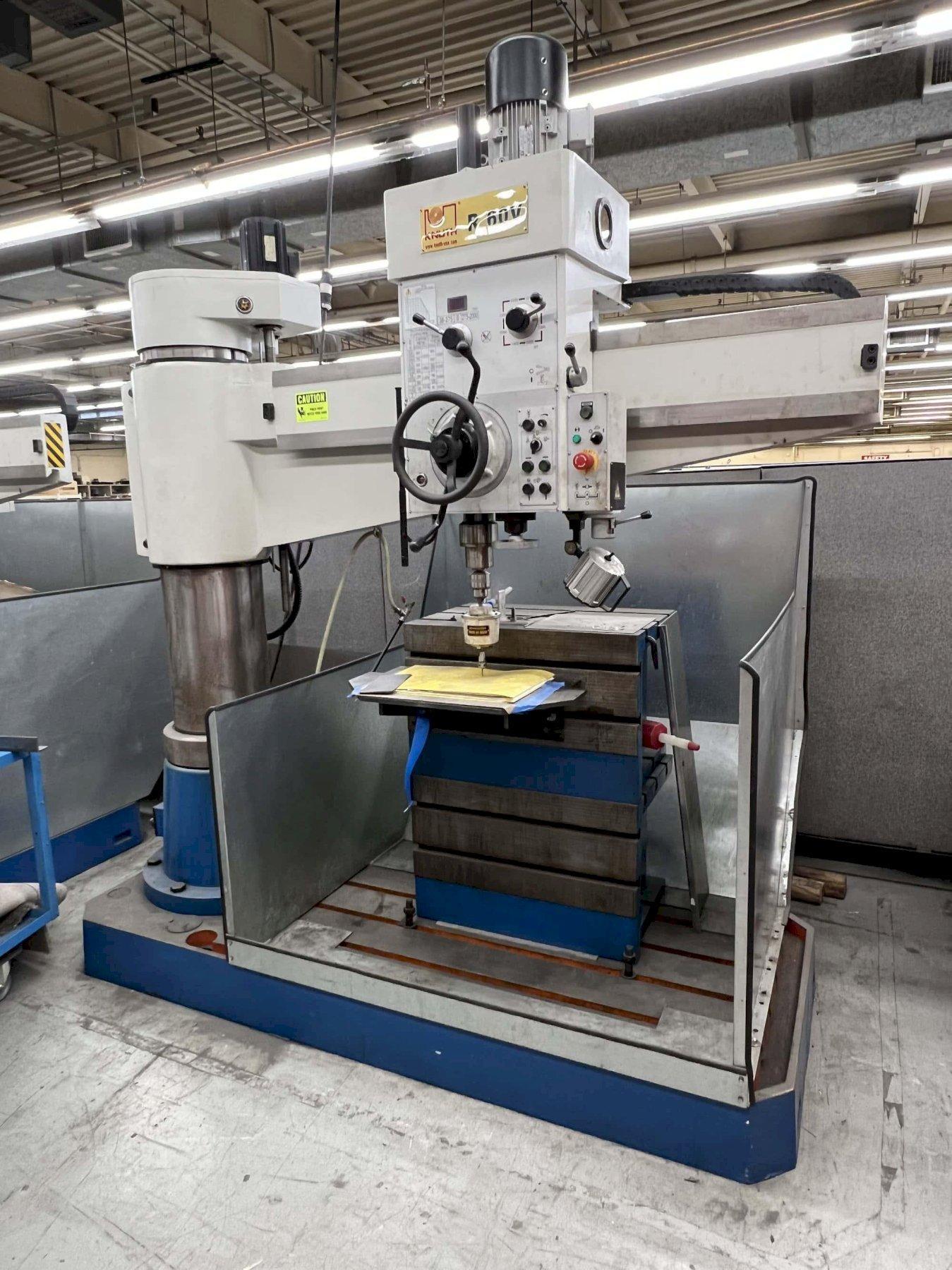

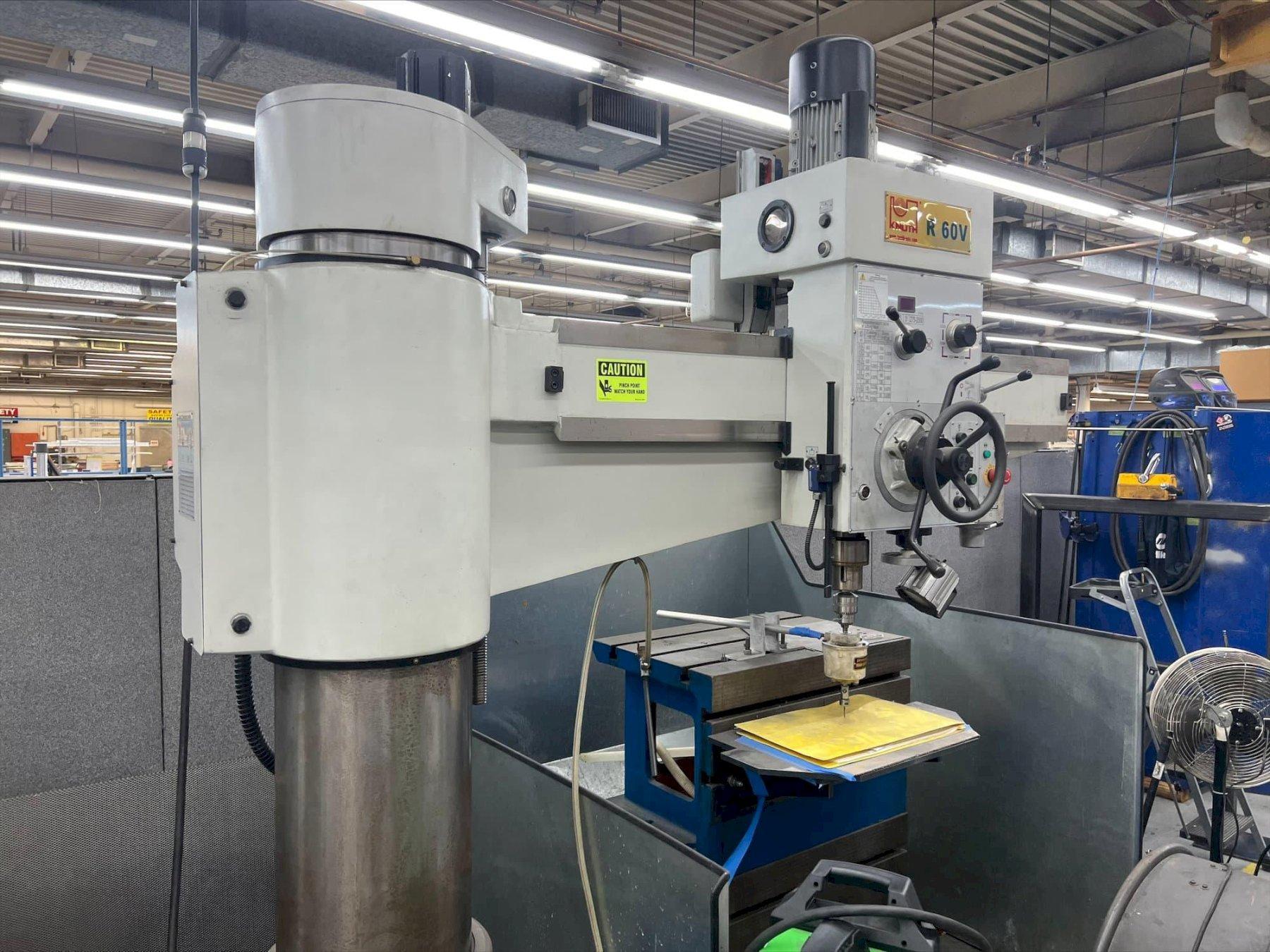

12″ Knuth R60V Radial Drill, 2014 – Tooling Available

Drilling Capacity: 2.44” Tapping Capacity, Cast-Iron: M 52 Tapping Capacity, Steel: M 46 Drilling Depth (Max.): 12” Throat: 14” – 63” Spindle Nose-To-Table Surface Distance: 14” – 49” Column Diameter: 14” Machine Table Dimensions: 94” X 39” X 8” Cube Table Dimensions: 30” X 20” X 20” Arm Stroke (Vertical): 23” Travels Drill Head Travel (Horizontal): 49” Headstock Speed Range: 38 Rpm – 2000 Rpm Spindle Mount: Mt 5 Feed Feeds: 0”/R – 0.04”/R Drive Capacity Motor Rating Main Drive: 5.4 Hp Stroke Motor: 2 Hp Measures And Weights Overall Dimensions (Length X Width X Height): 99” X 42” X 110” Weight: 8,360 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Tool Holders Available Coolant System LED Work Lamp

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
