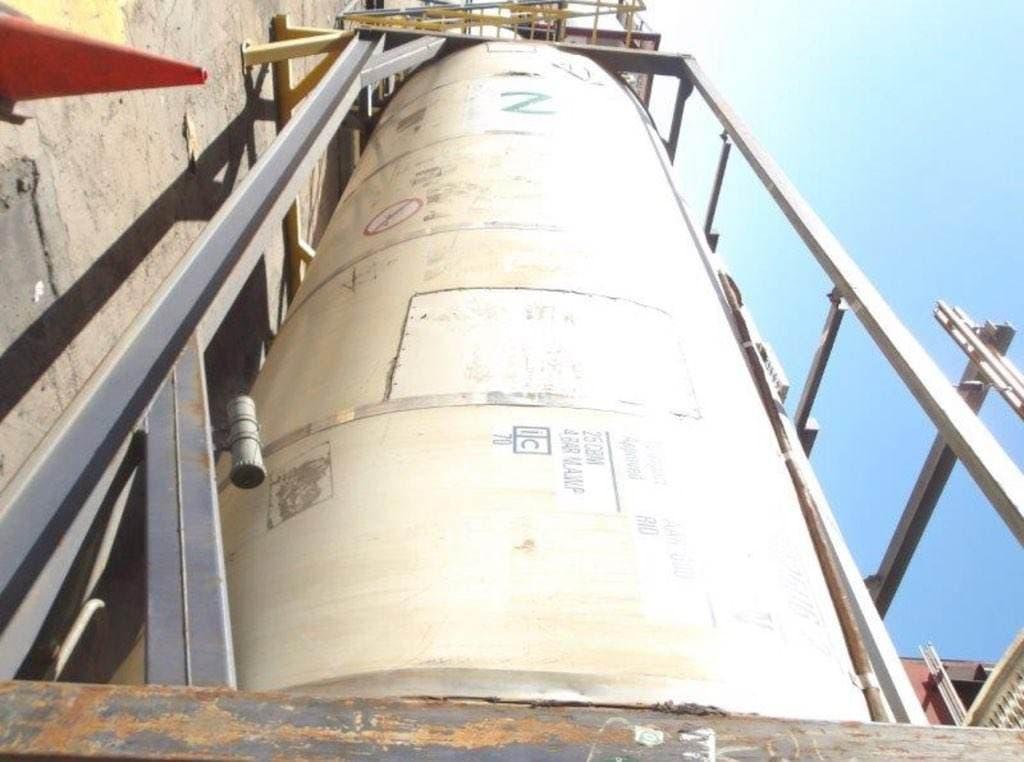

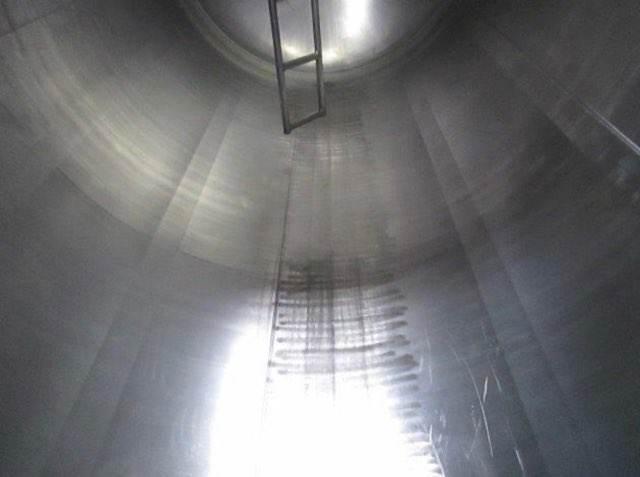

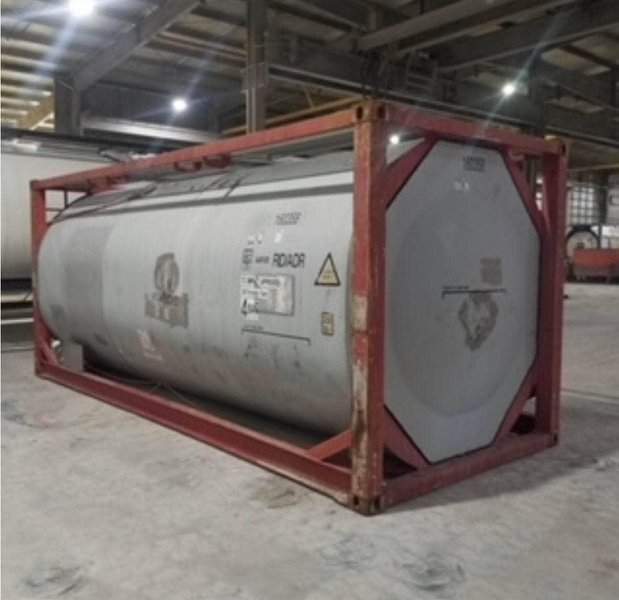

6600 Gallon Wellfit Oddy Burg 26000L Stainless Steel T11 ISO tank- Refurbished, Available Immediately
Brand
Category
Model
Burg 26000L
Stock #
600624
Year
1900
Condition
Not specified
Location
Not specified
|
Tank Shell: DIN 17441 Type 1.4401
Manufacturing Thickness: 4.5 mm (Min)
Design Thickness: 4.3 mm (Min)
Corrosion Allowance: 0.2 mm
Mild Steel Equivalent: 6.0 mm
Tank Working Pressure: 4 Bar
Tank Test Presure: 6 Bar
External Pressure: 0.41 Bar
Heating Working Pressure: 6 Bar
Heating Test Pressure: 10 Bar
Heating Area: 5 m
Weight of Contents: 74,319 Lbs
Tank Design Code: ASME VIII DIV 1
Temperature Range: 40 to 140 Degrees
Type: U.N Portable
Tank Width: 8′
Tank Length: 20′ Long
Tank Height: 8′ – 6″
Gross Weight: 79,366 Lbs
Tank Weight: 7,826 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
