Turnkey 7 BBL Brewmation-Stout Brewing System w/ 2024 Thermaline Heat Exchanger, Pumps, Controls & Vessels

Equipment Overview

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Complete 7 BBL brewing system combining Brewmation controls, Stout Tanks, and 2024 Thermaline heat exchange. Designed for semi-automated brewing environments, this system includes HLT/kettle electrical panels, conical fermenters, integrated VFD-driven pumps, and tri-clamp fluid transfer. All equipment shows as unused, with full factory documentation and labeled enclosures, ideal for craft brewing startups or expansion projects..

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

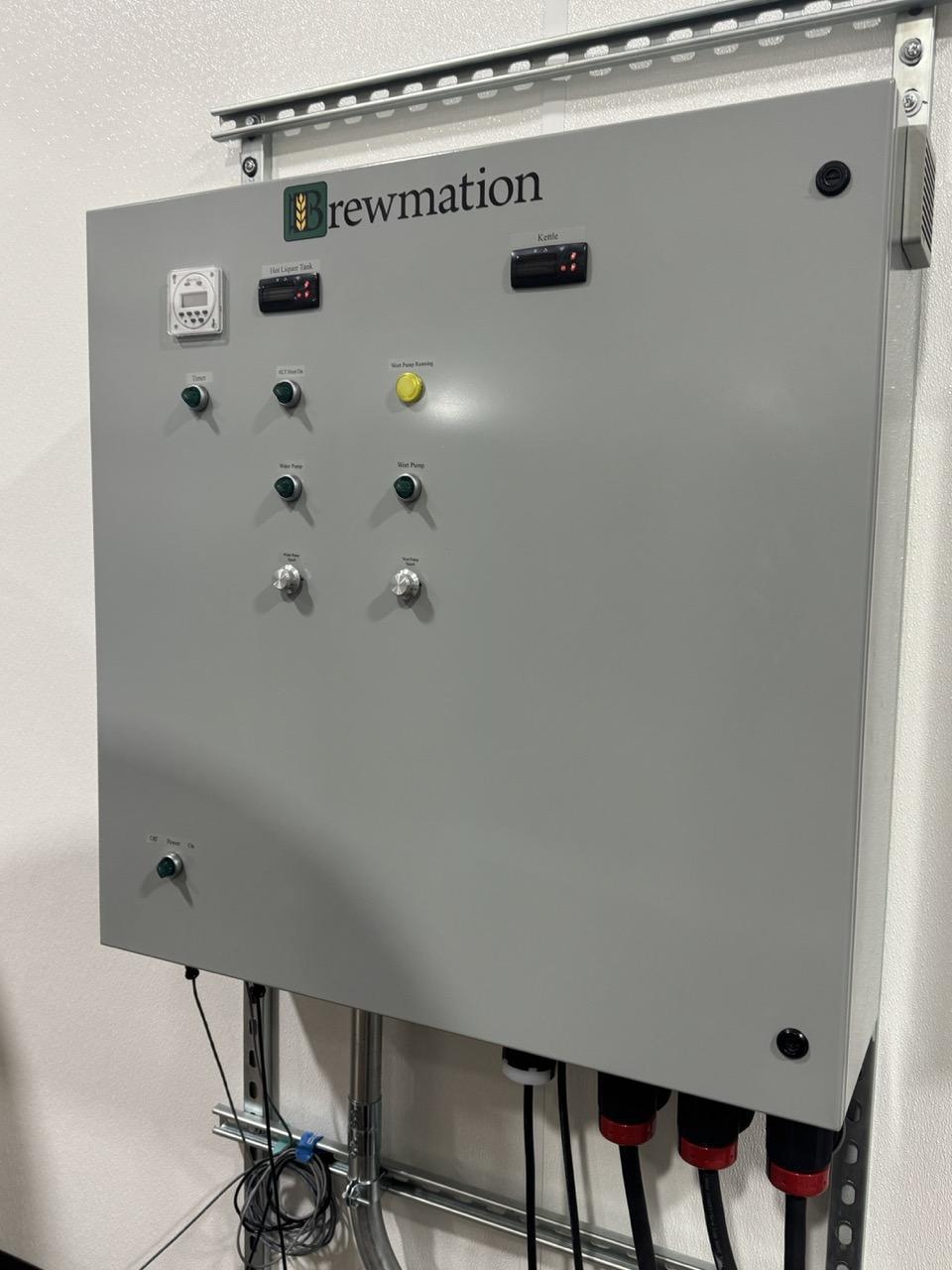

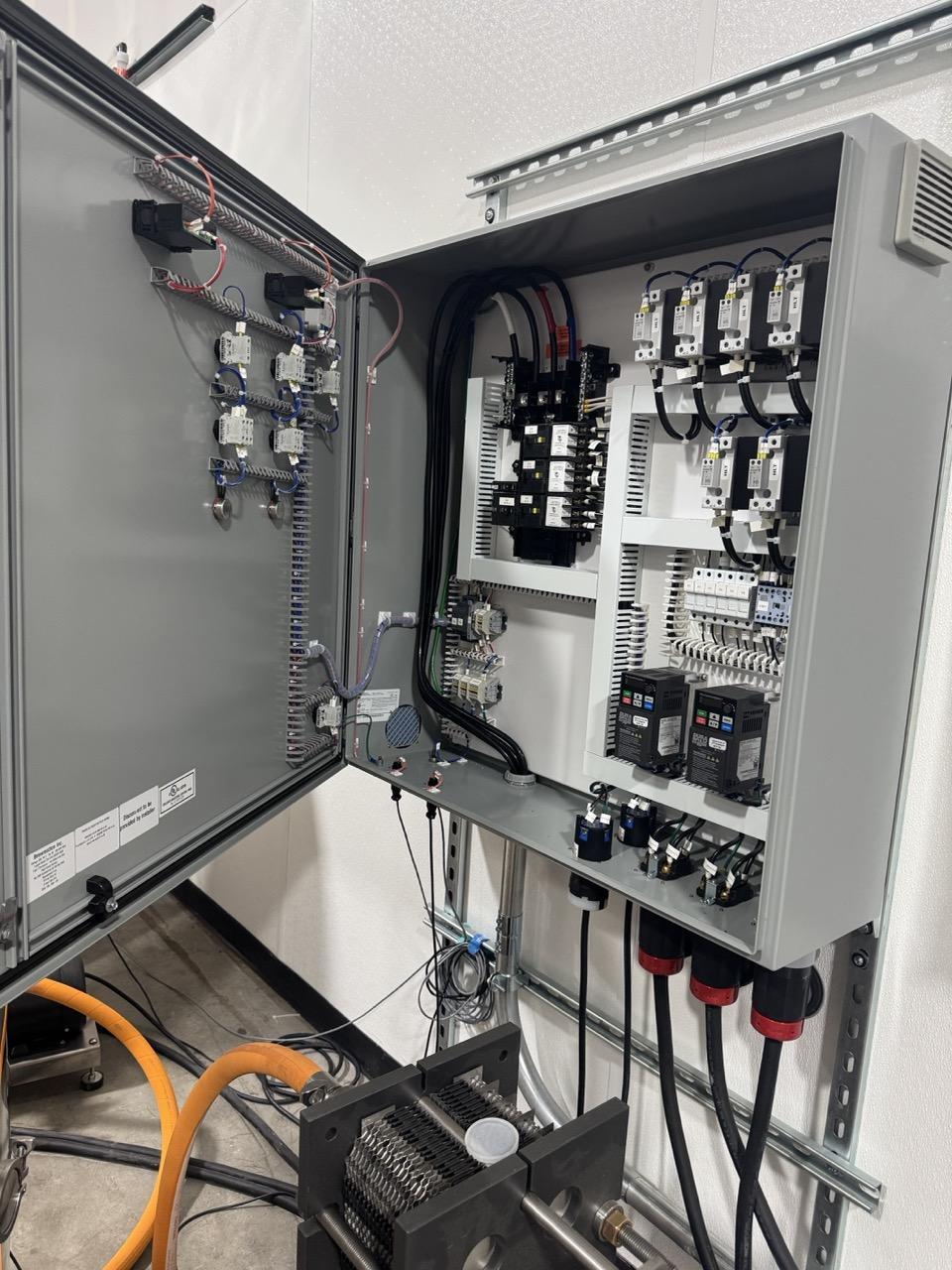

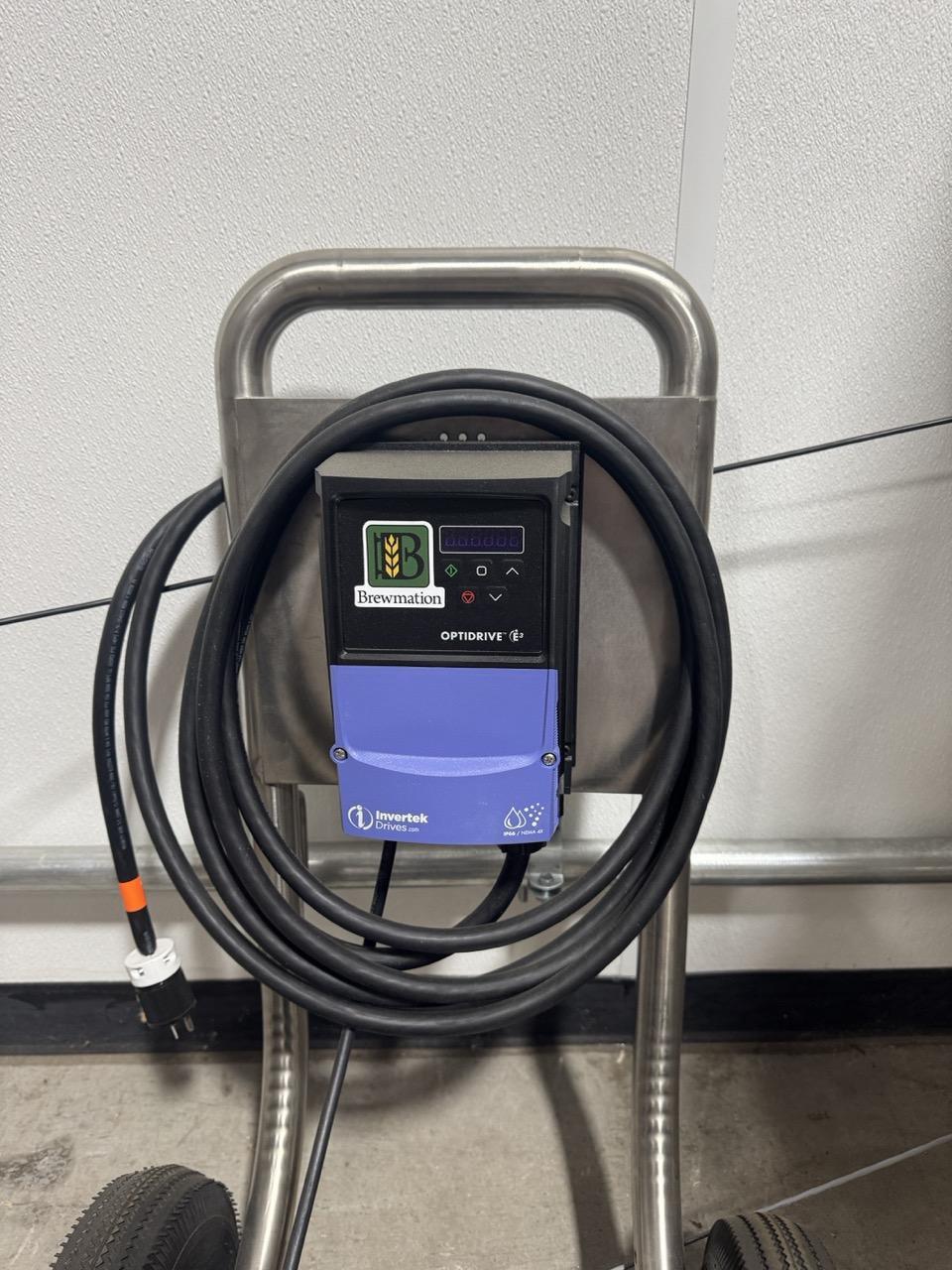

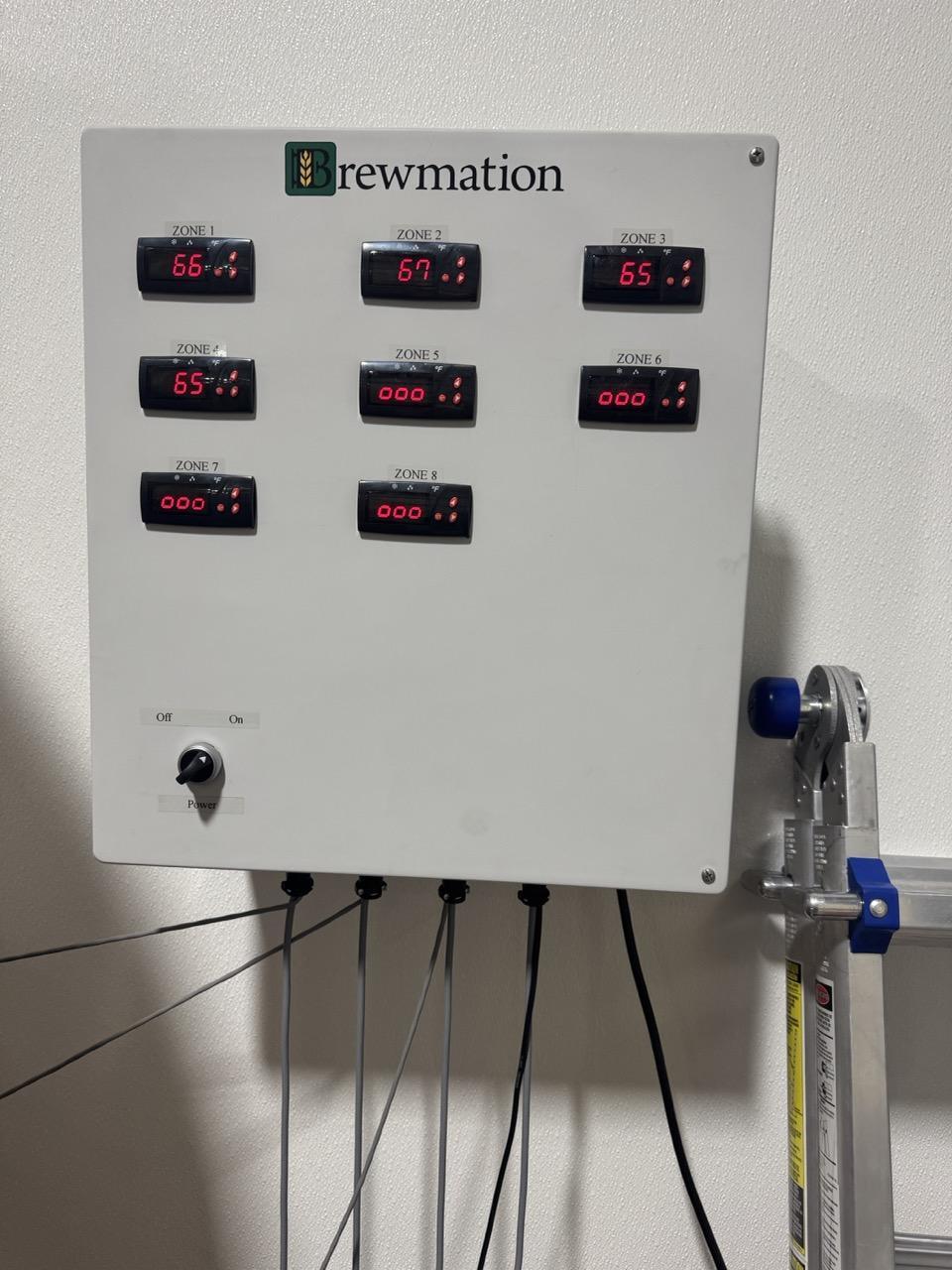

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Brewmation Controls: • 45kW Electric Controller, 208V 3-phase, UL-listed enclosure • Multi-zone fermentation temperature panel (Zones 1–8 active) • Timer, pump switches, and digital temp readouts • Internal wiring DIN-rail organized, labeled terminal blocks • Invertek Optidrive E2 cart-mounted VFD with NEMA 4 housing

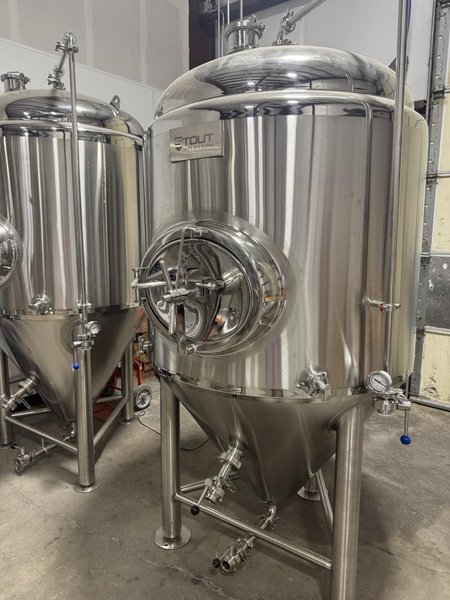

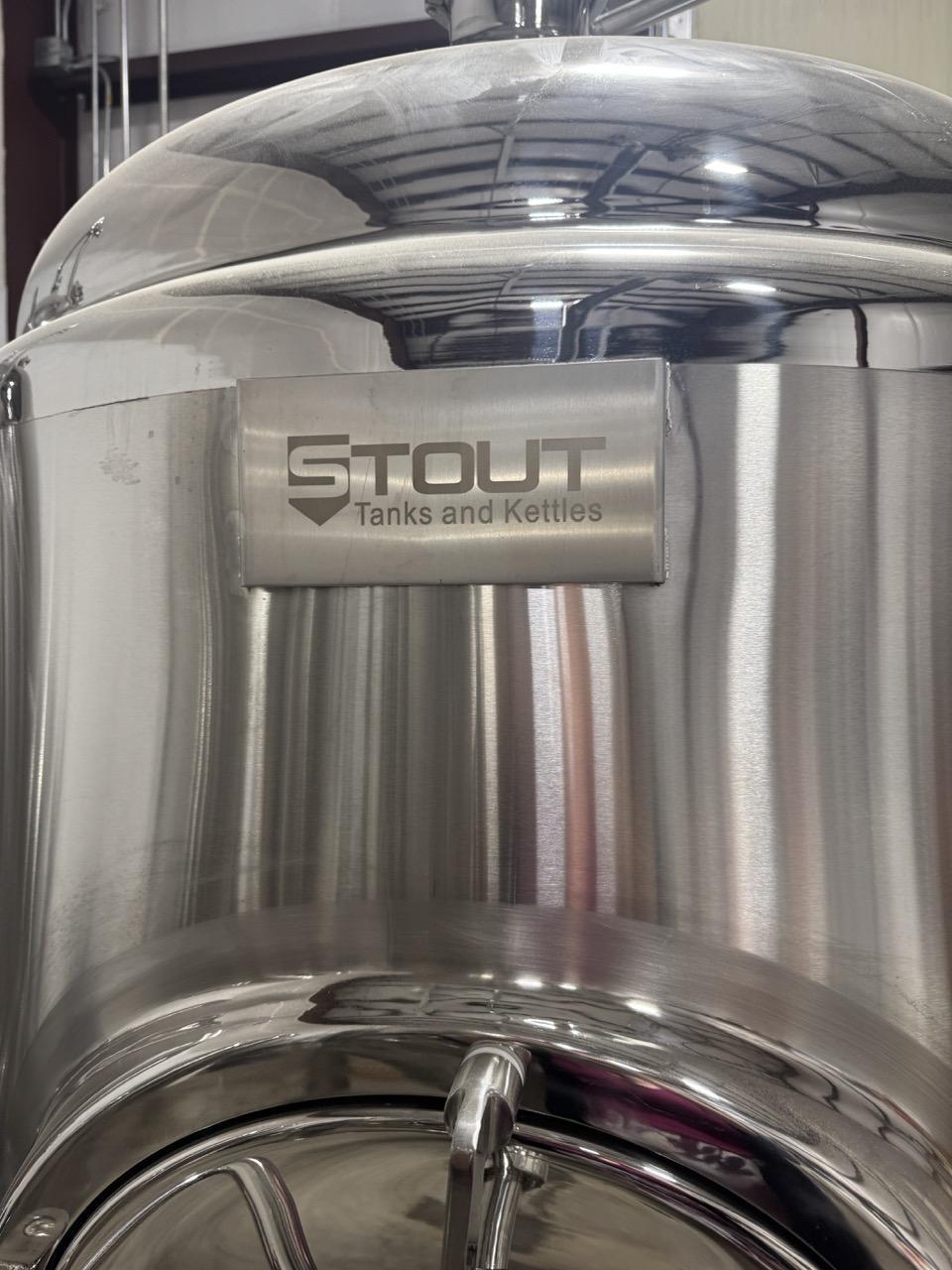

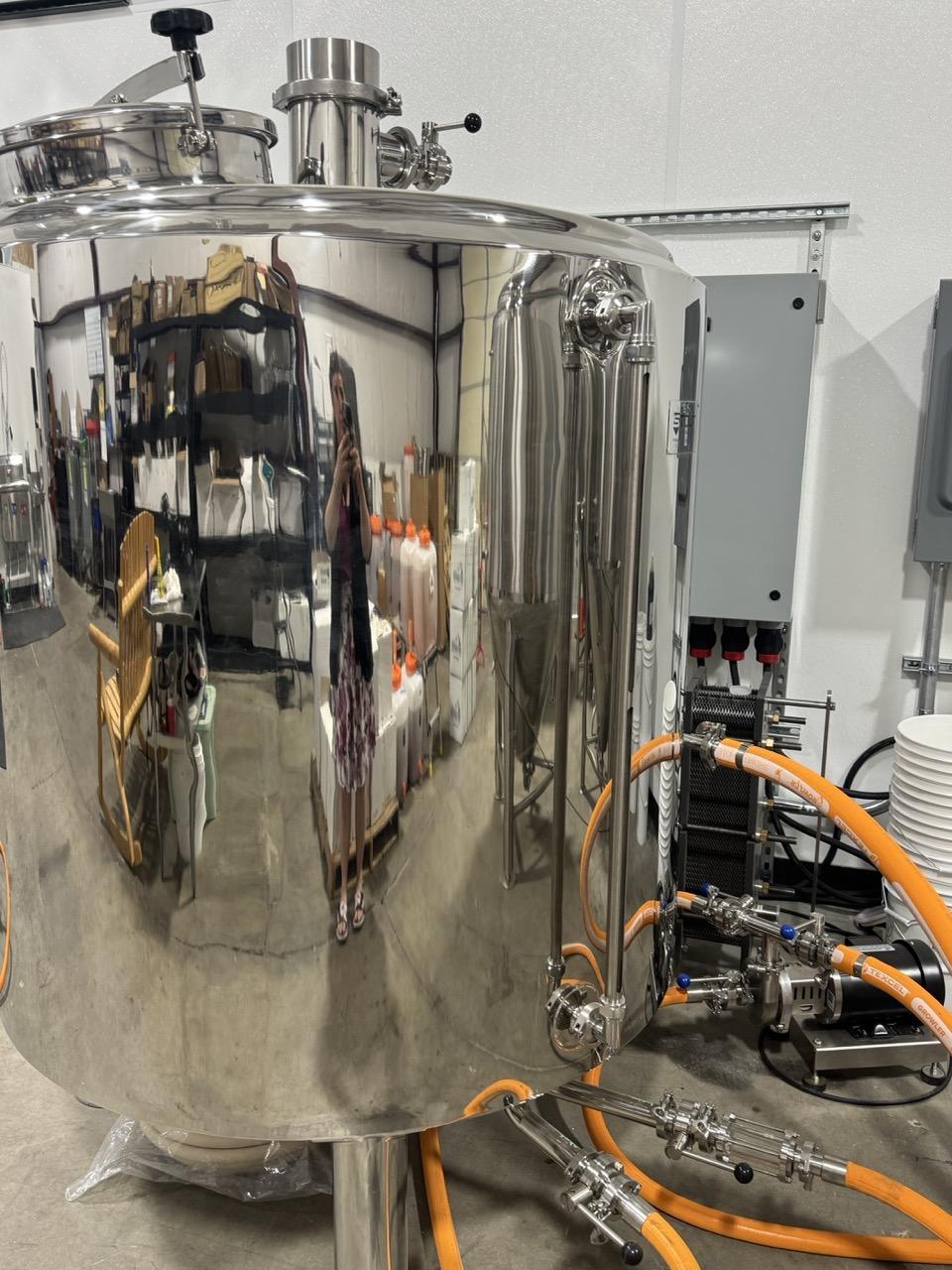

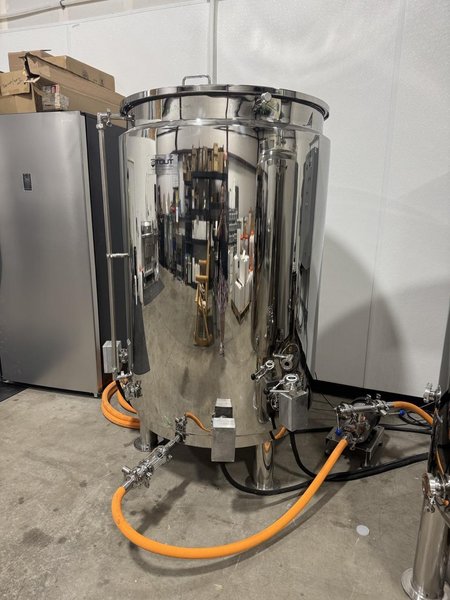

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Stout Tanks (7 BBL): • (2) 7 BBL Jacketed Fermenters (conical, pressure gauges, sample ports) • (1) 7 BBL Hot Liquor Tank / Kettle – with installed electric elements • Fully polished stainless construction, commercial tri-clamp hardware • CIP, racking, thermowell, and blowoff ready

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Thermaline Heat Exchanger: • Model: T615-1, Build Date: 03/2024 • MAWT: 250°F, Tightening Range: 5-5/8” to 5-13/16”, A3 certified

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Pump System: • (3) IronHorse MTR-P75-3BD36 3-phase pump motors • Stainless tri-clamp base assemblies, FDA fluid hoses

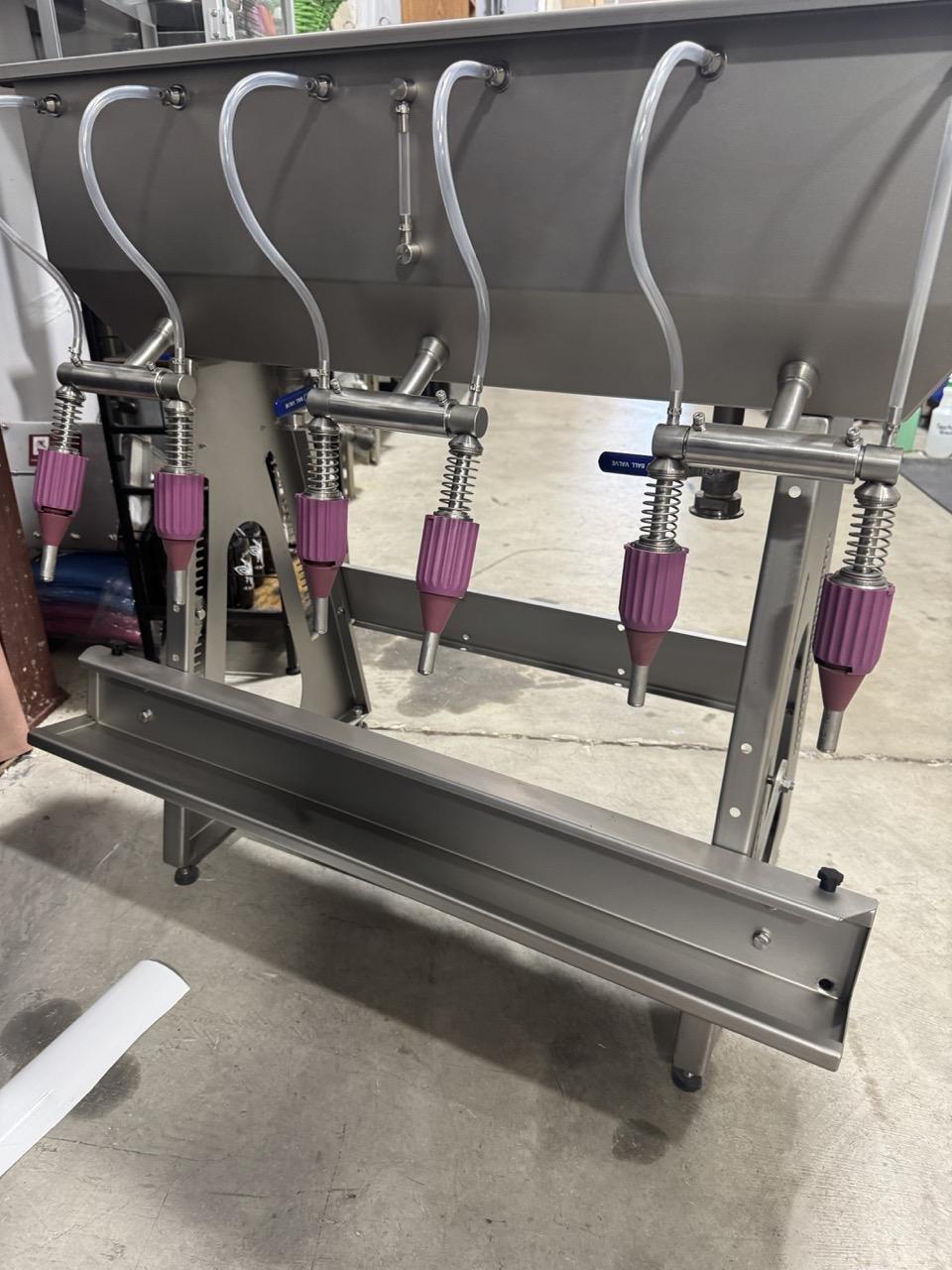

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Additional: • Bottle filler manifold (5-head manual fill station) • Water Specialist valves

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
