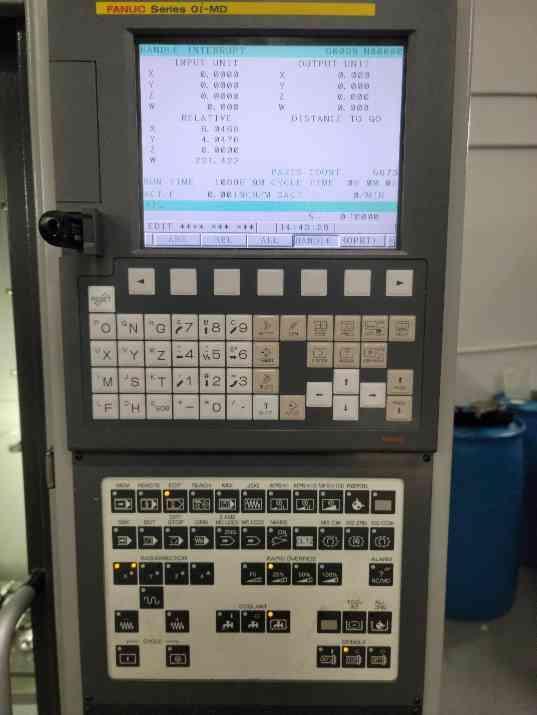

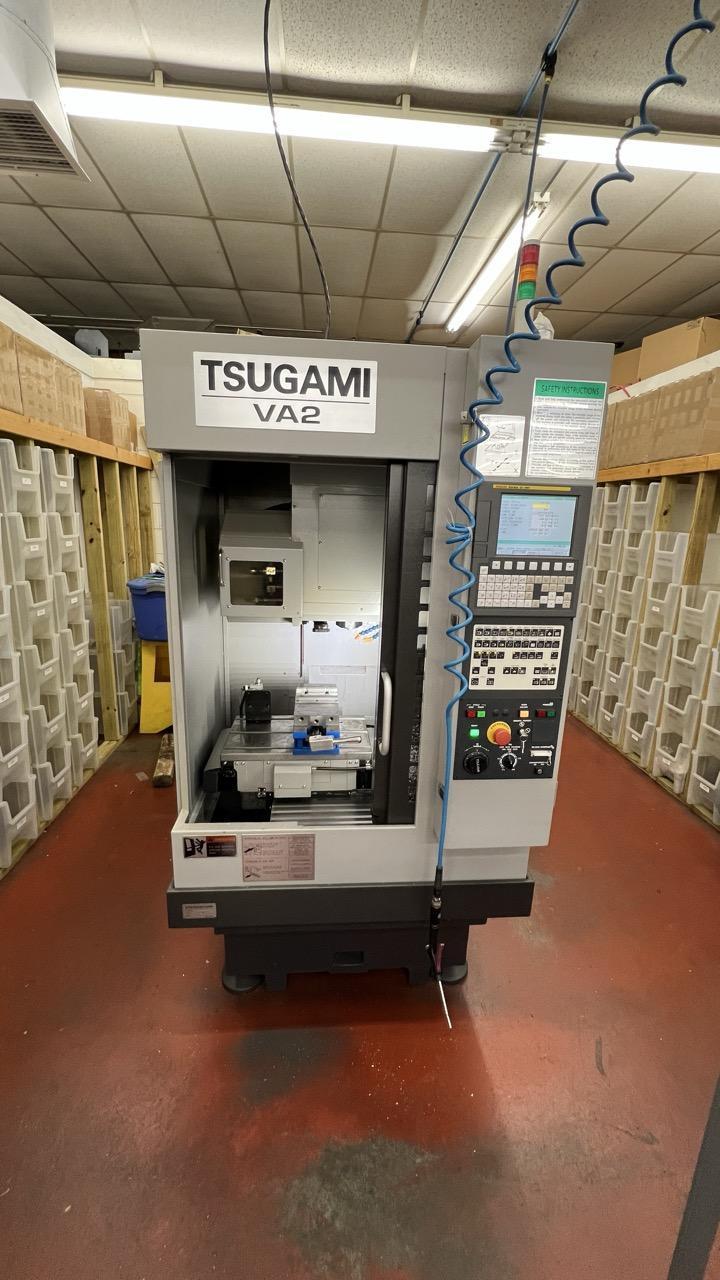

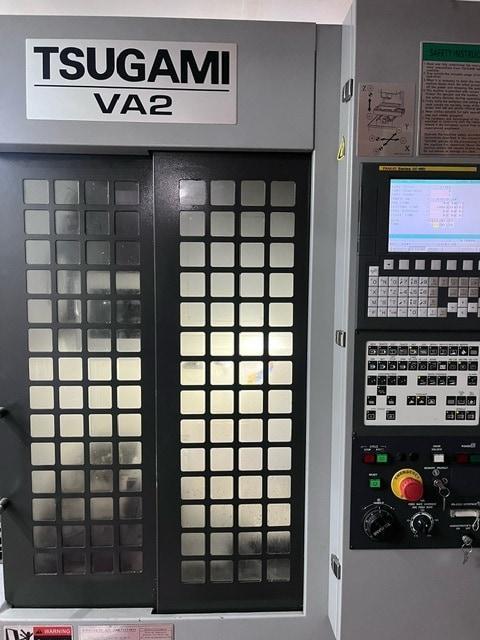

Tsugami VA 2 VMC, 2015 – Fanuc OiMD Control, Renishaw Probe, Rigid Tapping, Low Hours, Very Clean
Brand
Category
Model
VA-2
Stock #
211373
Year
2015
Condition
Not specified
Location
Not specified
|
Specifications (subject to buyer verification):
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X-Axis Travel: 14.7″ Y-Axis Travel: 10.23″ Z-Axis Travel: 9.84″ All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Speed: 300-30,000 RPM Spindle Taper: 7/24 S20T Chip-to-chip time of 1.35 seconds Maximum weight on table: 200 kg, 440 lbs (uniformed load) Maximum tool size (W x L): 60 mm x 130 mm Tool Magazine Capacity: 14+1 ATC Spindle Motor: 12 HP All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
