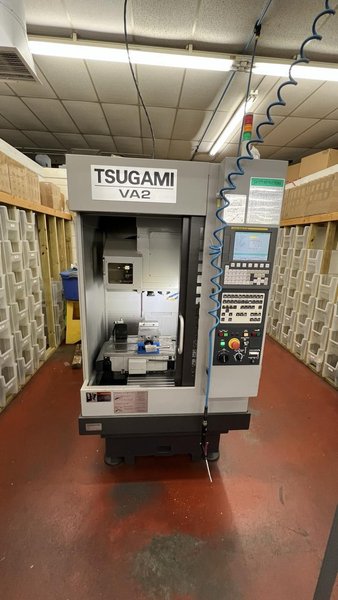

Tsugami VA 2 VMC, 2019 – Tool Setter

Table Size: 23.6″ x 12.6″ Spindle Nose to Table: 5.9″ – 19.7″ Max Table Load: 330 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Travels: X-axis: 16.14″ Y-axis: 12.6″ Z-axis: 13.78″ Rapid Traverse (X/Y/Z): 1,417 ipm Cutting Feed Rate: 394 ipm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Positioning Accuracy: ±0.0002″ Repeatability: ±0.00008″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Taper: 7/24 taper S20T Spindle Speed: 12,000 RPM Spindle Power: approx 7.5HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool Storage Capacity: 14

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: approx 80″ x 64″ x 87″ Weight: approx 3,968lbs Electrical Requirements: 200V/3 Phase/50Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Tool Setter

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
