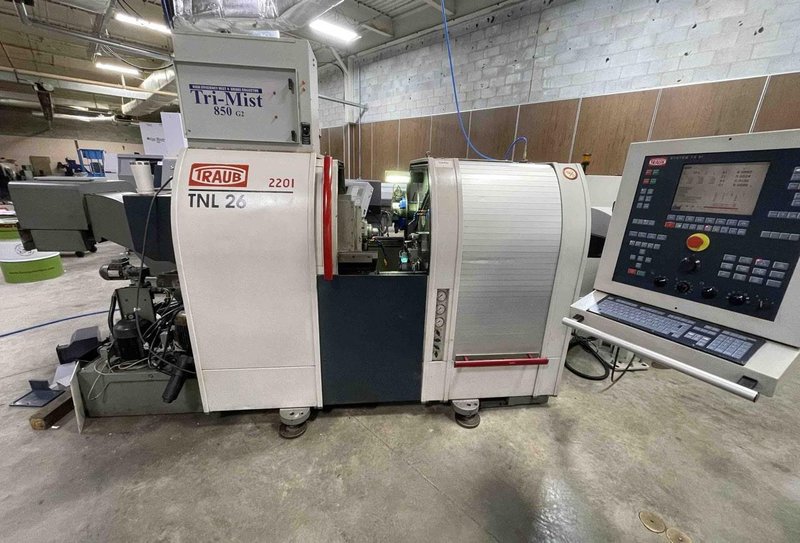

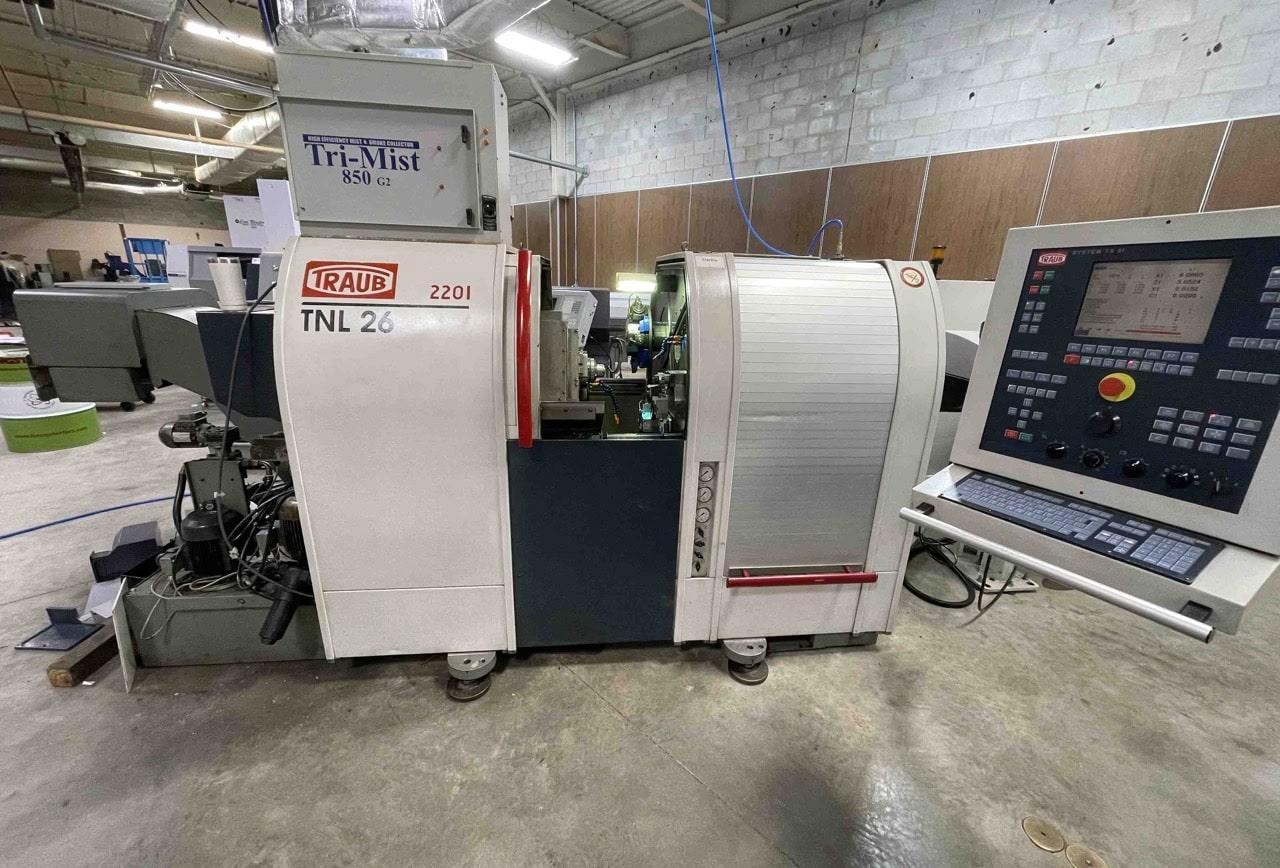

Traub TNL26 CNC Swiss Lathe, 2001- Needs Drive Replaced, Conveyor, 34 Tool Stations

Max Machining Length: 9.842″ (250 mm) Bar capacity: 1.024″ (26 mm) Main Spindle Speed: 8,000 RPM Number of Tools: 34 Positions Z-Axis Stroke (stationary guide bush) : 9.84″ (250 mm) Z-Axis Stroke (rotation buide bush) : 8.86″ (225 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool Carrier 1 Capacity: 12 Tools X-Axis Stroke: 1.97″ (50 mm) Y-Axis Stroke: +/- 0.79″ (20 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool Carrier 2 Capacity: 12 Tools X-Axis Stroke: 1.97″ (50 mm) Y-Axis Stroke: +/- 0.79″ (20 mm) Z-Axis Stroke: 3.94″ (100 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool Carrier 3 (Front) Capacity: 5 Tools Diameter of Mount: 1.57″ (40 mm) Spacing: 2.13″ (54 mm) X-Axis Stroke: 14.57″ (370 mm) Z-Axis Stroke: 9.84″ (250 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool Carrier 4 (Rear) Capacity: 5 Tools Diameter of Mount: 1.57″ (40 mm) Spacing: 2.13″ (54 mm) X-Axis Stroke: 2.87″ (73 mm) Y-Axis Stroke: +/- 1.97″ (50 mm) Option

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approx Dimensions: 146″ x 51″ x 65″ Approx Machine Weight: 8,820 lbs

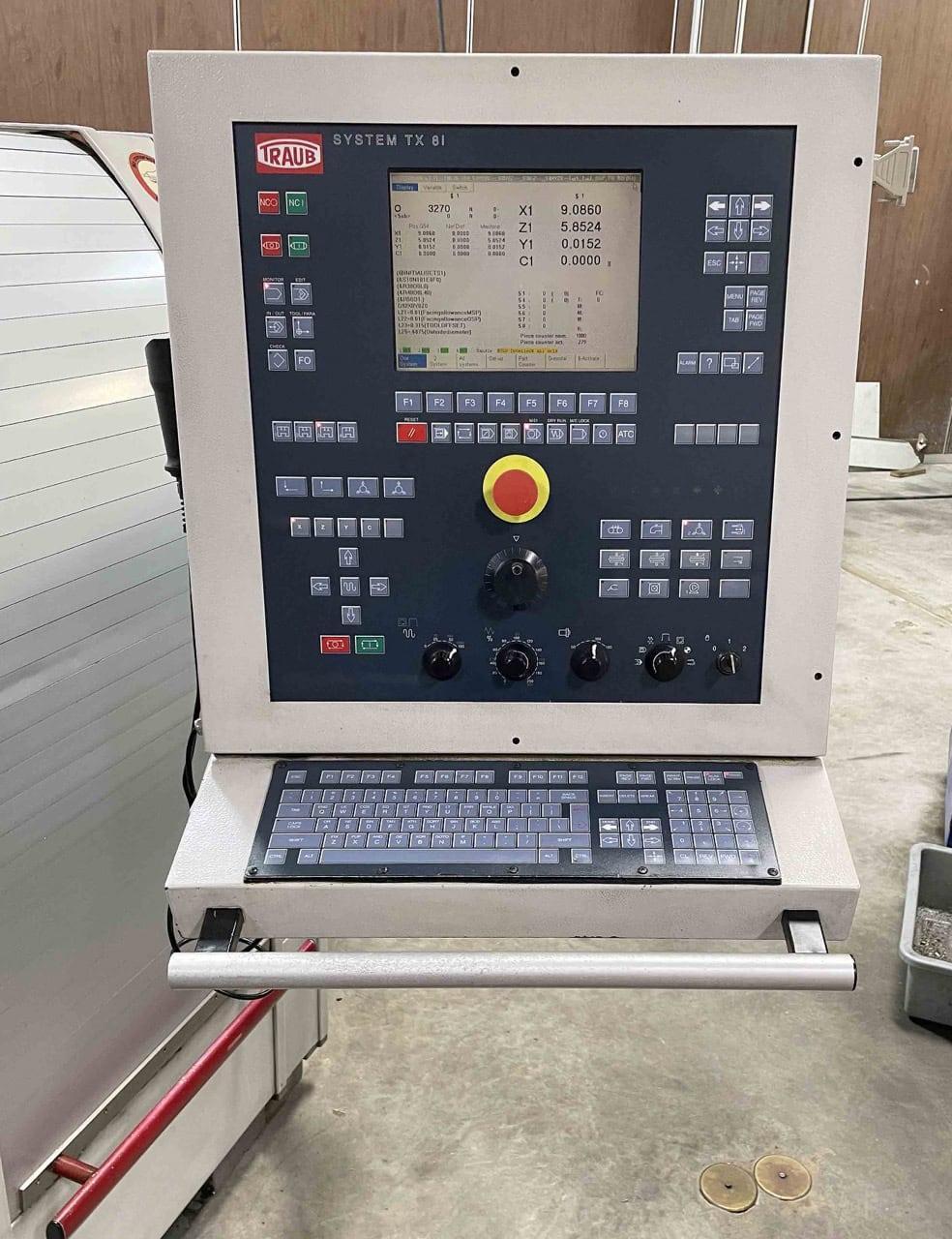

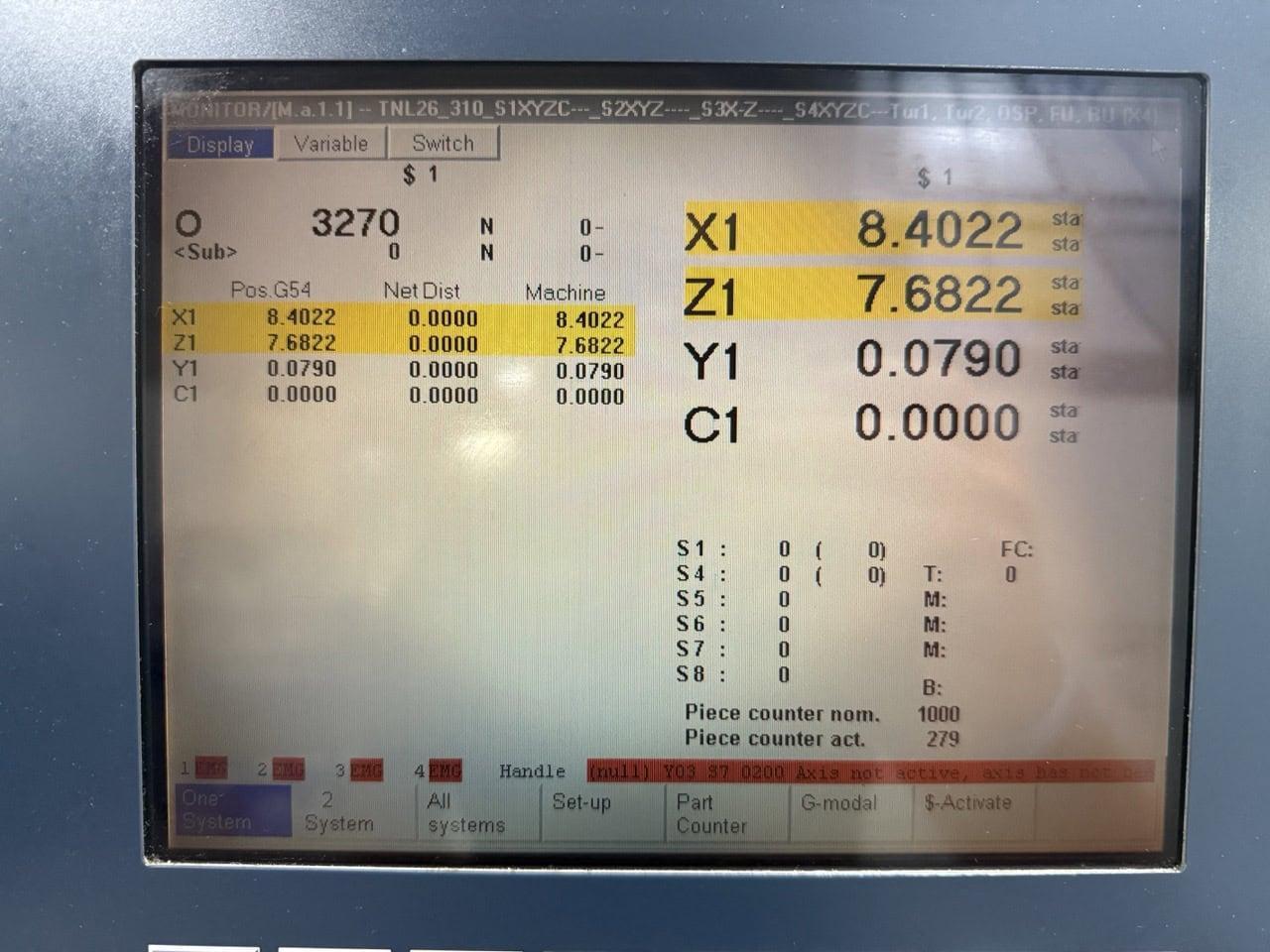

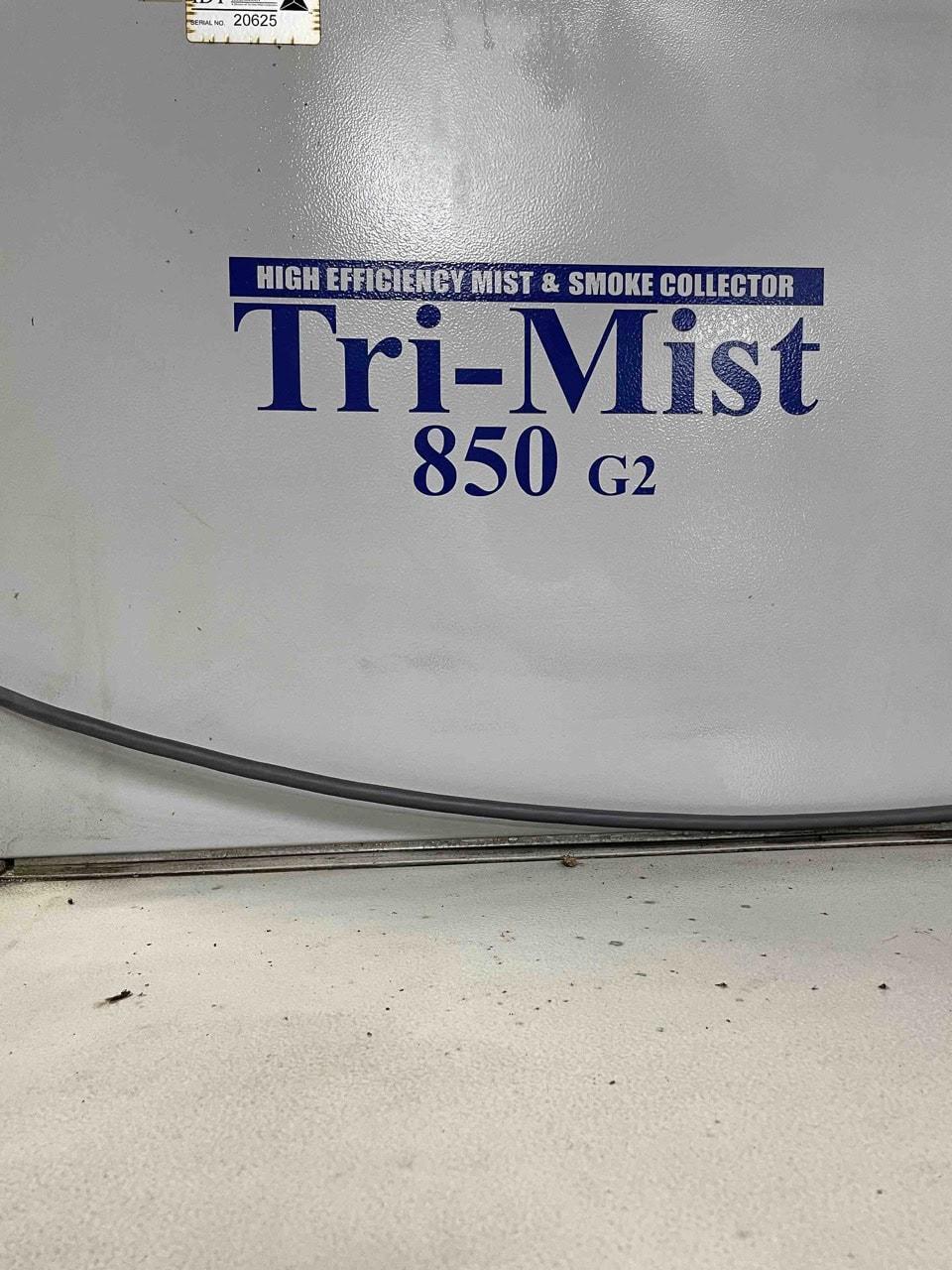

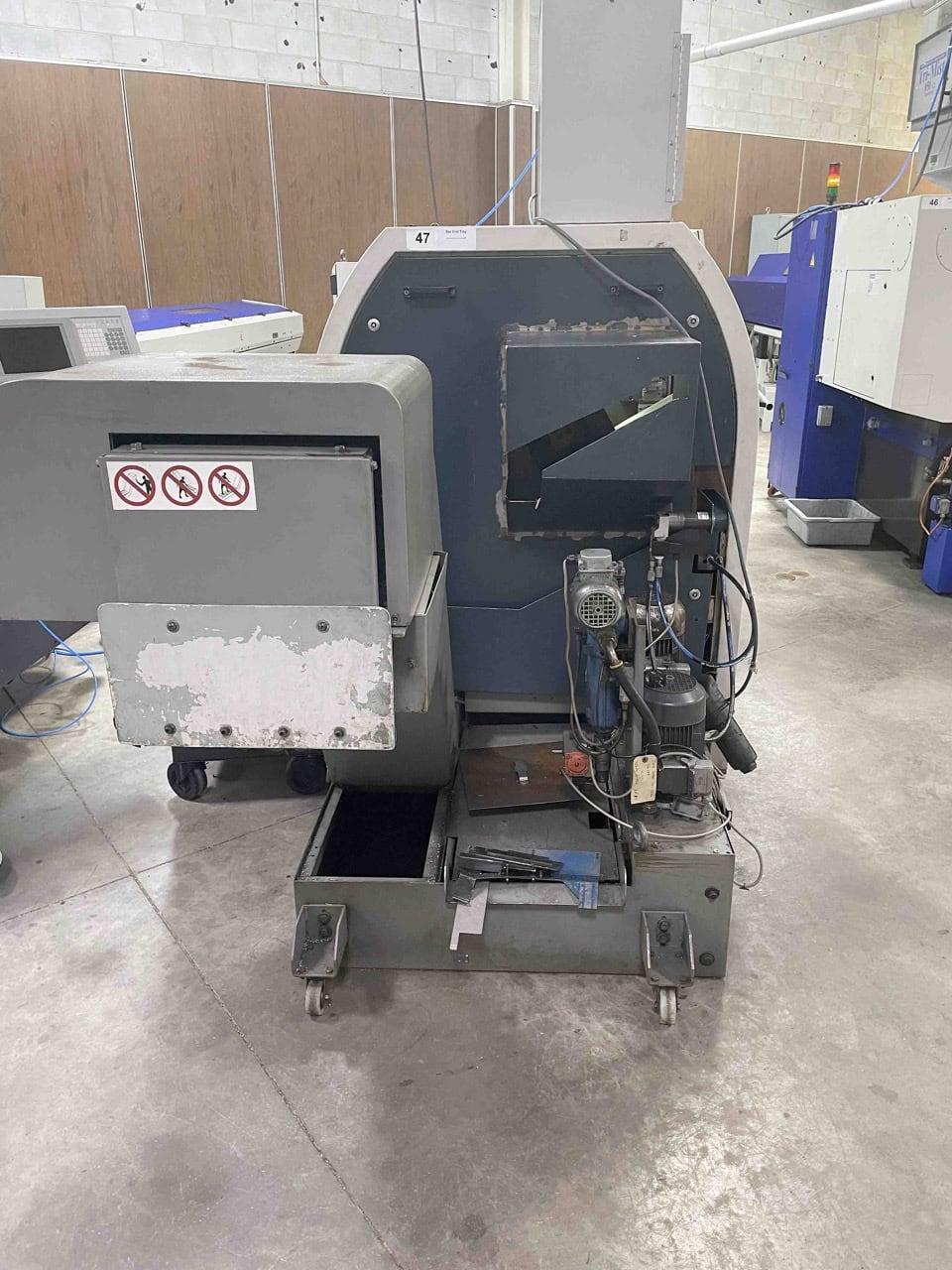

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: Traub System TX 8i CNC Control EIA and ISO Code RS-232 Interface Full C-Axis for Main & Opposed Spindles Pneumatic Guide Bushing Adaptive Air Pressure Option 34 Total Tool Holding (12 + 12 + 5 + 5 Stations) Double Tool Capacity Compatible Tri-Mist 850 Mist & Smoke Collector Knoll Chip Conveyor Lubricoolant System

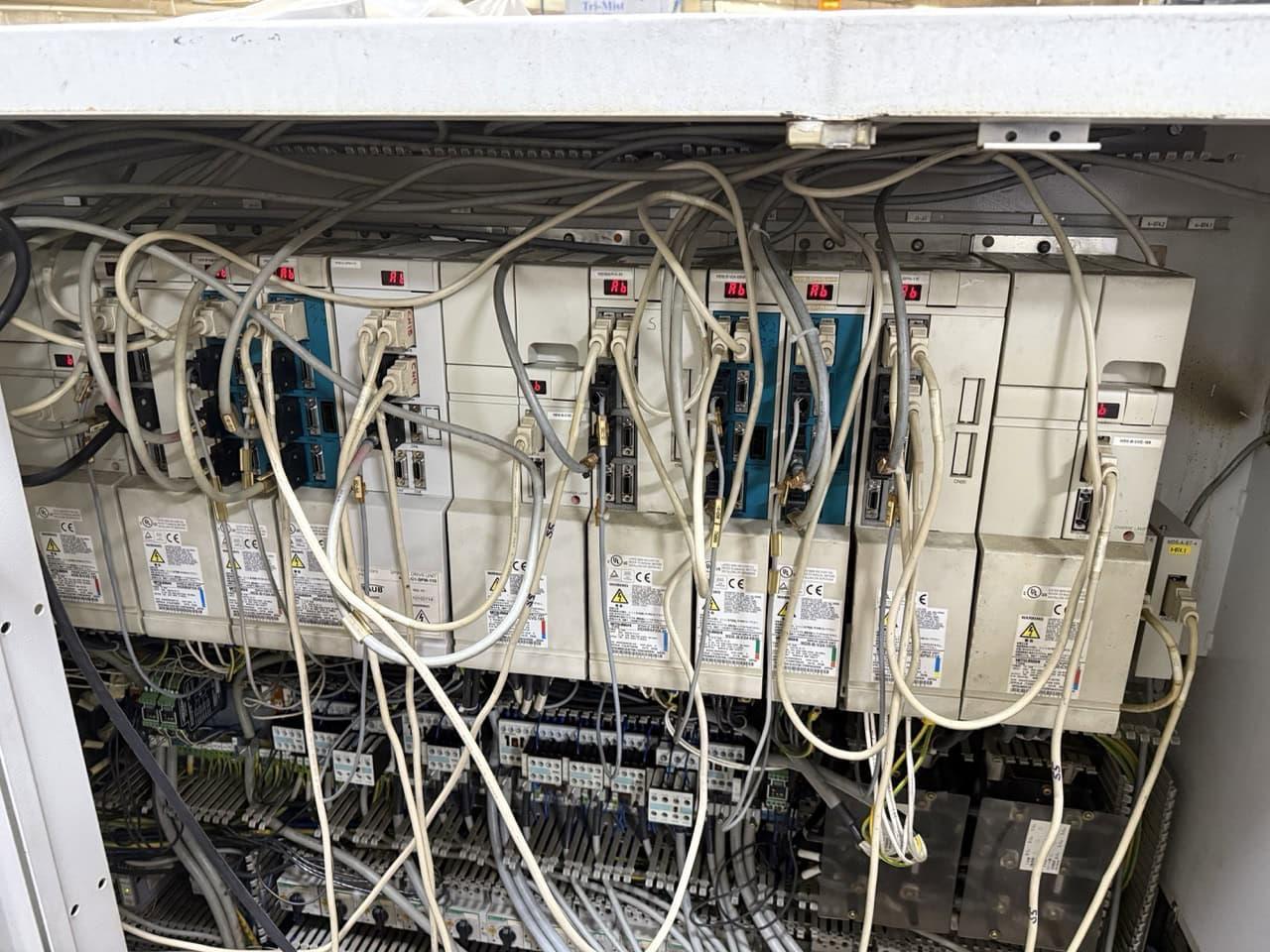

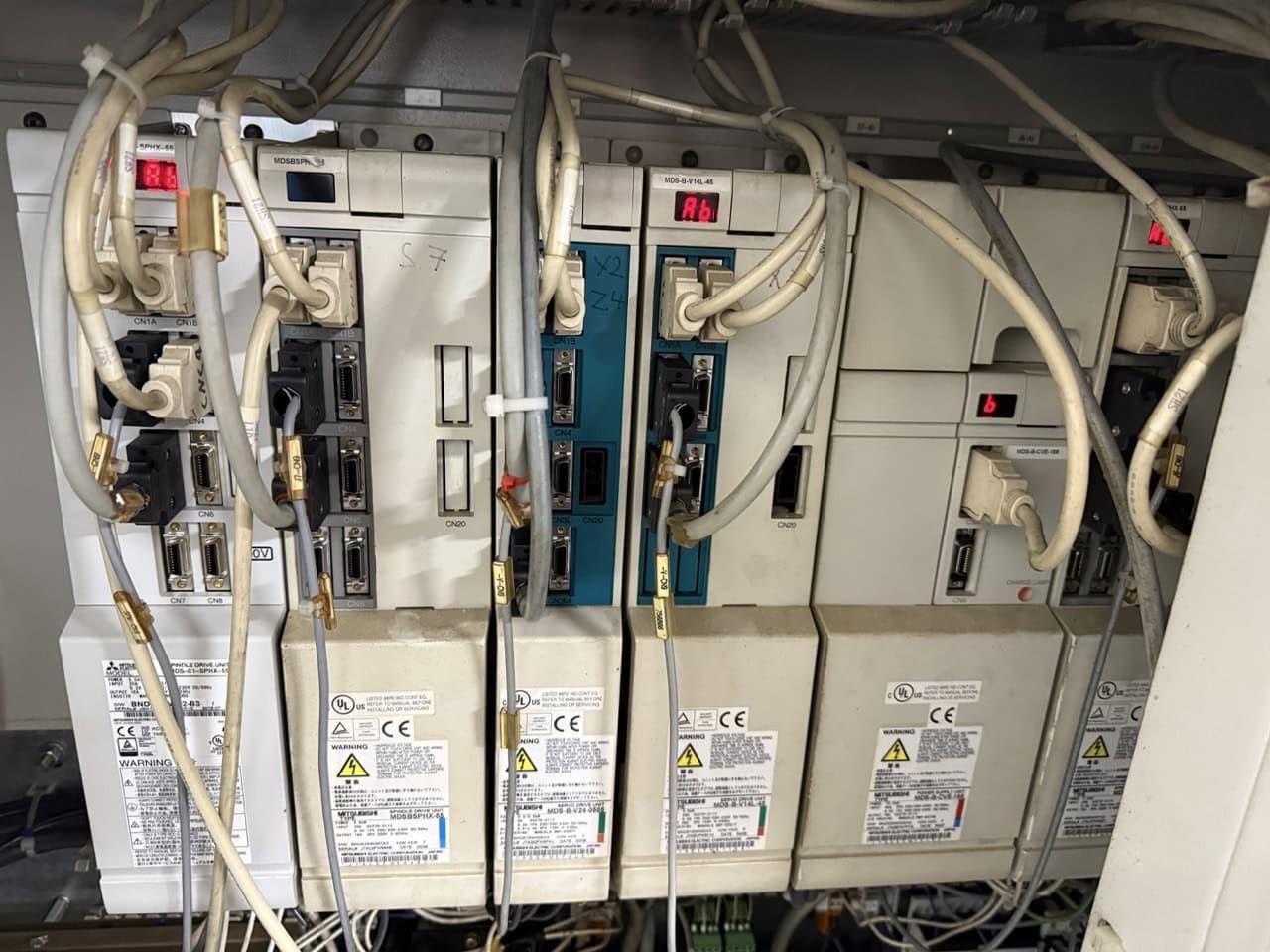

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Known issue- Machine Requires a Drive Replacement for functionality.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
