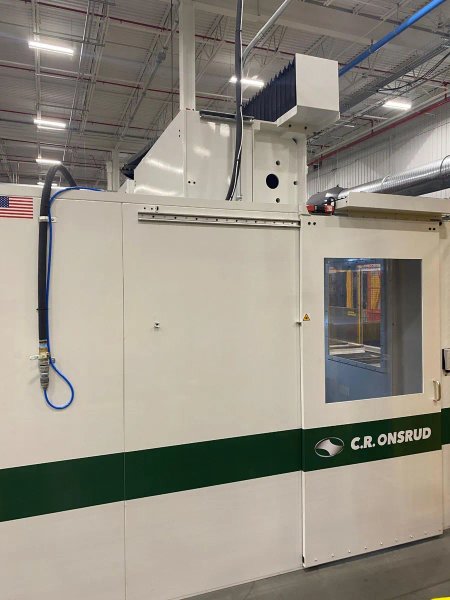

2023 C.R. ONSRUD MODEL 98E18 "Extreme Series" | Routers

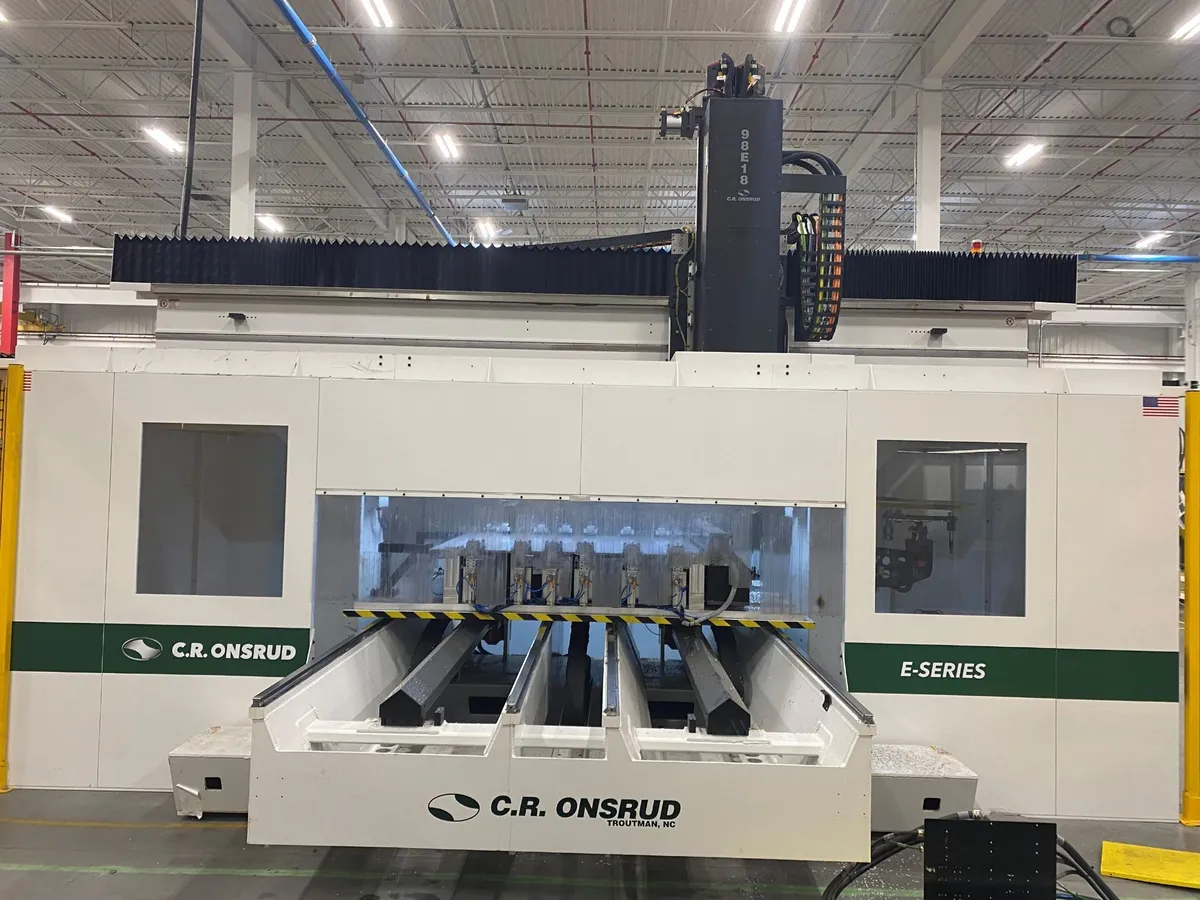

C.R. ONSRUD MODEL 98E18 "Extreme Series" CNC ROUTER – New 2023 – 5' × 8' Table
Like new. Never used in production. Less than 20 hours run time.
Original Acquisition Price: $355,990.00

------------------------------------------------------------

Description
- C.R. Onsrud Model 98E18 "Extreme Series" CNC Router
- 5' × 8' work envelope

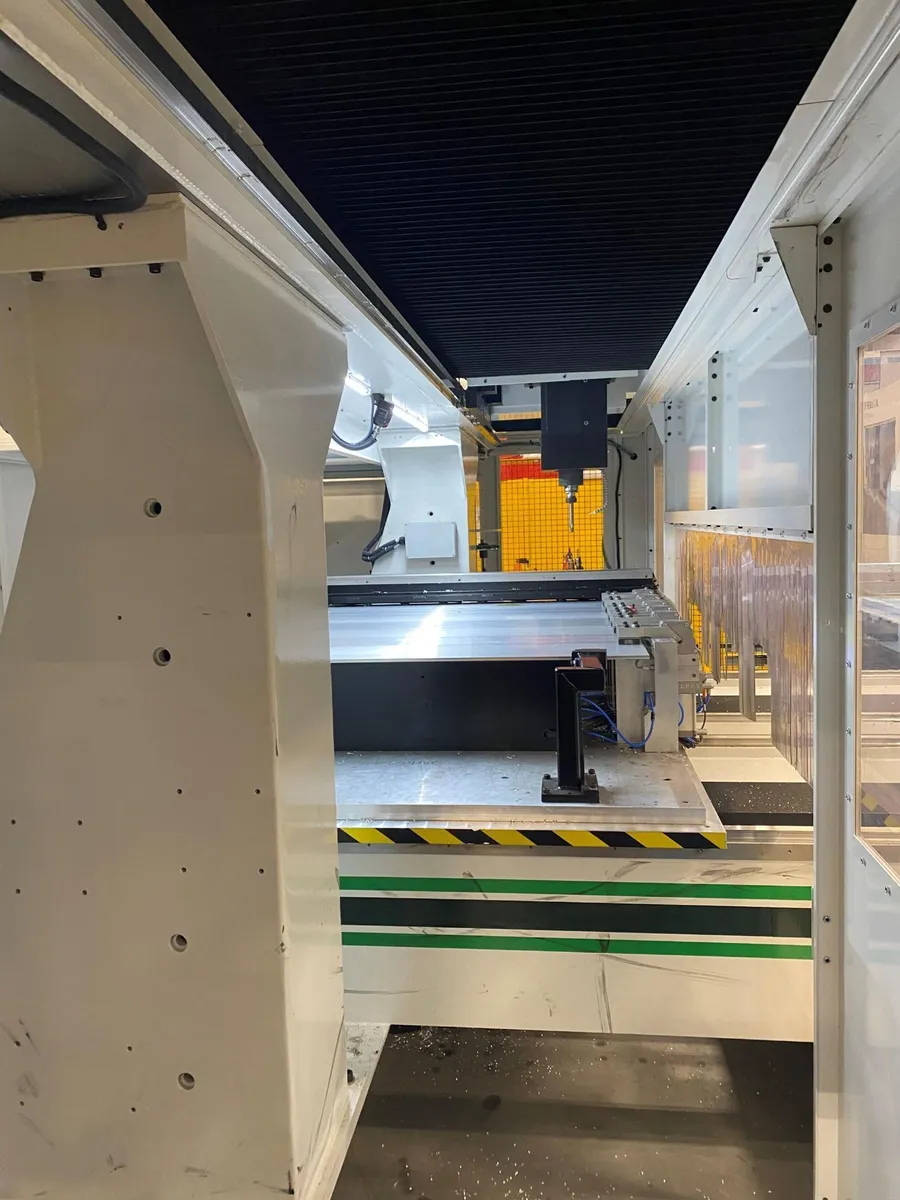

- Aluminum flat/base table — ground, cast tool plate (supports bolt pattern, matrix, or T-slot layouts; replaces standard vacuum table)
- 28" Z-stroke
• Clearance with 3-axis head: 31"
- Includes 8' × 5' aluminum base table

------------------------------------------------------------

Controller

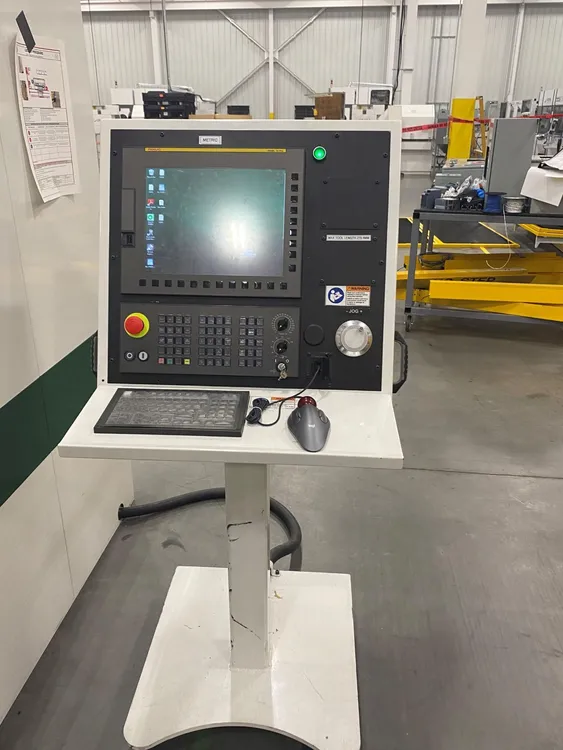

- Fanuc 0i Machine Controller System with Panel-i HMI
- Industrial PLC-based CNC control with high-resolution touchscreen
- Large Fanuc digital drives and servos
- Network capability and full remote diagnostics
- M-code controlled vacuum zones
- 4-port network hub
- Standard controller package included

------------------------------------------------------------

Spindle / Head
- 18 HP spindle (13.5 kW), 24,000 RPM
• Fully programmable & reversible
• HSK-63F tool interface
• Quick-change spindle capable of routing & drilling
- Integrated 2-position dust extraction transition
• Chip evacuation through dedicated chamber and hood
• Includes 8" dust transition
- Programmable air blast (M-code controlled)

------------------------------------------------------------

Isolation Transformer
- 6-tap non-compensating isolation transformer for power matching

------------------------------------------------------------

Lubrication System
- Automatic grease lubrication system

------------------------------------------------------------

Electrical Cabinet Cooling
- Air-conditioned electronics cabinets

------------------------------------------------------------

Tool Changer

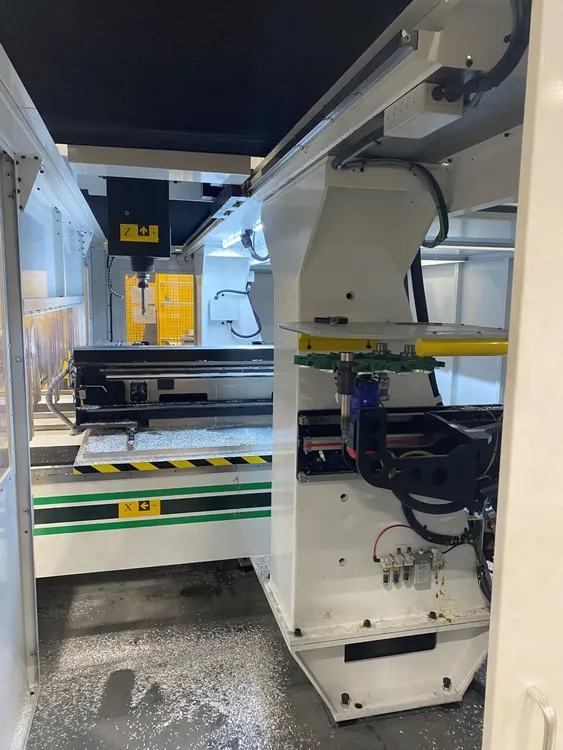

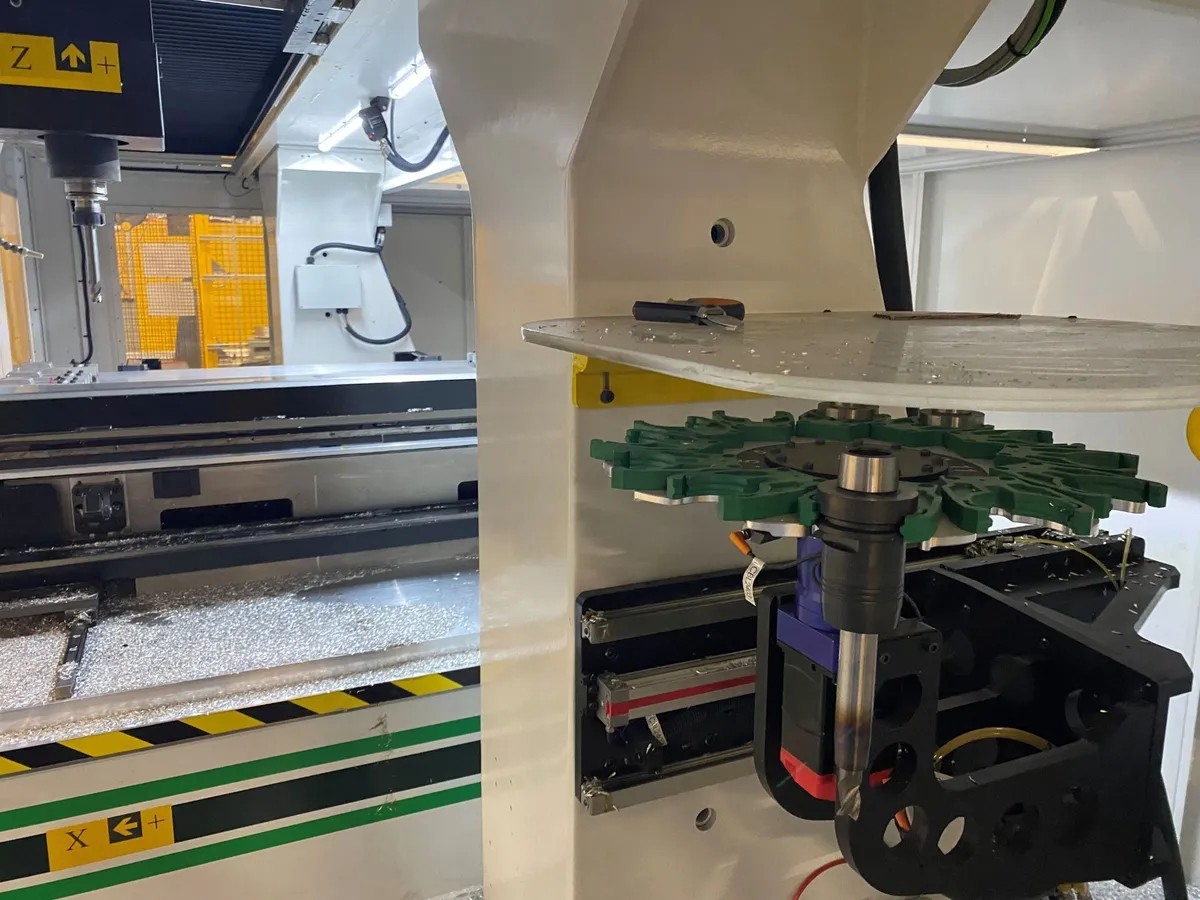

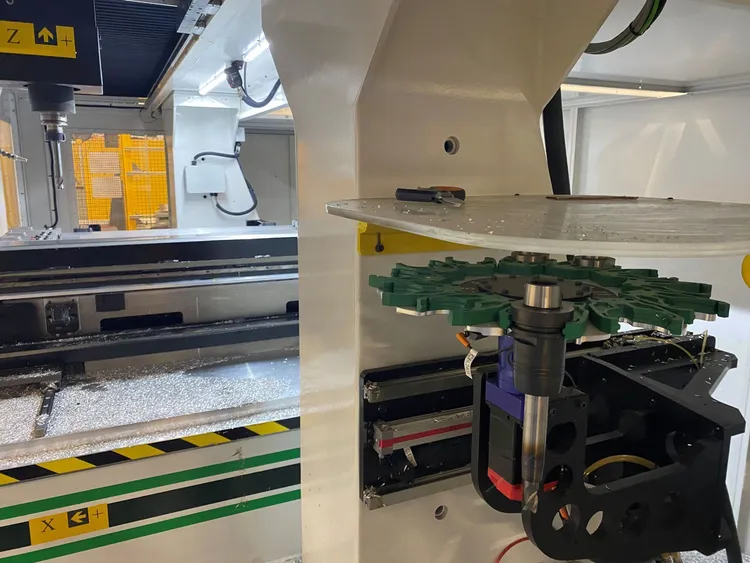

- 12-tool dynamic automatic rotary tool changer
• Fully servo controlled
• Fast, reliable tool changes
• Able to store aggregate tooling

------------------------------------------------------------

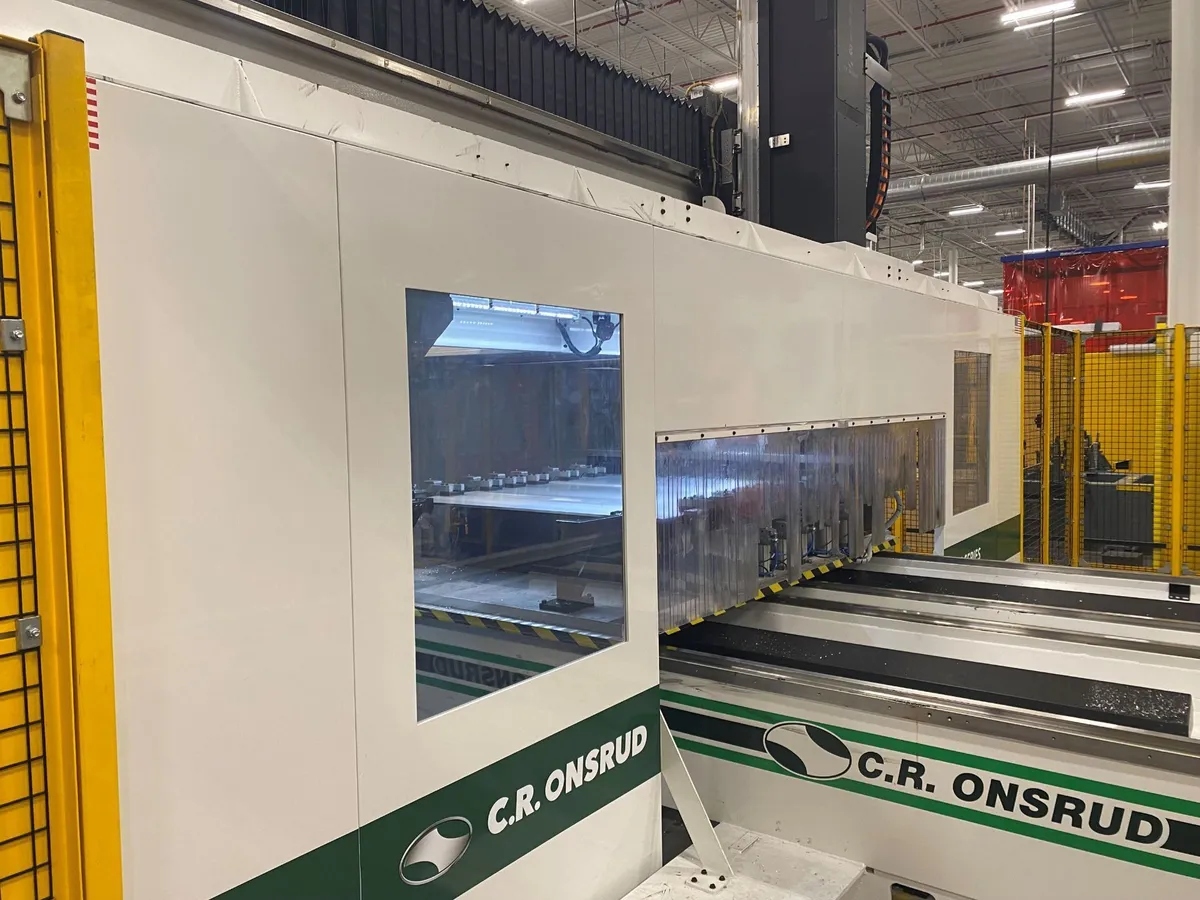

Machine Enclosure

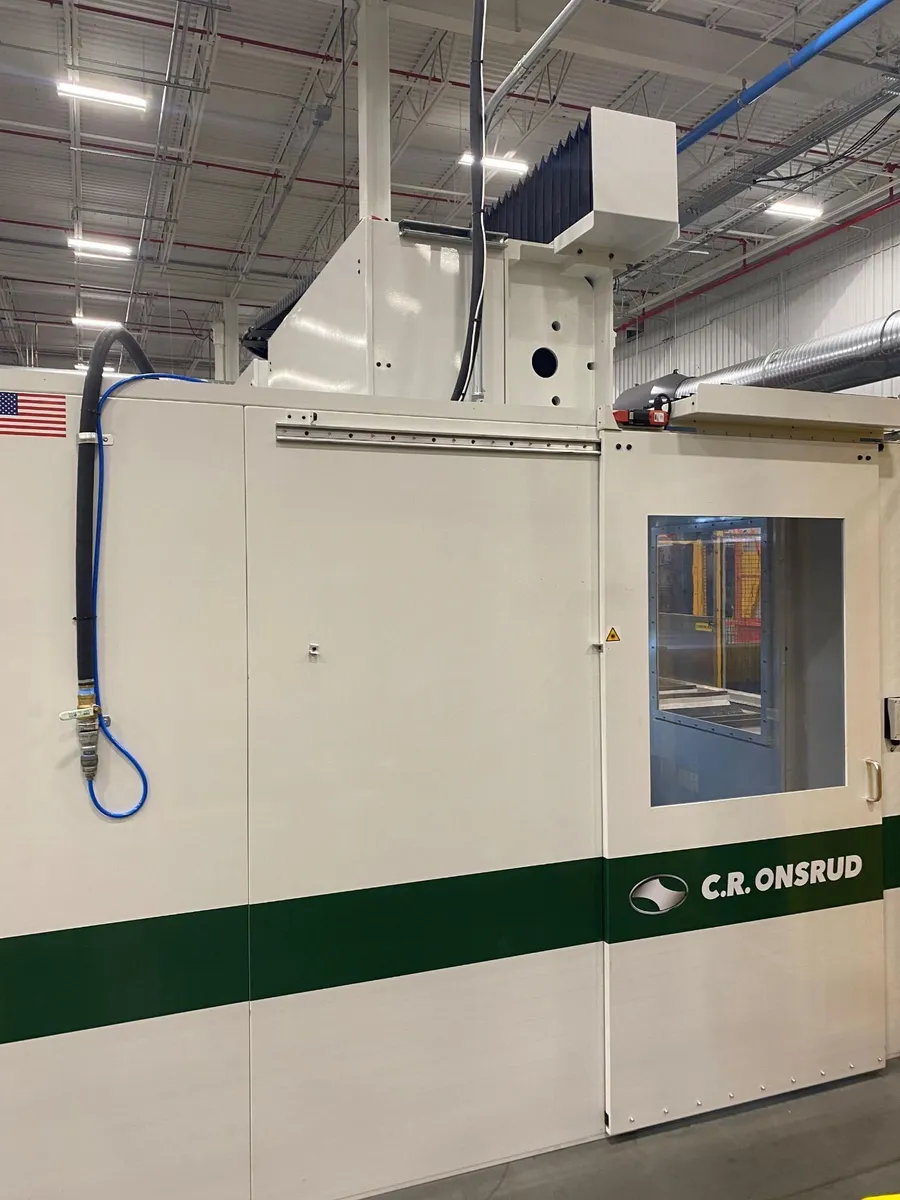

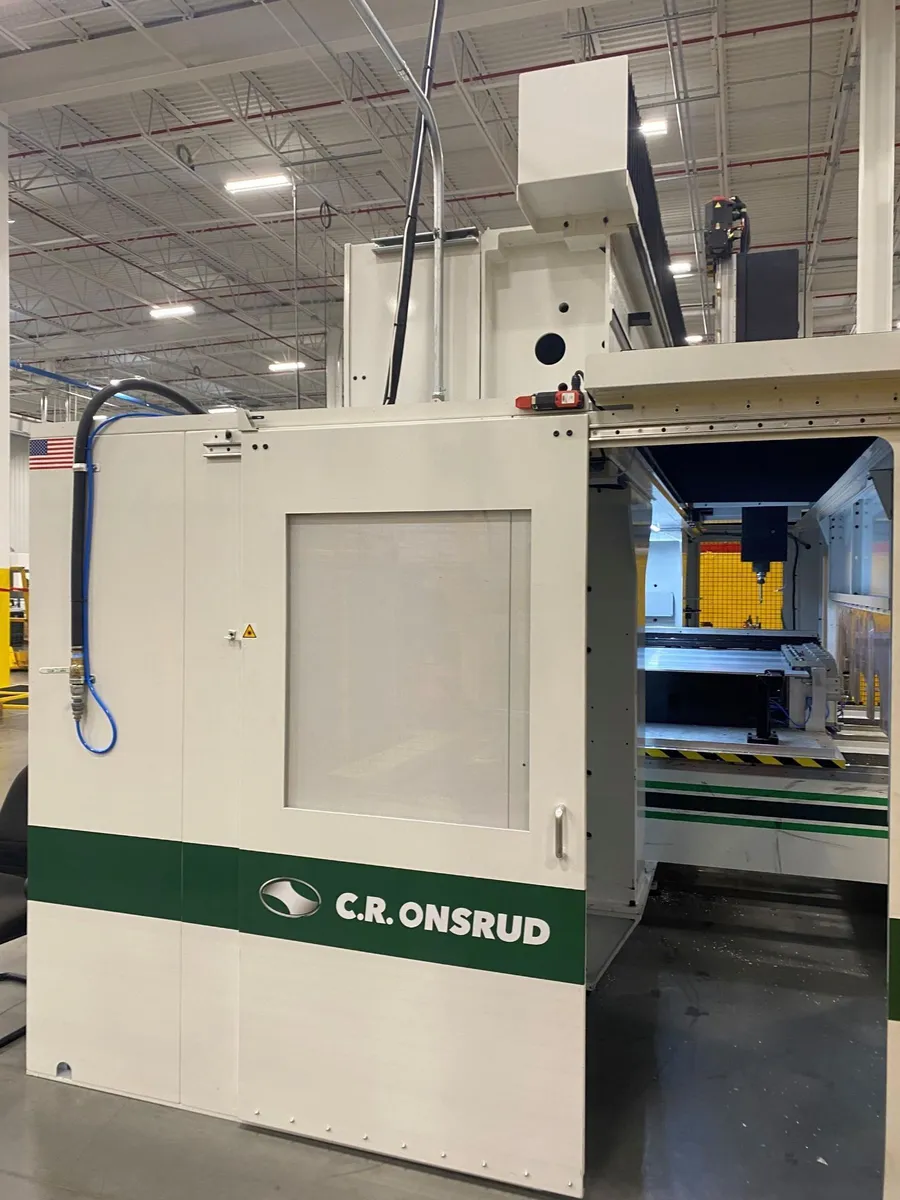

- Steel-roof enclosure allowing full table travel
- Dual interlocked entry doors

------------------------------------------------------------

Extended Frame
- E-Series extended frame (+24")
- Allows full table travel while enclosed
- Requires 12' wide door for installation

------------------------------------------------------------

Additional I/O
- Additional I/O module for expanded machine functions

------------------------------------------------------------

Energy Chain Protection
- Flexible debris-resistant protective sleeve

------------------------------------------------------------

Machine Monitoring & Integration
- Robotic integration & automation hardware (PN-to-PN coupler; Anybus if used)
- Osync machine analytics: real-time data, OEE dashboards, diagnostics, alerts, predictive maintenance
- Control prep for robot: enables Fanuc robot communication features

------------------------------------------------------------

Enhancement Options
- RMI-Q RF receiver (compatible with Renishaw probing)
- Enhanced machine accuracy: laser precision alignment
- 3-axis laser compensation: bi-directional and straightness compensation (includes control activation)

------------------------------------------------------------

Auxiliary Options
- 3D CAD model for simulation (IGES/STEP)
- 3D CAD model for shop layout planning (IGES/STEP)
- Machine status stack light (4-color: green, yellow, red, blue)

------------------------------------------------------------

Tool Measurement System
- NC-4 laser tool setter
• Automatic tool length & diameter measurement
• Certain profiled tooling may require orientation adjustment
