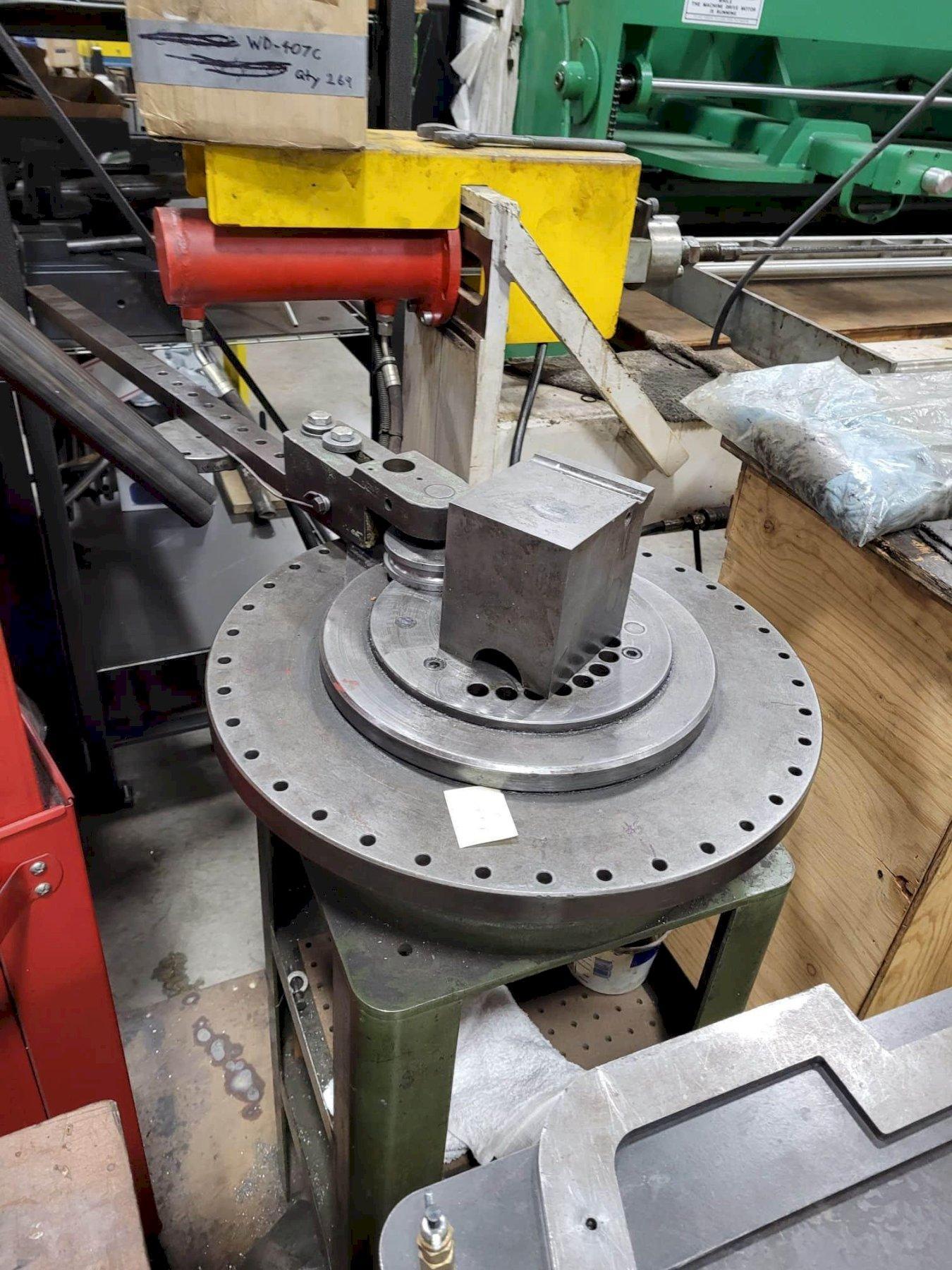

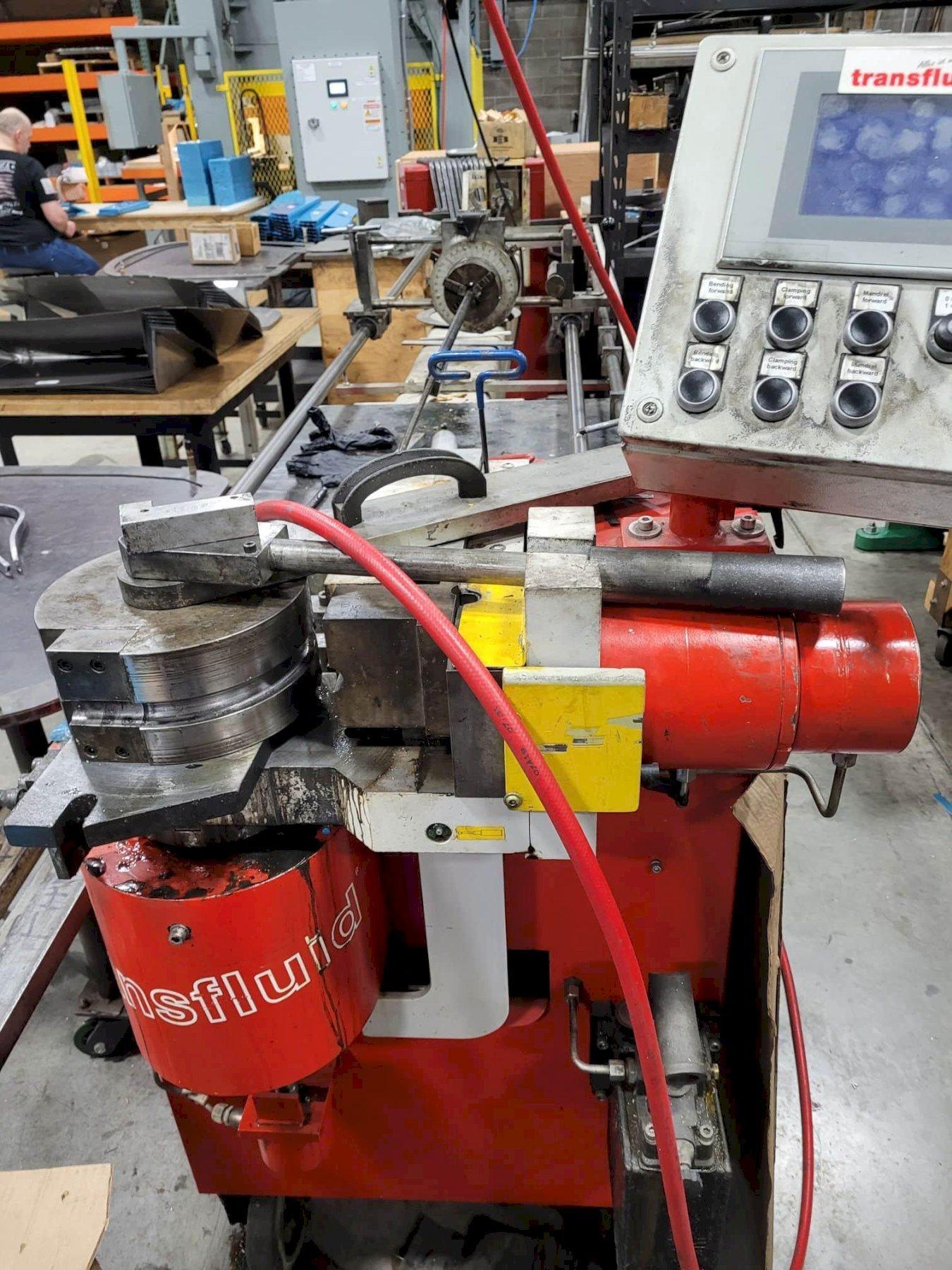

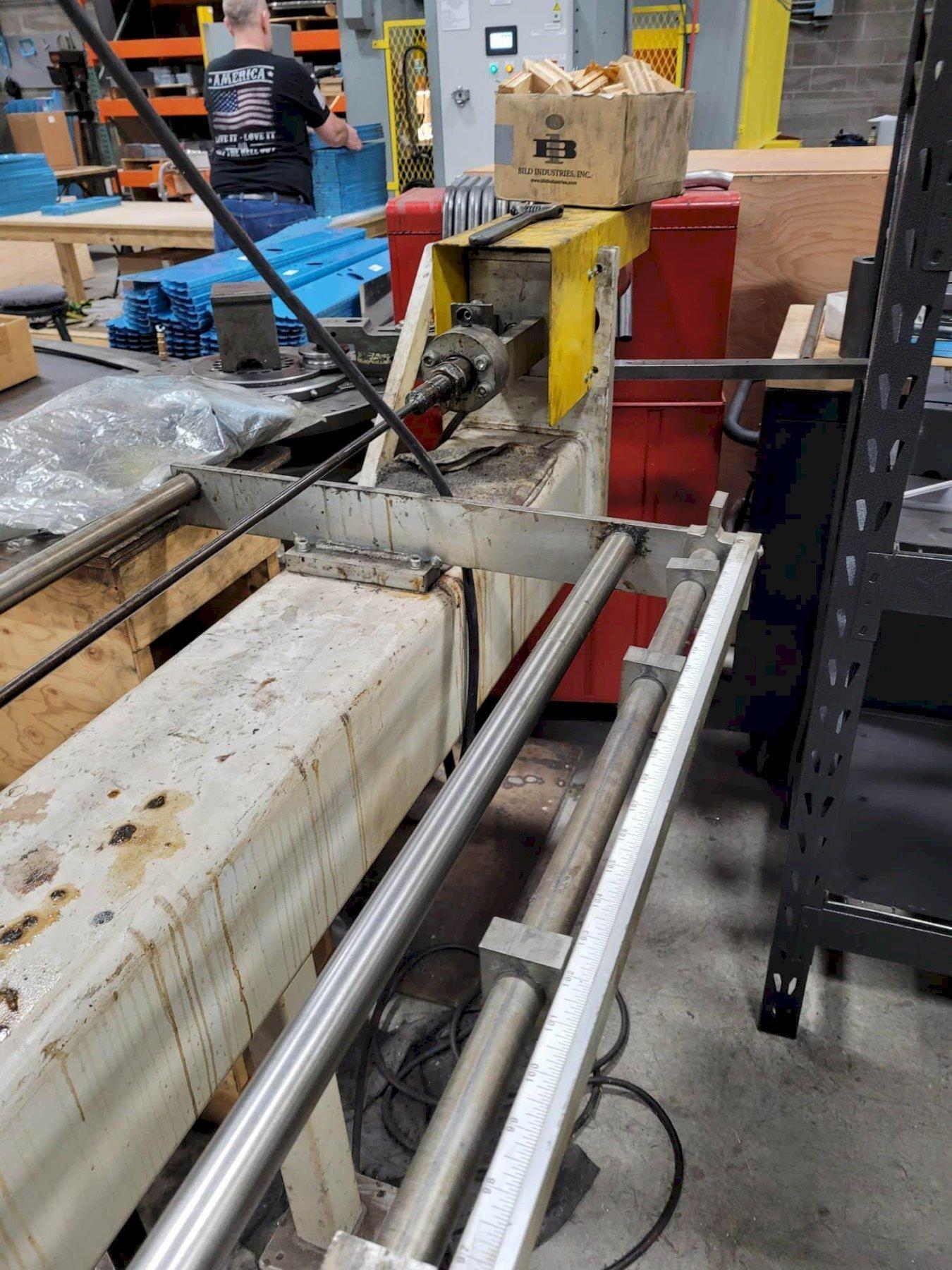

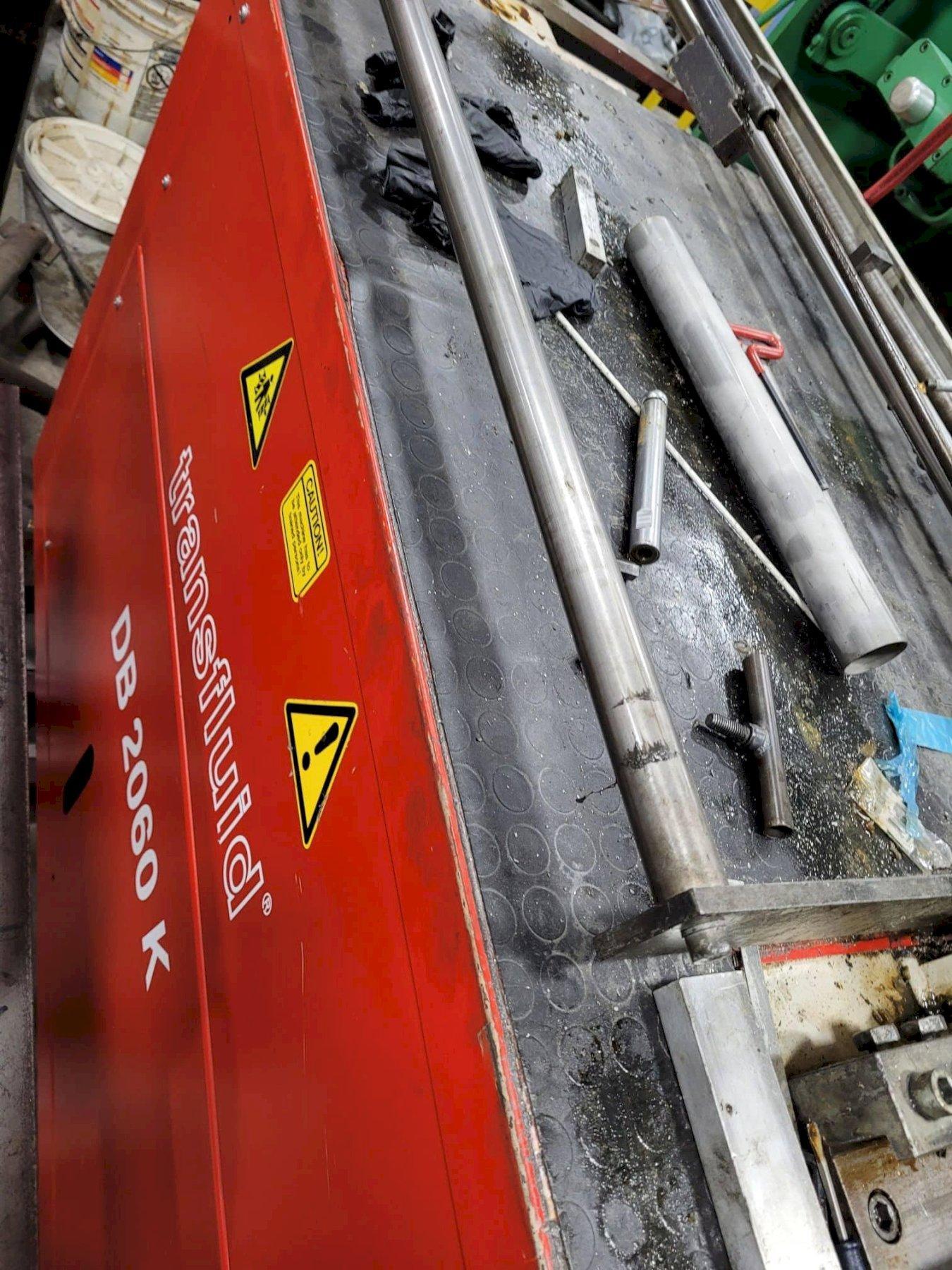

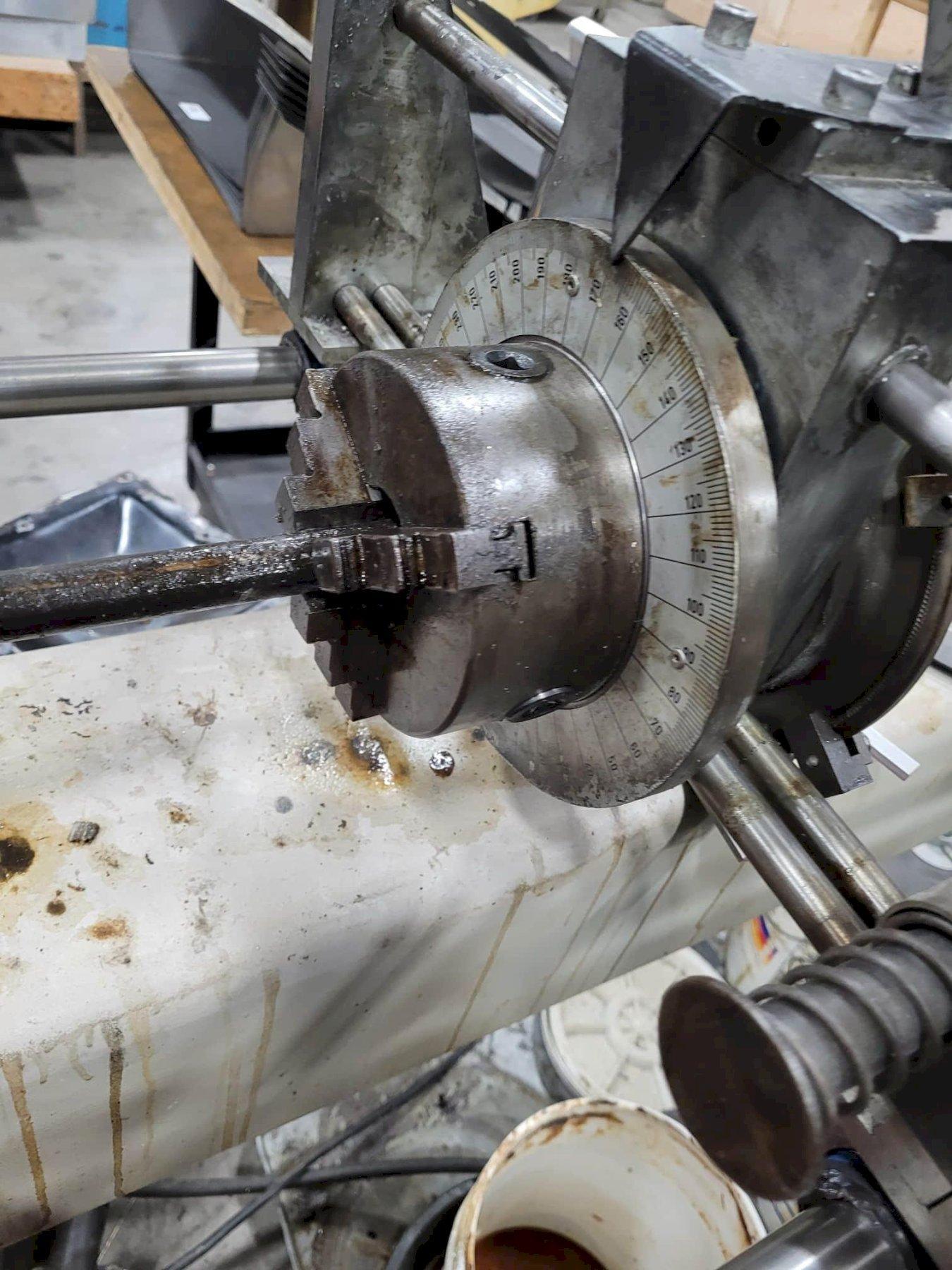

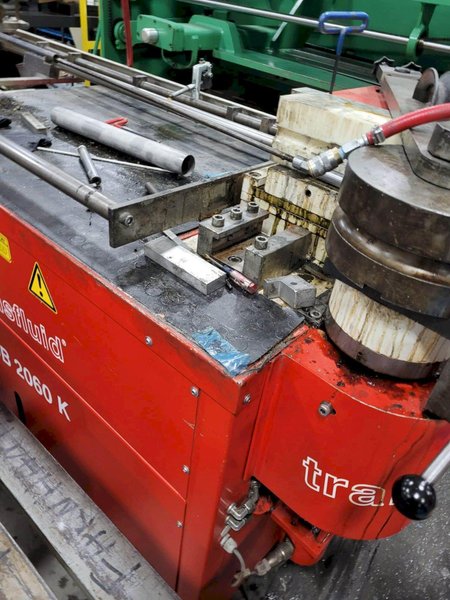

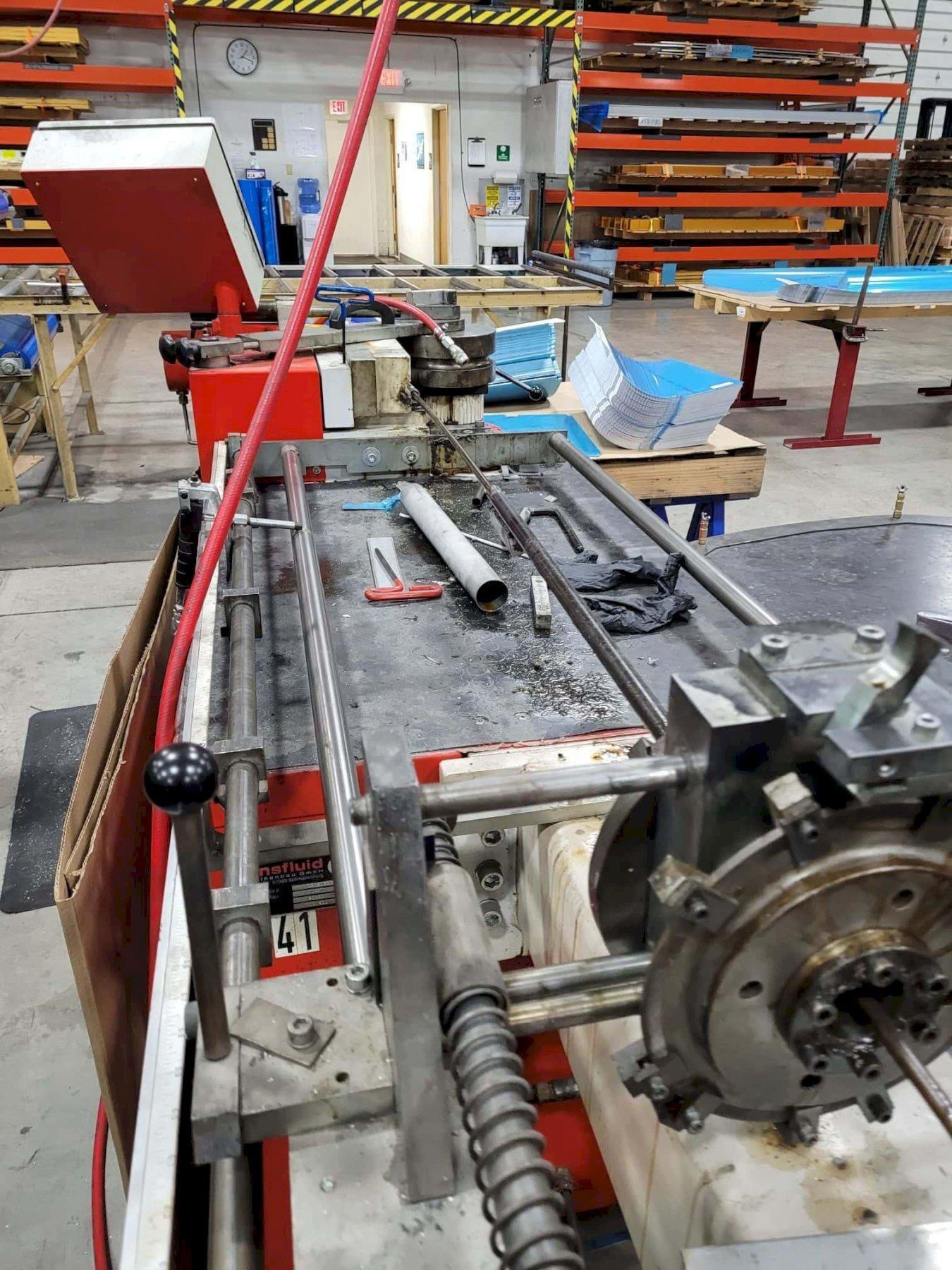

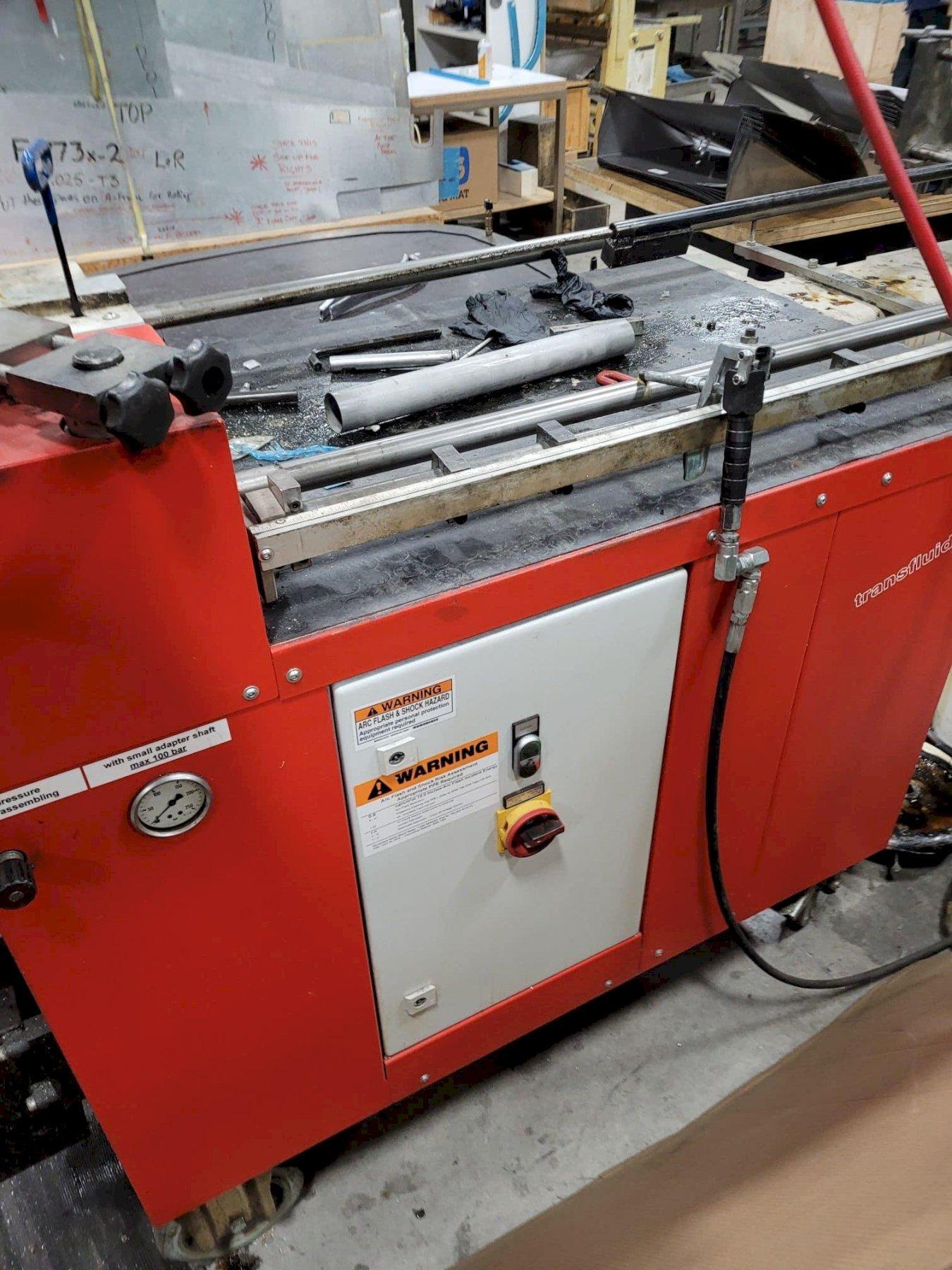

Transfluid DB 2060K Mandrel Tube Bending Machine 0.78″-2.36″, 2007 – 8 Bending Angles, Tooling Included, Video Available

Round Tubing Mild Steel (S 355): 2.36″ x 0.236″ Ø Round Tubing Stainless Steel: 2.36″ x 0.157″ Ø Square Tubing Mild Steel (S 355): 1.97″ x 1.97″ x 0.157″ Rectangular Tubing Mild Steel (S 355): 2.36″ x 1.57″ x 0.079″ Max. Moment of Resistance: 0.738 in^3 Bending Angle: Up to 180° + 10° Spring Back Bending Speed: 10°/sec. (Front Feed) Arbor Length/Usable Length: 120″ Radii Maximum: 5.91″ Bending Height: 41.34″ Power Bending Axis: Electro-Hydraulic Automatic Positioning of the Rotation and Length: Manual All Other Axes (e.g., Clamping, Mandrel Forwards/Backwards, etc.): Electro-Hydraulic Nominal Pressure: 250 bar Operating Pressure: 250 bar Operating Voltage: 400V 3PH 50HZ Total Power: 3KW Dimensions: 169.29″L x 35.43″W x 59.06″H Weight: 2756.56 LBS

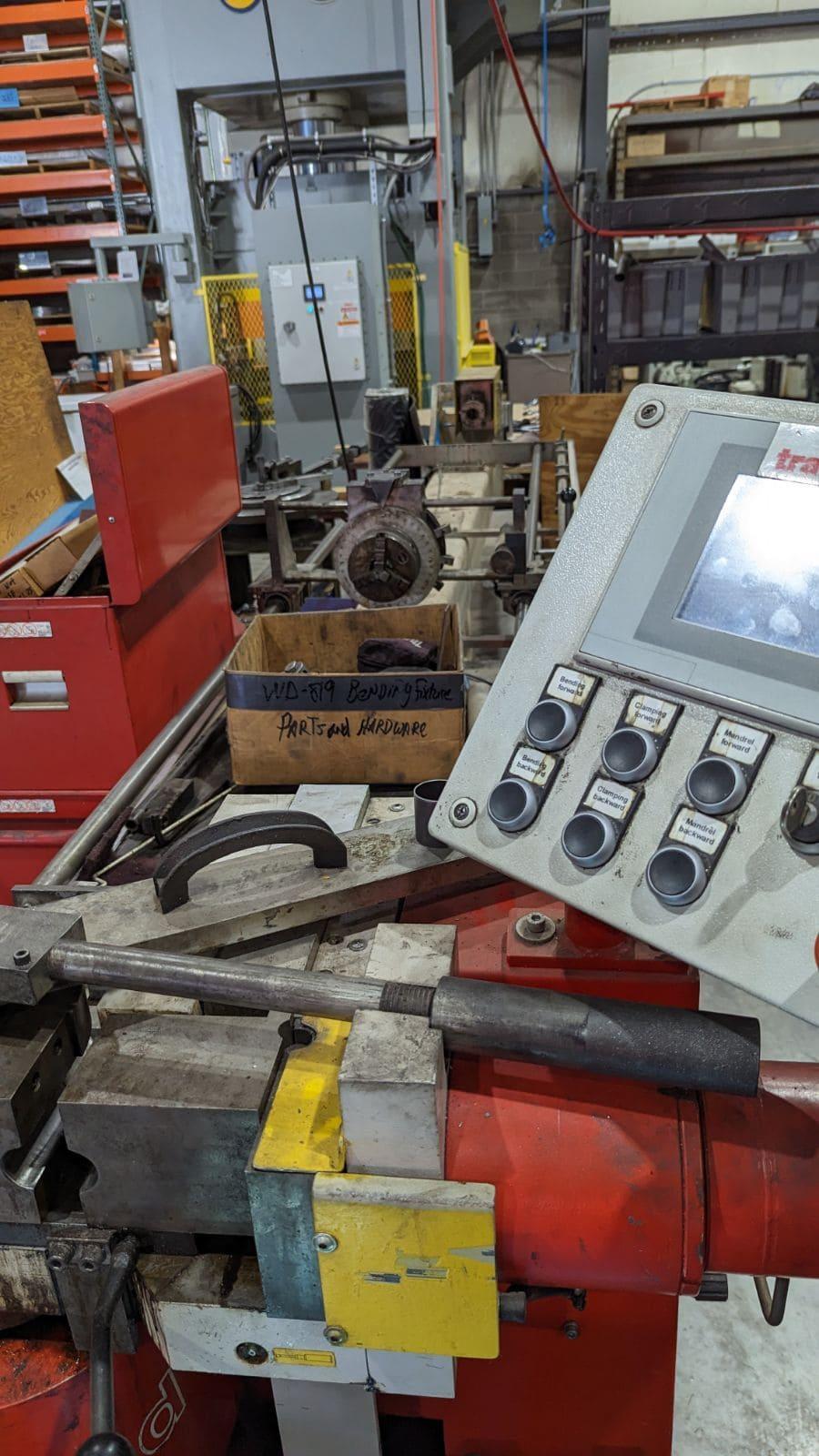

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Features: – Possibility to select 8 bend angles – Angle input via digital input unit – Angle selection 0.1° – With call up nominal/actual angle control – Angle coverage via encoder – Digital display for the bending angle – Calling of the angle selection via switch
