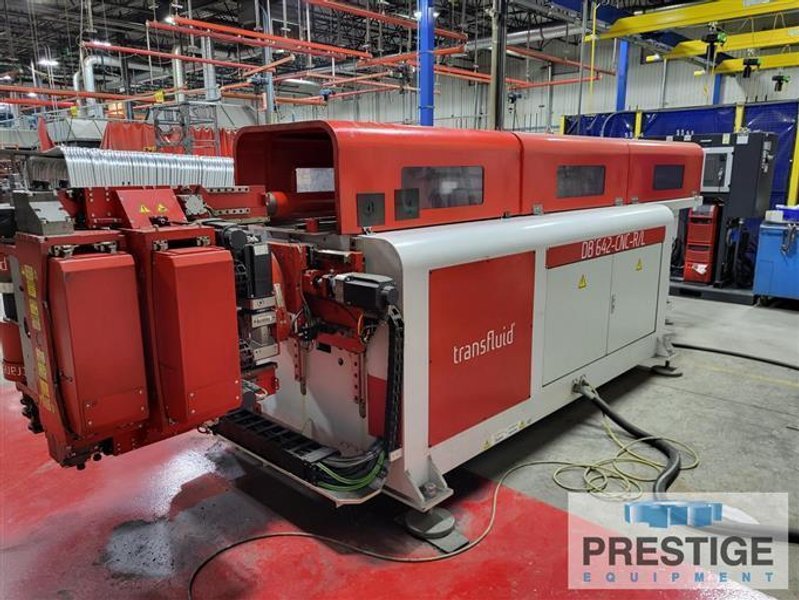

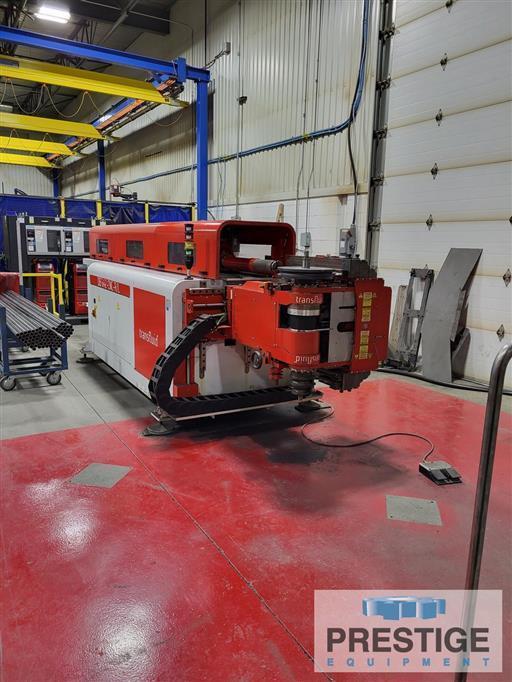

Benders Tube Pipe CNC

CAPACITY:
Round Tubing Mild Steel 1.65" x 0.118"
Round Tubing Stainless Steel 1.65" x 0.059"
Maximum Moment of Resistance 3.4 cm3 (S235)
Bending Angle up To 180 Degrees +10 Degrees Spring Back
Bending Time Maximum 180 Deg./Sec (Front Feed)
Speed of Front Feed 1600 mm sec
Speed of Rotation Maximum 450 Degree/Second
Repetition Tolerance Bending +/-0.05 Degrees
Repetition Tolerance Length +-0.05 mm
Repetition Tolerance Rotation +/-0.05 Degrees
Arbor Length/Usable Length 120"
Radii Max. 6.61"
Bending Height 45.27"
Boosting Force Length Positioning 2.5 kN
Approximate Dimensions 296" x 63" x 63"
Approximate Weight 12,100 Lbs.



Equipped With:

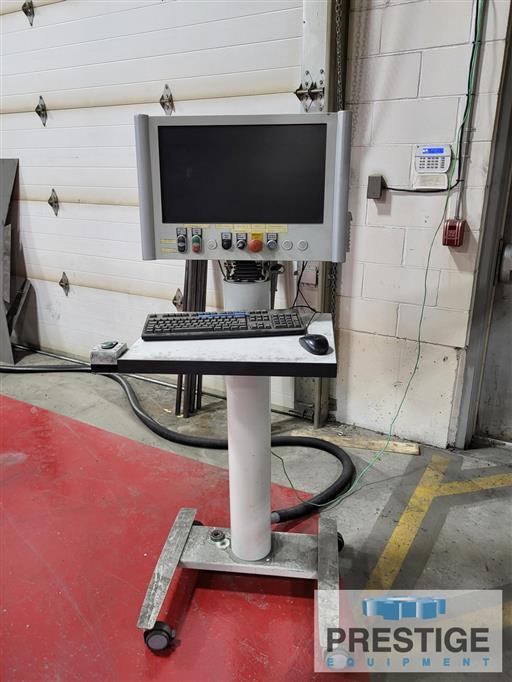

Transfluid CNC Control with Windows 10 Operating System and 22" Widescreen Monitor
Servo Electric Power Bending Axis
Servo Electric Positioning of the Rotation Length
All other axis Servo Electric (Clamping/Mandrel/Pressure Die etc
)

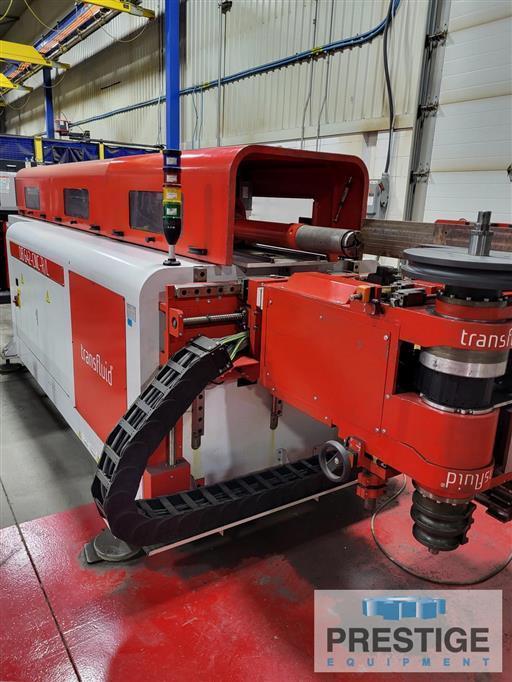

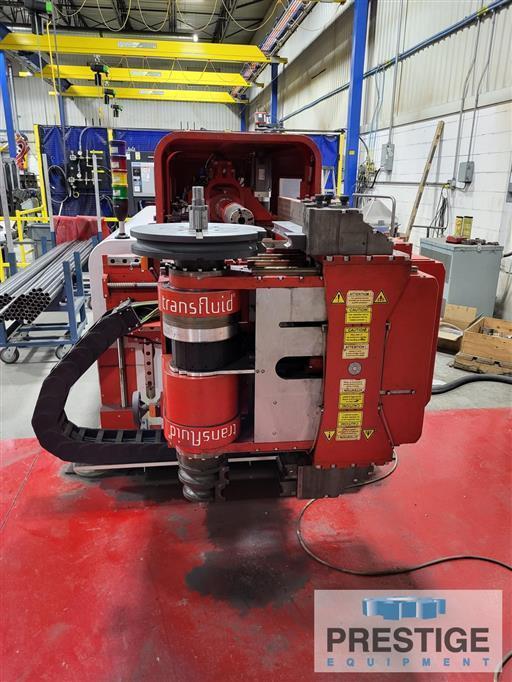

Bending Head For Right Hand/Left Hand with One Off Set Bend Device
Bending Head can be Horizontal & Vertical
Automatic Programmable Mandrel Withdrawal
Carriage For Wiper Die
Boosting Function
Remote Diagnostics Option
Automatic Mandrel Lubrication
Air Conditioning for Electrical Cabinet
