Scotchman 315HTRFA Cold Saw, 1997

Source: https://www.normanmachinetool.com/product/scotchman-automatic-non-ferrous-cold-saw-cpo-315-hfanf/

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specifications:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Capacity: Round Tube: 3 1/2″ Square Tube: 3 1/8″ Round Solid: 1 3/4″ Square Solid: 1 1/2″ x 1 1/2″ Length Tolerance: +/- 0.006″ per index Squareness Tolerance: +/- 0.002″ per diameter Min. Cut Length: 1/8″ Max. Cut Length: Single Index: 30″ Double Index: 60″ Triple Index: 90″ Cutting Speed: 3,000 RPM Max. Blade Diameter: 12 1/2″ Air Pressure: 90 lbs. Min. Arbor Bore: 1 1/2″ Pin Spacing: 4 / 12 / 64

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Standard Features: Fully automatic cycle Push button controls actuate the complete cycle 5 HP – 3,000 RPM Interlocking safety hood Clamping both sides of blade – highest quality, burr free cuts Mist coolant Adjustable stroke control on the saw head Adjustable down feed control on the saw head for feed rate Piece counter Length scale in both inch and metric Quick and easy fine adjustment of length setting One saw blade One gallon of coolant

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mechanical Specifications: Dimensions: 100″ x 44″ x 64″ H Shipping Weight: approx. 1,770 lbs.

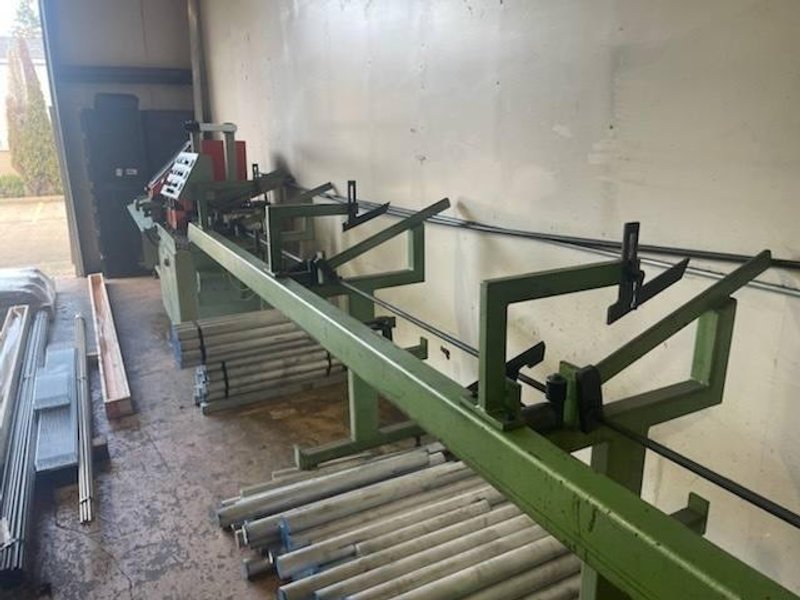

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: 12 ft. Bar Loader

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
