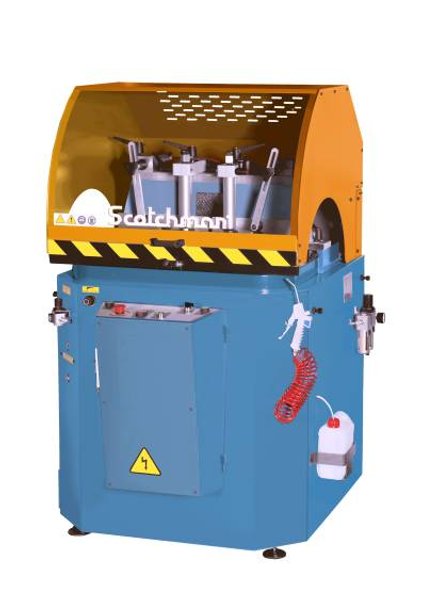

(NEW) SCOTCHMAN PRECISION UPCUT NON-FERROUS CIRCULAR COLD SAW

MODEL: SUP-500NF

FACTORY SPECIFICATIONS

Capacity, 90 Degrees, Round: 7"
Capacity, 90 Degrees, Square: 6"
Capacity, 90 Degrees, Rectangle: 11-3/4" x 5"
Capacity, 45 Degrees, Round: 6"
Capacity, 45 Degrees, Square: 4-3/4"
Capacity, 45 Degrees, Rectangle: 5-3/4" x 4-3/4"
Maximum Blade Diameter: 20"
Arbor Bore: 1.97"
Cutting Speeds: 3000 RPM
Height From Floor To Vise: 38-5/8"

EQUIPPED WITH

5.5 HP Motor (Specify Voltage)
Safety Hood With Safety Switch That Will Not Allow Saw To Run With Hood Open
Blade Door With Safety Interlock Switch
Dual Palm Buttons
Adjustable Feed Rate On Saw Head
Two Horizontal Pneumatic Clamps
Two Vertical Pneumatic Clamps
Capable Of Slotting
Moveable Back Fence For Large Capacity
Coolant Tank With Mist Lubrication
One Blade Wrench
Air Hose
Chip Collection Drawer In Base and 4-3/4" Chip Collection Port
Adjustable Leveling Pads

Three Year Warranty On Parts

Dimensions: 48"W x 44"D x 61"H
Approximate Weight: 1000 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
