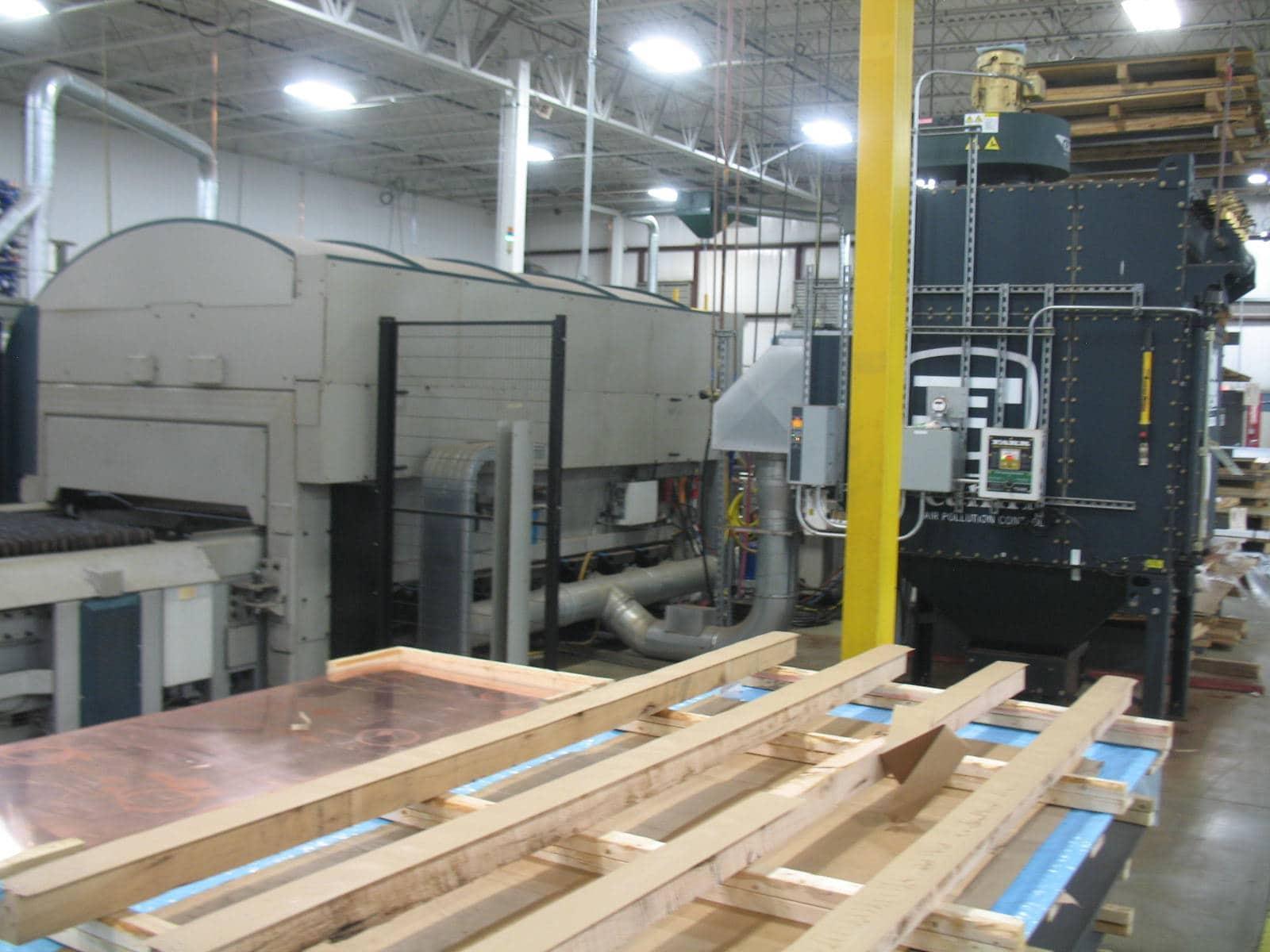

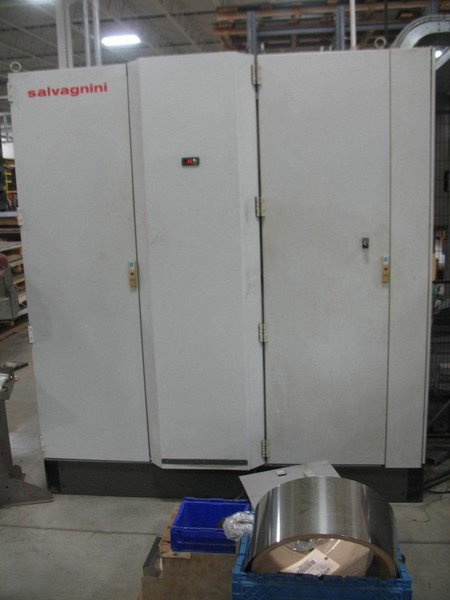

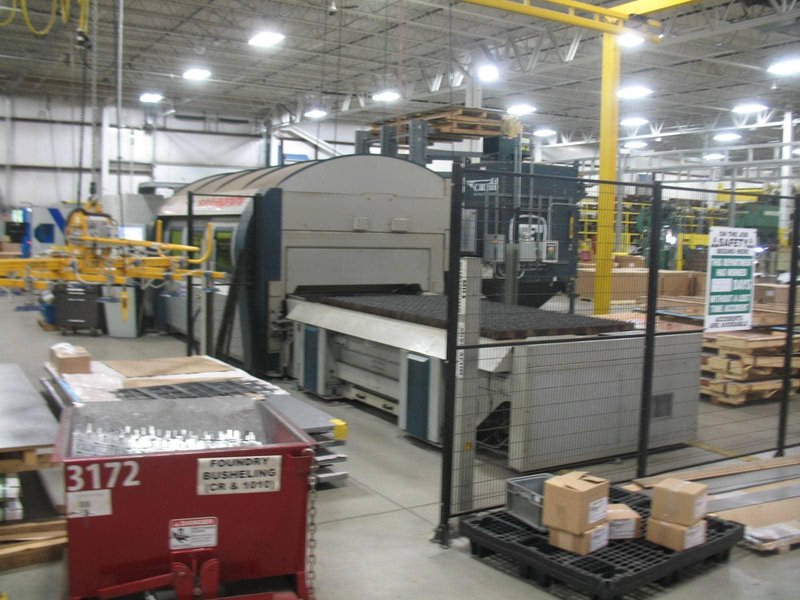

3,000 Watt Salvagnini L1Xe-30 Fiber Laser, 2009 – 5’x10′

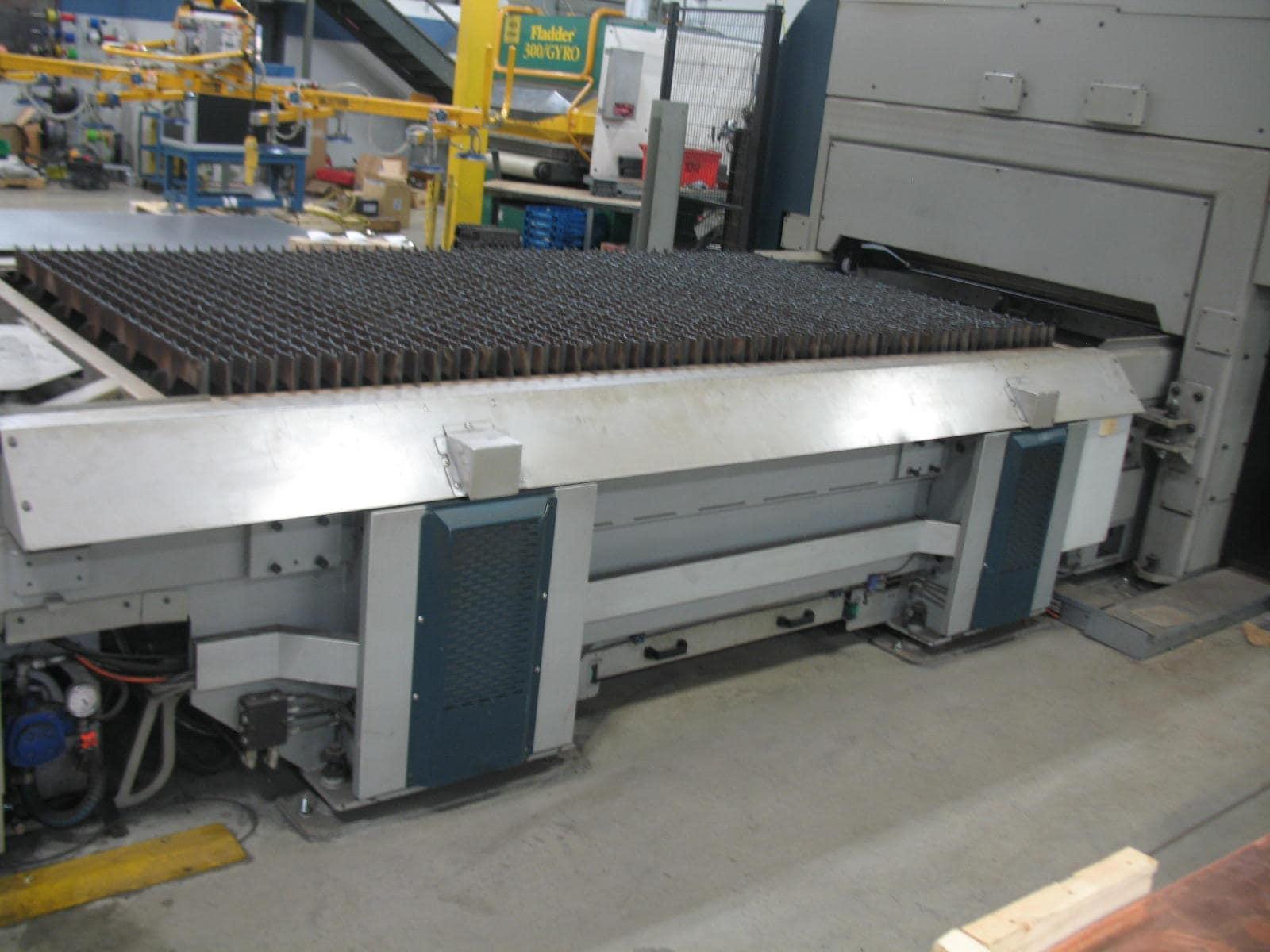

Worktable X Y: (mm) 3048 x 1524 Z axis stroke: (mm) 150

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Technical specifications:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum positioning speed: (m/min) 120 Positioning tolerance: (mm) ‡0.1 Focusing lens: 5″ and 7.5″ with autofocus Assist gases: nitrogen, oxygen and auxiliary Maximum pressure at the nozzle: (bar) 20

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Laser source:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Type of source: CO,- SLAB Method of excitation: radio frequency Maximum power: (W) 3000 Power regulation: (W) 300 – 3000 Quality factor: K>0.9 Consumption of premixed laser gas: (NI/h) <0.2^3 Cutting capacity: (thicknesses) 0.5 – 20 Steel: (mm) 0.5 – 20 Stainless steel, with or without protective film: (mm) 0.5 – 10 Aluminium: (mm) 0.5 – 6

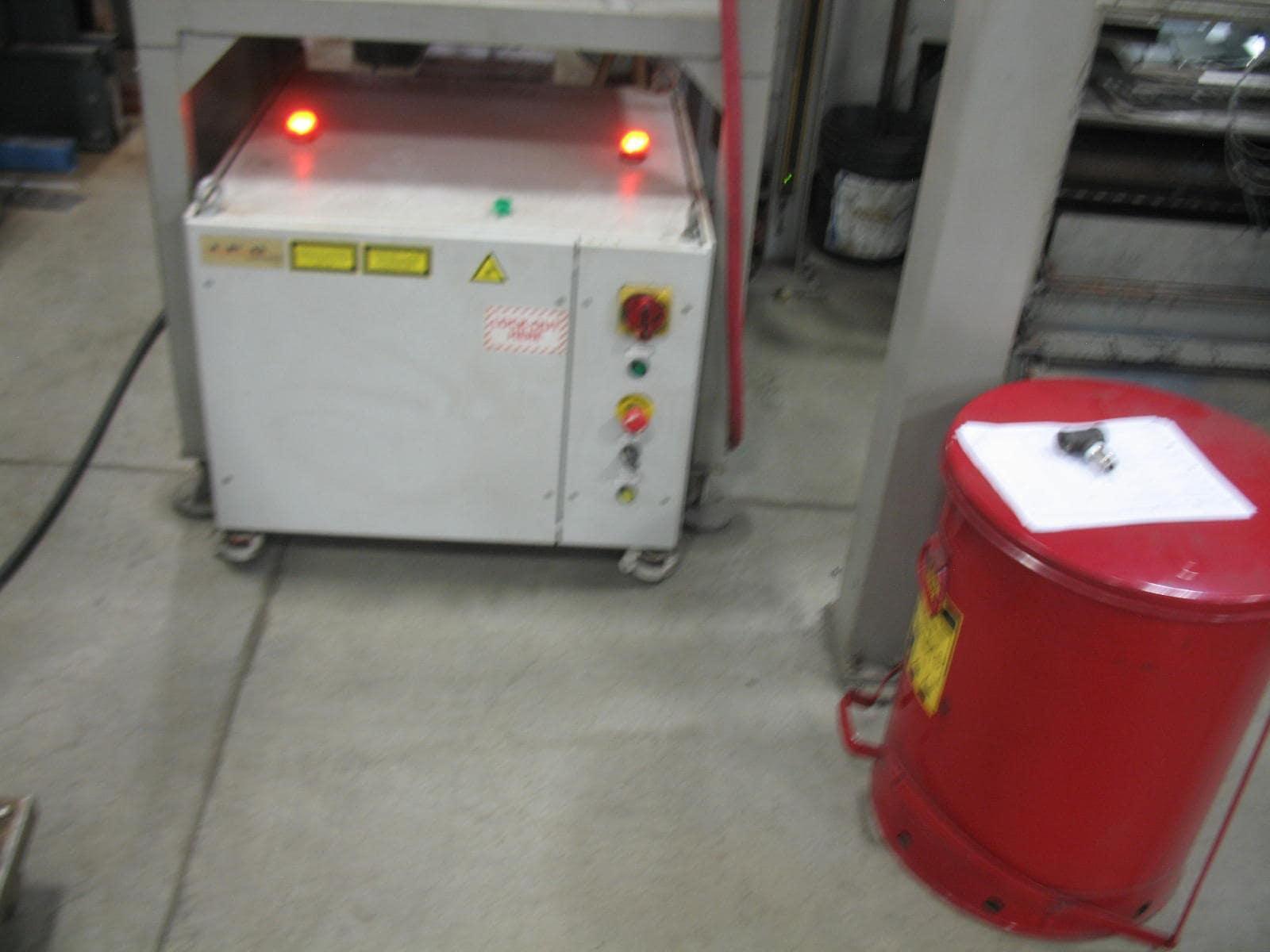

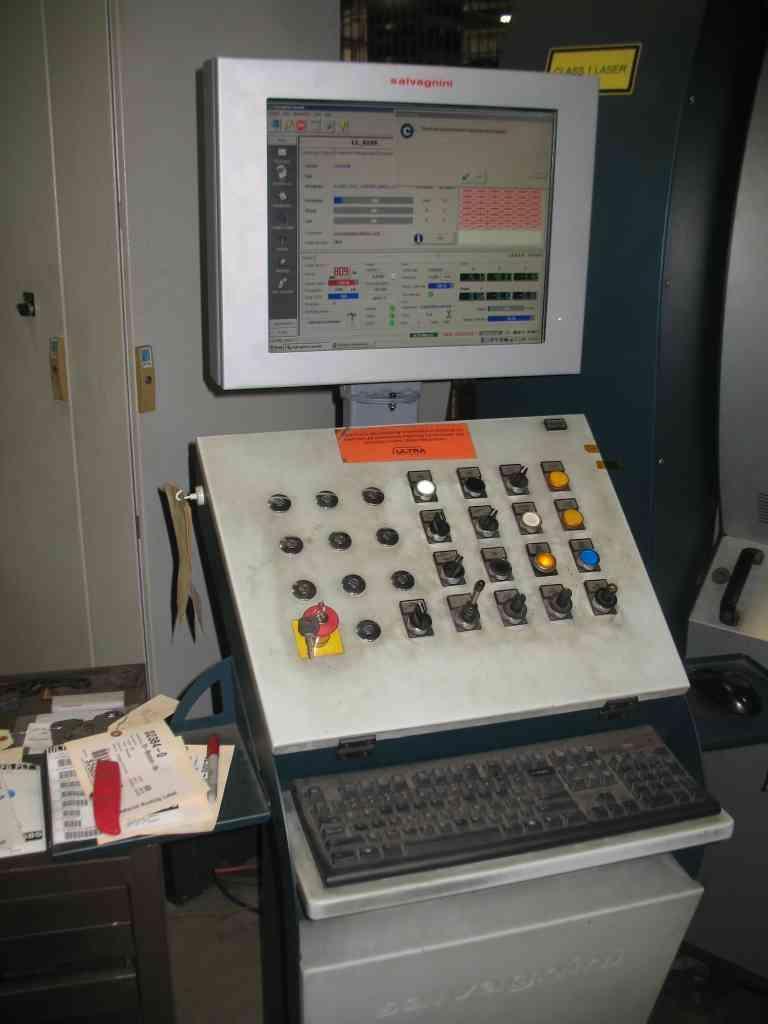

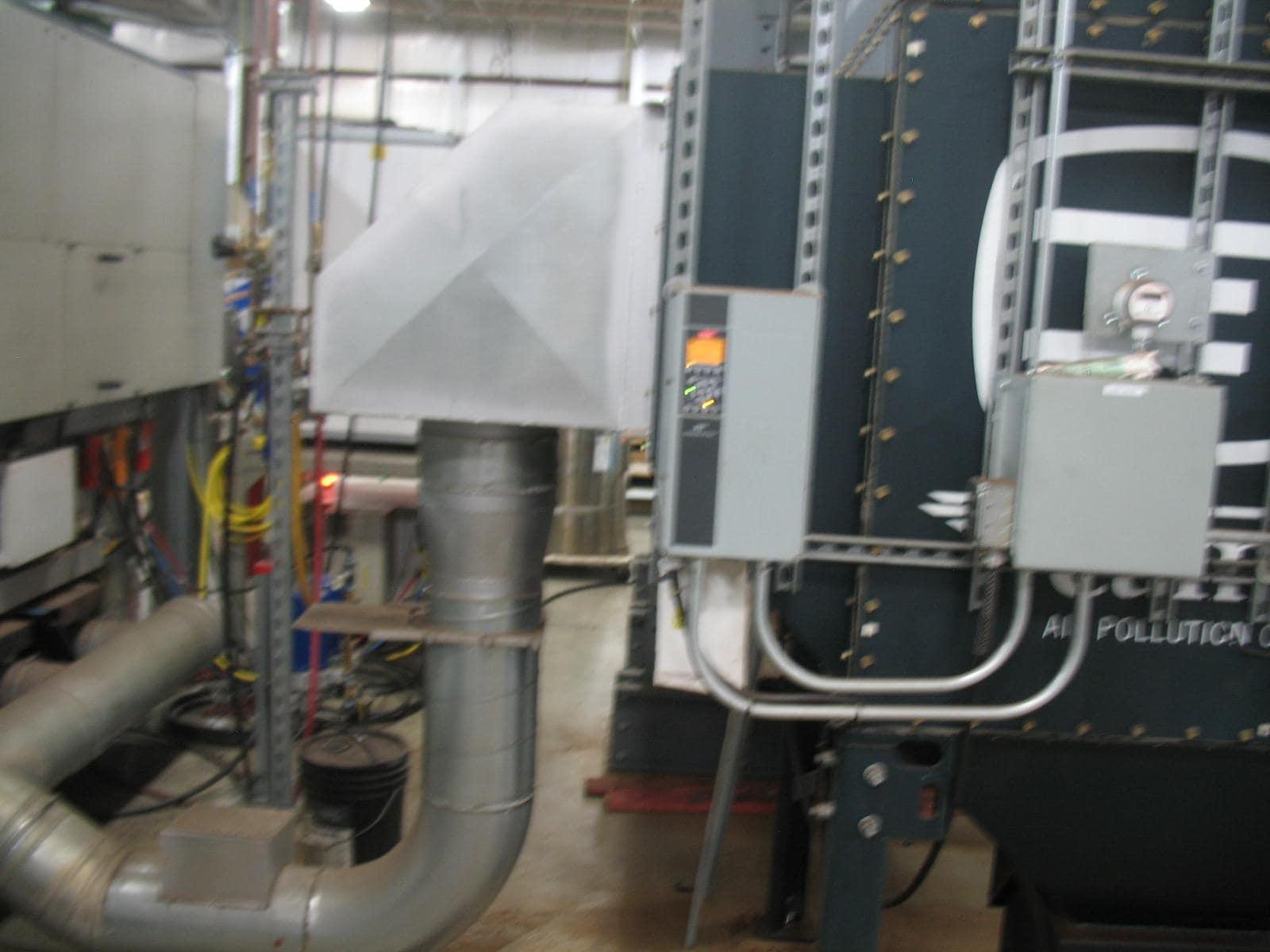

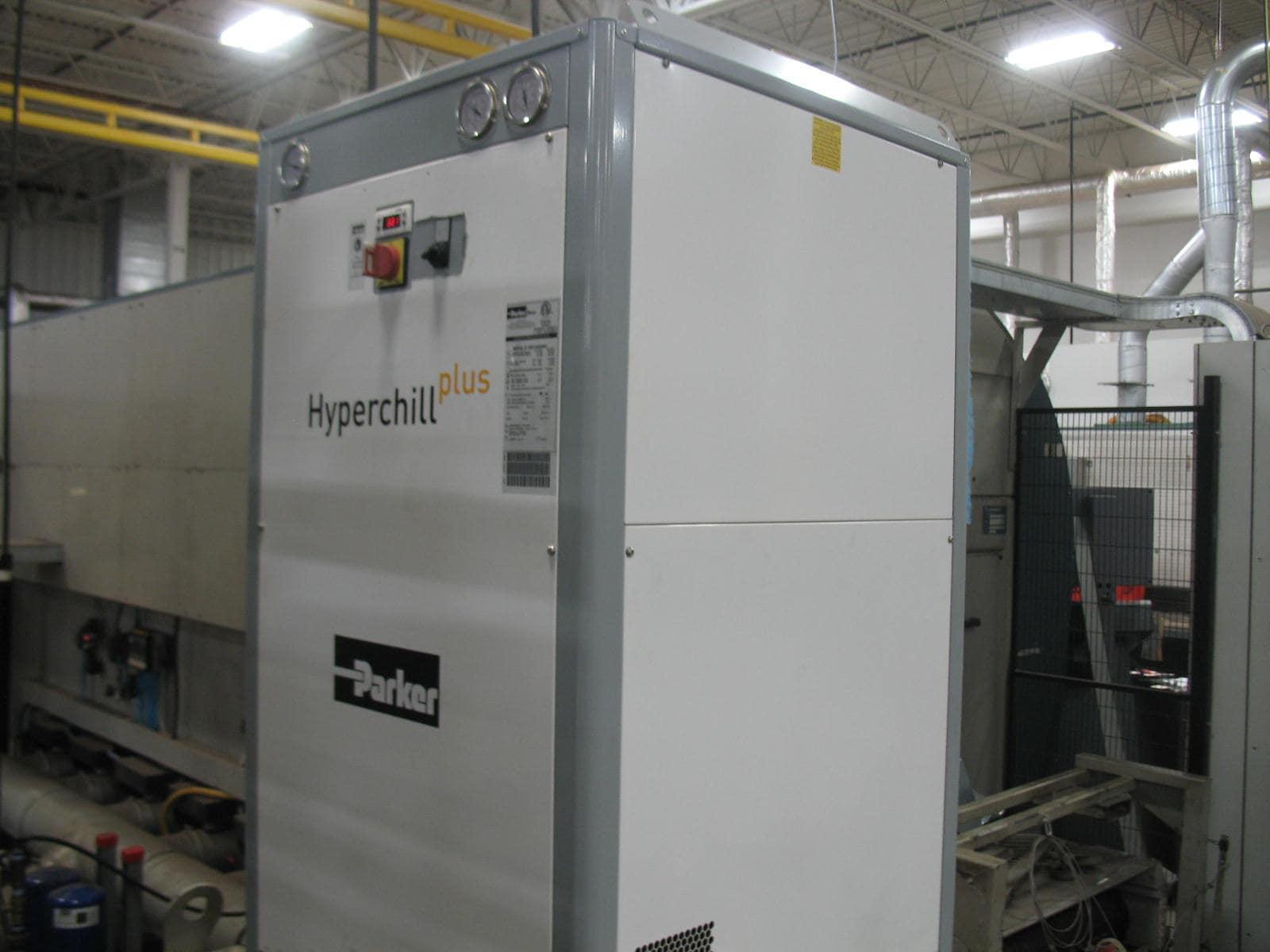

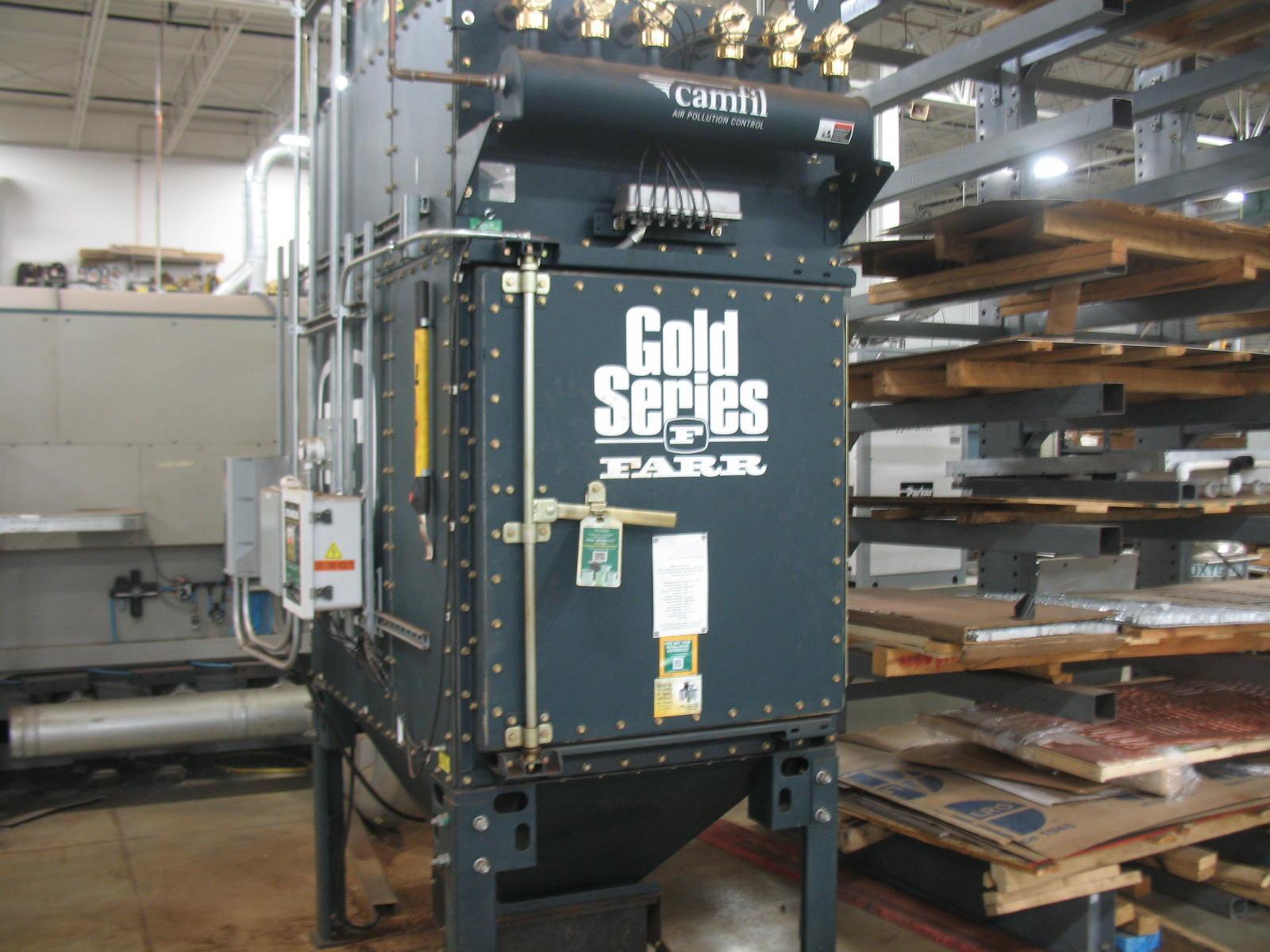

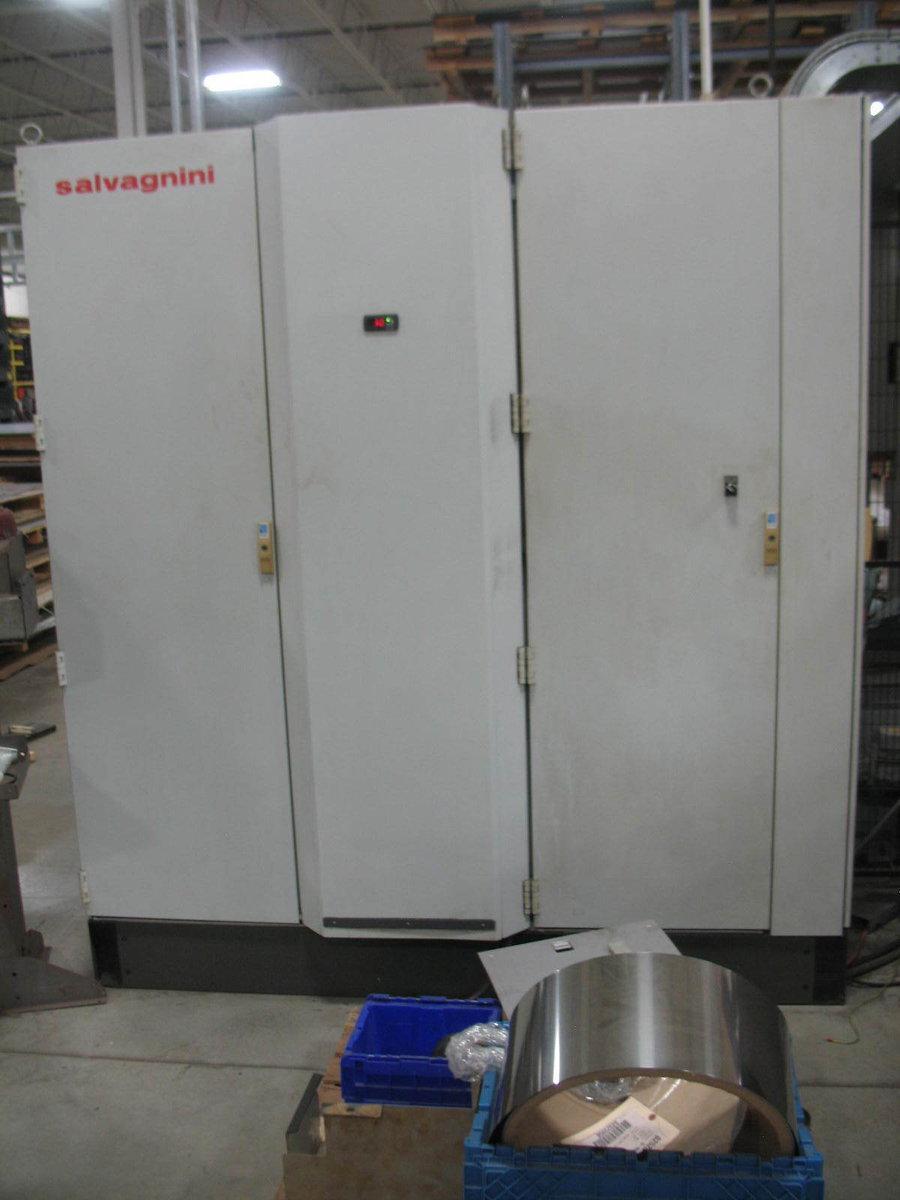

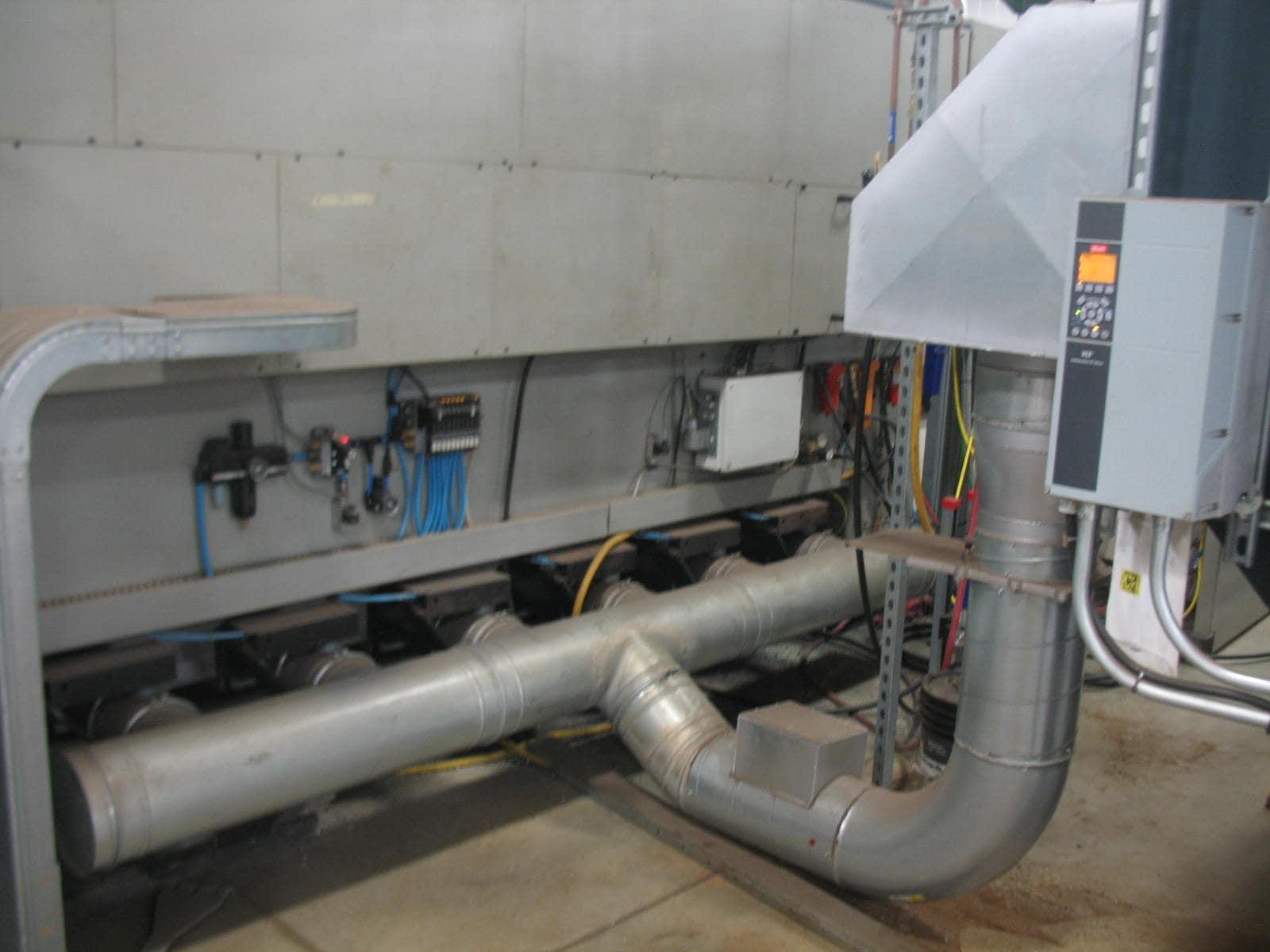

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: CNC control: SALVAGNINI Laser source: IPG Semi-automatic sheet loading system Machine cooling system: Parker Chill- ICEP010-WAGP3T0000000 Dust extraction system: AMFIL FARR GOLD SERIES COLLECTOR MODEL GS6 Interchangeable tables

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
