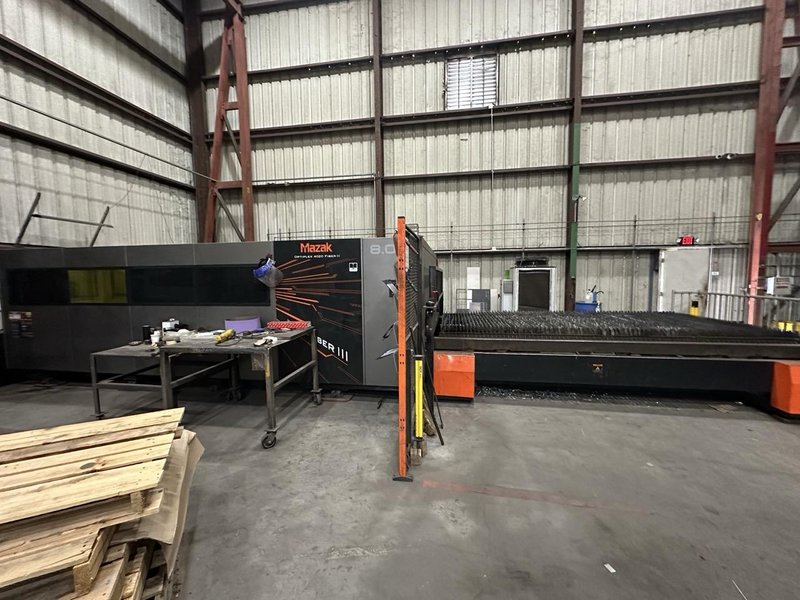

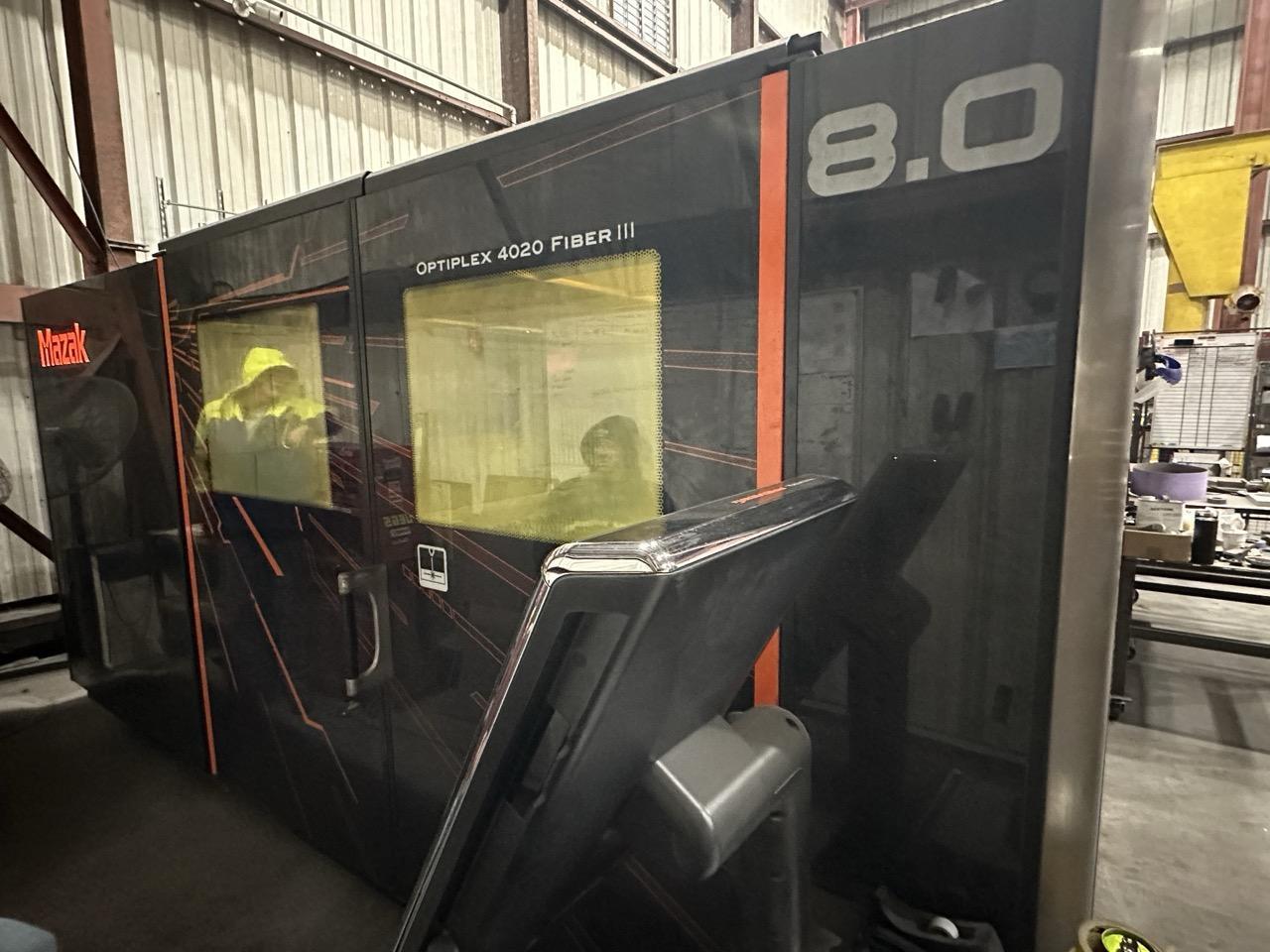

8000 Watt Mazak Optiplex 4020 Fiber Laser III, 2019 – 6.5′ x 13′ Table – Dust Collector, Shuttle Table, Scrap Conveyor

Cutting Capacity: Max Sheet Size: 80″ x 160″ Max Thickness Mild Steel: 1″ Max Thickness Stainless Steel: 1.25″ Max Thickness Aluminum: 1″ Positioning Accuracy: ±0.0004″ Repeatability: ±0.0002″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Travels: X-Axis: 160″ Y-Axis: 80″ Z-Axis: 4-5″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Traverse Rate: X/Y-Axis: ~4,725 ipm Z-Axis: ~6,500 ipm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Sheet Weight: ~2,200 lbs per pallet Table Load Capacity: ~180 lbs/sq ft

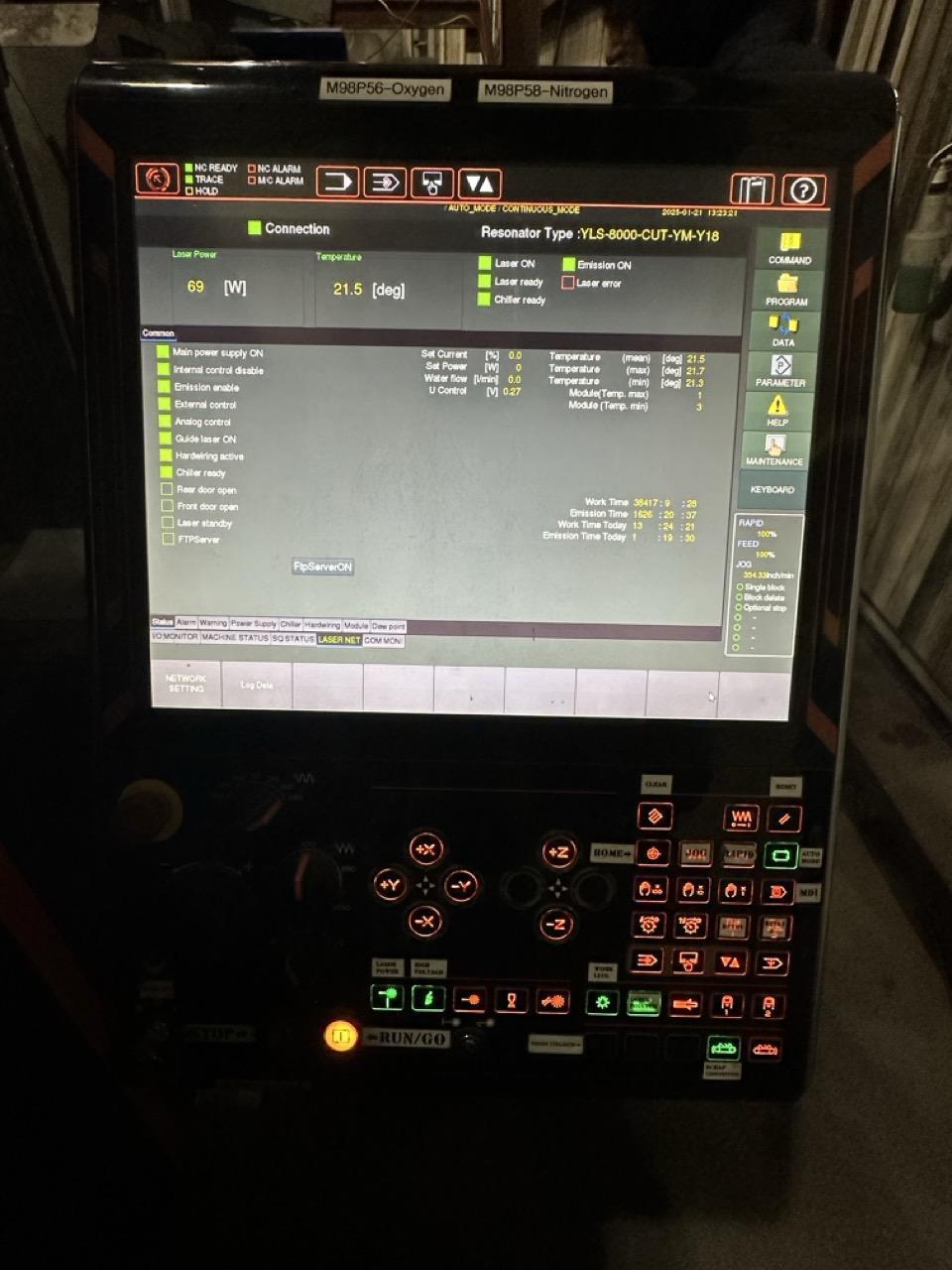

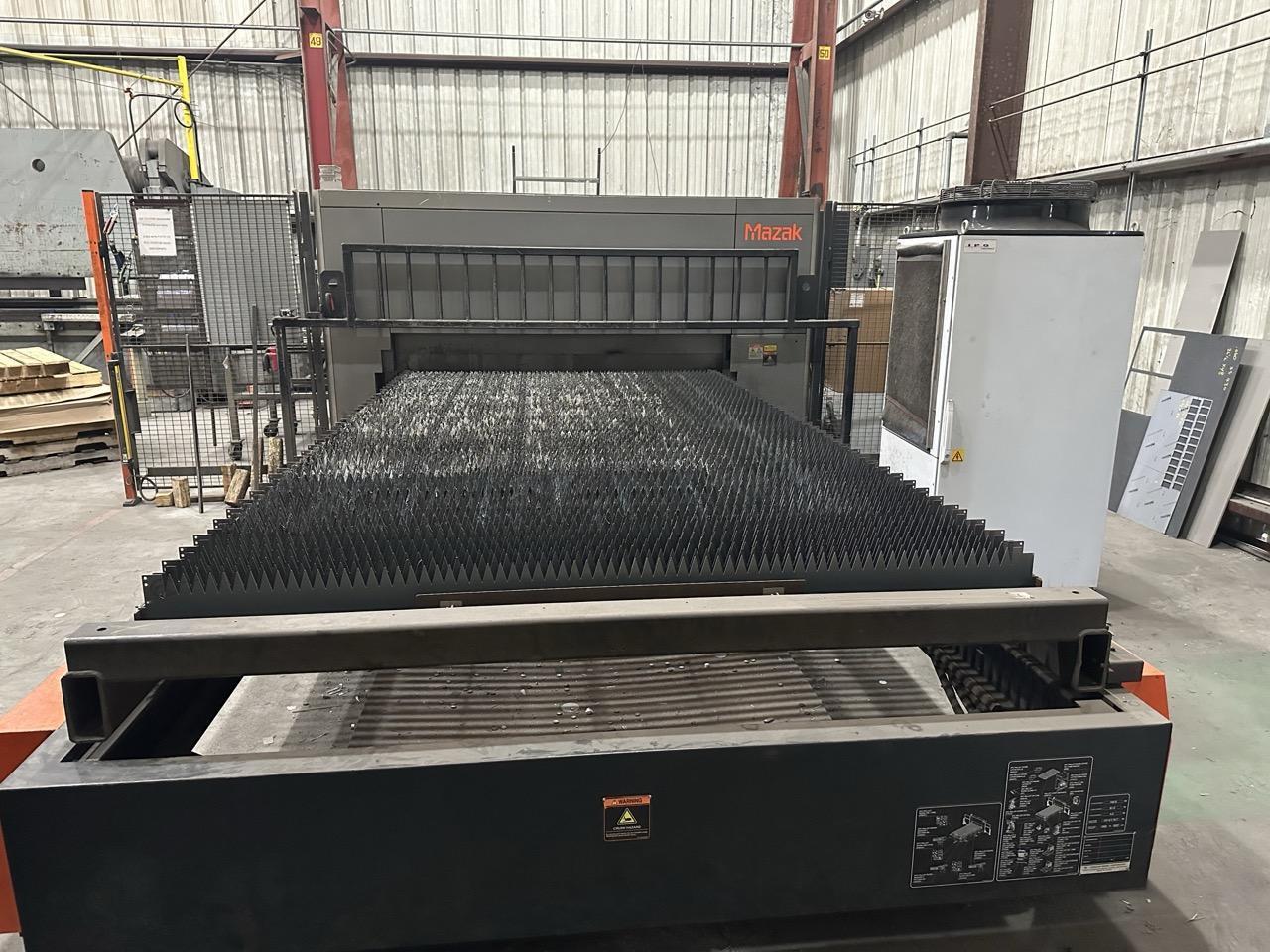

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Mazatrol PreviewG Control IPG Resonator Shuttle Table (dual pallet changer) Dust Collector Scrap Conveyor 4th Assist Piping Nozzle Centering Camera High Accuracy Camera Regulator Start-Up Kit II

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Requirements: 480V/3Ph/60Hz Dimensions: approx. 420″ x 120″ x 84″ Weight: approx 47,024 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
