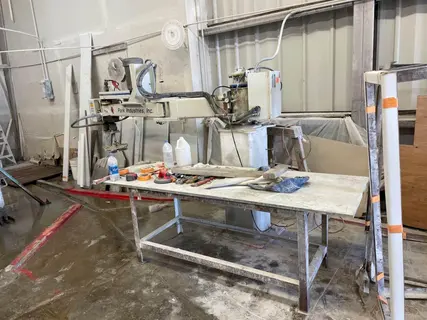

Park Industries Radial Arm Wizard, 1996
Brand
Category
Model
Wizard
Stock #
228565
Year
1996
Condition
Not specified
Location
Not specified
|
Face Polishing Length Capacity: 26″x102″
Face Polishing Width Capacity: 36″x72″
Edge Shaping Capacity: 26″x138″
Rotation: 360 degree
Main Motor: 5 hp
Spindle Speed: 400-3500 rpm
Auxiliary Motor: 3 hp
Spindle Speed: 1750-9950 rpm
Center Water Feed: Yes
Main Spindle Vertical Travel: 6″
Aux. Spindle Vertical Travel: 6″
Variable Spindle Speed Control: Yes
Variable Spindle Pressure Control: Yes
Rise & Fall Selector Switch: Yes
Machine Weight: Approx. 2700 lbs
Machine Height: 74″
Handle Assembly Height: 43″
Radial Arm Length: 78.5″
Min. Working Radius: 34″
Ma. Working Radius: 78.5″
Power: 240v/60Hz/3ph/w/30 amp
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
