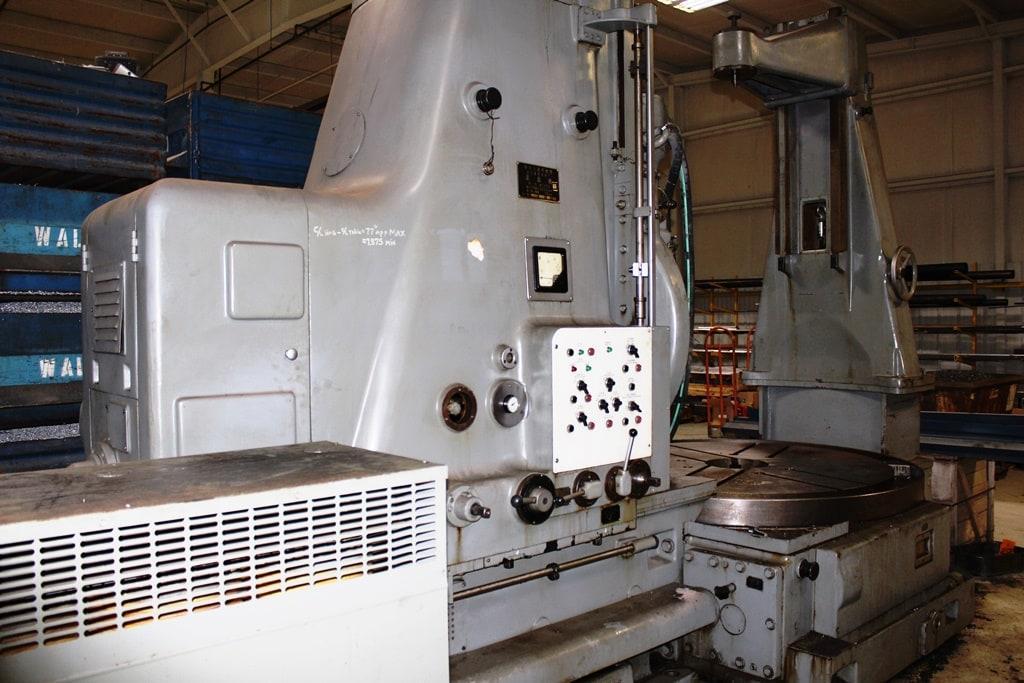

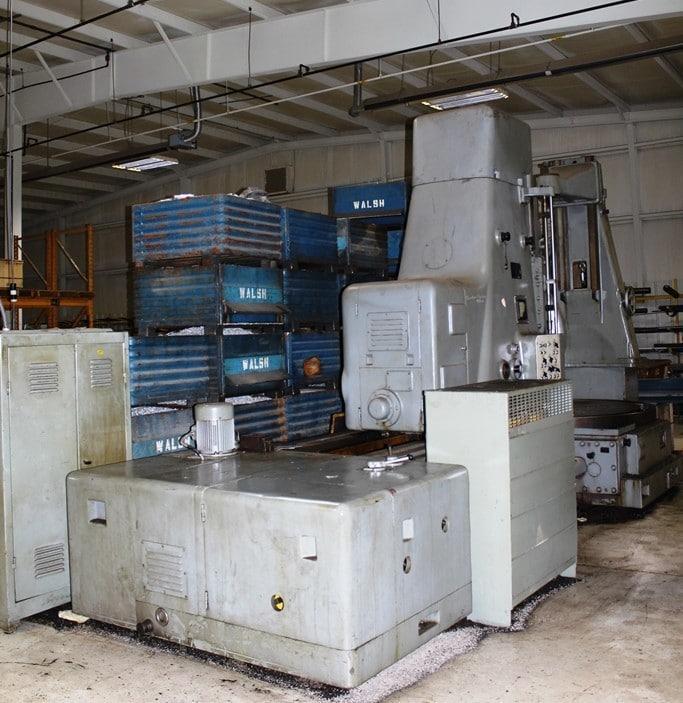

Wuhan WY3J Vertical Gear Hobber, 1970 – Tailstock
Brand
Category
Model
WY3J 126
Stock #
446636
Year
1970
Condition
Not specified
Location
Not specified
|
Minimum Diameter: 11.8″
Maximum Diameter: 126″
Face Width: 19.68″
Table Diameter: 63″
Table Load Capacity: 20,000
Max Module Pitch: 15 Dp
Max Hob Size: 9.8″ Diameter X 11.8″ Length
Speed Options: 20
Rapid Traverse: 11.8 in per min
180 deg. Swivel Angle
Voltage Requirements: 480V 3 phase
Differential
Single Index
Approximate Dimensions: 258″ x 93″ x 129″h
Approximate Weight: 53,000lbs

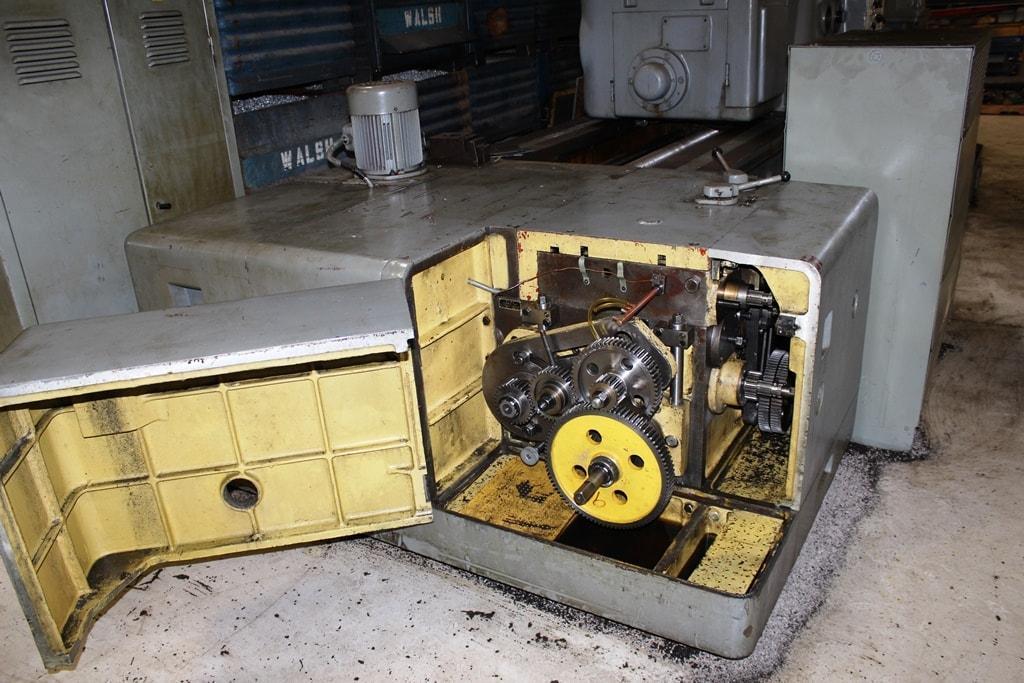

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tangential Head Change Gears Tailstock W/Riser All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
