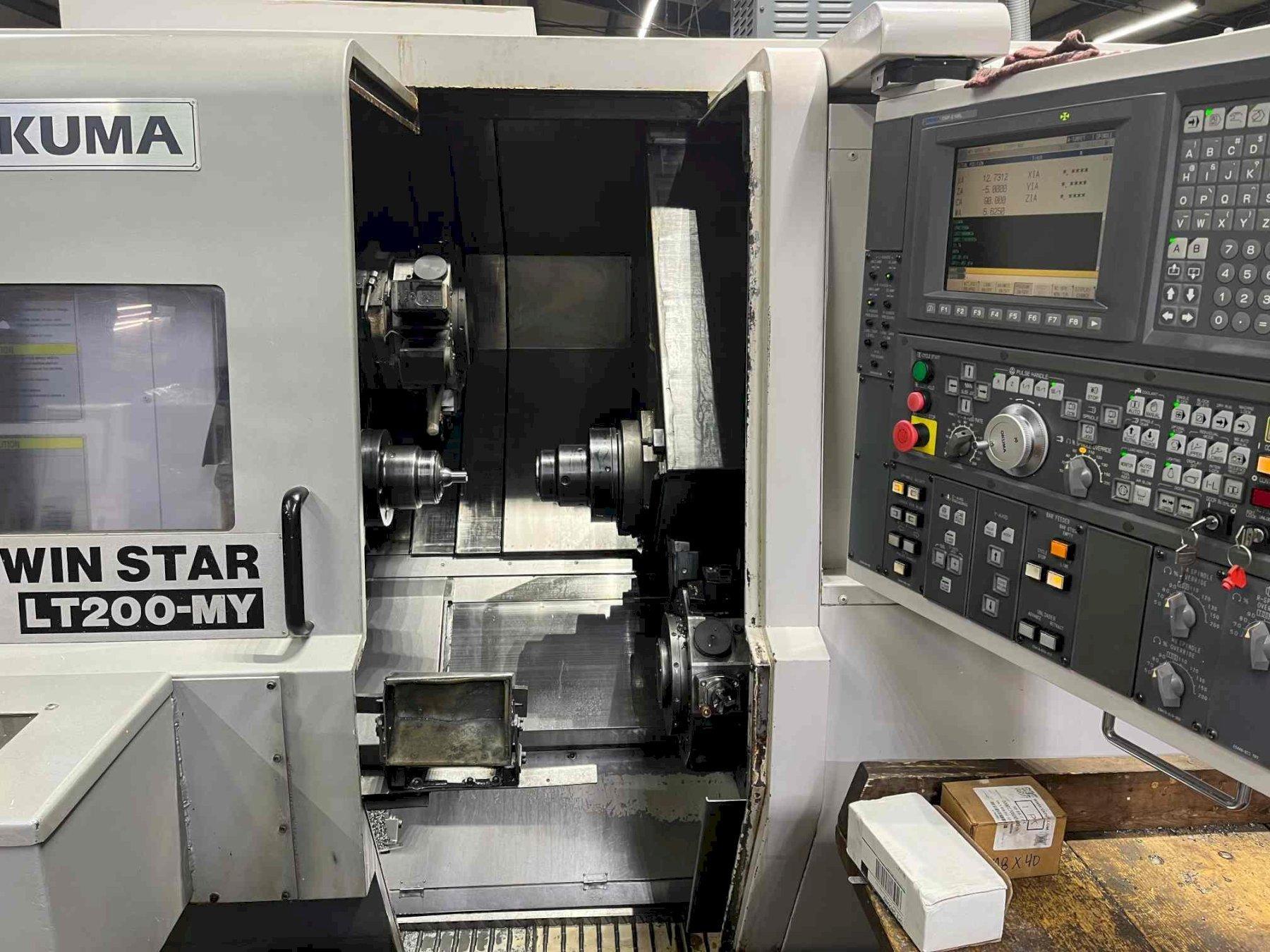

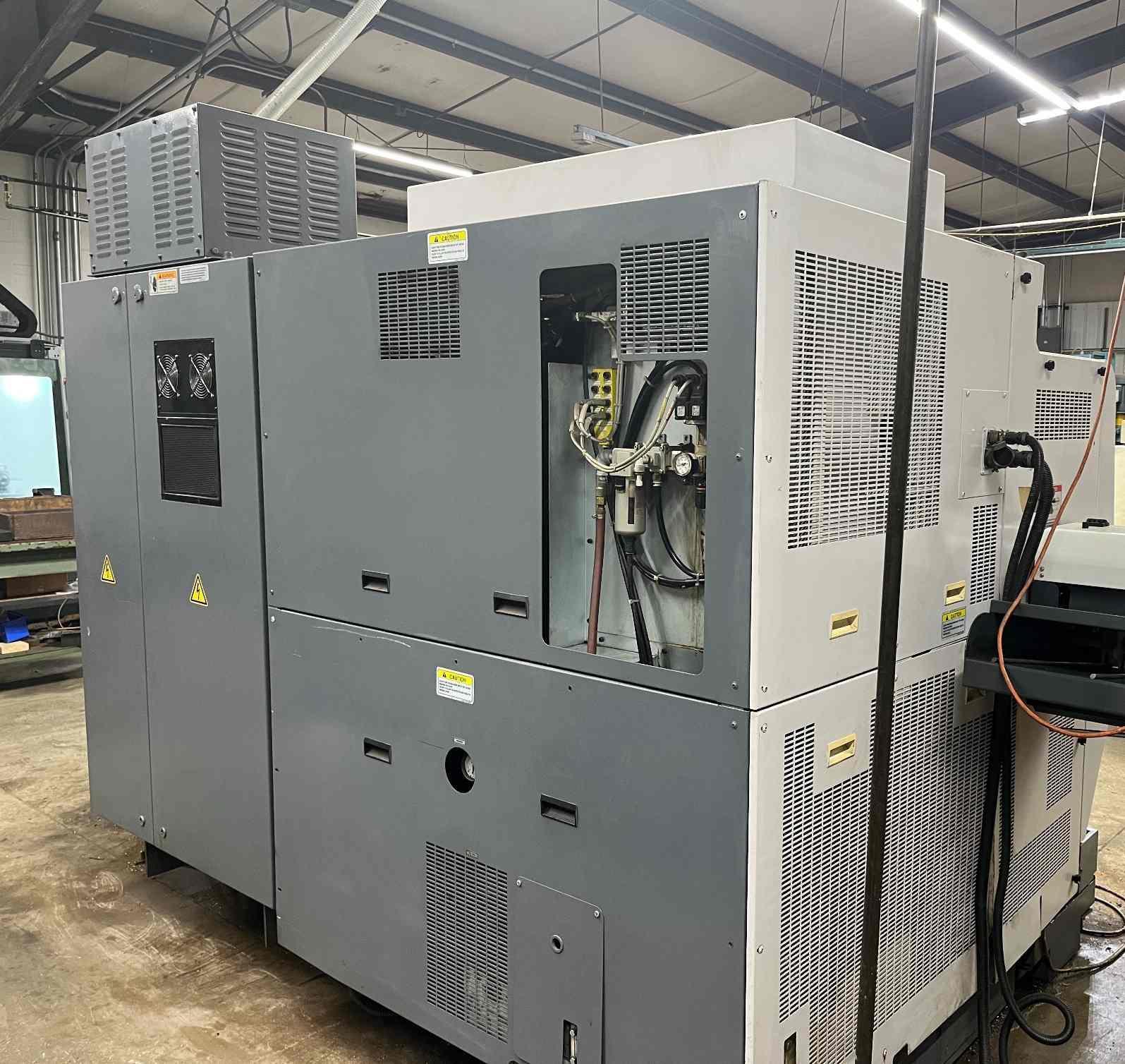

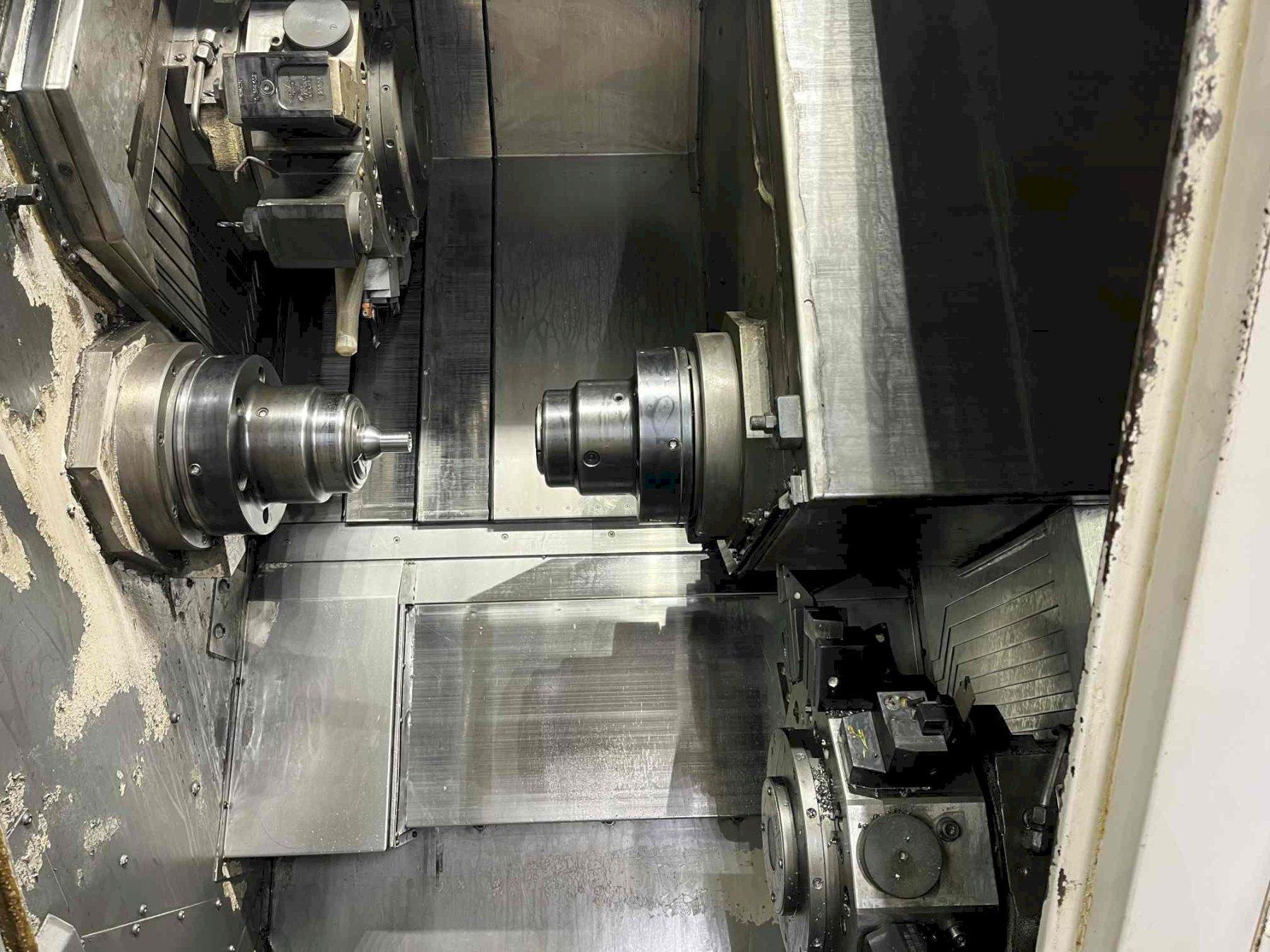

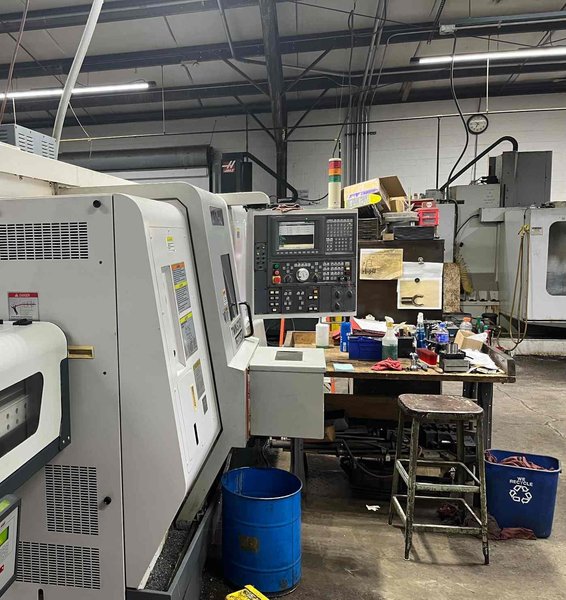

Okuma LT-200 MY CNC 4 Axis Lathe – Fully Rebuilt In 2017, Live Tooling

Capacity – Swing / Swing Over Cross Slide: 15.75″ / 12.2″ Maximum Cutting Diameter: 8.27″ Maximum Turning Length: 21.26″ Distance Between Spindle: 37.80″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle Speeds: 45 – 4,500 RPM Spindle Bore: 2.44″ Bar Capacity: 2″ Spindle Nose: A2-6 Main Motor (30m i n / continuous): 15 / 10 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sub Spindle Speeds: 45 – 4,500 RPM Spindle Bore: 2.44″ Bar Capacity: 2″ Spindle Nose: A2-6 Main Motor (30m i n / continuous): 15 / 10 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turrets: Number ofPositions (turret one / turret two) All Live: 12 / 12 Tools Each X-Axis Travel (turret o n e / turret two): 7.56″ / 7.56″ Z-Axis Travel (turret one /turret two): 27.561″ / 27.561″ Y-Axis Travel (turret one): +/- 3.62″ B-Axis Travel (sub-spindle): 28.74″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rotary Tool Speed: 50 – 6.000 RPM Rotary Tool Motor (turret one / turret two): 5.4 HP Rapid Traverse X( / Z/ Y): 1,181 / 1,574 / 1.024 Sub Spindle Rapid Traverse: 1,574 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Floor Space (L × W x H): 105″ × 88″ x 88″ Weight (approx): 16,000LBs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: ATS Collet Chuck on Main & Sub Standard Tool Holders Auto Touchsetter Barfeed Interface Parts Catcher User Task II Parts Ejector Synchronous Tapping Helical Cutting Thermal Compensation Lap 4 Nose Radius Compensation Auto Chamfering 3D Animation Spindle Orientation Torque Limiter Tool Life Management Tool Wear Compensation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,***Bar Feeder Does NOT Come with***

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
