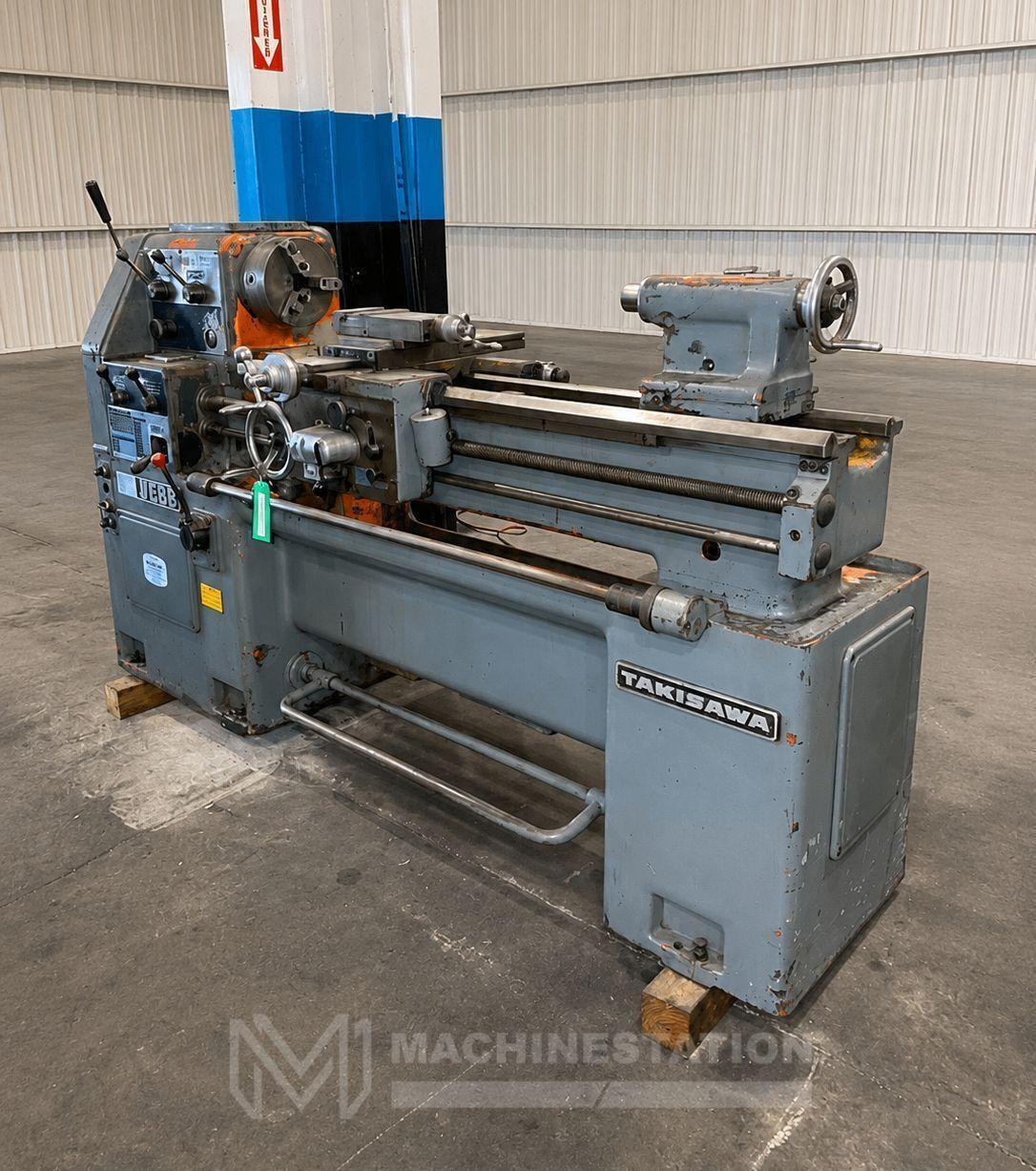

Takisawa Webb TSL-1000D Precision Gap Bed Engine Lathe

Takisawa Webb TSL-1000D Precision Gap Bed Engine Lathe

Name: Takisawa Webb TSL-1000D Precision Gap Bed Engine Lathe
Brand: TAKISAWA
SKU: 112954
Availability: InStock

Brand

TAKISAWA

Location

Not specified

Specifications
Files & Videos

*All specifications are approximate and for reference only, based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.*

Make:	TAKISAWA
Model:	TSL-1000D

Equipped With:
8" 3-Jaw Chuck
Hardened & Ground Bed Ways
6-Speed Geared Headstock
Manual Tailstock
Power Longitudinal & Cross Feeds
Inch & Metric Thread Cutting

Capacity:
Swing Over Bed: 14.18"
Swing Over Cross Slide: 8.27"
Swing Over Gap (from Face Plate to 4"): 16.00"
Distance Between Centers: 40.00"
Height of Centers: 7.09"

Bed:
Bed Length: 71.26"
Bed Width: 10.83"
Floor to Work Center: 41.54"

Spindle:
Spindle Bore: 1.38"
Spindle Nose: ASA A1-5
Spindle Taper: MT No. 5
Spindle Speed Range: 83 – 1,800 RPM
Number of Spindle Speeds: 6
Main Spindle Motor: 5 HP

Tailstock:
Tailstock Taper: MT No. 3

Feed Rates:
Number of Longitudinal Feeds: 36
Longitudinal Feed Range: 0.0020" – 0.1417" per Revolution
Cross Feed: ½ of Longitudinal Feed
Number of Inch Threads: 31
Inch Thread Range: 2 – 56 TPI
Number of Metric Threads: 18
Metric Thread Range: 0.5 – 9.0 mm

General:
Overall Dimensions (L × W): 82" × 28.5"
Machine Weight: Approx. 2,645 lbs

No files or videos to display
