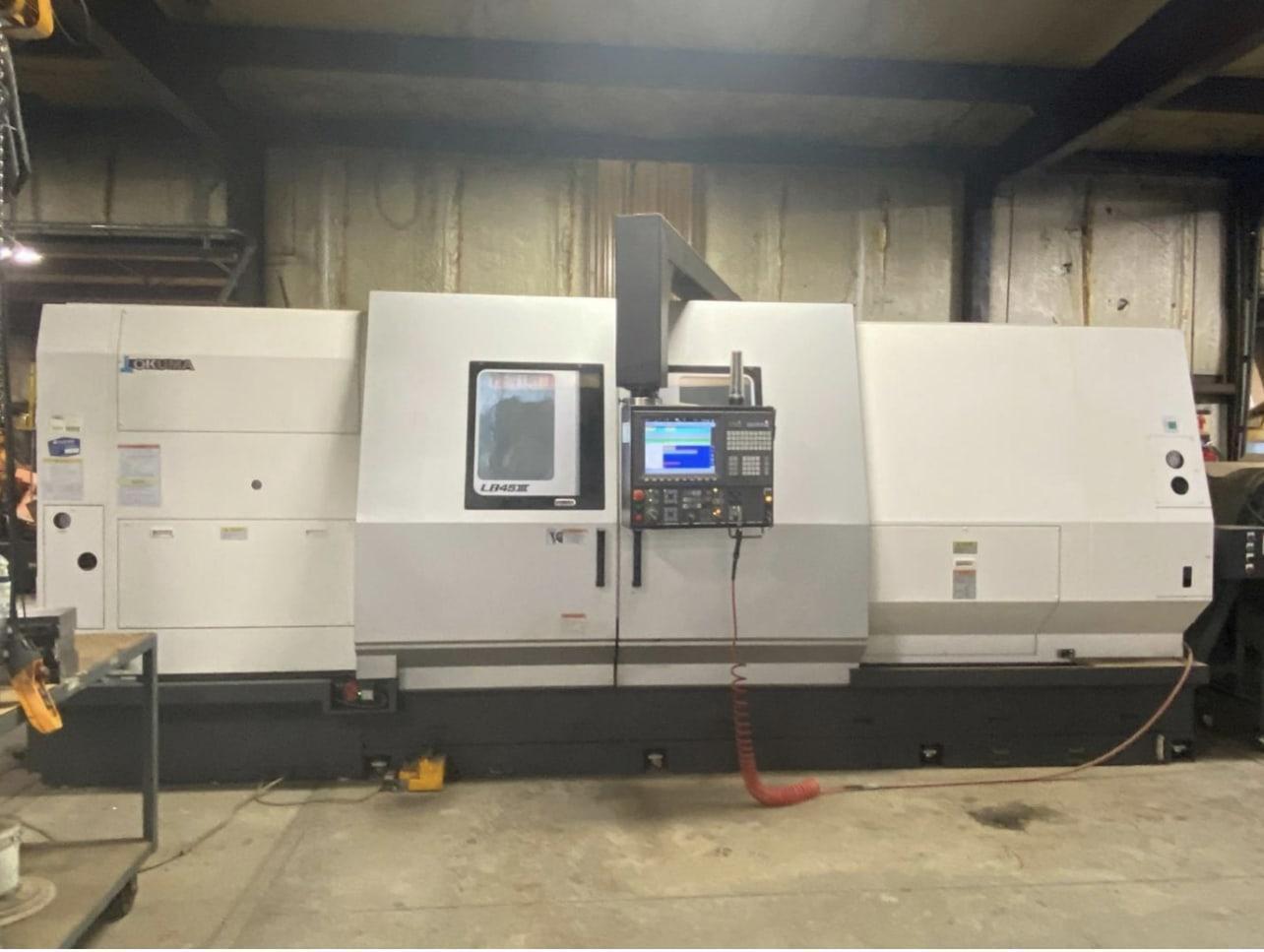

Okuma LB45-III/2000 Big Bore CNC Lathe, 2018 – Low Hours, Chip Conveyor, Kitagawa B18 18″ 3 Jaw Chuck

Specifications (subject to buyer verification):

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Swing Over Bed: 33.46″ Swing Over Saddle: 21.65″ Max Turning Diameter: 21.65″ Max Turning Length: 78.74″ Spindle Nose: A2-11 Big Bore Spindle Bore Diameter: 7.28″ Spindle Speed Range: 12-2800 RPM Spindle Motor Power: 60/50 HP X-Axis Travel: 13.58″ Z-Axis Travel: 80.31″ Rapid Traverse Rate (X/Z): 472/472 IPM Turret Type: V12 Number of Tool Stations: 12 Tailstock Quill Diameter: 5.12″ Tailstock Quill Stroke: 5.91″ Approx. Machine Weight: 20,944 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: MT#5 Live Quill with Hydraulic Actuation Manual Touch Setter Side Exit Chip Conveyor Kitagawa B18 18″ 3-Jaw Chuck Kitagawa Drawtube; 130×2/128×2; 117.5mm ID 12-Station BMT-Style Turret

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
