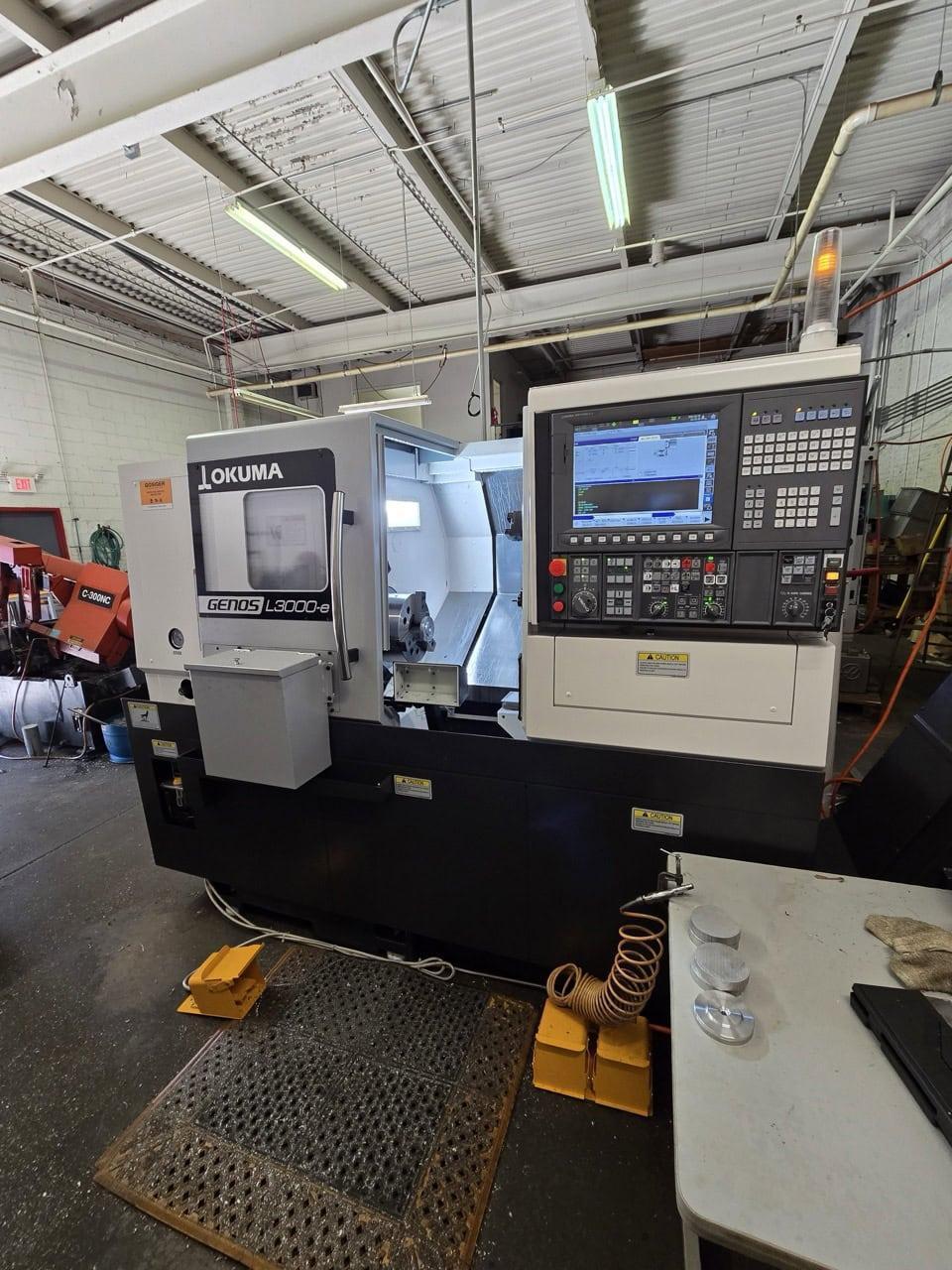

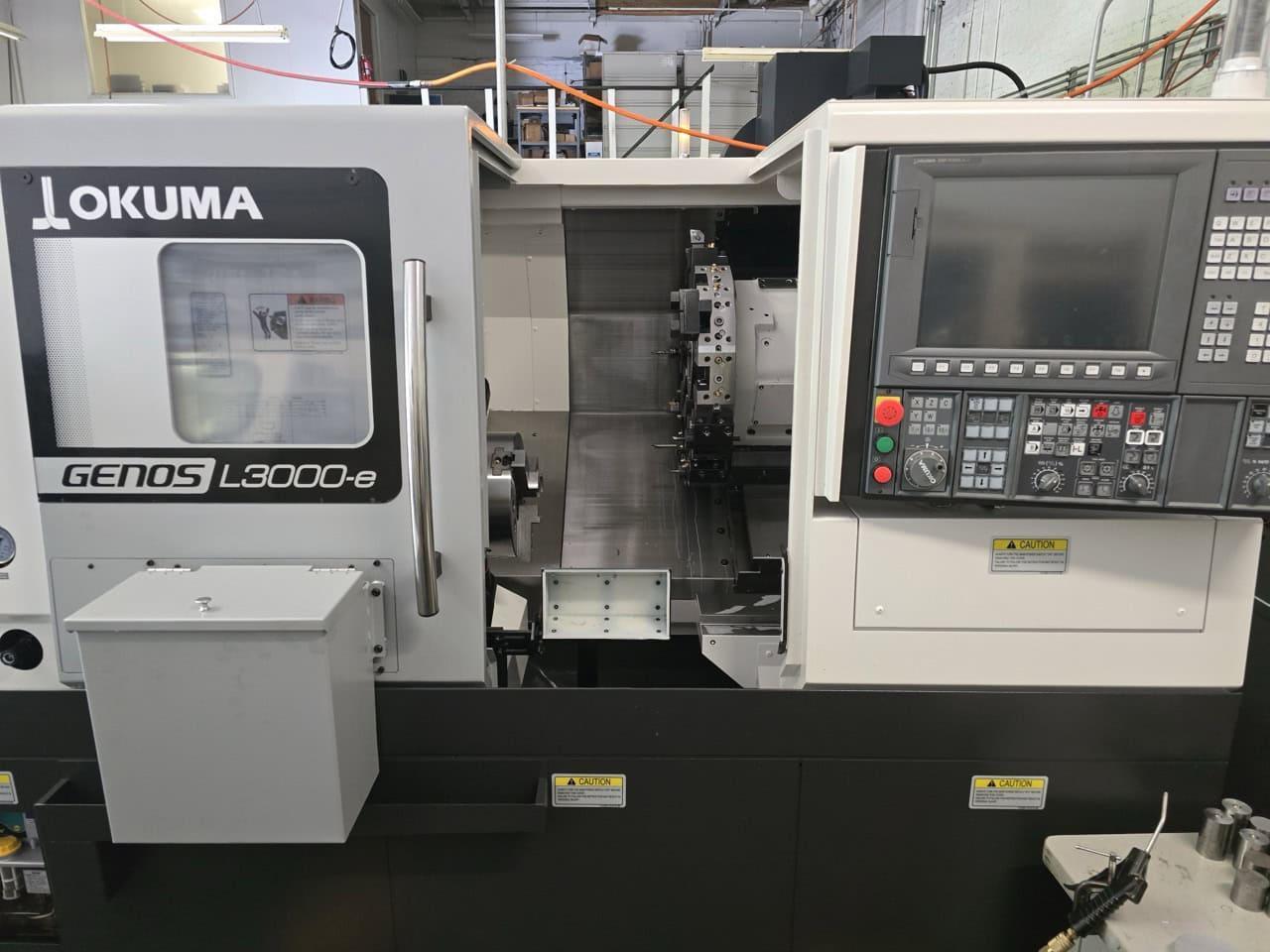

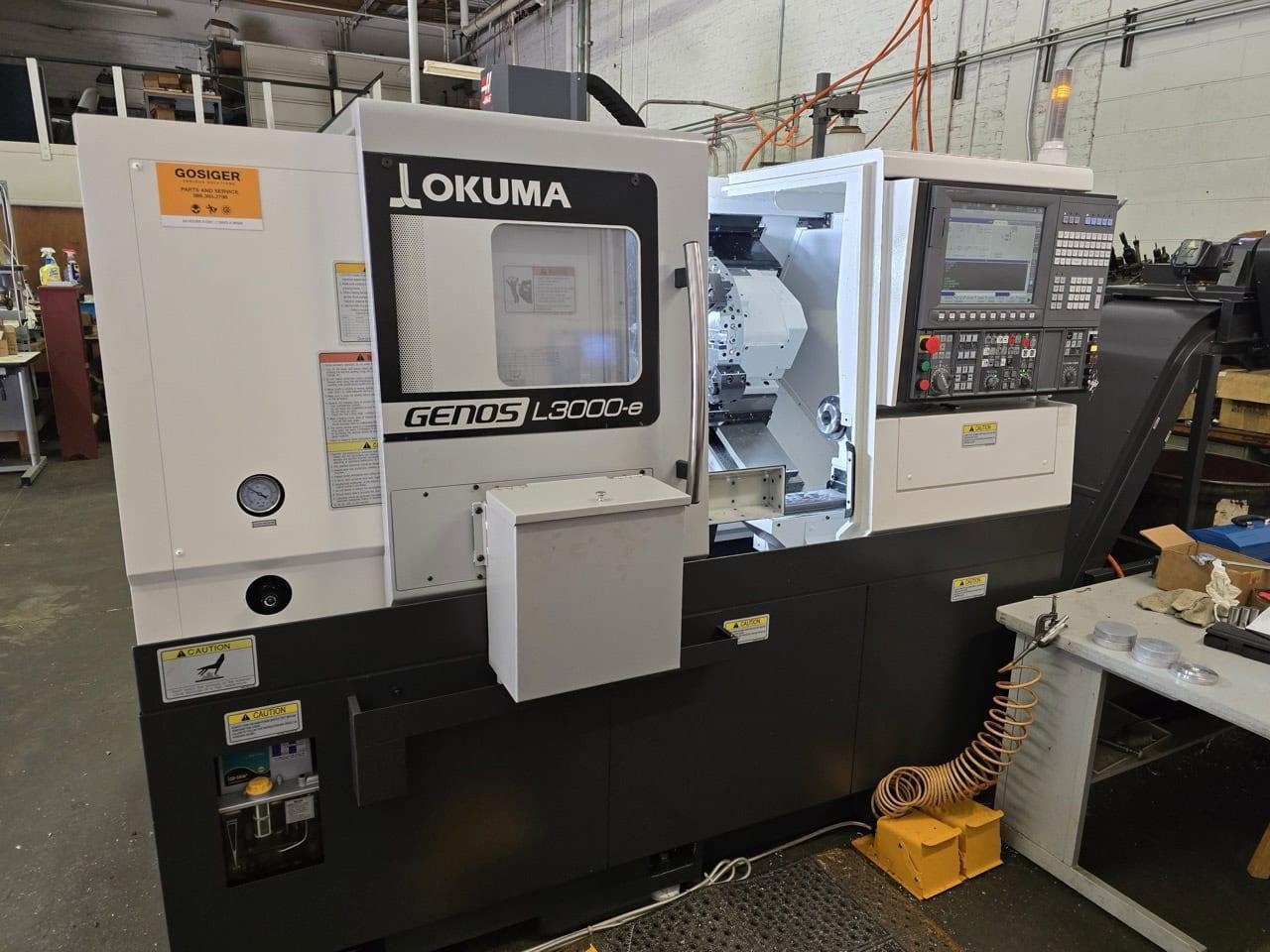

Okuma Genos L3000-e CNC Lathe, 2023 – Parts Catcher, Tailstock, Barfeed Interface

Max Turning Diameter: 13.38” Max Turning Length: 19.69″ Swing Over Bed: 20.47″ Swing Over Saddle: 15.75″ Spindle Speed Range: 3,800 RPM Spindle Nose: JIS A2-8 Spindle Bore / Bar Capacity: 3.15″ Main Motor Power: 30 HP (20 min) / 20 HP (continuous) X-Axis Travel: 9.25″ Z-Axis Travel: 20.47″ Rapid Traverse (X/Z): 984 / 1,181 IPM Turret: 12-position bolt-on type Chuck Size: 10″ Kitagawa Machine Dimensions: 89″ x 73″ x 70″ Weight: ~10,300 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Okuma OSP-P300LA-e Parts Catcher Barfeeder Interface Hinge Belt Chip Conveyor Tool Touchsetter Tailstock with Hydraulic Quill 10″ Kitagawa Chuck

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
