Maximum Swing Of Work Piece: 14.5″ Swing Over Cross Slide: 14.5”, Turret 2 11.8” Maximum Turning Length: 16.6” X – Axis Travel: 15″ Y – Axis Travel: + / – 4.1” Z – Axis Travel: 18.1″ + 6.1″ X – Axis Travel: TRT 2 6.1″ Z – Axis Travel: TRT 2 24″ C – Axis Travel: Main / Sub .0001 Deg. B – Axis Min. Index Angle / Index Range: -120 – +120 DEGREE B – Axis Spindle Speed: HSC 20,000 RPM Tool Spindle: 12 HP Number Of Tool For Tool Spindle: 38 ATC Spindle Nose: No 1, No 2 A2-5 / G6 Flat Nose Hole Through Spindle: No 1, No 2 2.4” / 2.2” Bar Work Capacity: No. 1, No 2 2.0″/1.5” Main Spindle Motor: 15 HP Sub Spindle Motor :10 HP Spindle Speeds: No 1, No 2 6000 / 1000 RPM Rapid Traverse Rate: X, Y, Z, A 945, 945, 629, 300 IPM Turret Configuration: 10 Turret Indexing Time: .26 Sec. Machine Weight: 19,690 LBS.

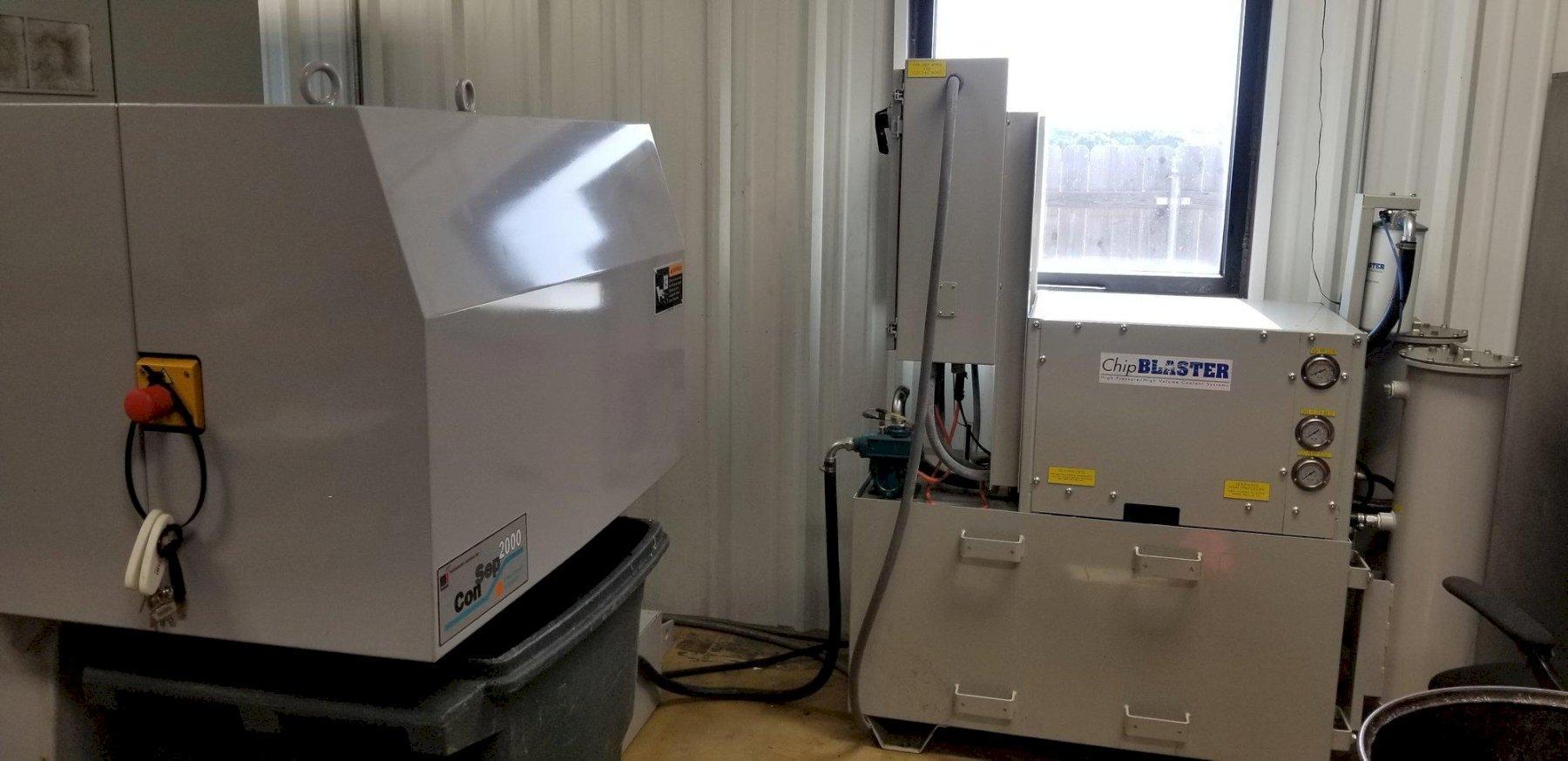

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: 1st Spindle Orientation 1st Spindle Output Switching Function 3d Interference Check With Open Cnc Function 3rd / 4th Reference Return 99 Tool Offsets A1 Contour Control Ii Function Axis Compensation Air Blow For Spindle 1 Air Blow For Tool Tip Spindle Auto Power Off Automatic Data Backup Balanced Cutting Bell – Shaped Acc. / Dec. After Cutting Feed Controllable Axis Compensation, Control Axis Number, Simultaneous Axis Expansion Cs – Axis Contour Control Custom Macro B Diameter / Radius Dynamic Switching Interpolation Type Embedded Ethernet And Fast Ethernet Software Fast Data Server High Pressure Coolant Chip Blaster System High Speed Skip, Serial Spindle Interface High Speed Tool Spindle 20,000 Rpm Hssb Interface Board In Machine Work Piece Measuring System Optical Touch Sensor Renishaw Omp 60 Inch/Metric Conversion Main Spindle Kitagawa 6″ Hollow Chuck Package Lns Quickload 80 Servo S2 Short Magazine Barfeed Capto C5 Tools 5” Chuck Sub Spindle All Available Lower Turret Tools

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
