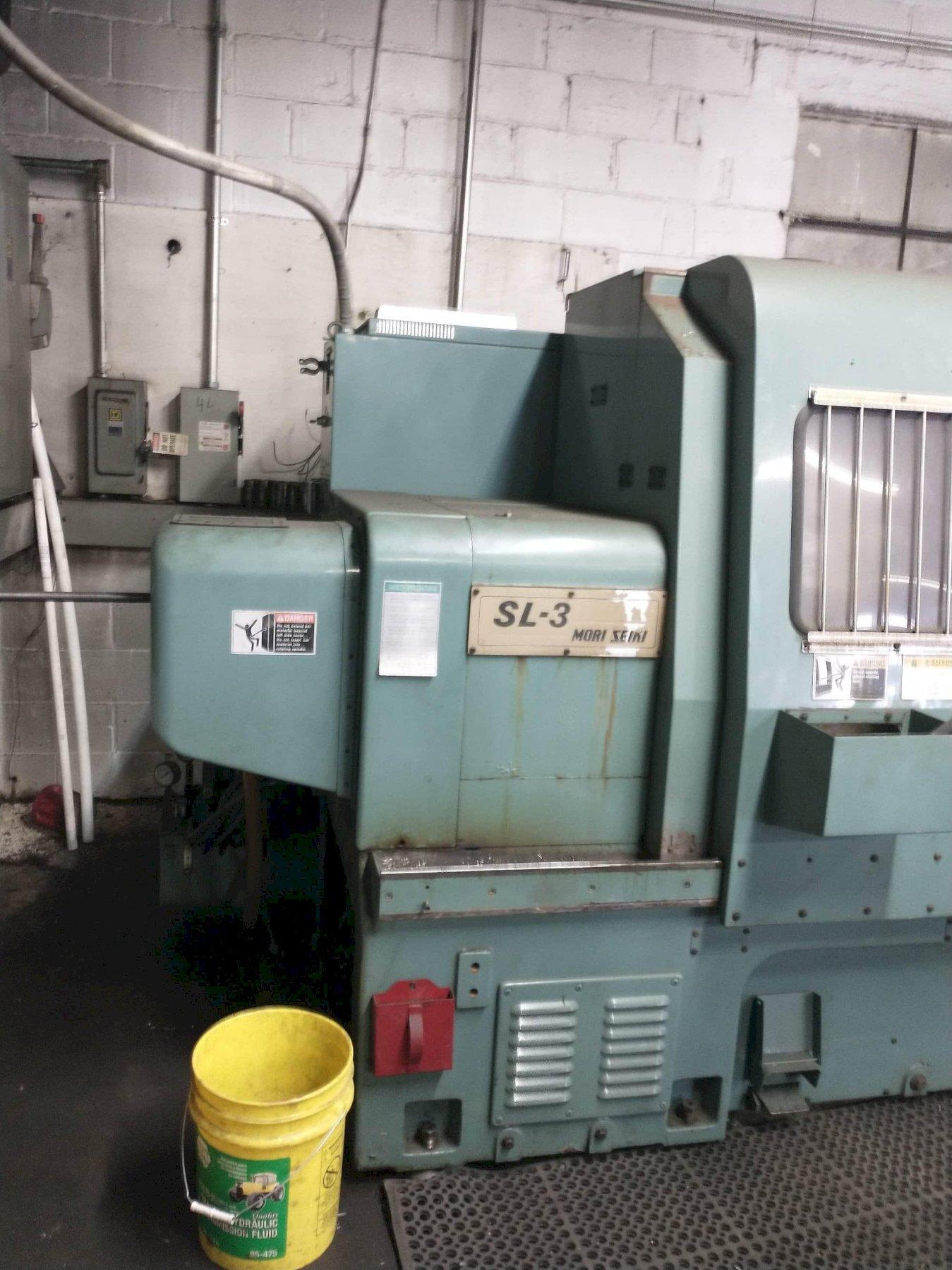

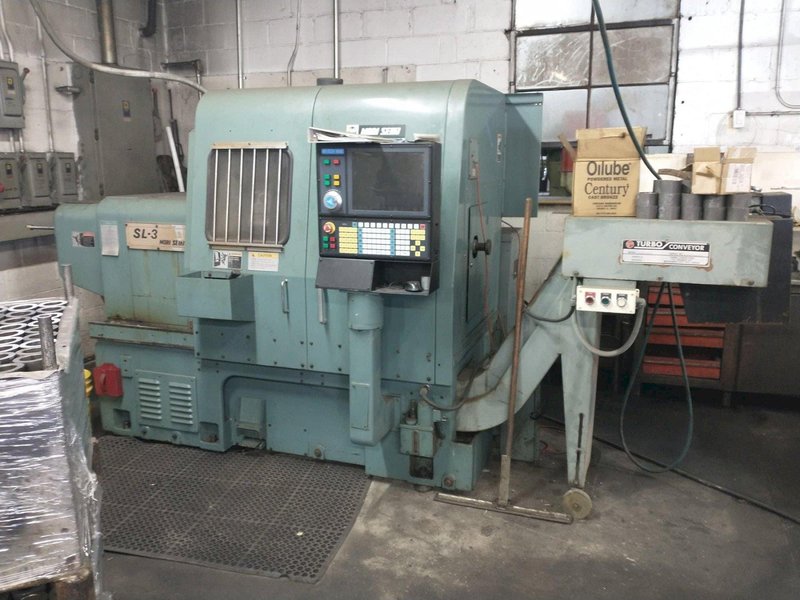

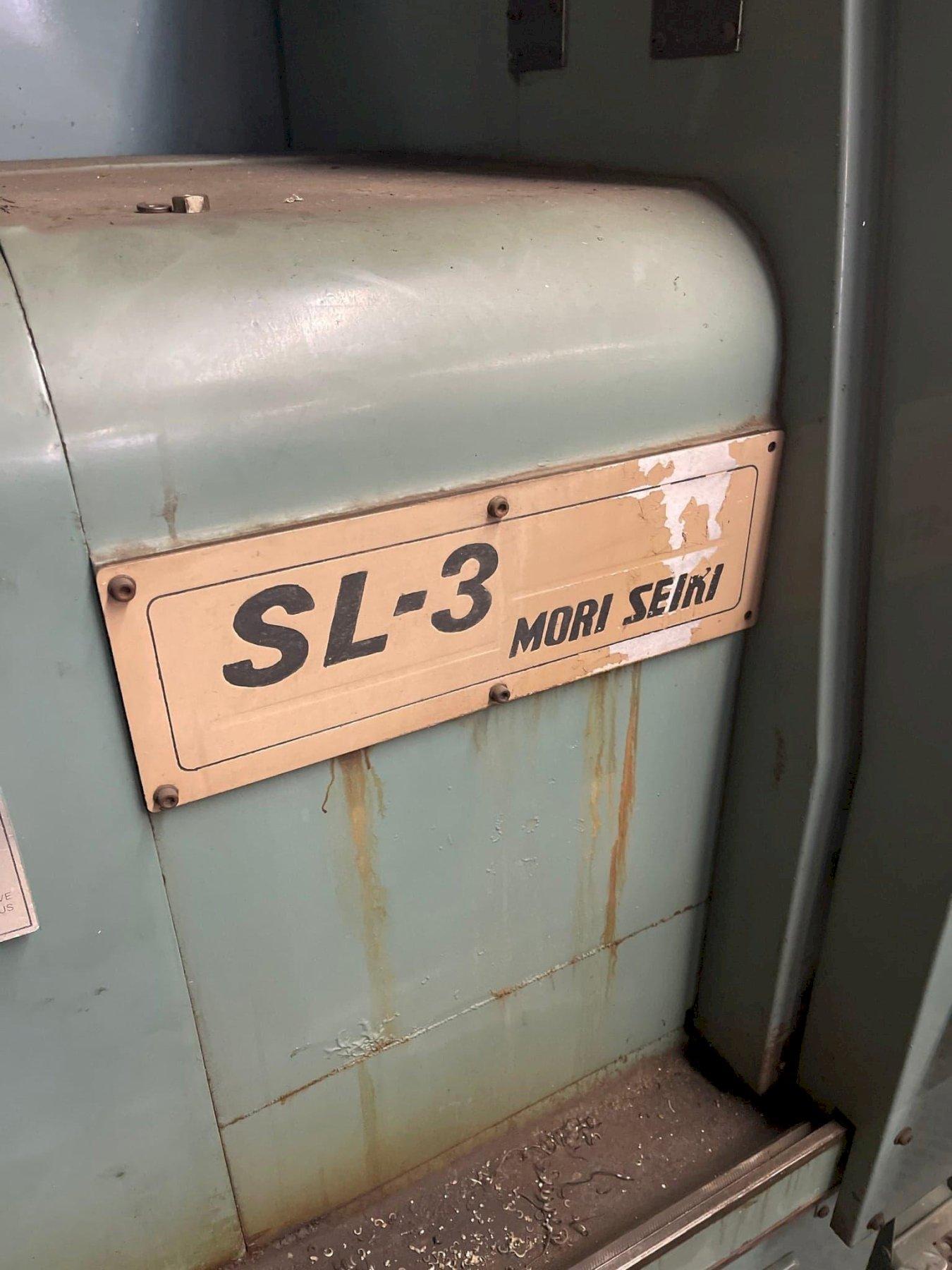

Mori Seiki SL-3B CNC Lathe, 1981 – Parts Machine

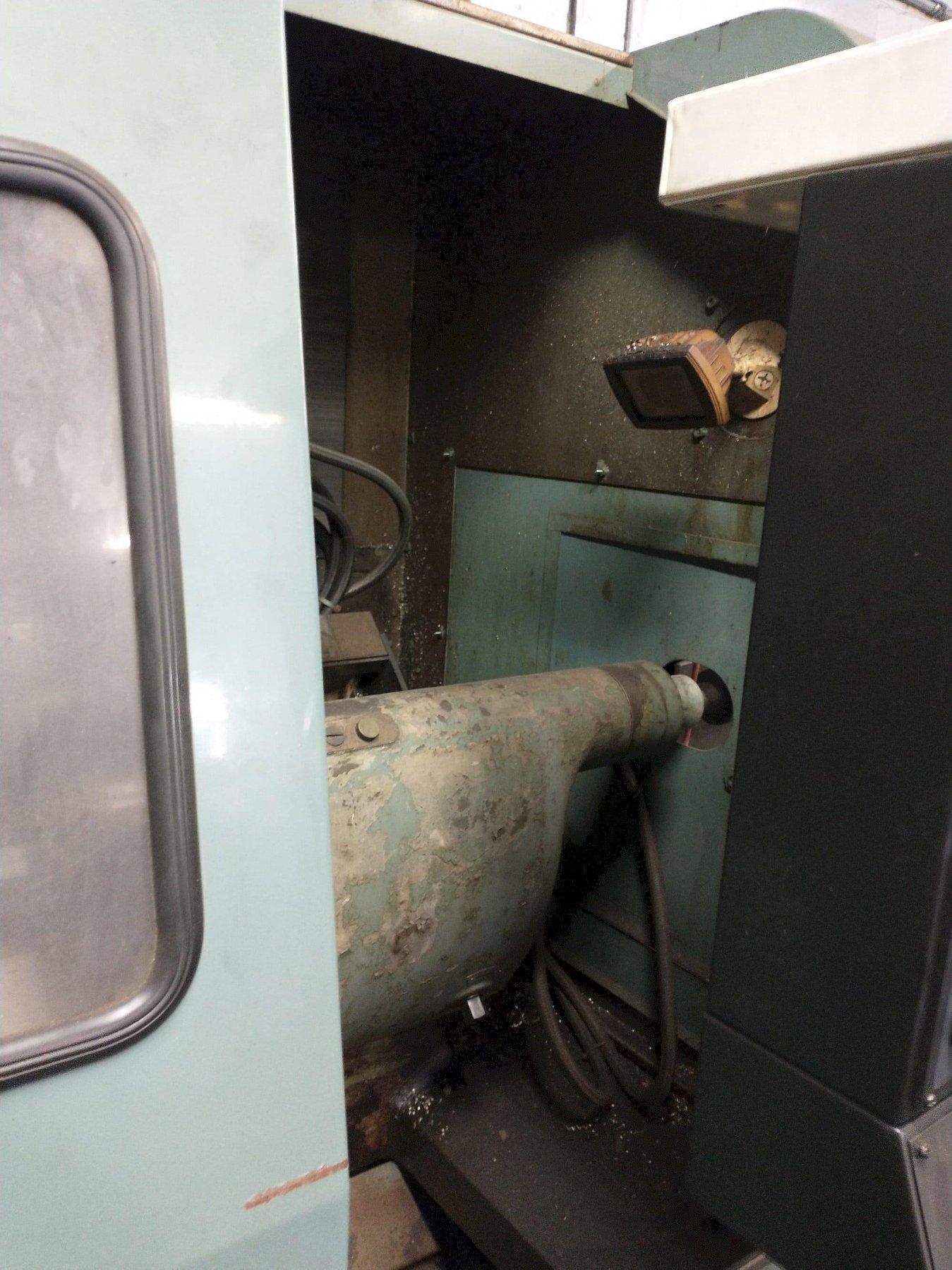

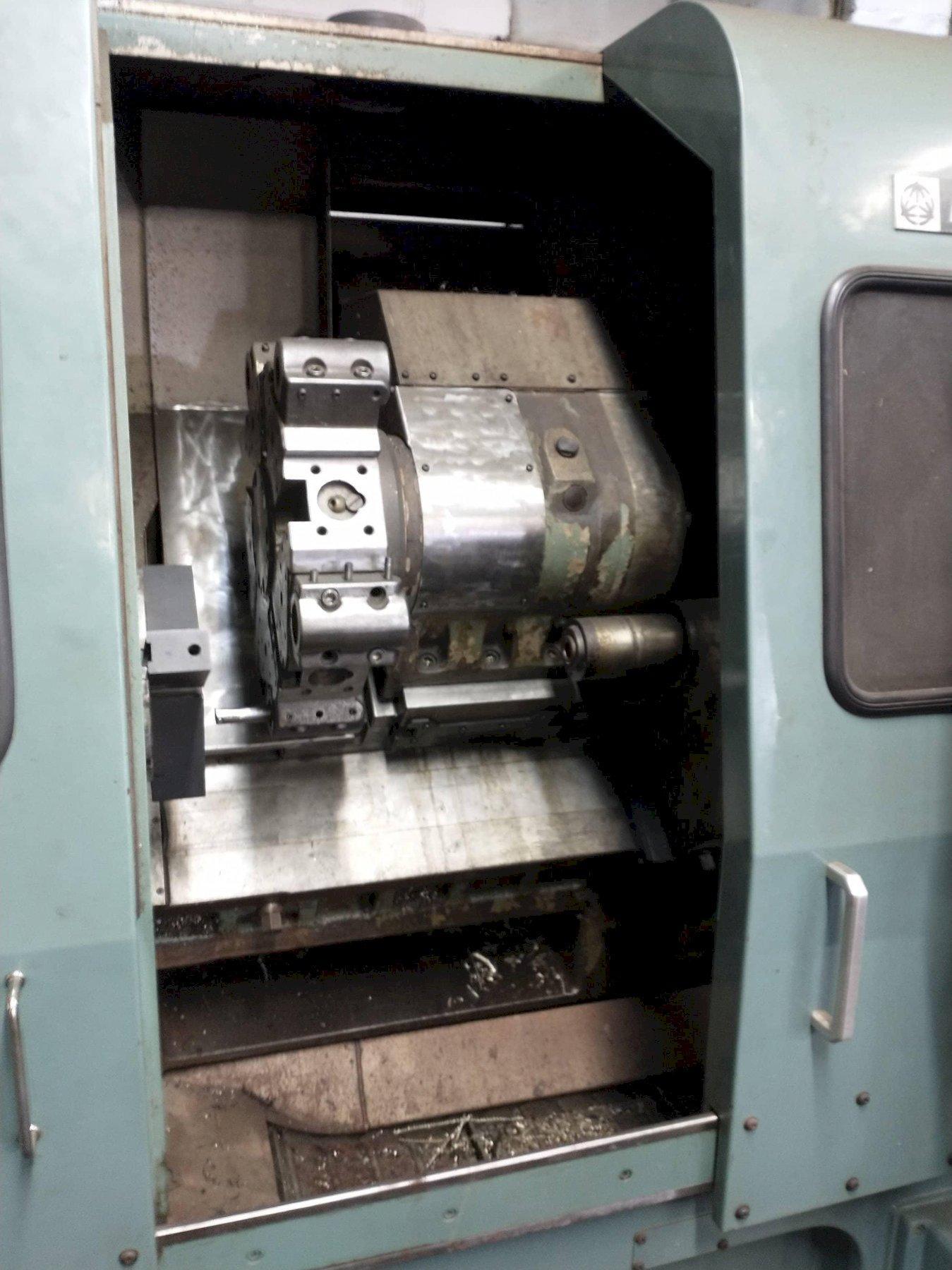

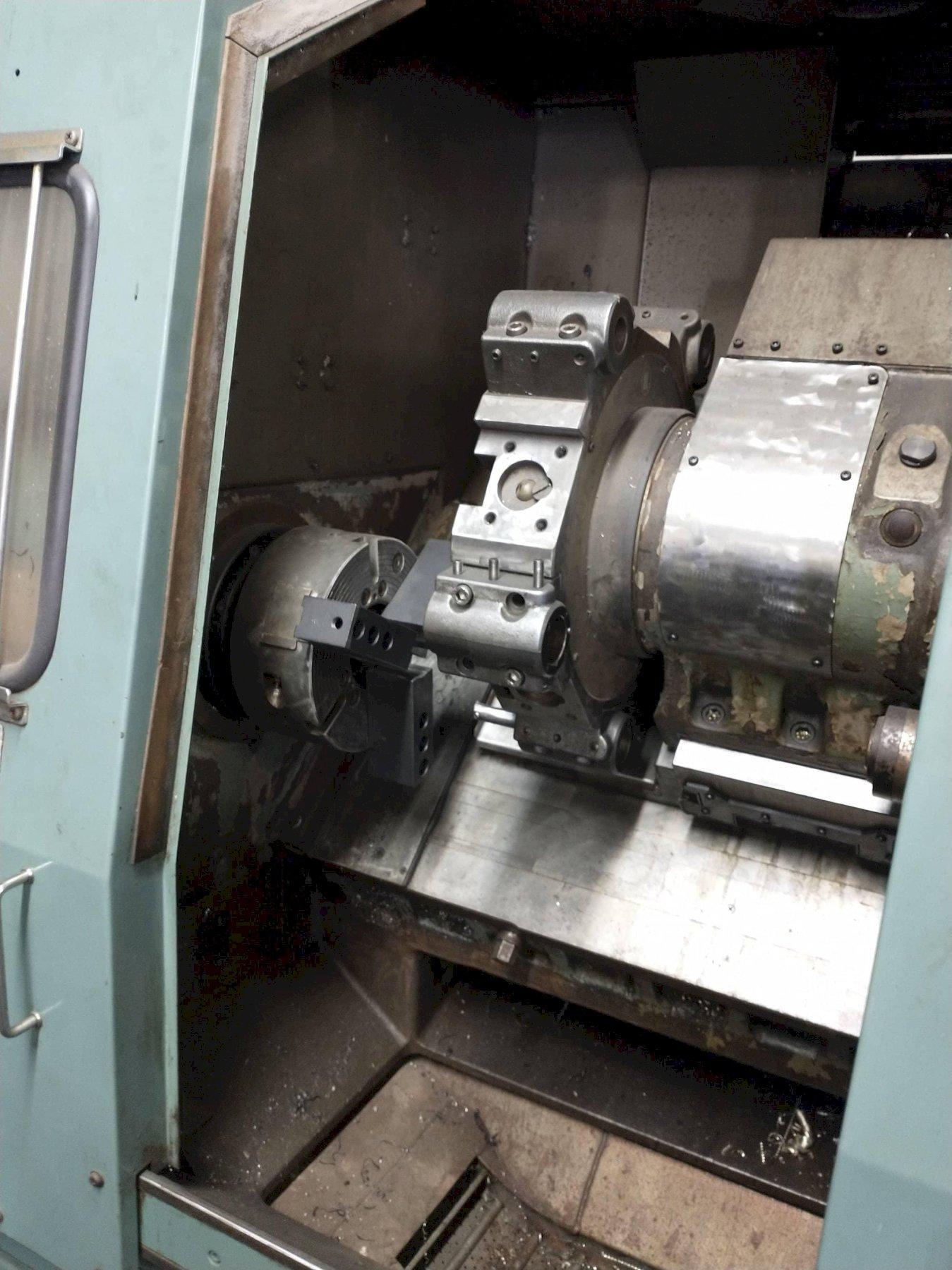

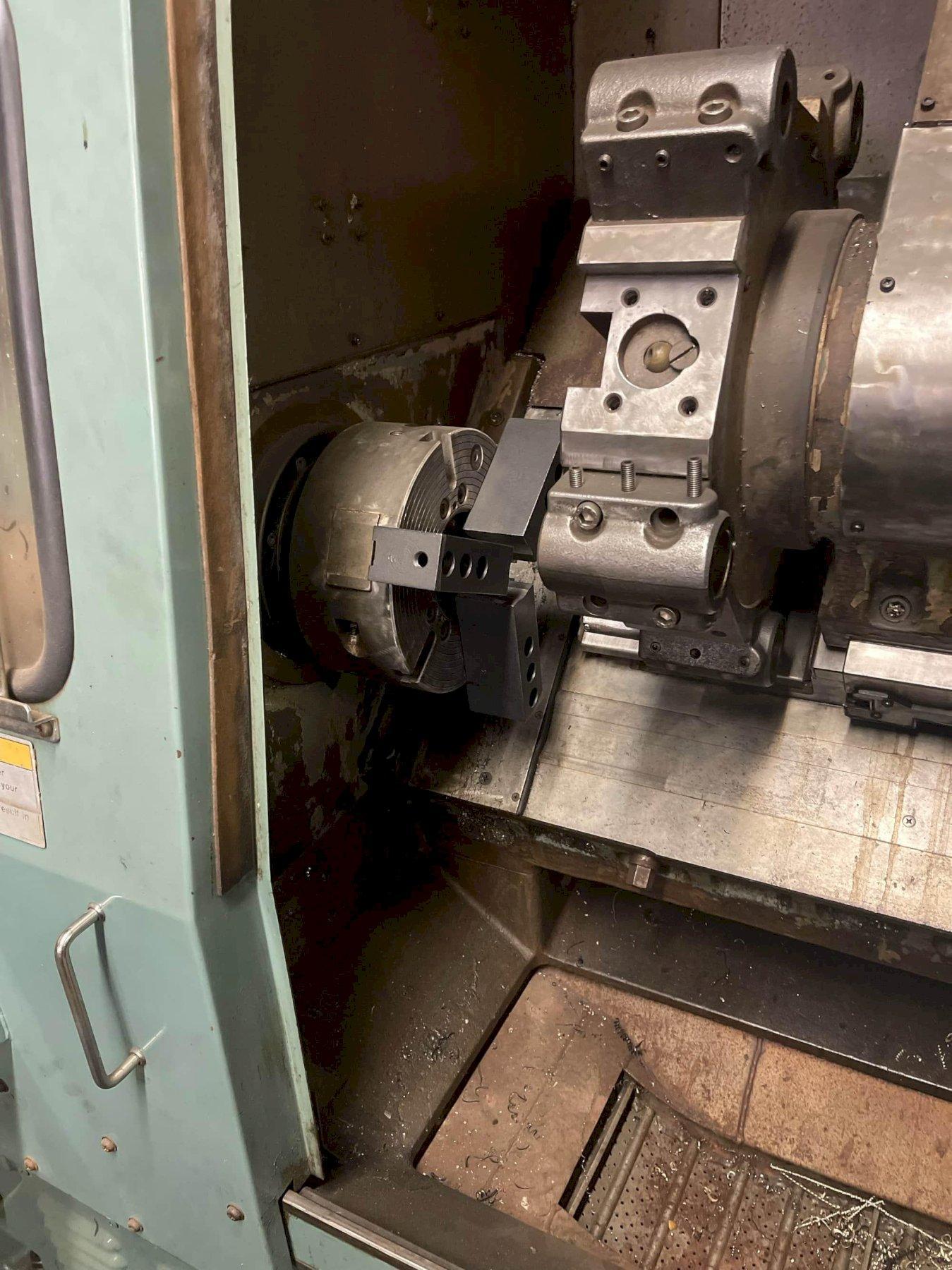

Year: 1981 Maximum swing: 22.4 inches Standard workpiece diameter: 7.87 inches Maximum cross travel (x axis): 6.30 inches Max. longitudinal travel (z axis): 22.0 inches Max. machining distance: 21.6 inches Height from floor to spindle center line: 44.7 inches Spindle nose: A2-6 Spindle speed (std. type): 25 TO 3,000 RPM Hole thru spindle: 2.36 inches Spindle bearing diameter: 4.33 inches Spindle inside taper: MT7 Slant bed inclination: 45° Cross Slide Inclination: 45° Bed Width (overall): 21.5 Inches Bed Width (carriage): 13.6 Inches Bed Width (tailstock): 7.28 Inches Ball Screw Diameter (x): 28 Pitch 6 Ball Screw Diameter (z): 40 Pitch 12 Turret Head (type B): 10 Turret Tool Positions: 10 Standard Cutting Tool: 25 Standard Chuck Size: 10 Inches Coupling Size: 210 Curvic Coupling Tailstock Quill Diameter: 85 Built-In Tailstock Quill Stroke: 3.15 Inches Tailstock Quill Taper: M.T.-3 Main Motor: 20 H.P. Ac-11 Kw Electrics: 220 Volt, 3 Phase Feed Motor (x): Cup Motor 400 W Feed Motor (z): Cup Motor 1,500 W Power Consumption: 33 Kva Weight (approx.): 9259.415 Pounds

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
