Markforged Metal X System Metal 3D Printer – Includes Sinter and Washing Station 2018

Printing Process:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Metal Fused Filament Fabrication

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Z Layer Resolution:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,85 μm – 170 μm (Post-Sinter)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Physical Dimensions:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Width: 575 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Depth: 467 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Height: 1120 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: 75 kg / 165 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Build Volume:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Width: 300 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Depth: 220 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Height: 180 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Materials:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Metal: Stainless Steel (17-4 PH), Tool Steel (H13, A2, D2), Inconel 625, Copper

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Release Material: Ceramic (consumed at 1:10 ratio to metal spools, on average)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Media: Filament Fed, Bound Powder

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Part Size:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,250 x 183 x 150 mm (9.8 x 7.2 x 5.9 in), 10kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,100–120 / 200-240 VAC (12A / 6A), IEC 60320 type C20

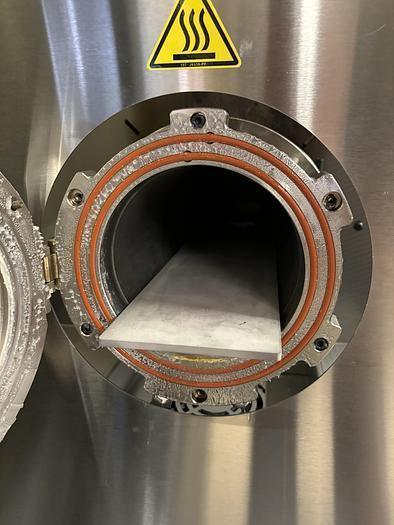

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,*Printer System includes with Sinter-1 and Wash-1

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
