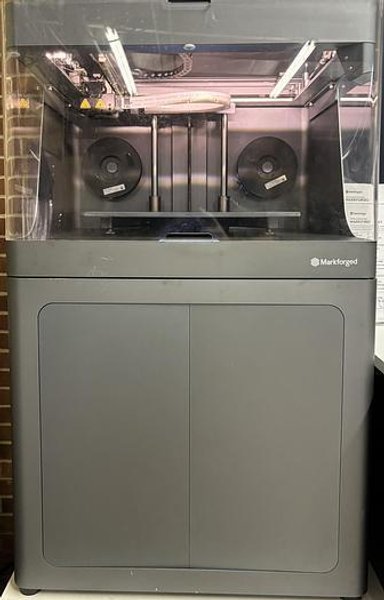

Markforged X7 3D Printer, 2017 – Sinter Included

Printing Process:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Continuous Fiber Reinforcement (CFR)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Z Layer Resolution:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,50 μm – 250 μm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Physical Dimensions:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Width: 584 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Depth: 483 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Height: 914 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: 48 kg / 106 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Build Volume:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Width: 330 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Depth: 270 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Height: 200 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Materials:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Plastics: Onyx, Onyx FR, Onyx ESD, Nylon White, P-PLA, S-TPU

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fibers: Carbon Fiber, Carbon Fiber FR, Fiberglass, Aramid Fiber (Kevlar), HSHT Fiberglass

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tensile Strength: 800 MPa (25.8x ABS, 2.6x 6061-T6 Aluminum)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tensile Modulus: 60 GPa (26.9x ABS, 0.87x 6061-T6 Aluminum)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,100-240VAC, 150W (2 A Peak)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Laser:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,In-process inspection, active print calibration, bed leveling
