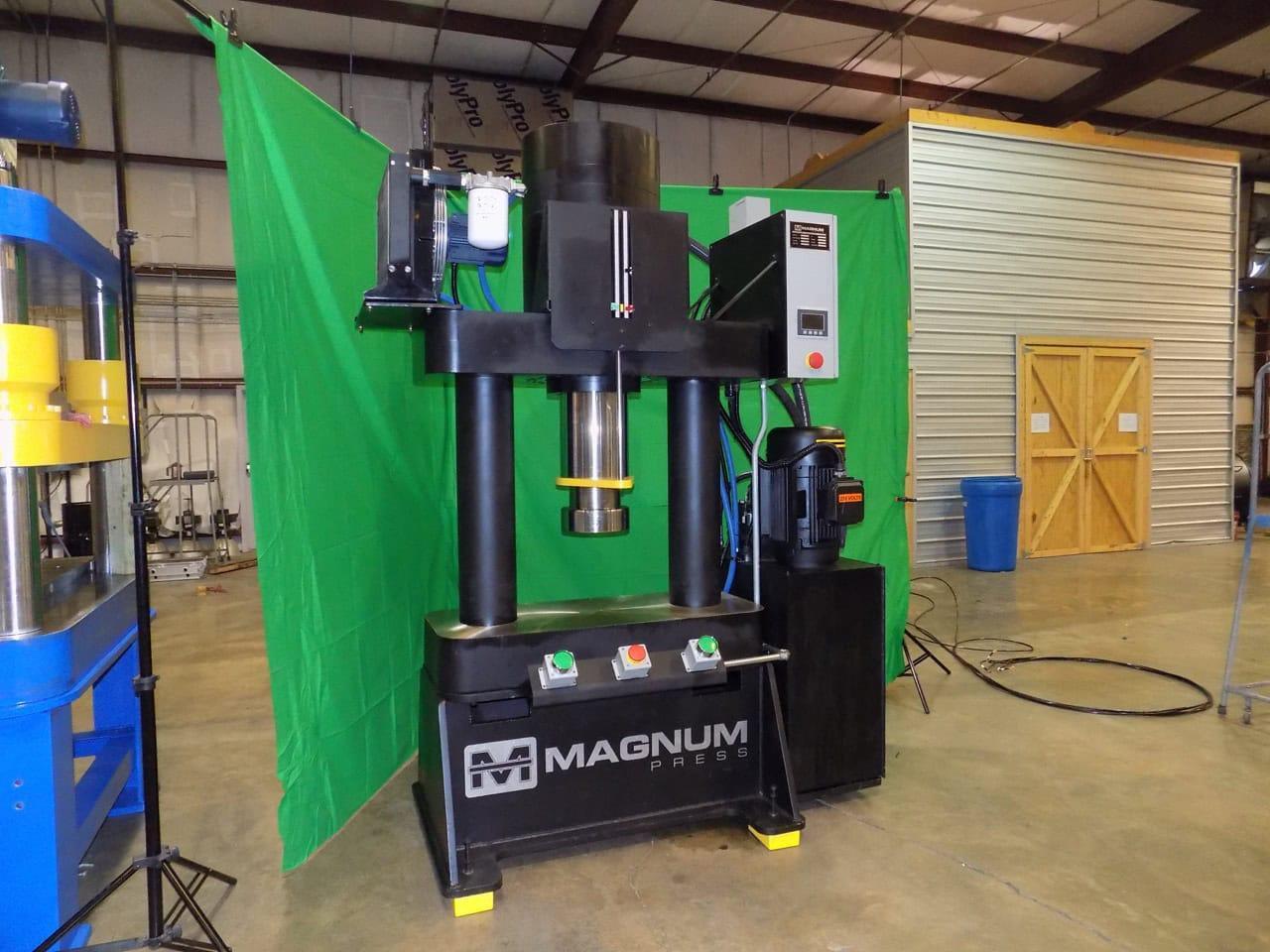

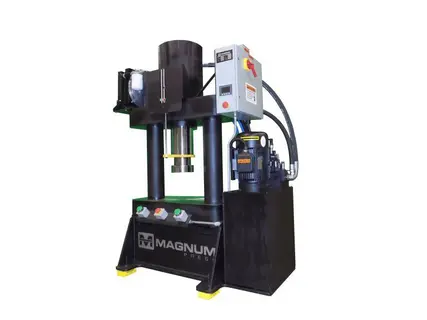

250 Ton Magnum M2P250C Two Post Hydraulic Press, 2020

Variable Tonnage: 50.2 tons to 251.0 tons Daylight: 24” Shut Height: 12” Bed Size L-R (between pins): 26” Bed Size F-B (Overall): 20” Column Pin Diameter: 8” Stroke Length adjustable: 1” to 12” Rod Coupler: Sliding Shoe QCDC-10.0 Floor to Bed Distance: 32”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approximate Ram Speeds:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Advance: 126IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pressing: 17 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Retract: 81 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Reservoir Capacity: 120 gallons

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor Rating: 20 H.P TEFC

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Input Voltage: 230 VAC 3PH/60Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approximate Foot Print: 70” wide – 38” deep – 195” high

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Allen Bradley MicroLogix PLC with Panel View Component based controls

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Single Point Power Connection

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,2-Hand Anti-Tie-Down Start Buttons

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CAT 4 Safety Start Relay

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,NEMA 12 enclosures

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,NFPA-79 / UL 508A Compliant Electrical Controls

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High Temp/Low Level Warning Gauge

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Magnetic Starter/ Electronic Overload

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Lockable Disconnect

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Press mounted controls. Pedestal mounted available.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Primary power flow for press functions is handled by a CAT 4 two-hand anti-tie down safety relay. This specialty relay checks complementary inputs from each cycle initiator to insure the operators hands are out of the work area.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Top Stop Over-Run allows press to bypass top stop RAM setting in setup modes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pressure and Distance Reversal Mode allows operator to select between pressure or position reversal

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,All wiring is terminated to spring cage style terminals. These terminals provide reliable vibration resistant connections. Wiring on the panel is routed through wire troughs with removable covers.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,All PLC I/O points are also terminated to the terminals. Systems include multiple guard terminals already installed. Inputs and outputs have all necessary connections (power for proximity switches and grounds and neutrals for coils) on a single terminal, no searching for support wiring for devices.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,All valve coils use DIN 43650 connections with power indicator lighting and electrical EMF surge suppression.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,A simple, removable and easily serviceable press mounted press hydraulic system powers the press

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The heart of the hydraulic system features an efficient steel manifold designed to consolidate valving, reduce plumbing, eliminate leaks, minimize pressure drop and provide maximum service life.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Efficient Screw In Cartridge Valves (SICV) solenoid valves have extremely low leakage, low pressure drops, low cost low current operation and simple maintenance. Piloted DIN logic elements outperform large piloted spool valves in leakage, flow and response time. Valve shift times are 30% of comparable piloted spool valves resulting in increased press cycle speeds.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Efficient Screw In Cartridge Valves (SICV) solenoid valves have extremely low leakage, low pressure drops, low cost low current operation and simple maintenance. Piloted DIN logic elements outperform large piloted spool valves in leakage, flow and response time. Valve shift times are 30% of comparable piloted spool valves resulting in increased press cycle speeds.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manifold System offers redundant safety feature which requires 3 solenoids to be energized before there can be any movement of the RAM in extend or retract. Failure of any single component will result in no hazardous motion of press RAM.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electro-Hydraulic Decompression with FAST ACTING 3 stage decompression offering resistance to damaging decompression pressure spikes that is far superior to hydraulic or mechanical decompression used in other presses.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,All final pressure connections use Flat Face O-Ring Hydraulic Connections to provide the most leak resistant hydraulic system. No metal to metal pressure connections and no pipe thread are used.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,PDF manual with startup instructions, troubleshooting guide, hydraulic circuit with manufacturers part number bill of material, electrical diagram and PLC program.
