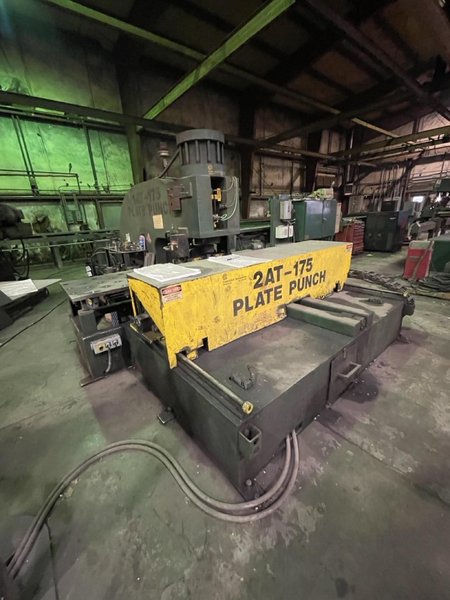

175 Ton Controlled Automation 2AT-175/CG Plate Punch, 1996
Brand
Not specified
Category
Type
Model
2AT-175/CG
Stock #
142340
Year
1996
Condition
Not specified
Location
Michigan
|
Tonnage Capacity: 175 Tons
Throat Depth: 30″
Max Plate Size: 30″ X 60″
Max Material Thickness: 1-1/2″
Max Hole Size: 2-5/16″
Max Angle Capacity: 8″ X 8″ X 1-1/8″
Min Angle Capacity: 2-1/2″ X 2-1/2″ X 1/8″
Max Punch Stroke: 2″
Material Clamping Force: 2,000 lbs
Punch Frame: 19,000 lbs
Roller Tabel: 4,400 lbs

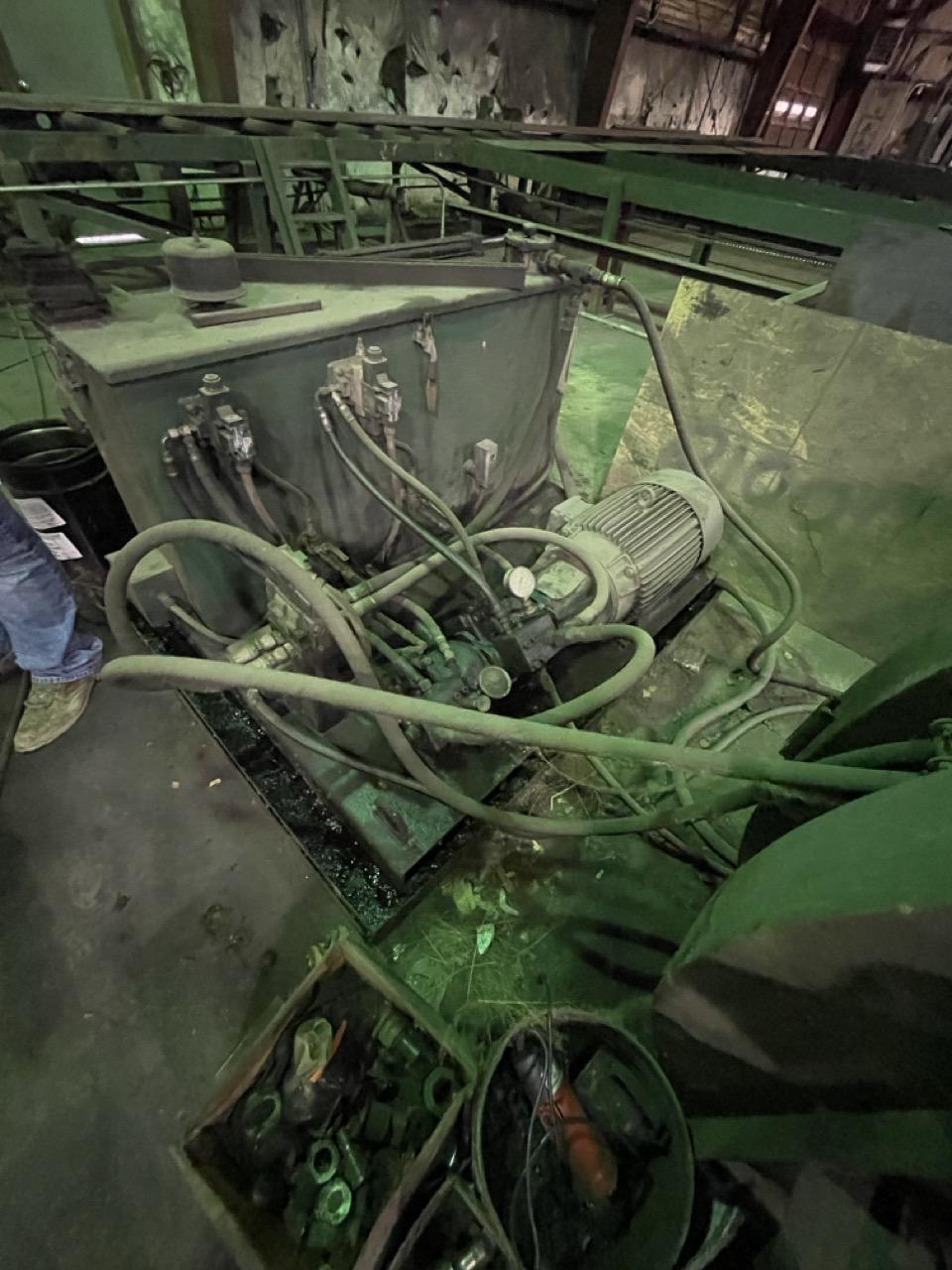

HPU: 1,300 lbs
Approx. Weight: 15,000 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Software Controls were updated in 2021(windows 10, as updated as it can be currently) All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
