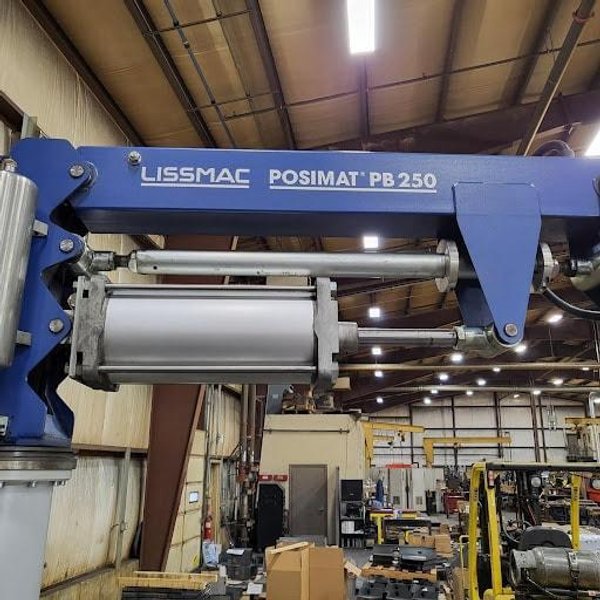

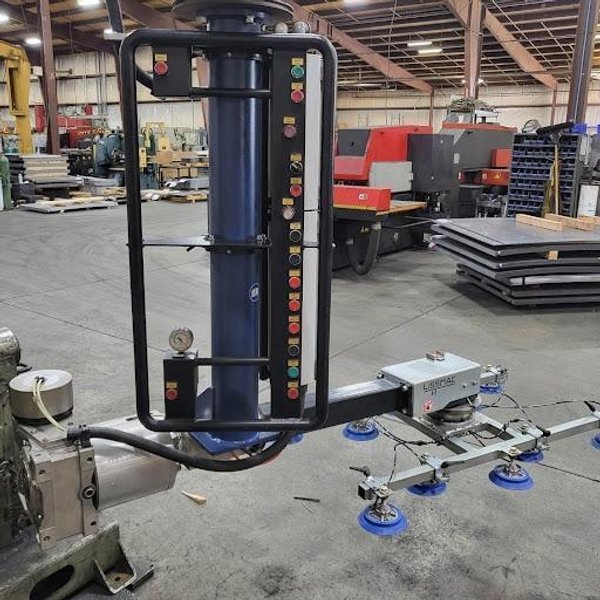

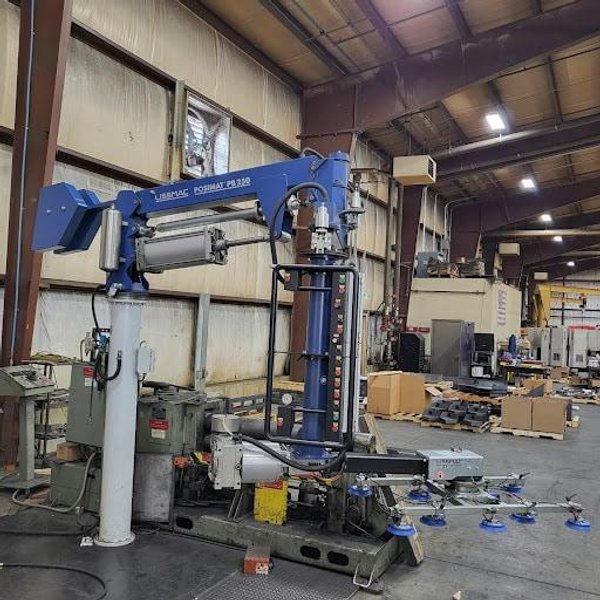

Lissmac Posimat PB 250, Manual Pneumatic Balancer

Load-Carrying Capacity Without Load Suspension Devices, Without Counterweight: 552 Lbs. Load-Carrying Capacity Without Load Suspension Devices, With Counterweight: 827 Lbs. Hoisting Height: 65" Working Area, Standard: 223" Working Area Up To Max.: 252" Standard Jib Length: 112" Jib Length Up To Max.: 126" Hoisting Arm Length: 72" Design Height Of Machine Without Pillar: 36" Design Height Ok Hoisting Device On Pillar: 150" Pillar Height: 79" Range Of Rotation, Main Axis, Hoisting Arm: Continuous Pivot Area Axis Folding Arm: 300 ° Range Of Rotation, Pivo Joint: 320 ° Jib Counterweight: 38" Max. Torque, Axis: 24.892 Ft Lb Max. Torque, Axis: 7.375 Ft Lb Max. Torque, Axis: 1.475 Ft Lb Drive: Pneumatic Hoisting Speed: 0-20 M/Min. Min. Operating Pressure: 6 Bar Air Consumption / Max. Stroke: 138 Nl Noise Level: 78 Db (A) Ambient Temperature: -15 / + 70 °c Dead Weight Without Counterweight And Pillar: 500 Kg Counterweight: 772 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
