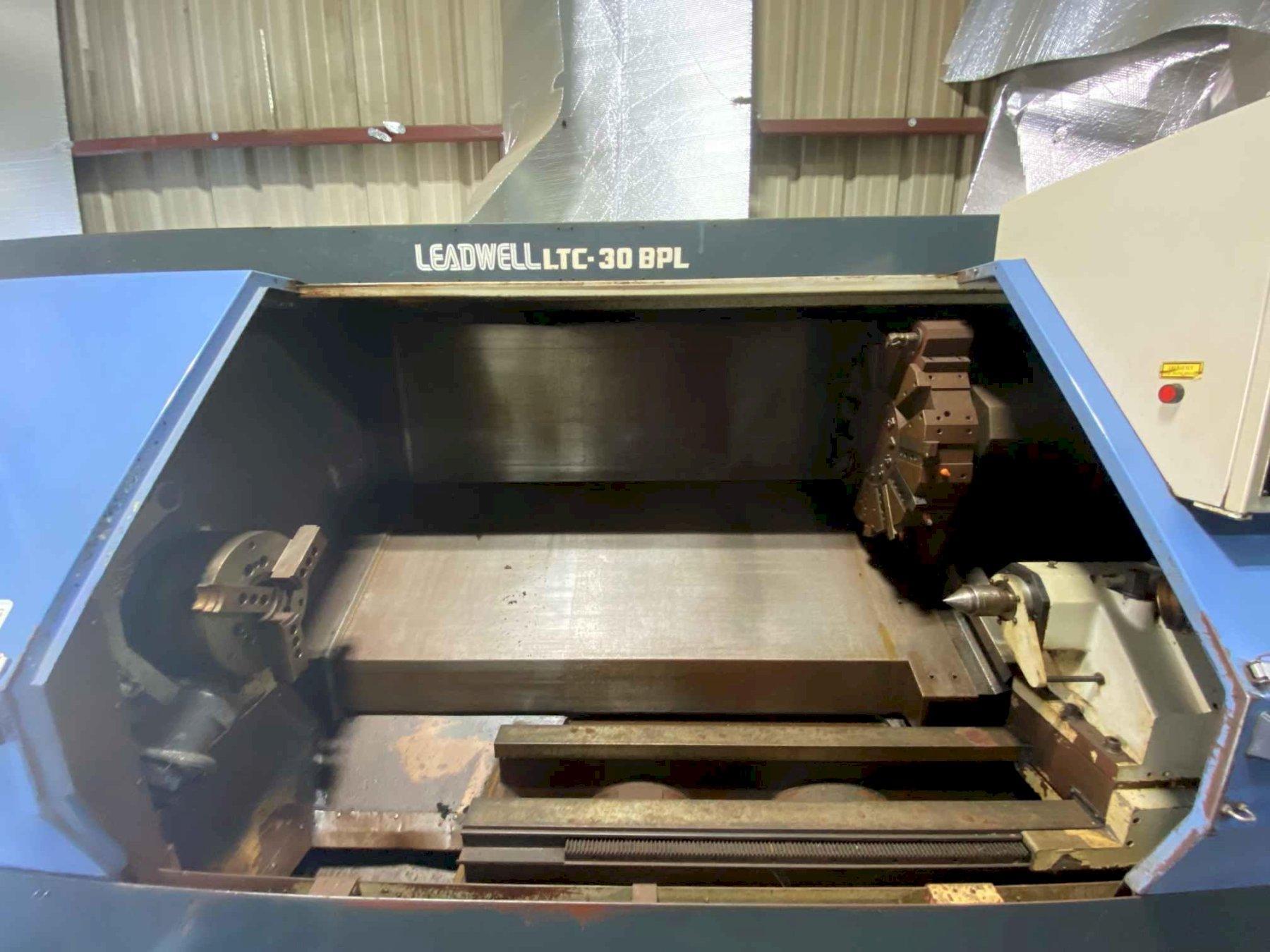

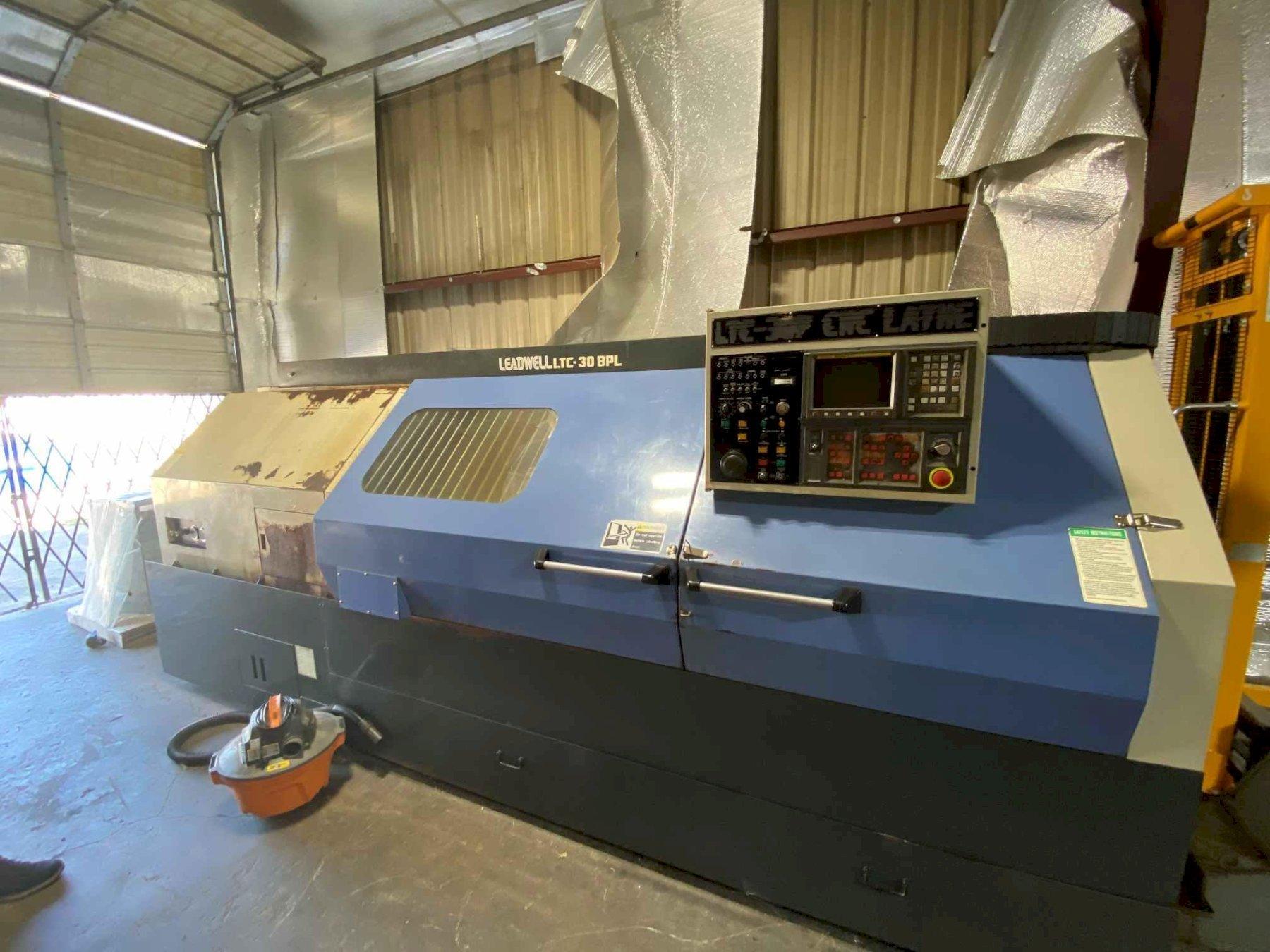

Leadwell LTC-30BPL Long Bed CNC Lathe, 1999 – Tailstock, Chip Conveyor, Tool Presetter, Fanuc OT
Brand
Category
Type
Model
LTC-30BPL
Stock #
599137
Year
1999
Condition
Not specified
Location
Not specified
|
Swing Over Bed: 25.6″
Distance Between Centers: 40.0″
Max. Machining Diameter: 18.9″
Max. Machining Length: 54″
Chuck: Hydraulic 3-Jaw 12″
X-axis Travel: 10.4″
Z-axis Travel: 60″
Spindle Speed: 2500 Rpm
Bar Capacity: 3″
Spindle Nose: A2-8
# Of Tool Positions: 12
Rapid Feed Rate: X-axis: 393 Ipm
Rapid Feed Rate: Z-axis: 472 Ipm
Tail Stock Quill Diameter: 4.33″ (5MT)
Tailstock Quill Stroke: 4.92″
Main Motor: 35 Hp

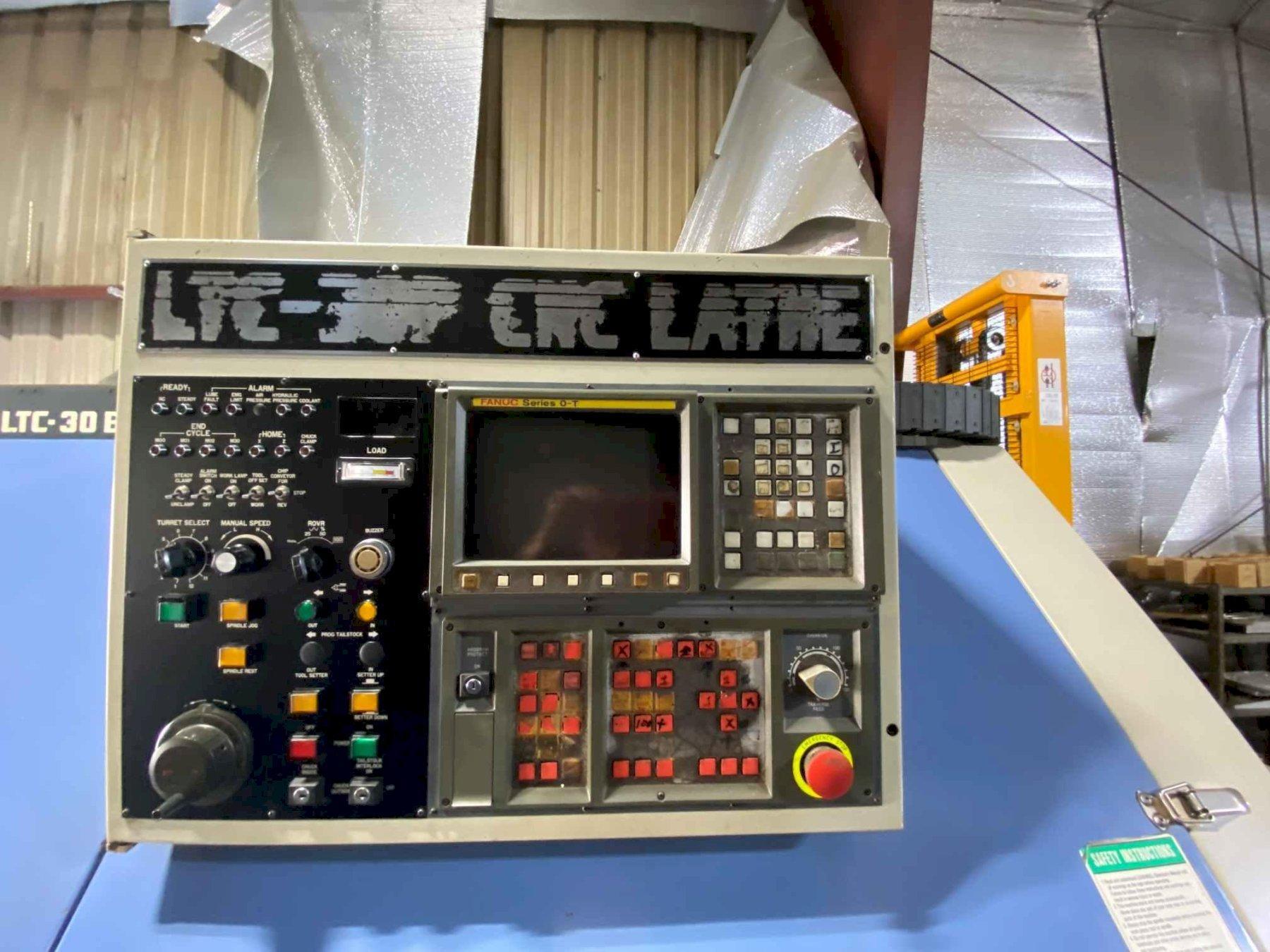

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc OT Control Tailstock Tool Setter Chip Conveyor Long Bed All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
