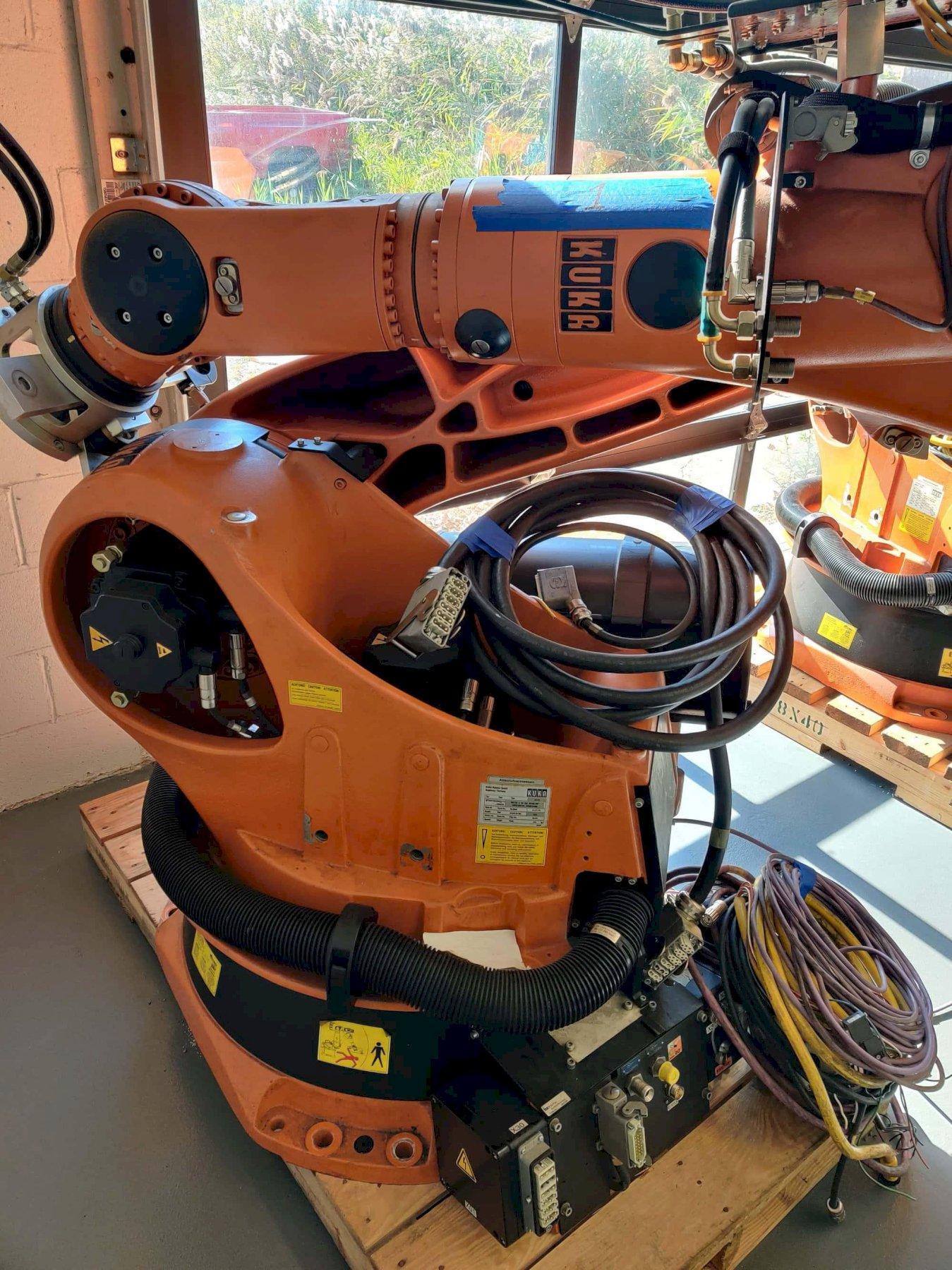

KUKA KR-150 S C2 Robot, 2004 – 6-Axis, Including Control Panel, 2 Available

Maximum Reach: 3,100 mm Rated Payload: 150 kg Suppl. Load, Arm/link Arm/Rotating Col: 50/100/300 kg Suppl. Load, Arm + Link Arm: Max. 100 kg Maximum Total Load: 550 kg Number Of Axes: 6 Mounting Position Shelf-Mounted, Floor Variant Cleanroom, Foundry Positioning repeatability: ±0.06 mm

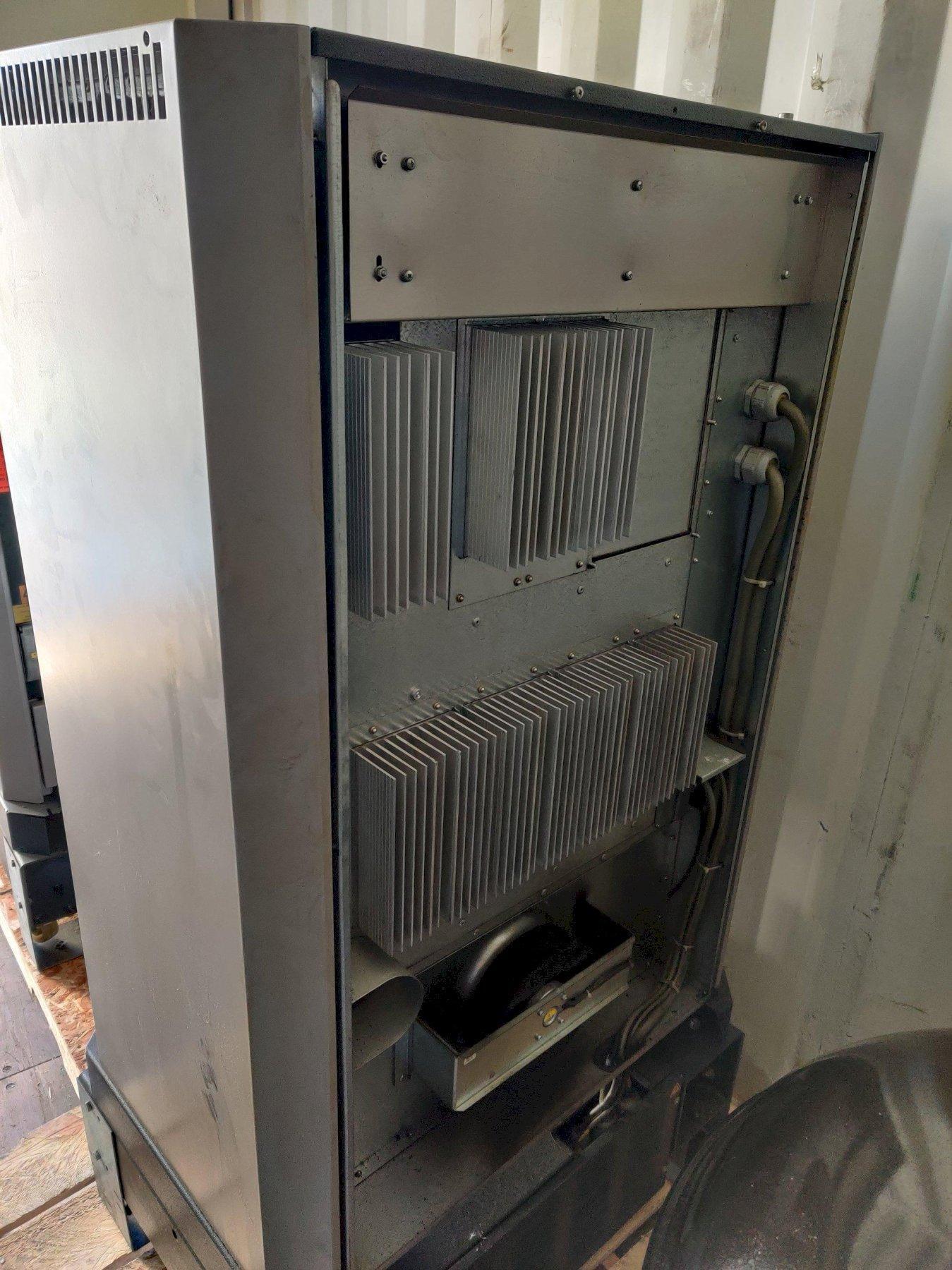

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controller: KR C2 Edition 2005 Approx Weight (Excluding Controller): 1,445 kg Temperature During Operation: +10 °C to +55 °C Protection Classification: IP 65 Robot Footprint: 1,006 mm x 1,006 mm Connection: 7.3 kVA Noise level: < 75 dB

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Axis 1 (A1): ±185° 96°/s Axis 2 (A2): +70°/–120° 96°/s Axis 3 (A3): +155°/–119° 95°/s Axis 4 (A4): ±350° 171°/s Axis 5 (A5): ±125° 171°/s Axis 6 (A6): ±350° 238°/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,2 Units Available.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
