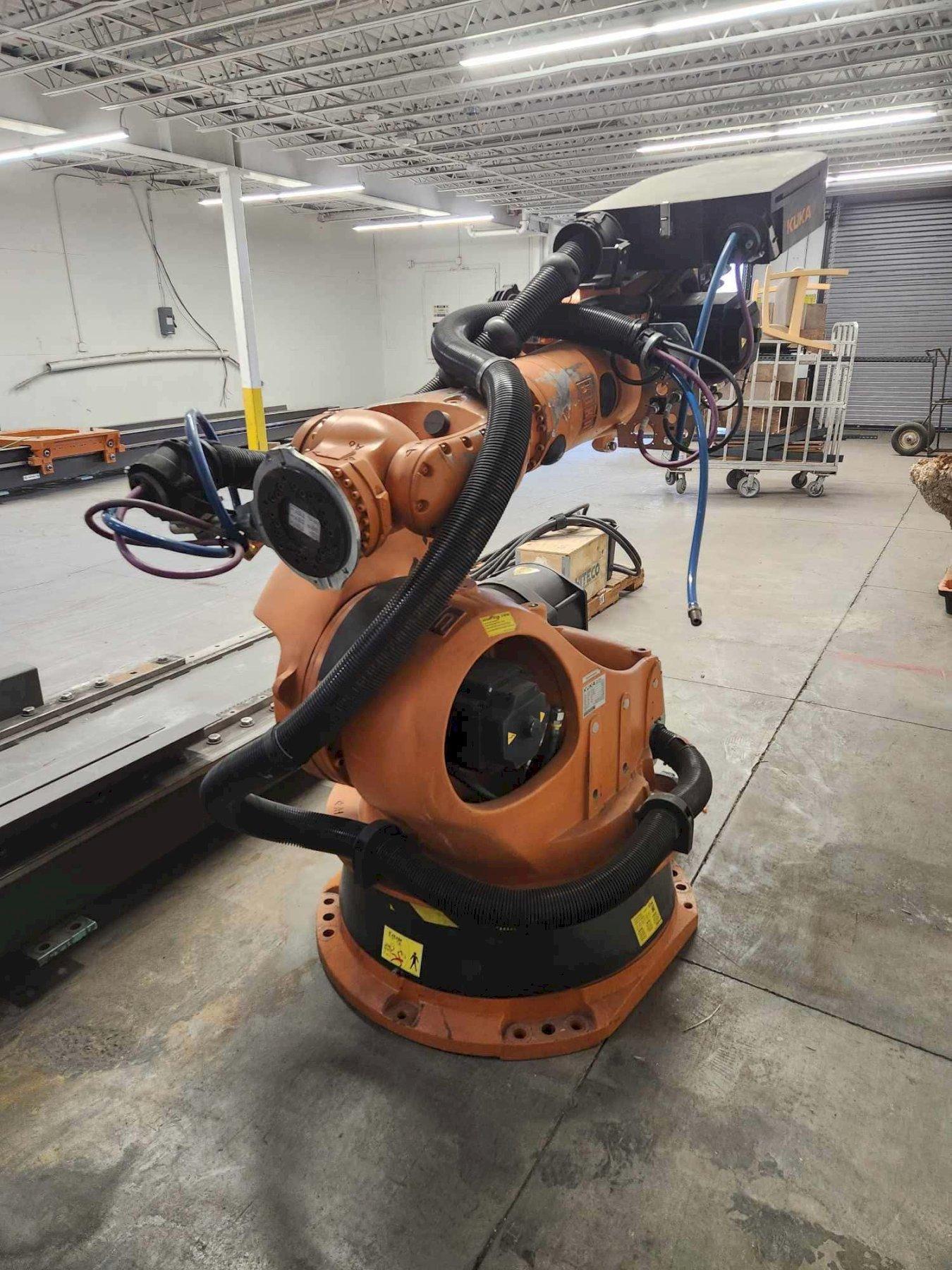

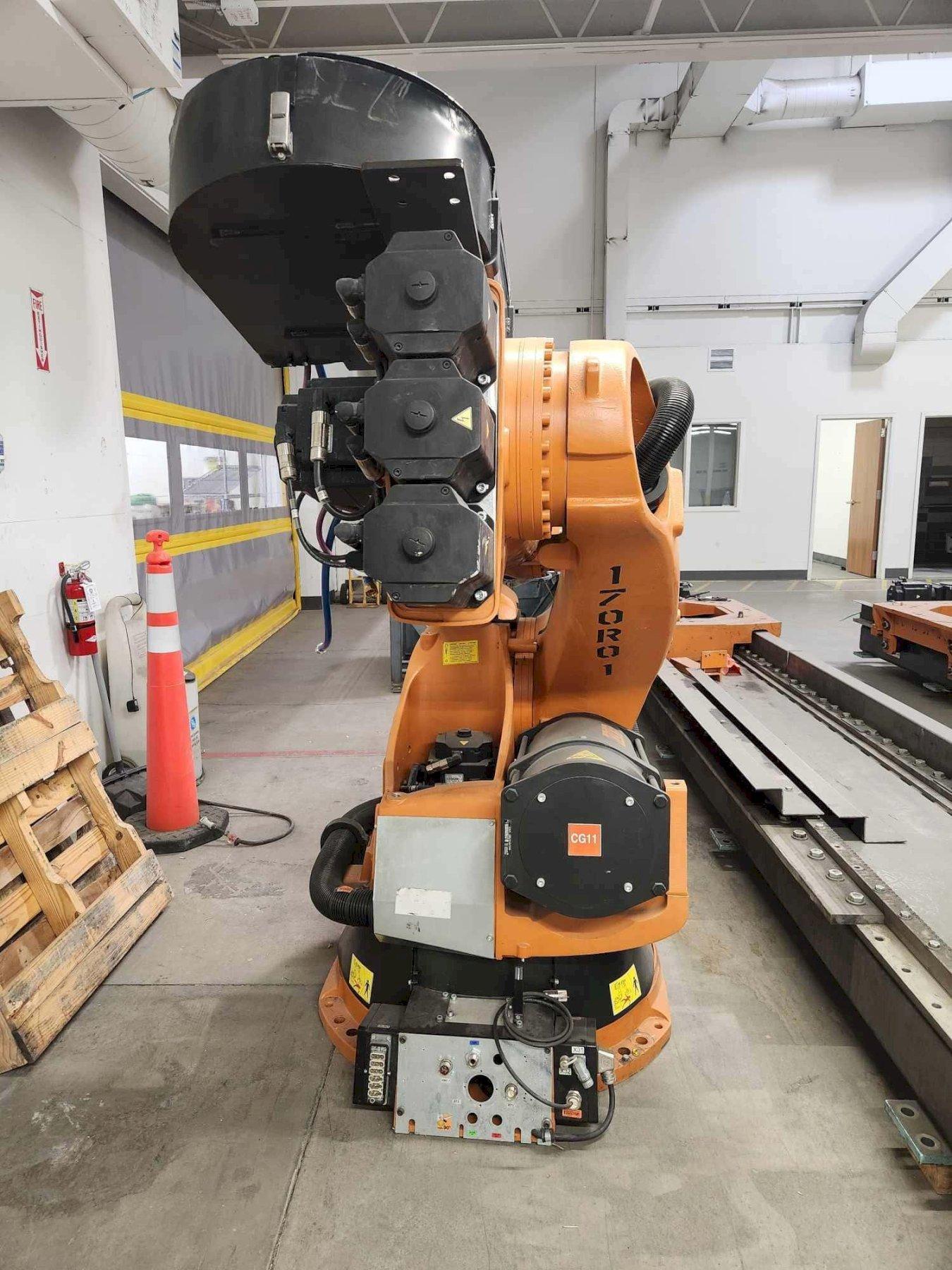

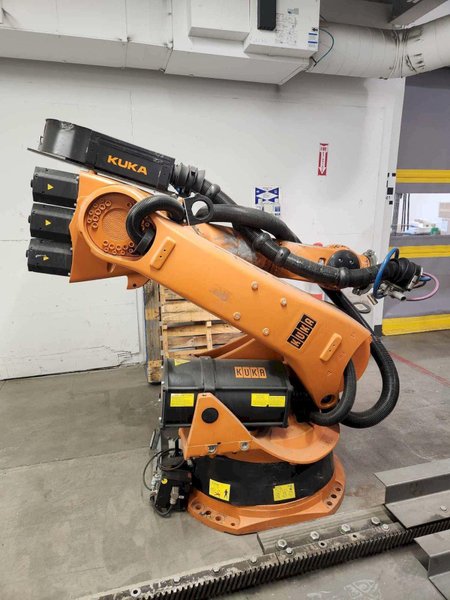

Kuka KR210 Robot With 30′ KL 1500-3 Kuka Rail System, 2010

Payload 210 kg Reach 2700 mm Repeatability 0.12 mm Number of Axes 6 Product mass 1267 kg

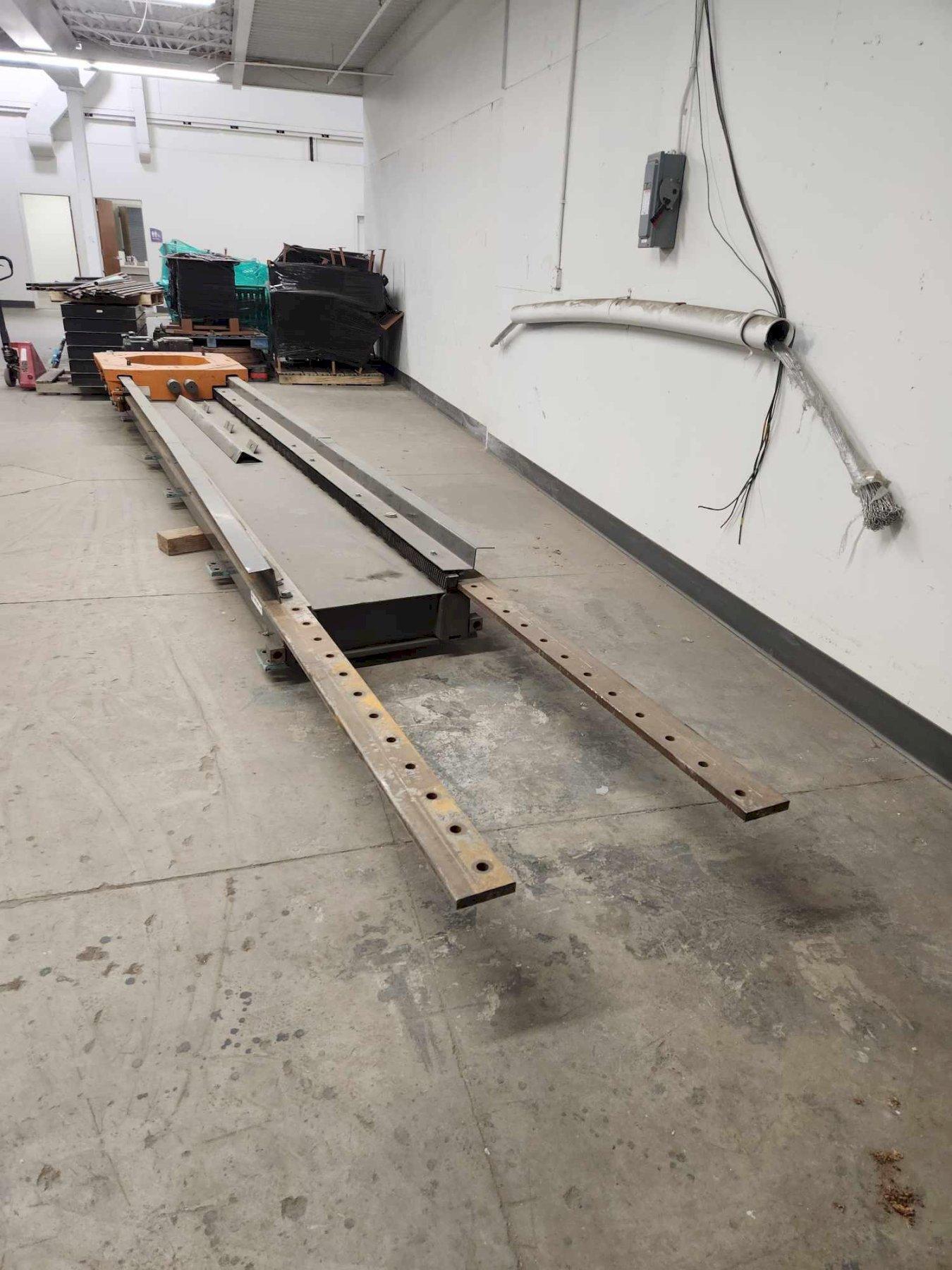

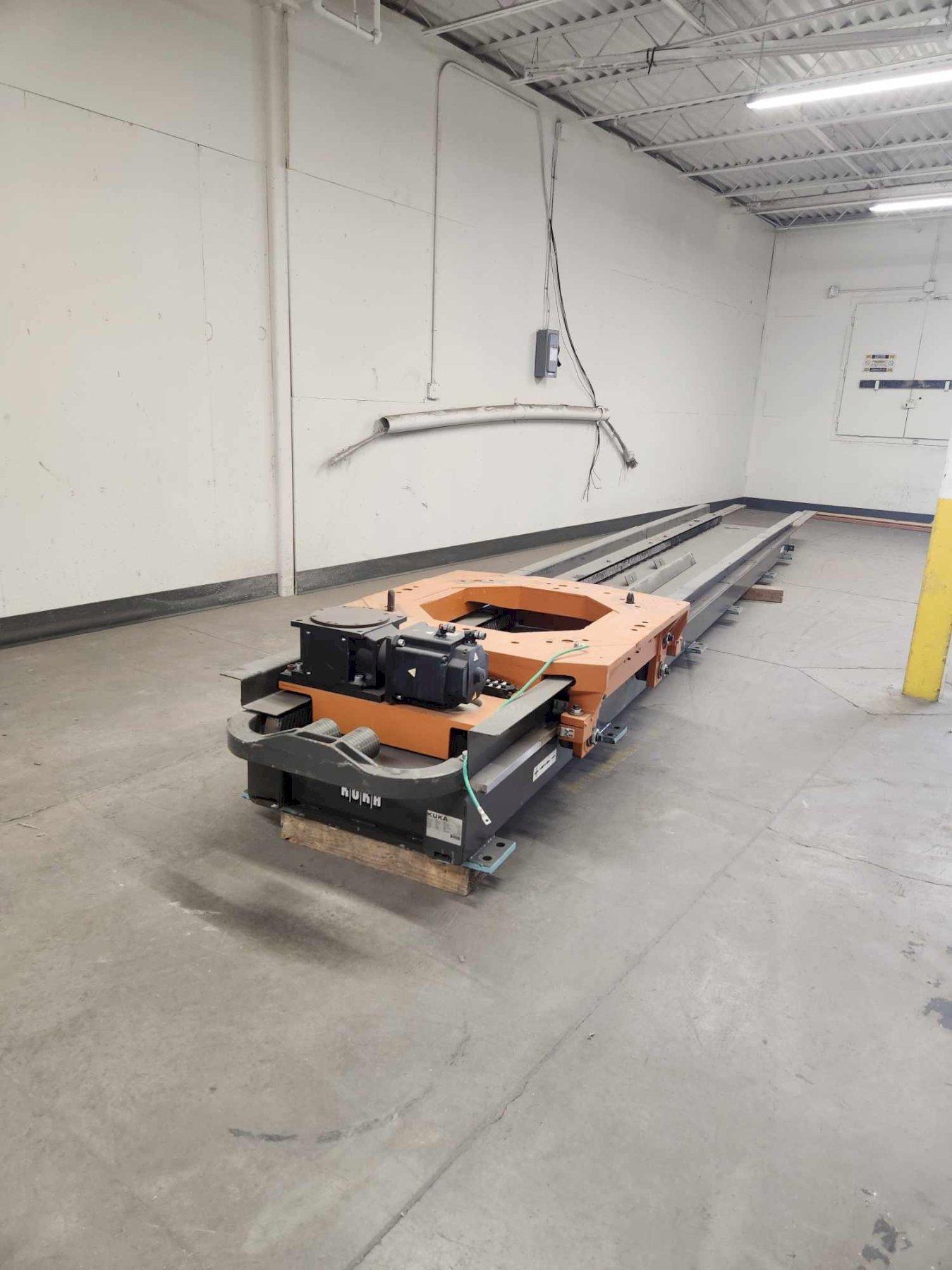

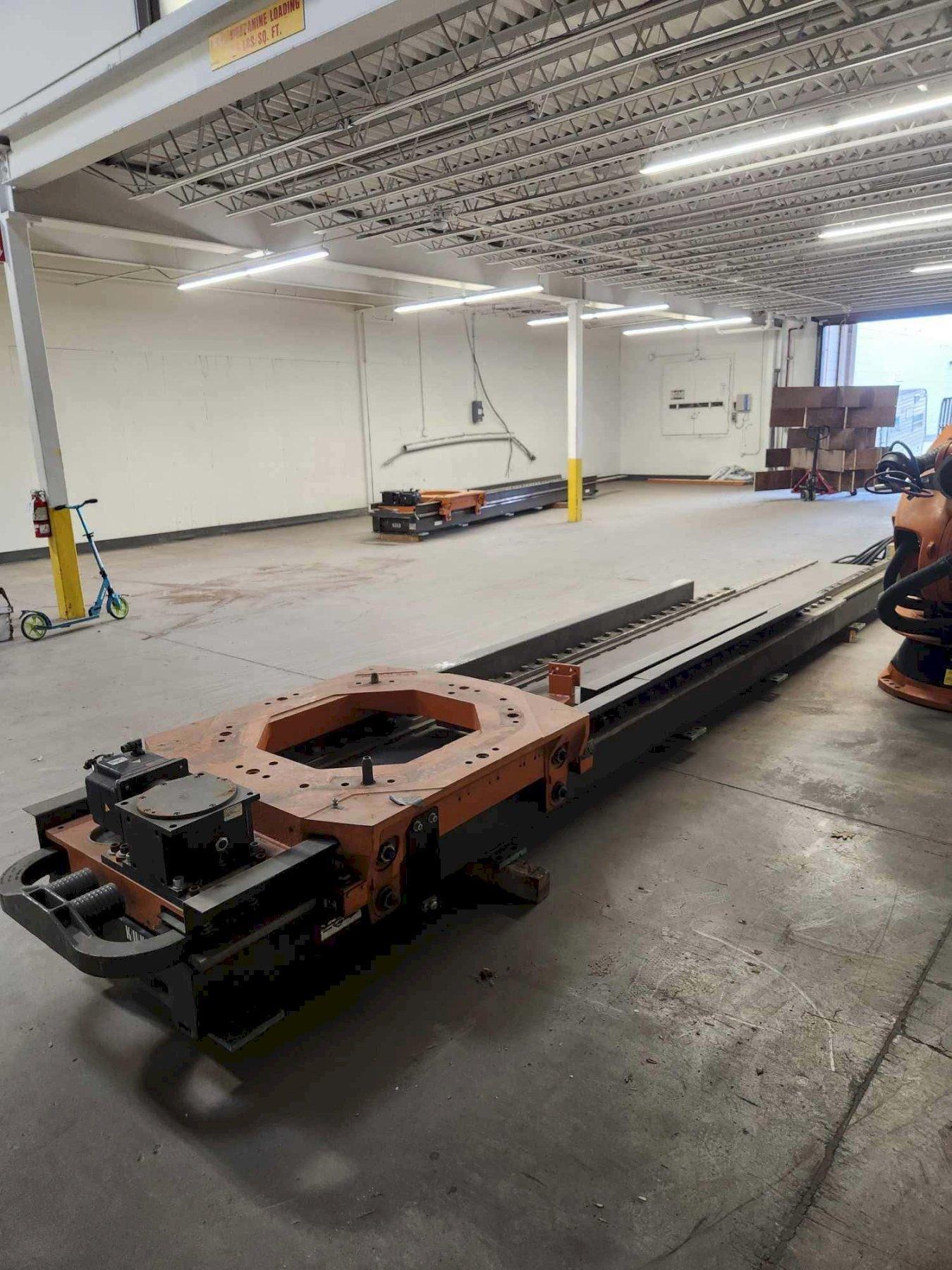

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Gantry Rated travel Min. rated travel = 1,000 mm Max. rated travel = 30,000 mm (longer rated travels available on request) Gradation of rated travel 500 mm Velocity vmax = 1.45 m/s, KL 1500-3 vmax = 1.89 m/s, KL 1500-3 T vmax = 2.35 m/s, KL 1500-3 S Repeatability (ISO 9283) ±0.02 mm Mass of carriage m = 440 kg Mass of beam assy m = 345 kg/m Payload Robot with supplementary loads, see robot Max. permissible payload 2,000 kg, KL 1500-3 3,800 kg, KL 1500-3 T 3,800 kg, KL 1500-3 S Number of chemical anchors per mounting base 6x M16, with Dynamic Set 10x M16, with Dynamic Set 4x M20, without Dynamic Set (optional) 8x M20, without Dynamic Set (optional)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
