Isel Wafer Handling Robot, Logosol Pre Aligner – 2023

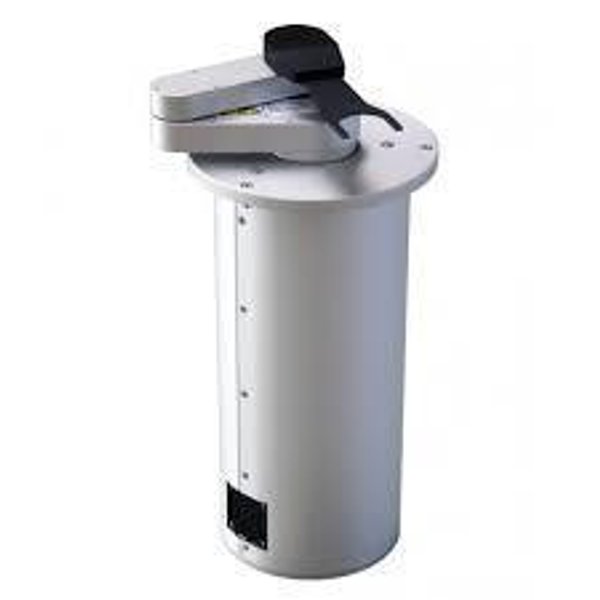

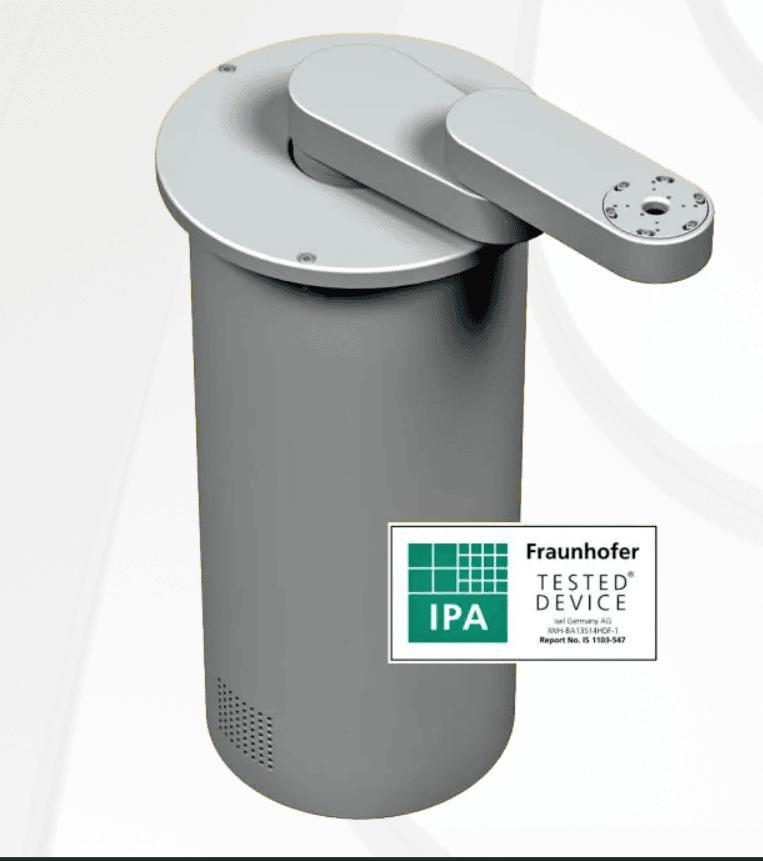

Repeatability T ±0.02° R ±0.02 mm Z ±0.02 mm Working Range: Z 10″ Radial: 10″ Theta: 500° Payload: up to 3 kg Maximum Speed: T 360°/s R 1,000 mm/s Z 450 mm/s Power supply: 115 – 230 VAC 50 – 60 Hz 500 VA (standard) 550 VA (advanced) Main Interface: RS-232 [DB9] Ethernet [RJ-45] Weight approx. 25 – 32 kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: – 2x 4mm hoses compressed air (EEF1, 5 bar) – 1x 3,2mm tube vacuum (EEF2) – I/O ́s : +24V, GND, flu signal IN3, flu detection IN4, mapper OUT5, Mapper IN5, Gripper OUT9

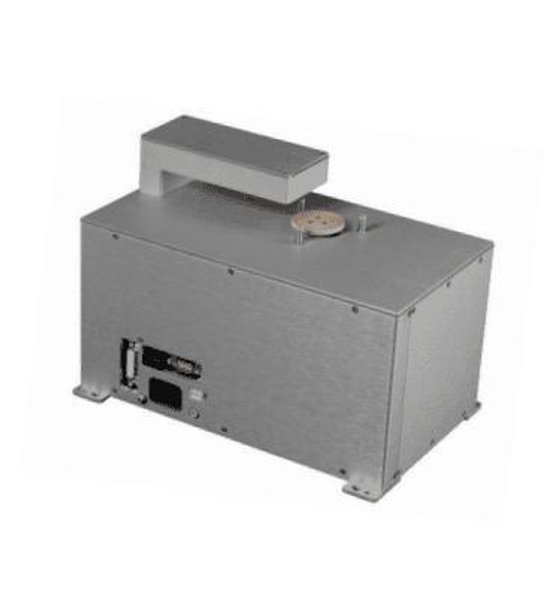

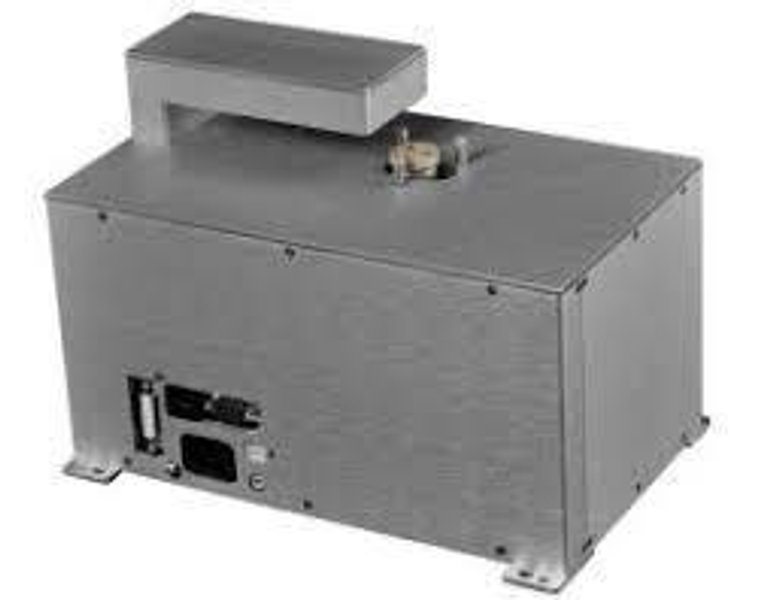

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,3 axis Prealigner, 3-8″ Vacuum, Peek chuck, 10KCPR Bottom entry LPA-38-3-V40P1-S23-B-V500P-NE Standalone

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specs: Wafer Diameter 3″, 100mm, 125mm, 150mm, 200mm Wafer Opacity Transparent, Semi-Transparent, Opaque Square Substrates Applicable Wafer Handling Vacuum Chuck and Pins Centering Accuracy ±25um on the Prealigner Chuck Angular Accuracy (3 Sigma) 10000 CPR Encoder ±0.04° on the Prealigner Chuck 24000 CPR Encoder ±0.02° on the Prealigner Chuck Servo Axes Three Host Communication RS232, Ethernet Max Initial Wafer Offset 12mm Body Dimensions (W x L x H) 173mm x 267mm x 190mm Footprint Compatibility LPA26-3, LPA58-3 LPA4EH-3, LPA5EH-3, LPA6EH-3, LPA8EH-3 Weight 5.00kg Facilities Required 100-240VAC, 50/60Hz, 48VA, or 24VDC/2A Vacuum 12″ Hg Flat/Notch Compatibility SEMI Standards Compliant Cleanliness Class 1 MTBF More than 70000 hours

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,*Standard wait time on new unit-50 weeks

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This unit is unused and available immediately
