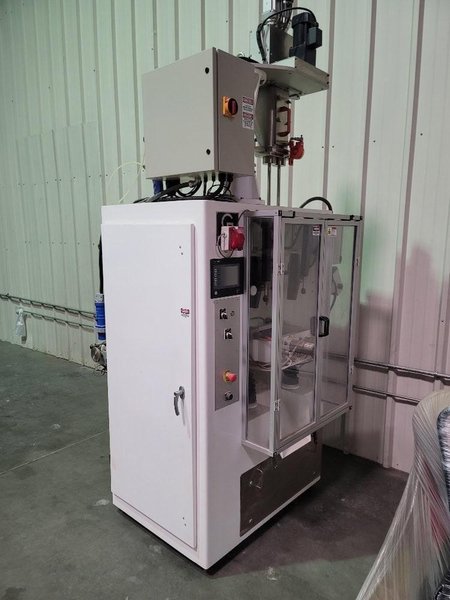

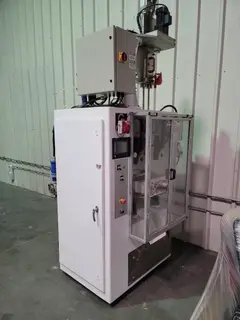

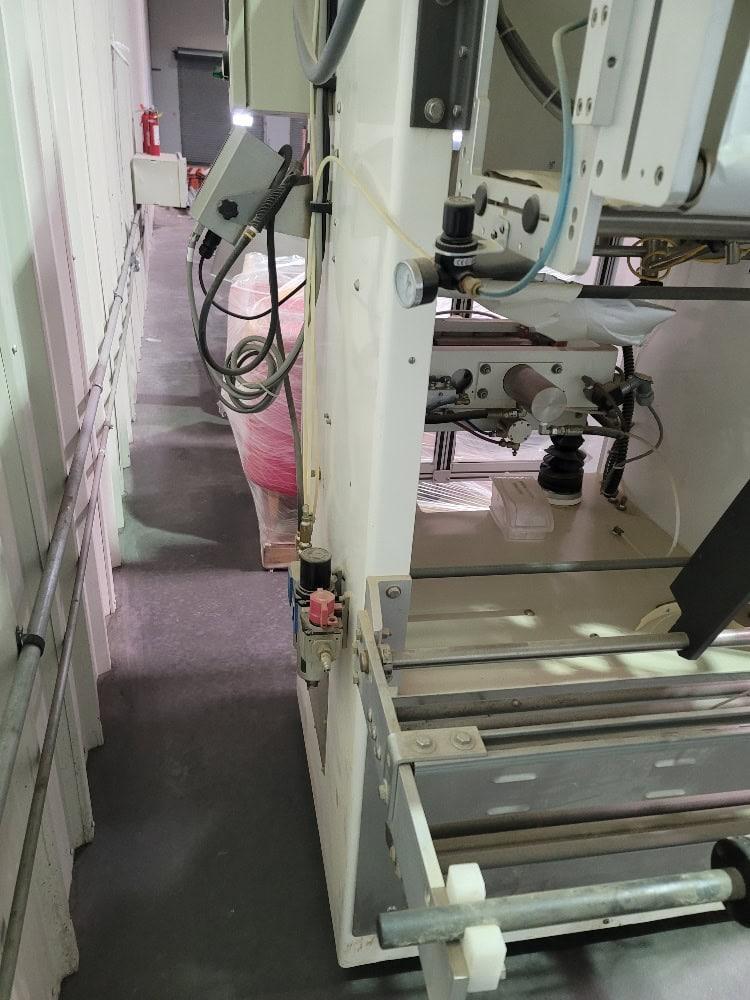

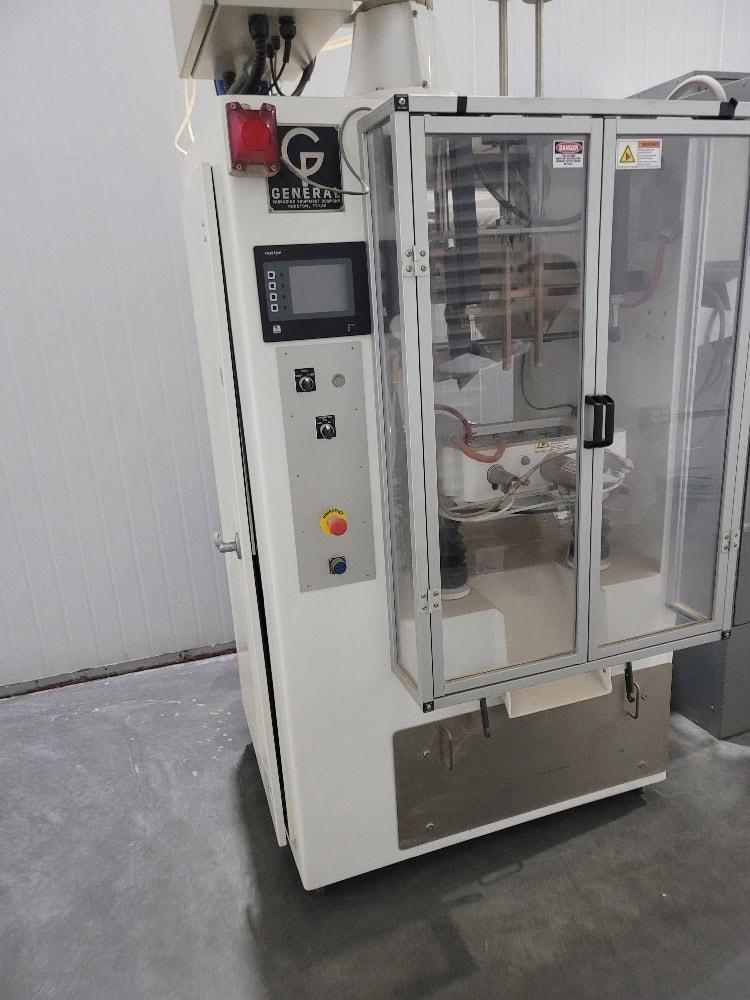

General Packaging 70A2C Double Tube Vertical Form/Fill/Seal Machine with Auger Filler, 2018
– Designed for filling stick packs
– Previously running a powdered almond product in packet sizes .25 – .5 oz

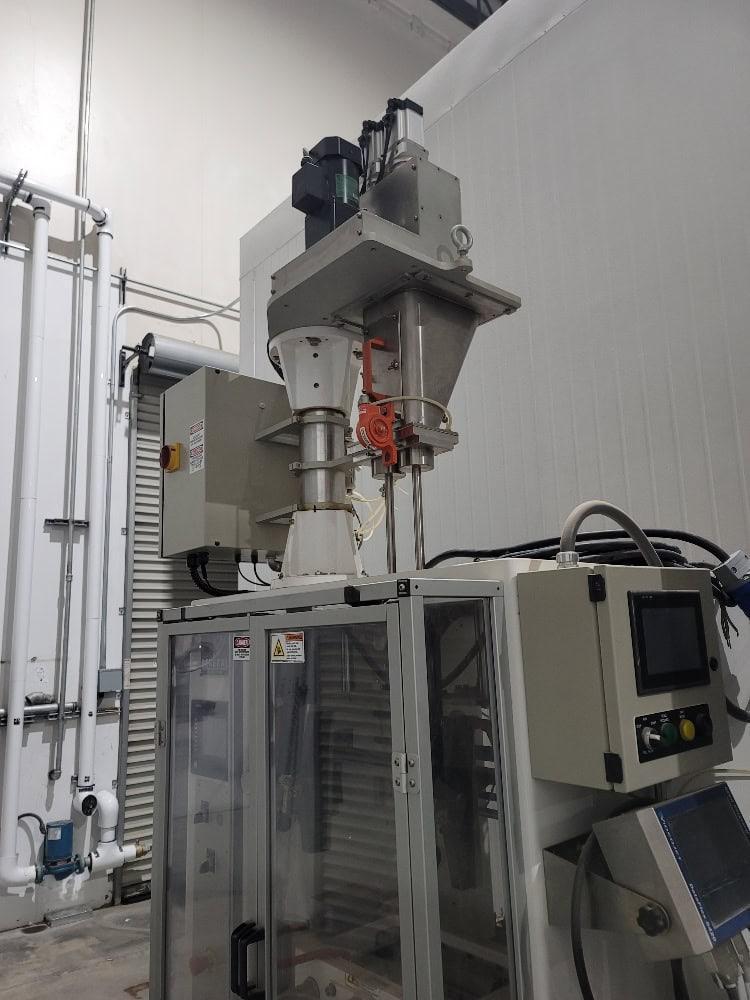

– Auger system for non-free flowing products
– 7″ heat sealable lamination
– Filling speed: 100 – 120 BPM

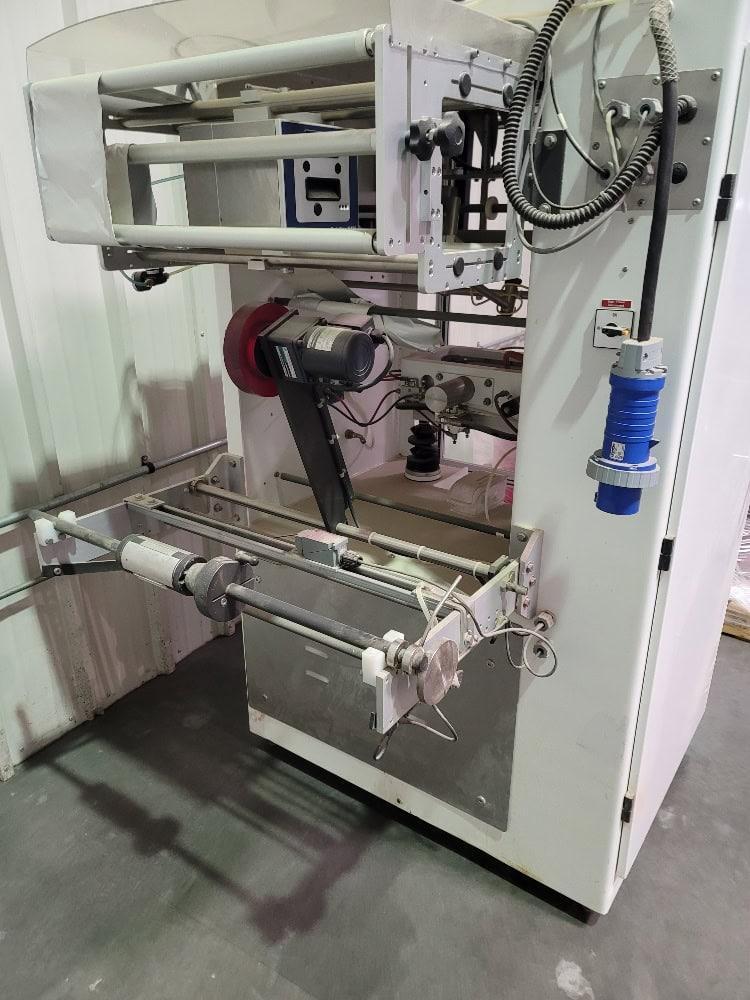

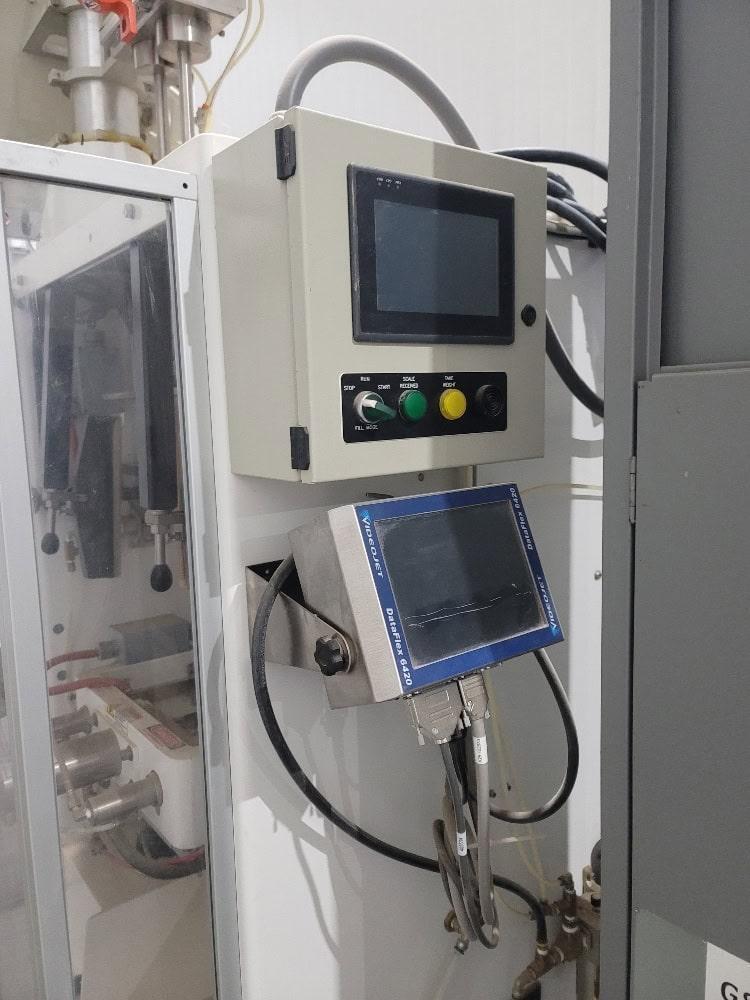

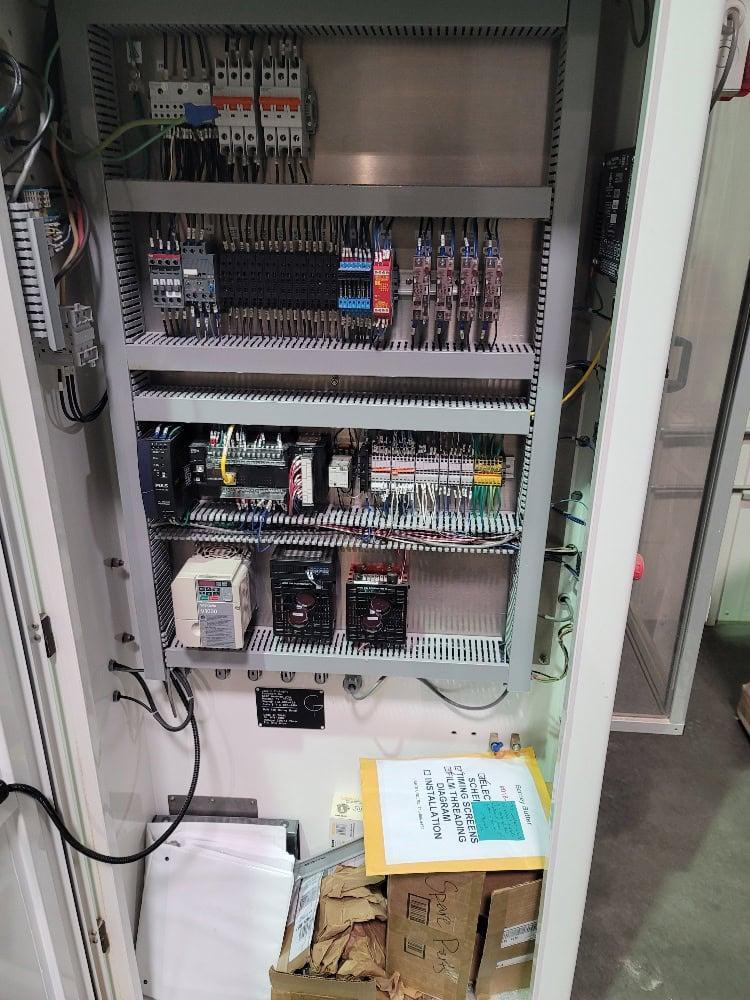

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine equipped with: – Auger system for non-free flowing products. Twin Servo Auger filler including twin electro servo amplifiers with application specific software; LCD operator interface with 4 lines X 20 characters. – Controls mounted in a NEMA 12 enclosure to protect against dust, dirt, corrosive liquids, oil and lubricants. – Hopper level control for infeed device to resupply the hopper within a preset period. Unit will automatically shut down if infeed fails to resupply hopper. – All product contact parts are stainless steel or food grade plastic. – Heavy duty cabinet constructed of 1/4″ and 1/2″ thick steel plate. Cabinet and castings coated with an off-white color baked on food grade epoxy paint as specified by General Packaging Equipment Company. – Self-contained hydraulic system includes 7.5 gallon per minute pump with hydraulic pressure gauge, driven by a 2 HP totally enclosed, fan cooled motor, and a 15-gallon hydraulic fluid reservoir built into cabinet base as specified by General Packaging Equipment Company. – Powered film un-wind and tension control system with swing-away locking motor mount, throttle bar with proximity sensor, quick core change with air chuck. Roll diameter – 15” OD with 3″ ID core. Machine drive system with end seal and cutoff assembly as specified by General Packaging Equipment Company. – Vertical motion adjustment achieved by a walking beam driven by an adjustable bell crank to vary stroke length. Bell crank driven by a heavy-duty Cone Drive 30:1 speed reducer as specified by General Packaging Equipment Company. – Speed reducer with variable speed, controlled by solid state frequency inverter. – Heat sealing system with release coated endseals. Backseal and endseals controlled by PLC temperature control module with thermocouple sensing as specified by General Packaging Equipment Company. Touch screen indication of set and actual temperatures. – Air operated empty bag picker / bag deflators. – Videojet DataFlex 6320 Thermal Printer 53mm (2.0”) wide x 75mm (2.95”) including: Ribbon capacity to 1200 M, variable fonts, text fields, date/time formats. – Touch screen interface with simple message setup and changeover, WYSIWYG (what you see is what you get) print preview, security features to prevent unauthorized operation, USB Port, Software uploads / downloads for images. – Electrical panel and wiring including IEC motor starters. – Electrical panel door with safety lock. Made according to NFPA, NEC 2011, Article 409. Lockout /Tagout switch per 29 CFR 1910.147. – Omron Programmable Logic Controller (PLC) for operation of machine functions with color display touch screen for menu selection and data entry. Menu screens include machine status, filler control, function on/off, fault indications, program storage for 25 package specifications as specified by General Packaging Equipment Company. – Shaft protection bellows for exposed vertical shafts. Bag clamp to prevent seal contamination from late falling product as specified by General Packaging Equipment Company. – Six-foot take-away conveyor with motorized head pulley, belt take-up pulley and rough top belt. – Solid state photoelectric registration system with front panel print positioning adjustment. All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
